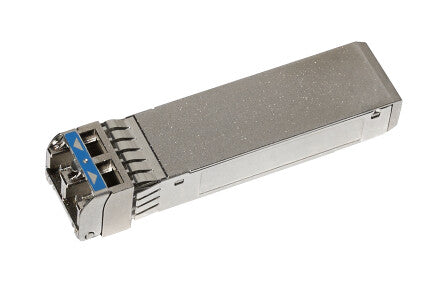

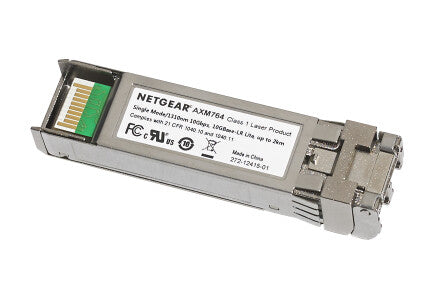

NETGEAR AXM764 network transceiver module Fiber optic 10000 Mbit/s SFP+

NETGEAR AXM764 network transceiver module Fiber optic 10000 Mbit/s SFP+

NETGEAR AXM764. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Compatible products: NETGEAR M5300, M6100, M7100, M7300. Quantity per pack: 1 pc(s)

AXM764 is NETGEAR 10GBASE-LR “Lite” SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for standard 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.

5 year

  • SKU:606449108767
  • GTIN/EAN:606449108767
  • MPN:AXM764-10000S

You need to login to view the price.

View full details

NETGEAR AXM764. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Compatible products: NETGEAR M5300, M6100, M7100, M7300. Quantity per pack: 1 pc(s)

AXM764 is NETGEAR 10GBASE-LR “Lite” SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for standard 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.

5 year

Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
LR
Maximum transfer distance
2000 m
Cabling technology
10GBASE-LR
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Auto MDI/MDI-X
Yes
Features
Hot-Plug support
Yes
Compatible products
NETGEAR M5300, M6100, M7100, M7300
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 85%
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
85369010
