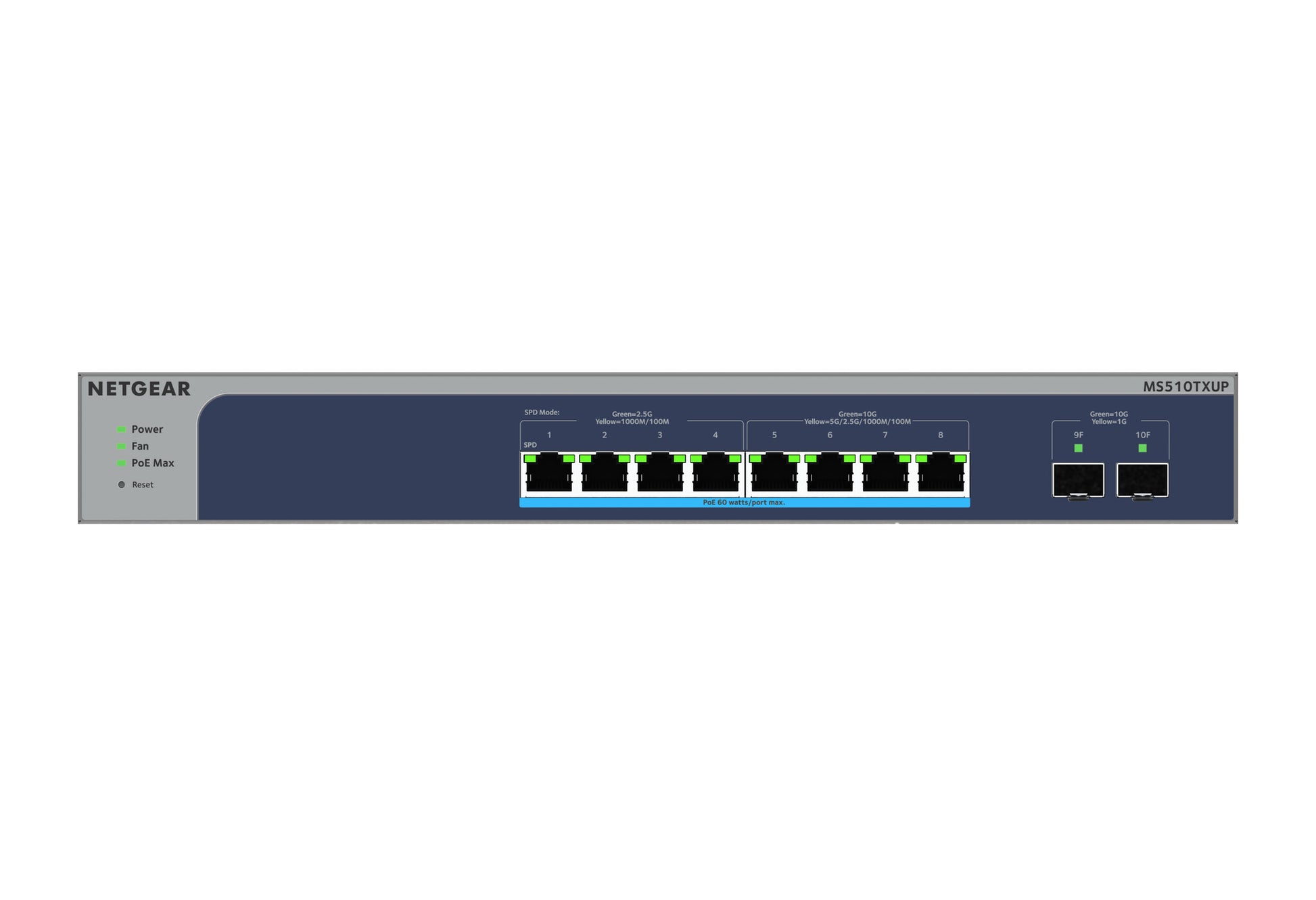

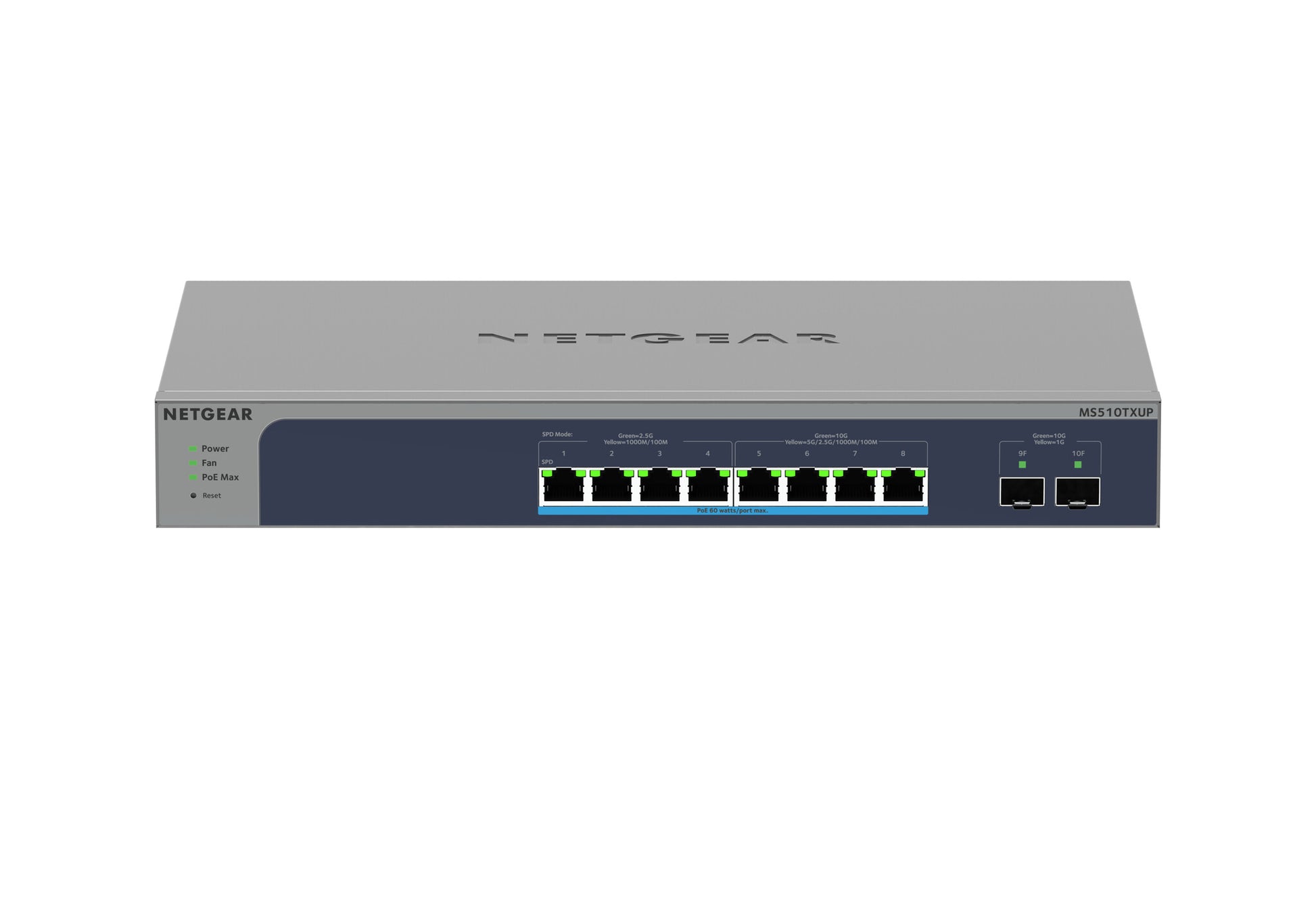

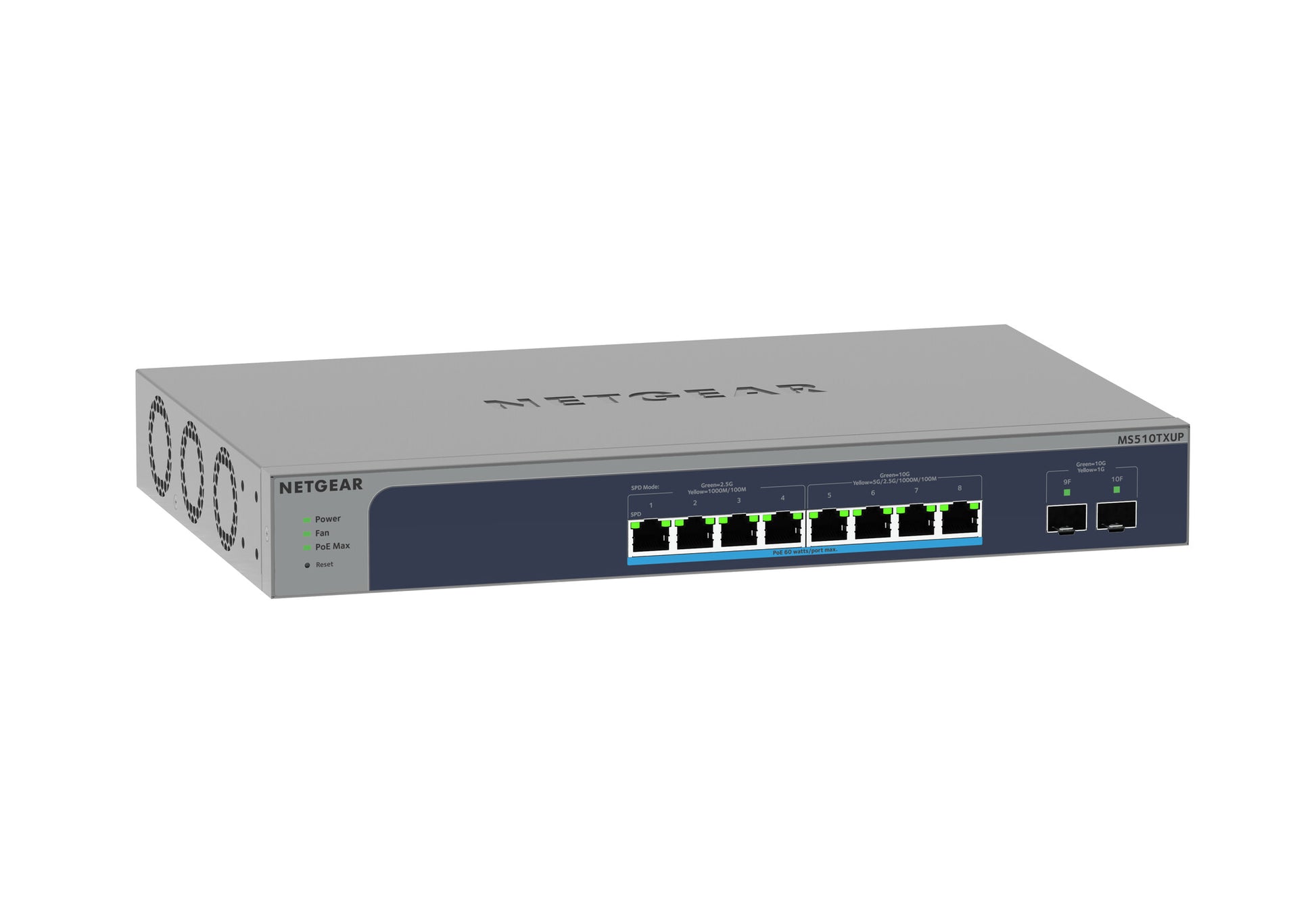

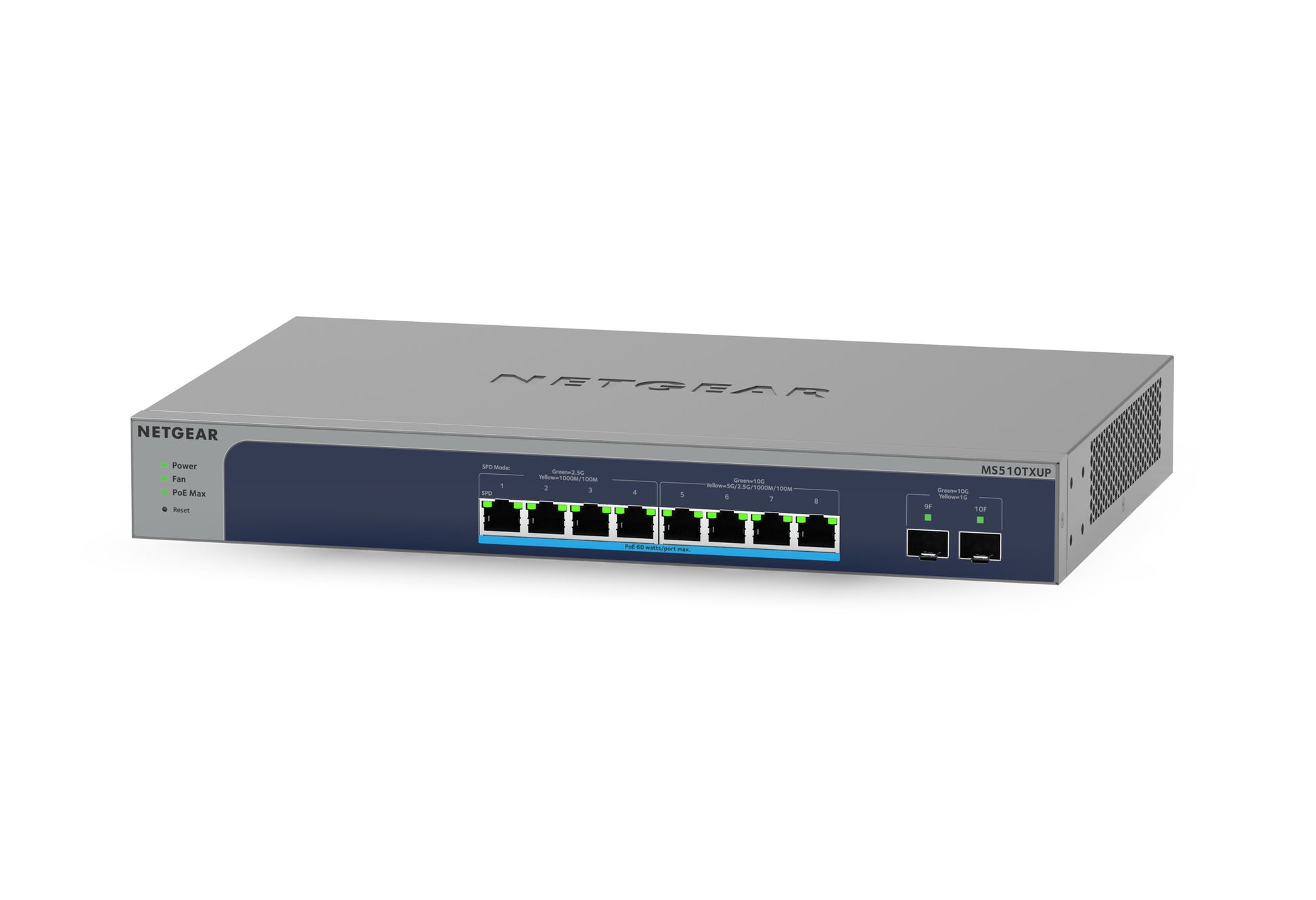

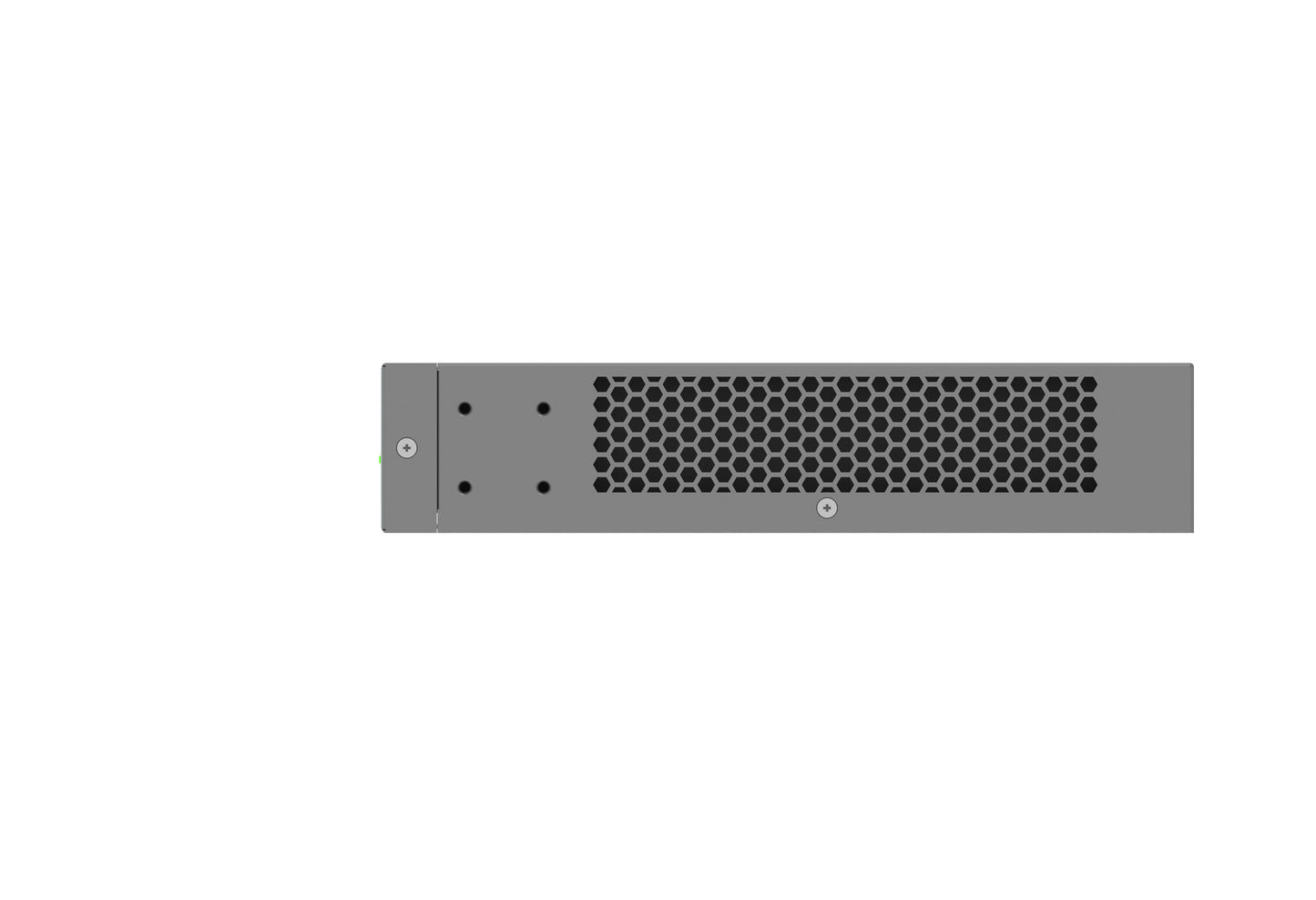

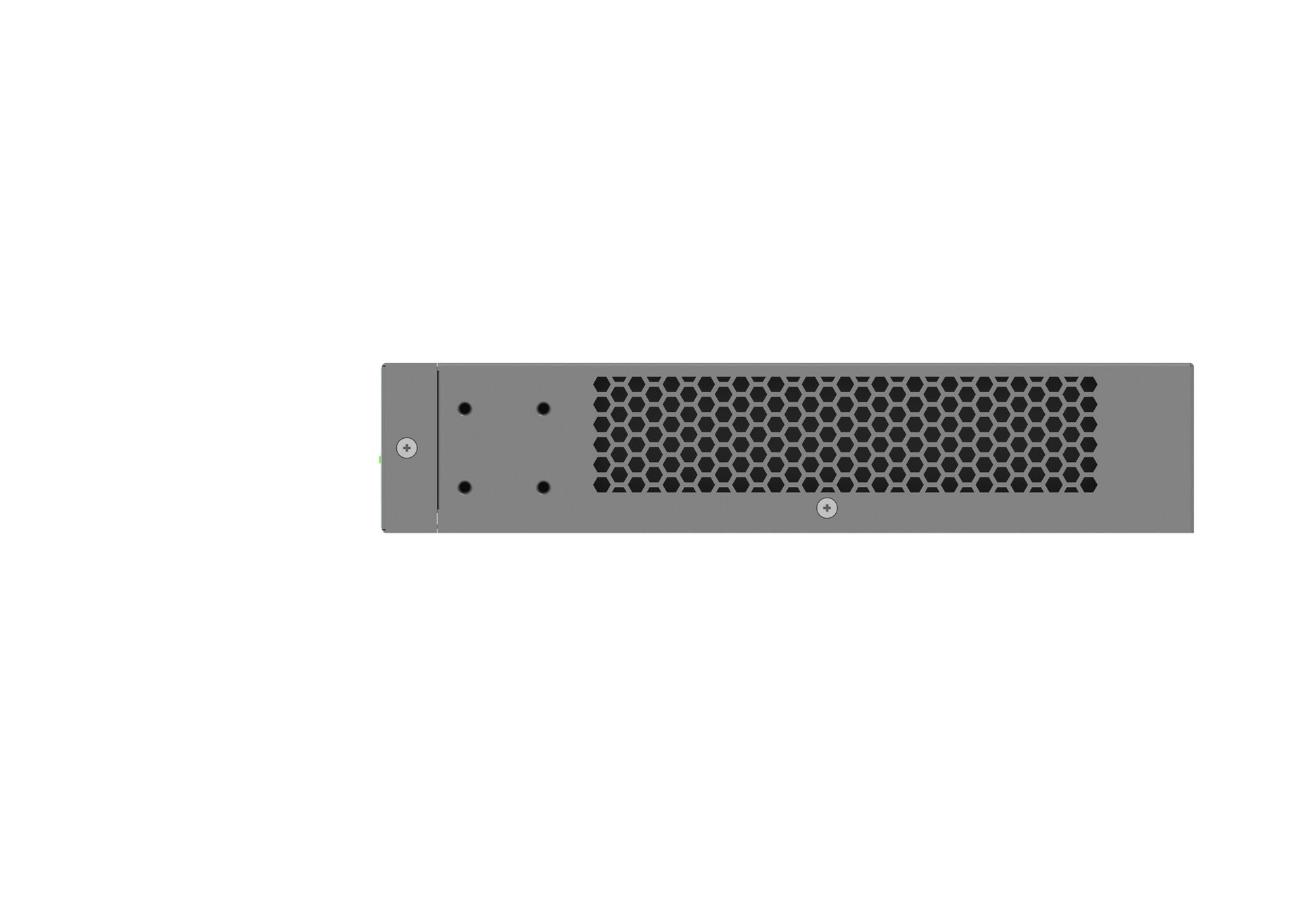

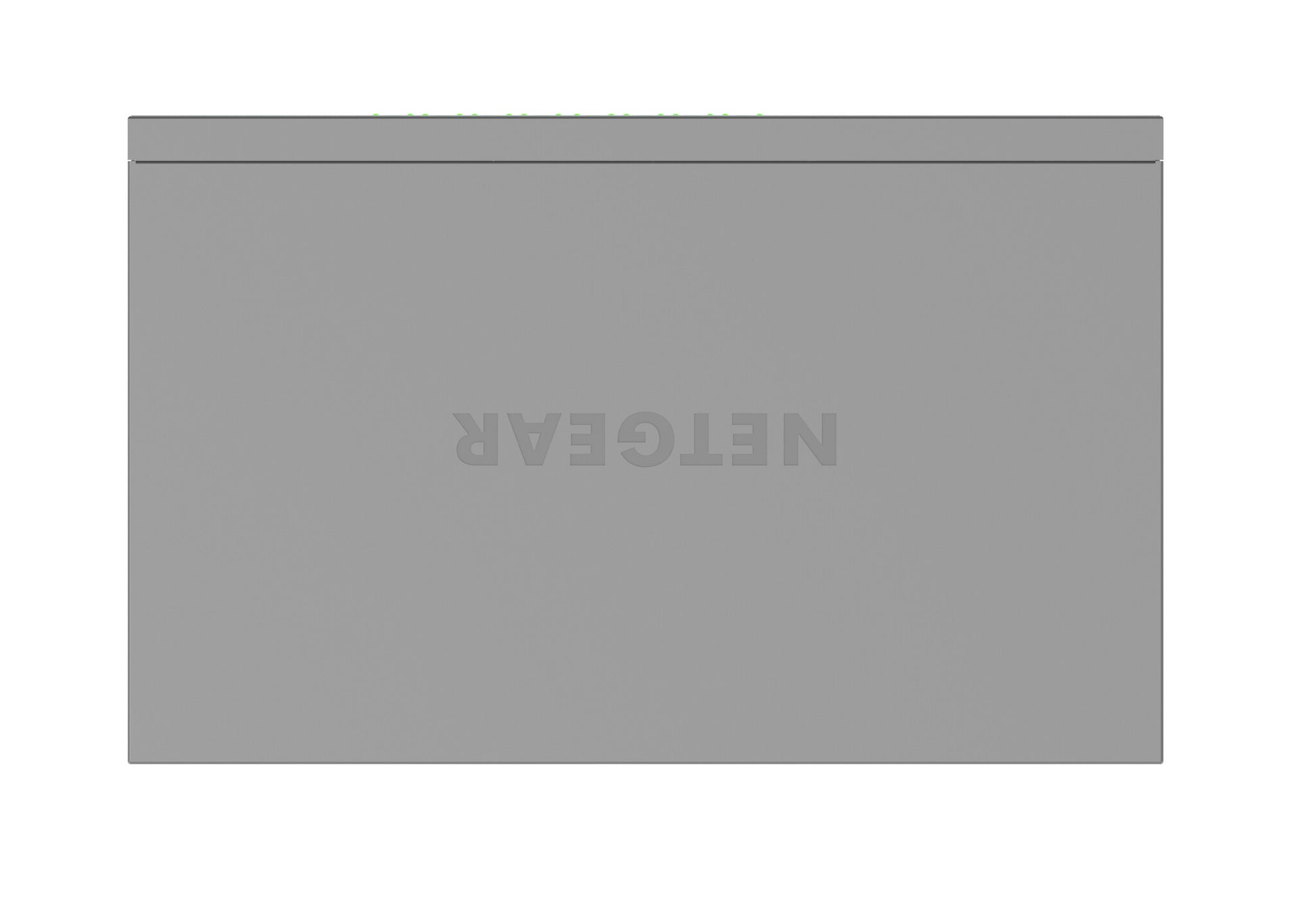

Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)

Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP)

Managed, L2+, 4x 1G/2.5G, 4x 1G/2.5G/5G/10G, 2x SFP+, 8 PoE++, 330.2 x 206.3 x 43.2 mm

  • Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 Access Point connectivity, IP surveillance and mobility
  • Versatile PoE support with PoE+ and Ultra60 PoE++ for today’s and tomorrow’s PoE needs
  • Easy-to-use web browser-based management GUI with configurable L2/L2+ network features like VLANs and QoS
  • 10G speed on regular ports and uplink connectivity to core network
  • Includes 1-year of Insight Premium or Pro subscription
  • Managed by NETGEAR Insight - ideal with other NETGEAR Insight managed devices
  • Provides an industry-leading Limited Lifetime warranty at no extra cost with product registration
  • SKU:606449152395
  • GTIN/EAN:606449152395
  • MPN:MS510TXUP-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP). Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port).
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Uninterrupted PoE and advanced per port PoE controls.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.

Limited Lifetime

Management features
System event log
Yes
Web-based management
Yes
Cloud-managed
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+
Switch type
Managed
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity
8
Network
Number of VLANs
256
VLAN support
Yes
Broadcast storm control
Yes
Port mirroring
Yes
10G support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Data transmission
Packet buffer memory
2 MB
Jumbo frames
10000
Jumbo frames support
Yes
Number of queues
8
Switching capacity
140 Gbit/s
MAC address table
32000 entries
Security
Password protection
Yes
Queue scheduling algorithms
WRR+SP
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCPv6 snooping
Multicast features
Number of multicast groups filtered
256
Multicast support
Yes
Design

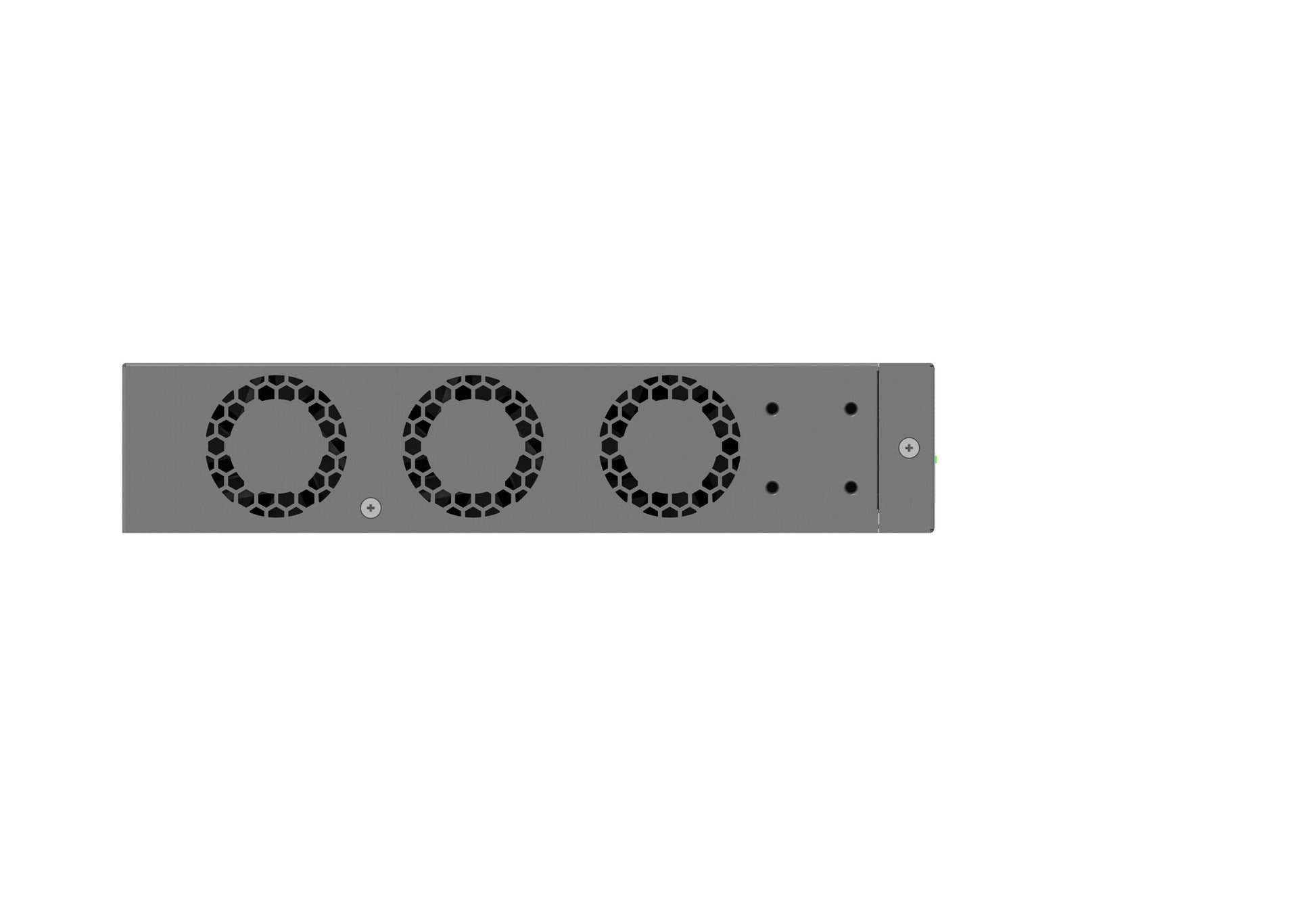

Number of fans
3 fan(s)
LED indicators
Activity, Fan fail, Link, PoE, Power, Speed
Product colour
Grey
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
1059519 h
Firmware upgradeable
Yes
Noise level
33 dB
Flash memory
64 MB
Internal memory
256 MB
Processor frequency
1000 MHz
Built-in processor
Yes

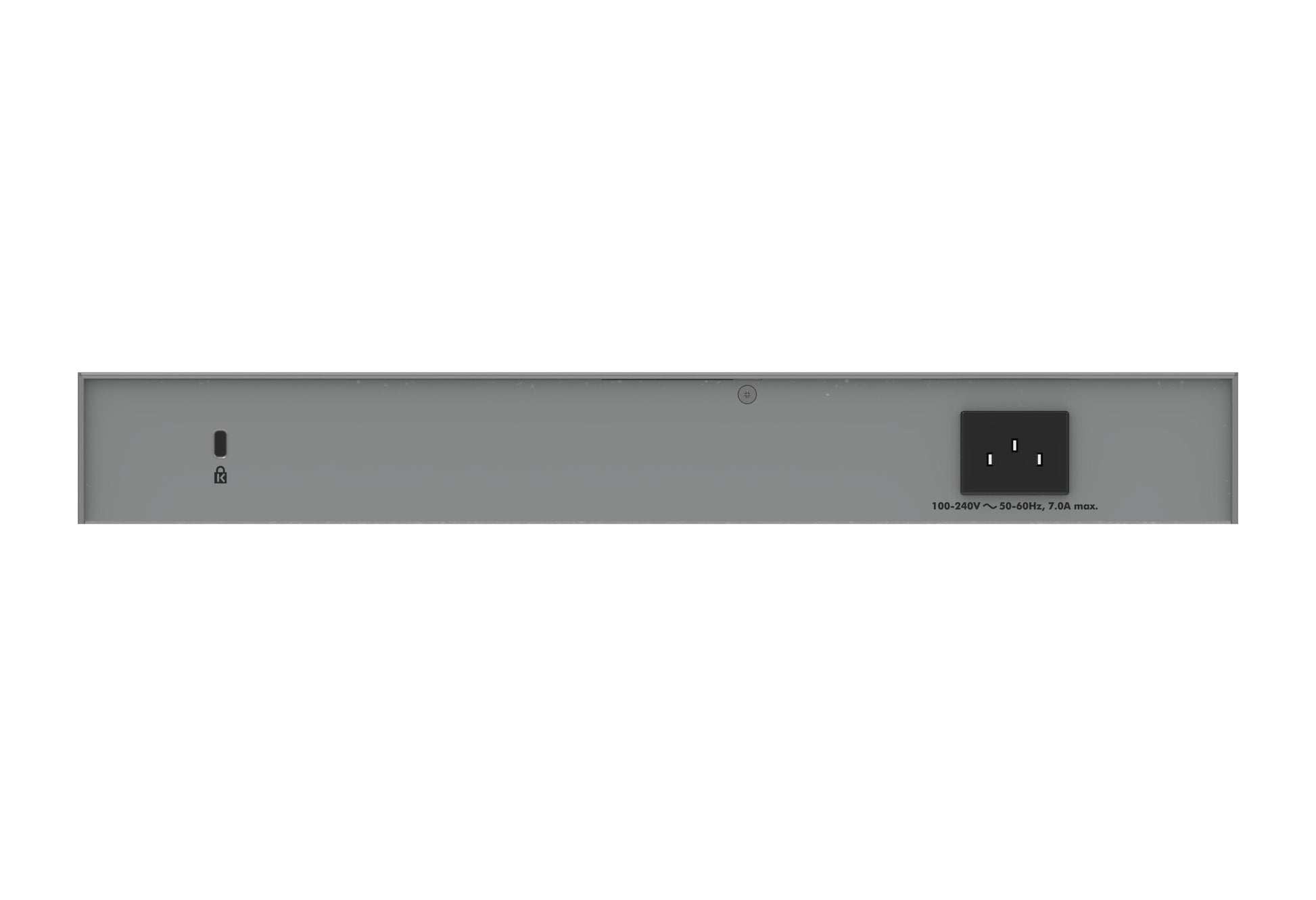

Power
Power consumption (max)
380 W
Power supply included
Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
295 W
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Heat dissipation
1294.5888 BTU/h
Non-operating altitude
0 - 3000 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
2.51 kg
Height
43 mm
Depth
206 mm
Width
330 mm
Packaging content
User guide
Yes
Cables included
AC
Packaging data
Rack rails
Yes
Logistics data
Harmonized System (HS) code
85176990
