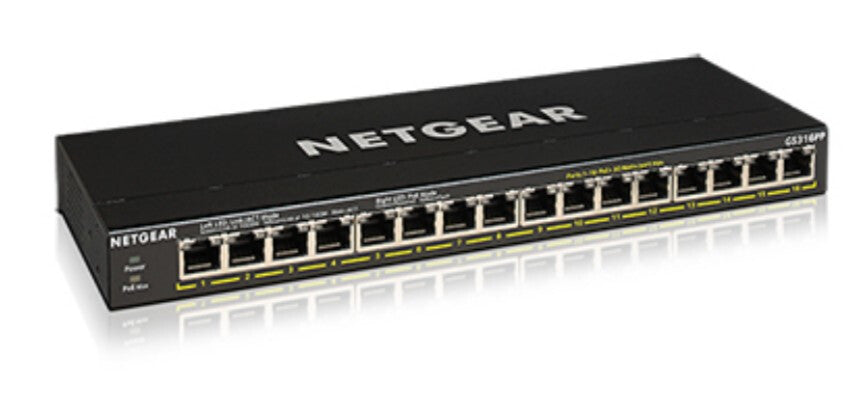

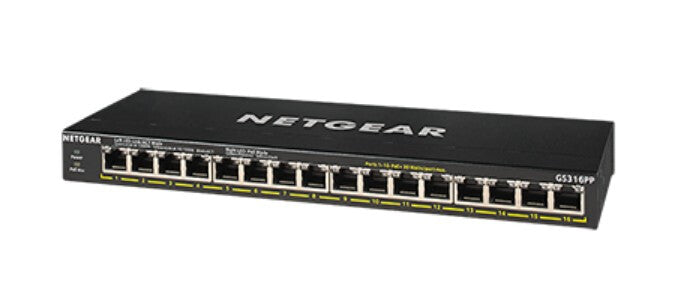

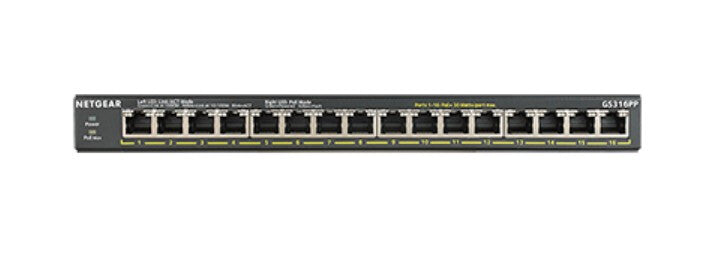

Netgear GS316PP

Netgear GS316PP

GS316PP - 16-Port GB PoE+ unmanaged Switch 183W FlexPoE

  • ETHERNET PORT CONFIGURATION: 16 Gigabit ports
  • POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget for high-power PoE devices
  • POE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
  • PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
  • VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
  • Energy-efficient technology for power savings
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • SKU:606449146912
  • GTIN/EAN:606449146912
  • MPN:GS316PP-100EUS

You need to login to view the price.

View full details

NETGEAR GS316PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

All Except China 3-year Warranty (China 1-year Warranty)

Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Ports & interfaces
Power connector
DC-in jack
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
16
Network
Auto-sensing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Full duplex
Yes
10G support
No
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory
1 MB
Packet forwarding rate (1 Gbps)
1448000 pps
Jumbo frames
9216
Jumbo frames support
Yes
Latency (1 Gbps)
3.7 µs
Switching capacity
32 Gbit/s
MAC address table
4000 entries
Security
Queue scheduling algorithms
Weighted Round Robin (WRR)
Design
Wall mountable
Yes
LED indicators
Activity, Link, PoE, Power, Speed
Housing material
Metal
Product colour
Black
Rack mounting
No
Performance
Mean time between failures (MTBF)
2362192 h
Power
Power consumption (max)
195.9 W
Input current
3.7 A
DC input voltage
54 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
183 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE)
Yes
Operational conditions
Heat dissipation
669.9 BTU/h
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Weight
880 g
Height
27 mm
Depth
102 mm
Width
286 mm
Certificates
Certification
CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
Logistics data
Harmonized System (HS) code
85176990
