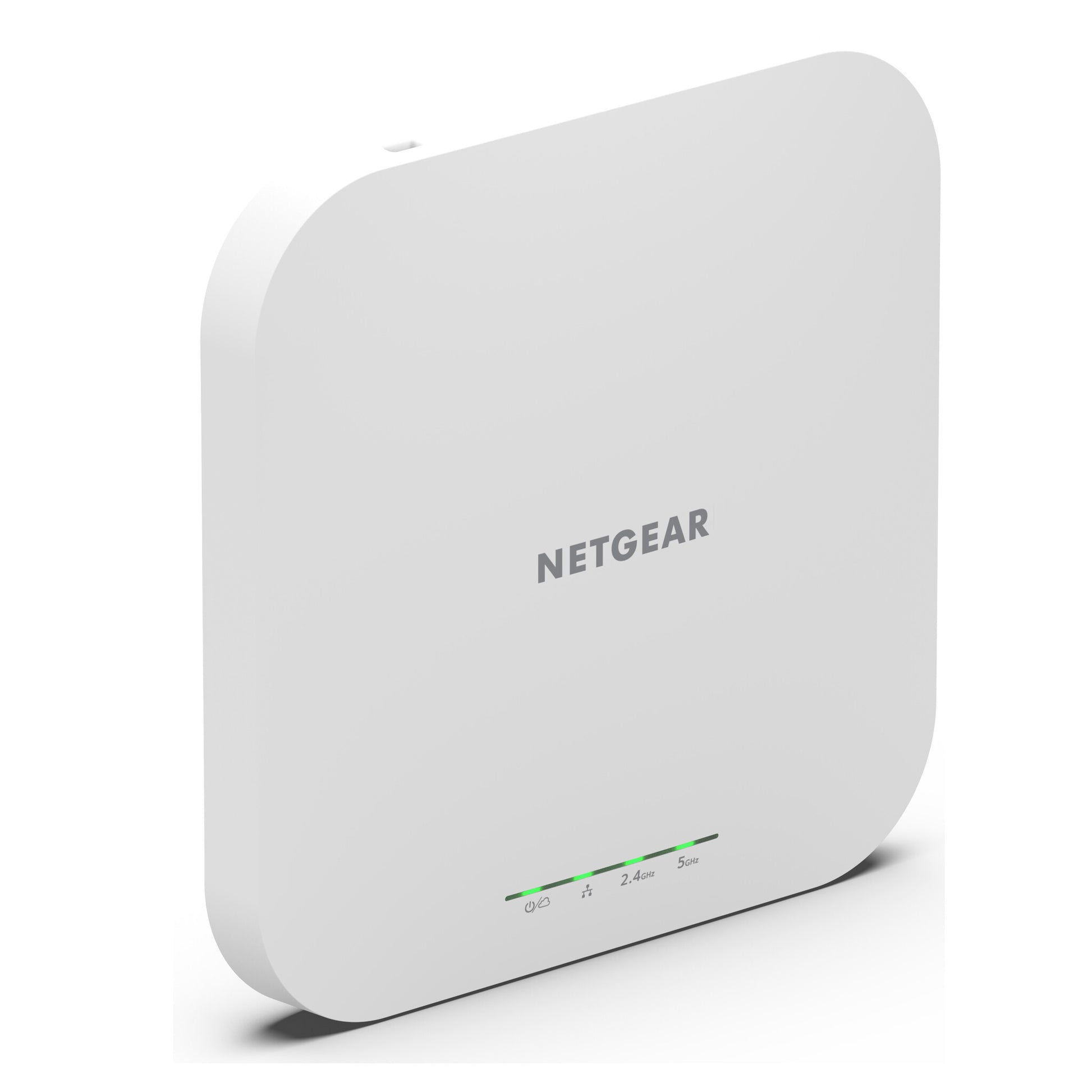

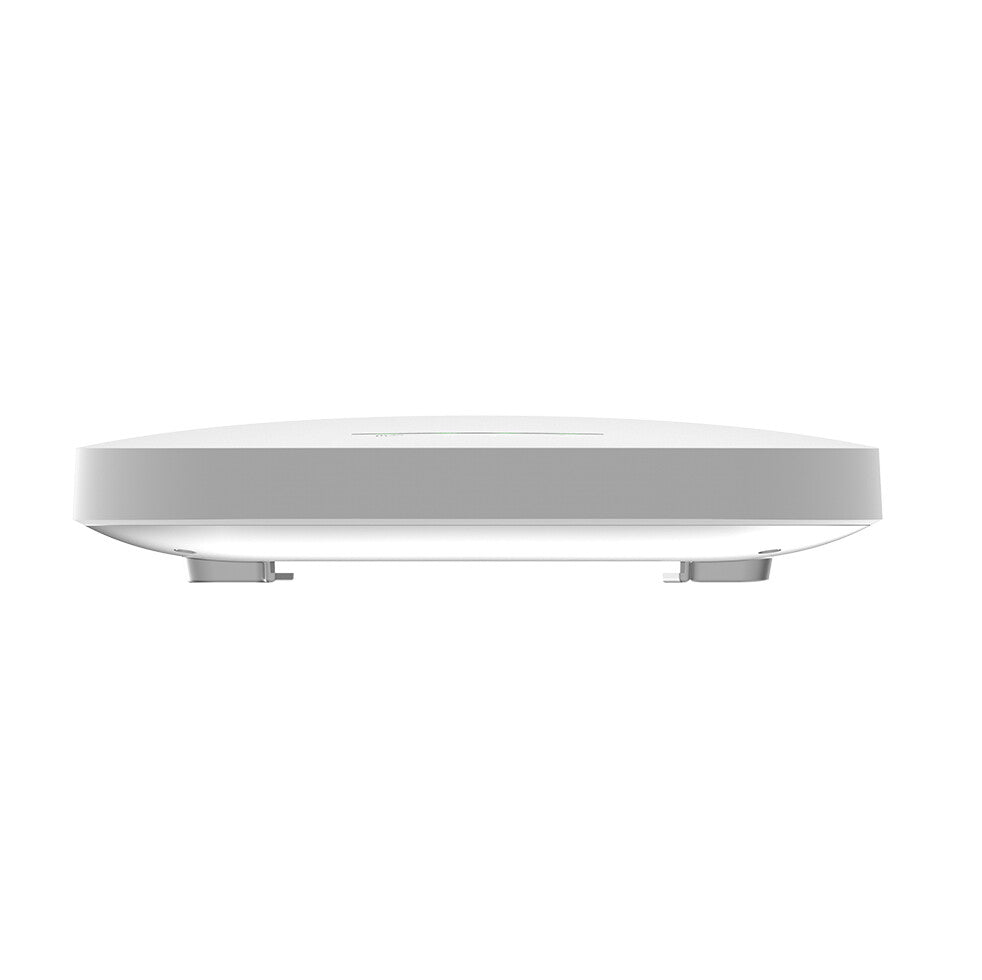

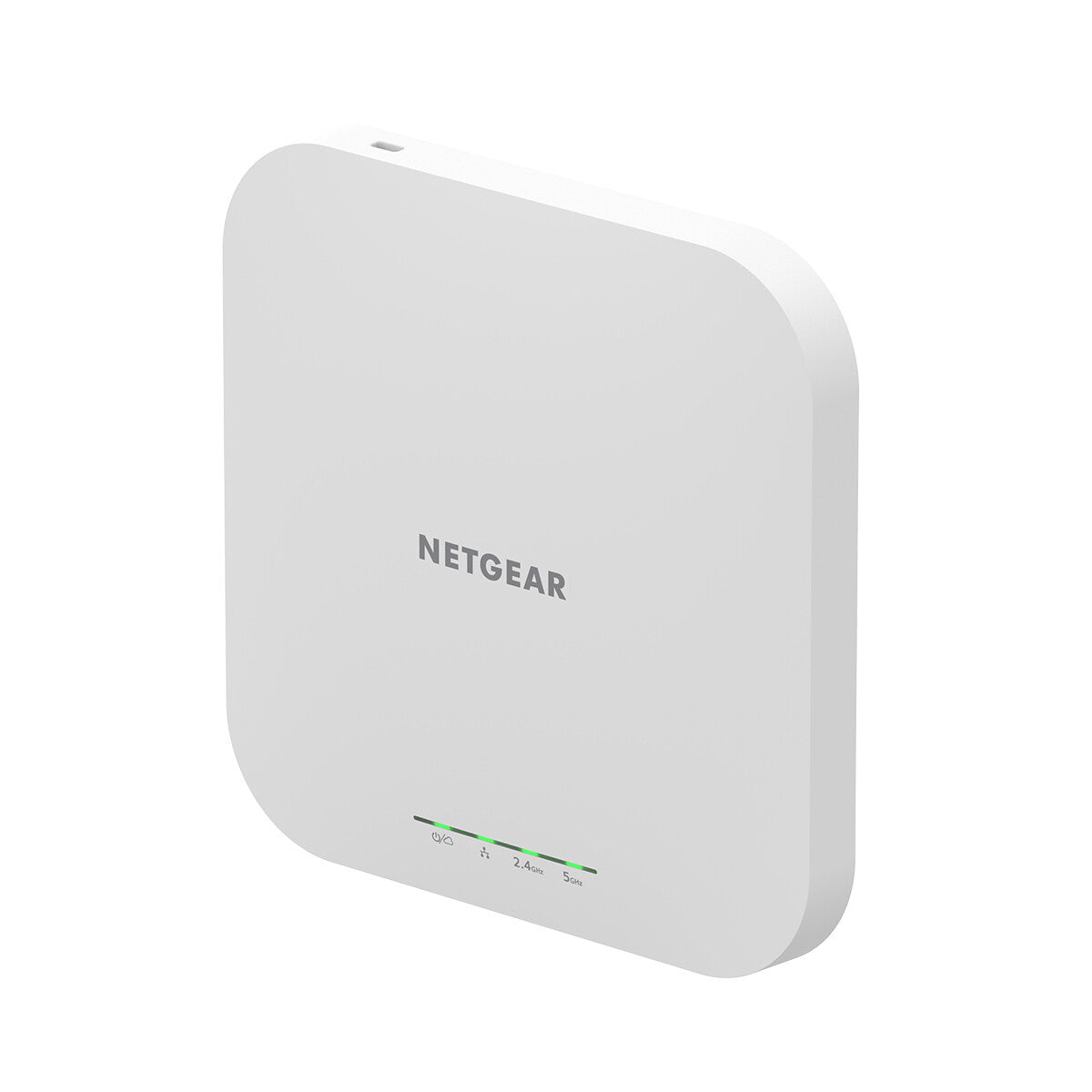

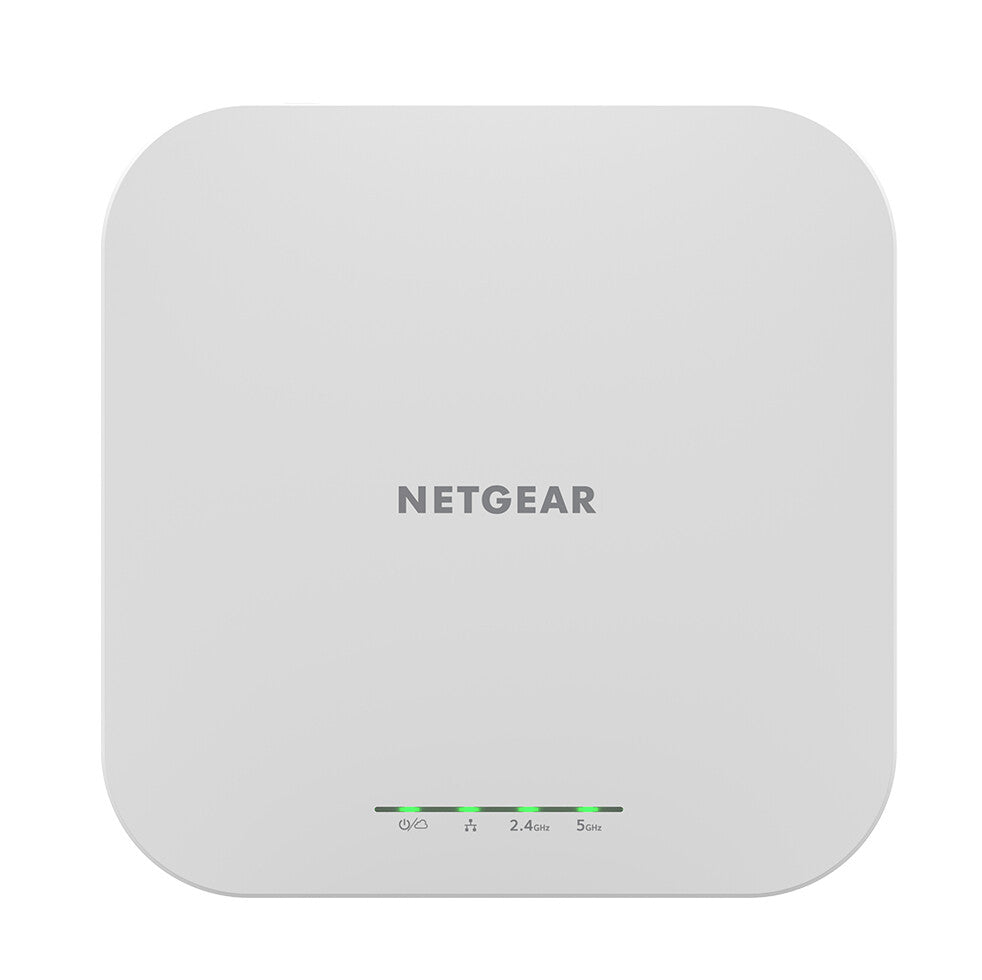

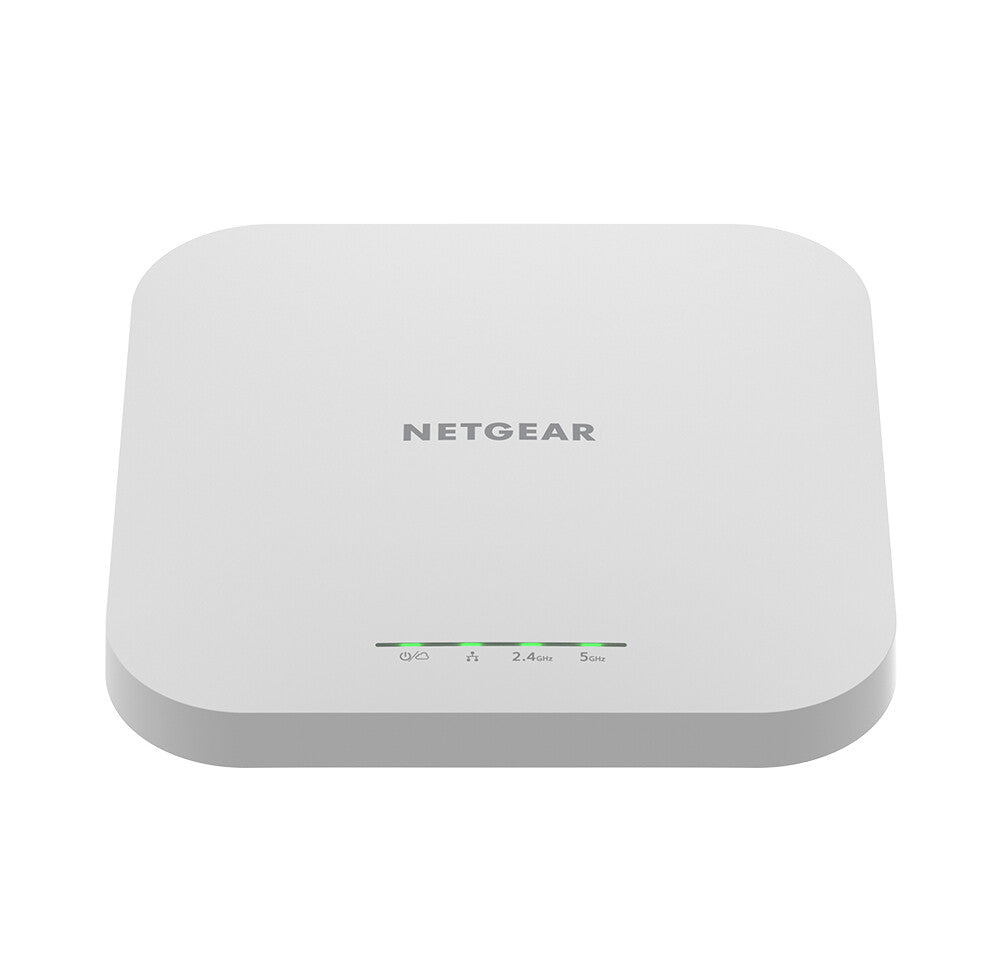

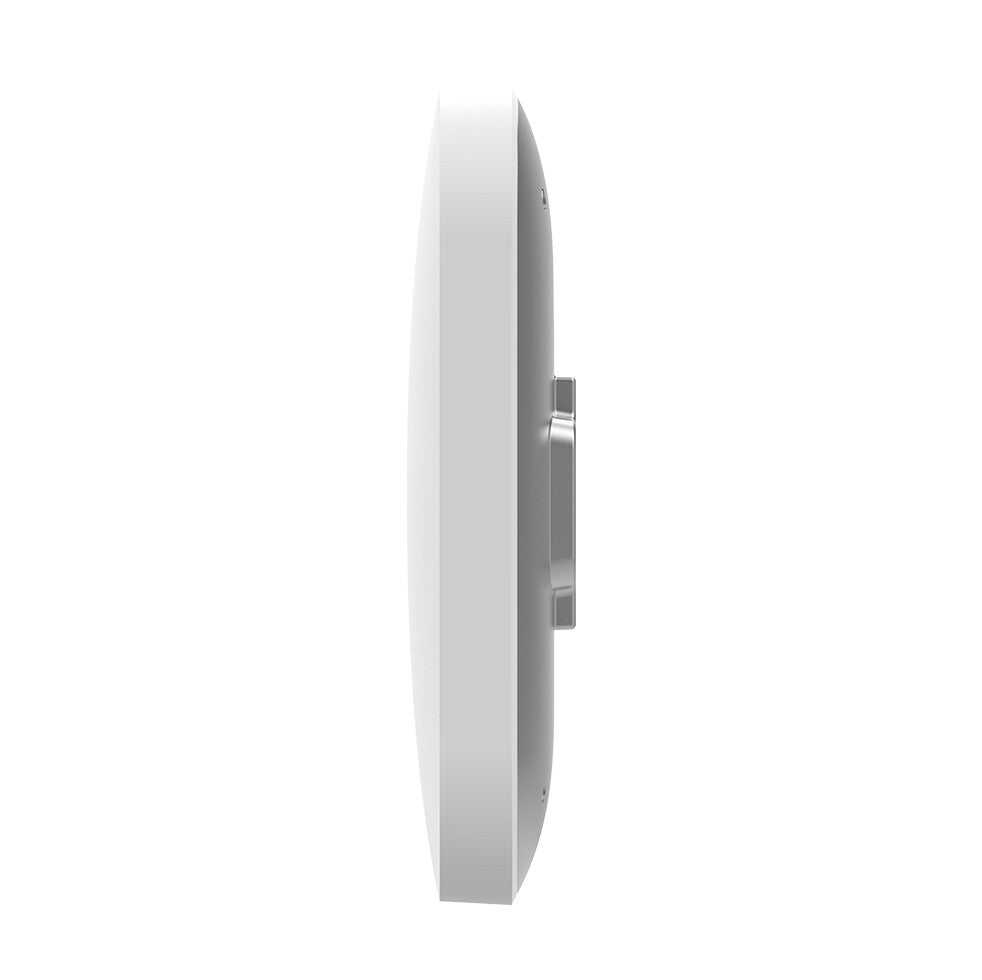

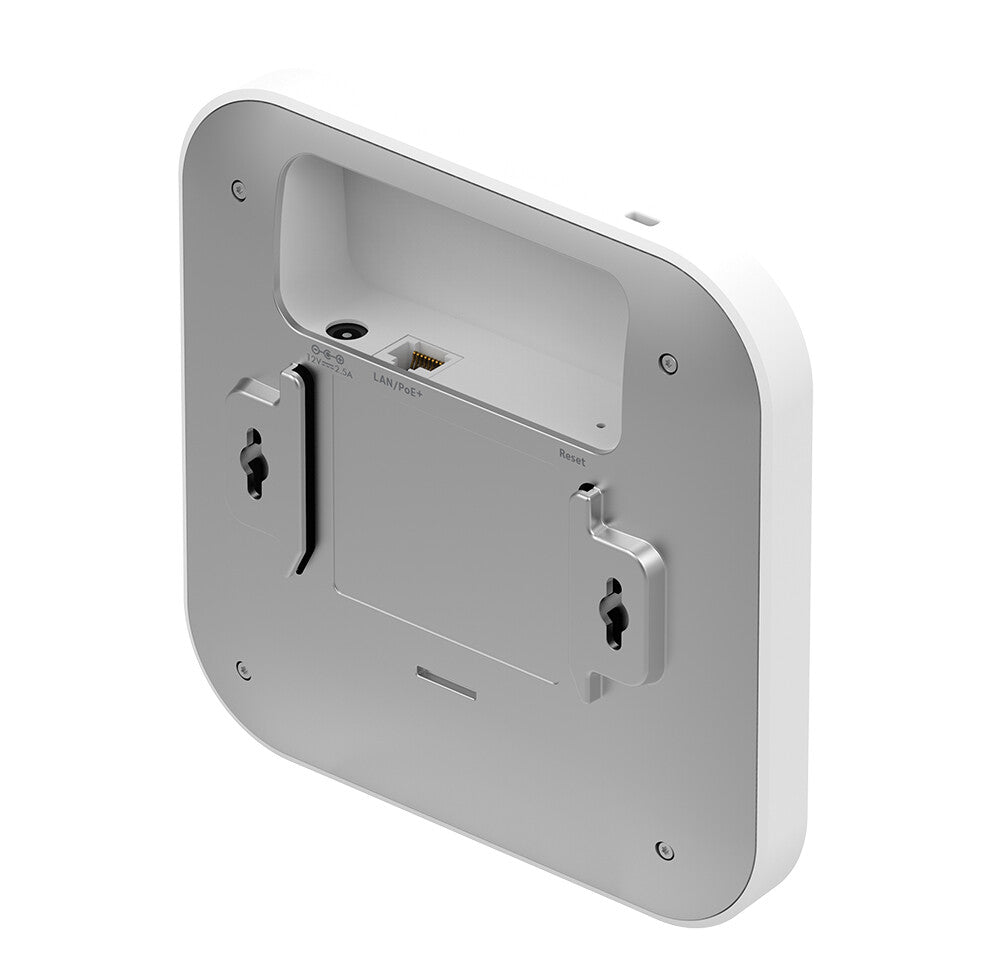

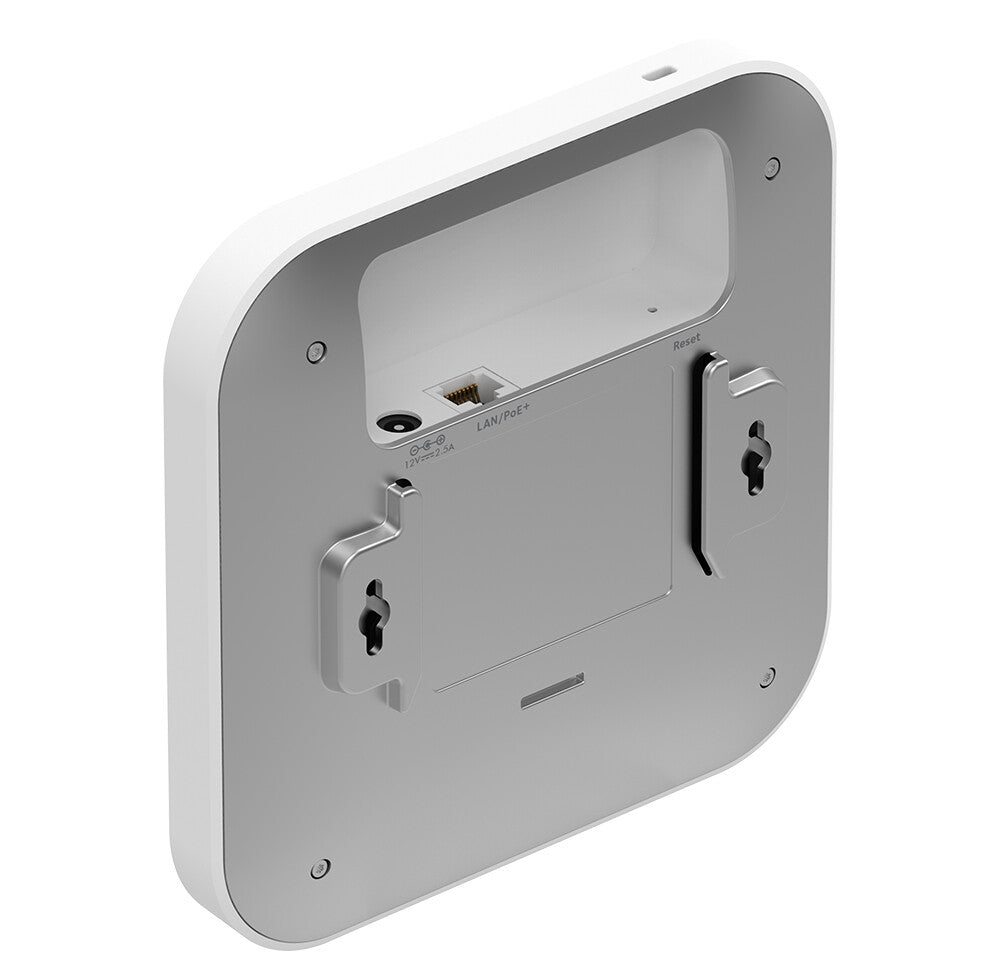

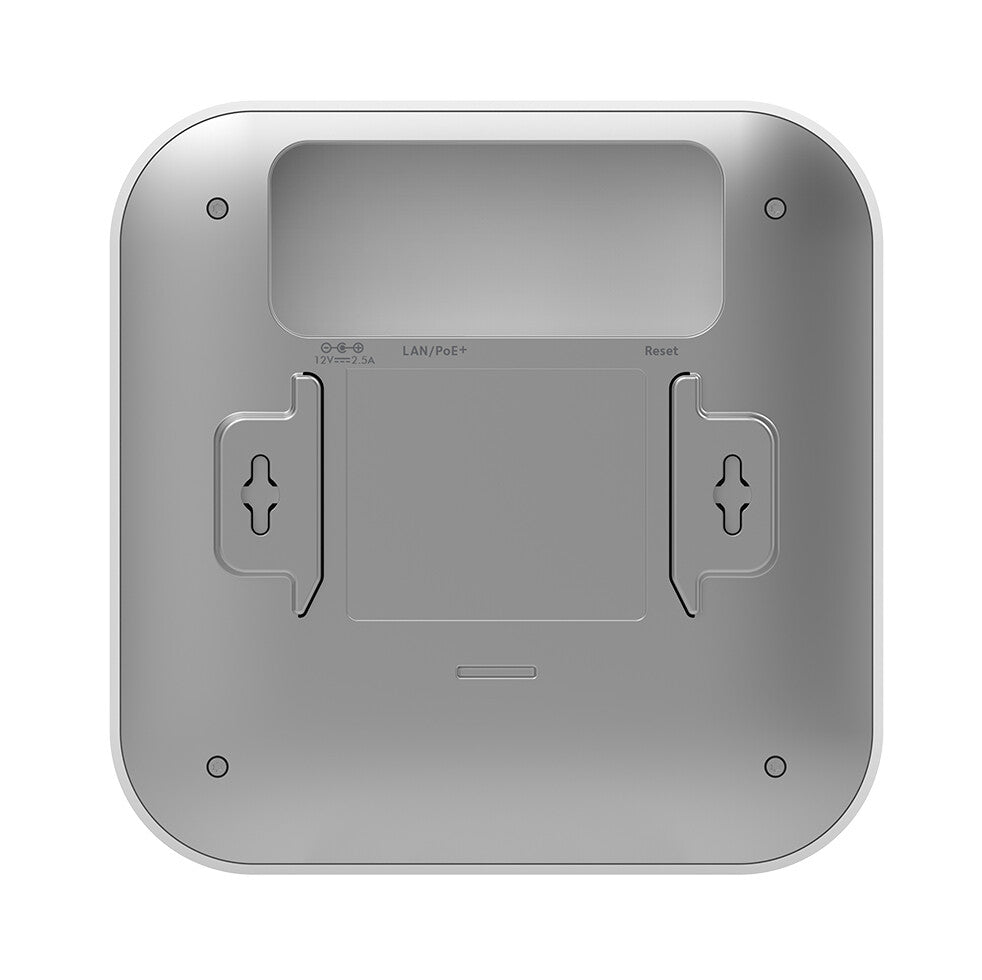

Netgear Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610)

Netgear Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610)

Dual band, 802.11ax, PoE, White, 2x2 MU-MIMO

  • 2.4 GHz 600 Mbit/s
  • 5 GHz 1200 Mbit/s
  • Maximum data transfer rate: 1800 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
  • EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3
  • Power over Ethernet (PoE)
  • Internal
  • SKU:606449149227
  • GTIN/EAN:606449149227
  • MPN:WAX610-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.

The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide

5 years

Features
VLAN support
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Spread spectrum method
OFDM, OFDMA
MIMO type
Multi User MIMO
MIMO
Yes
Auto MDI/MDI-X
Yes
Number of users
250 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
600 Mbit/s
Maximum data transfer rate
1800 Mbit/s
5 GHz
Yes
2.4 GHz
Yes
Security
Remote Authentication Dial-In User Service (RADIUS)
Yes
Auto Wireless Distribution System (WDS)
Yes
Number of SSID supported
8
Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast, SSID broadcast on/off
MAC address filtering
Yes
Security algorithms
EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
Power
Input current
2.5 A
AC input voltage
12 V
Power over Ethernet (PoE)
Yes
Design
LED indicators
LAN, Power, Status
Reset button
Yes
Product colour
White
Placement
Ceiling, Wall
Antenna
Antenna gain level (max)
4.5 dBi
Antenna type
Internal
Weight & dimensions
Weight
412 g
Height
33.2 mm
Depth
160.9 mm
Width
160.9 mm
Packaging data
Package weight
3.98 kg
Package height
235 mm
Package depth
455 mm
Package width
220 mm
Packaging content
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Logistics data
Harmonized System (HS) code
85176990
