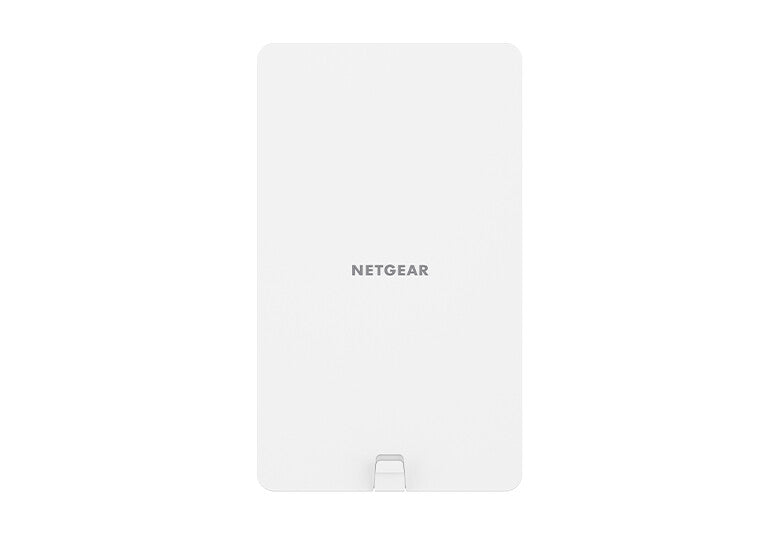

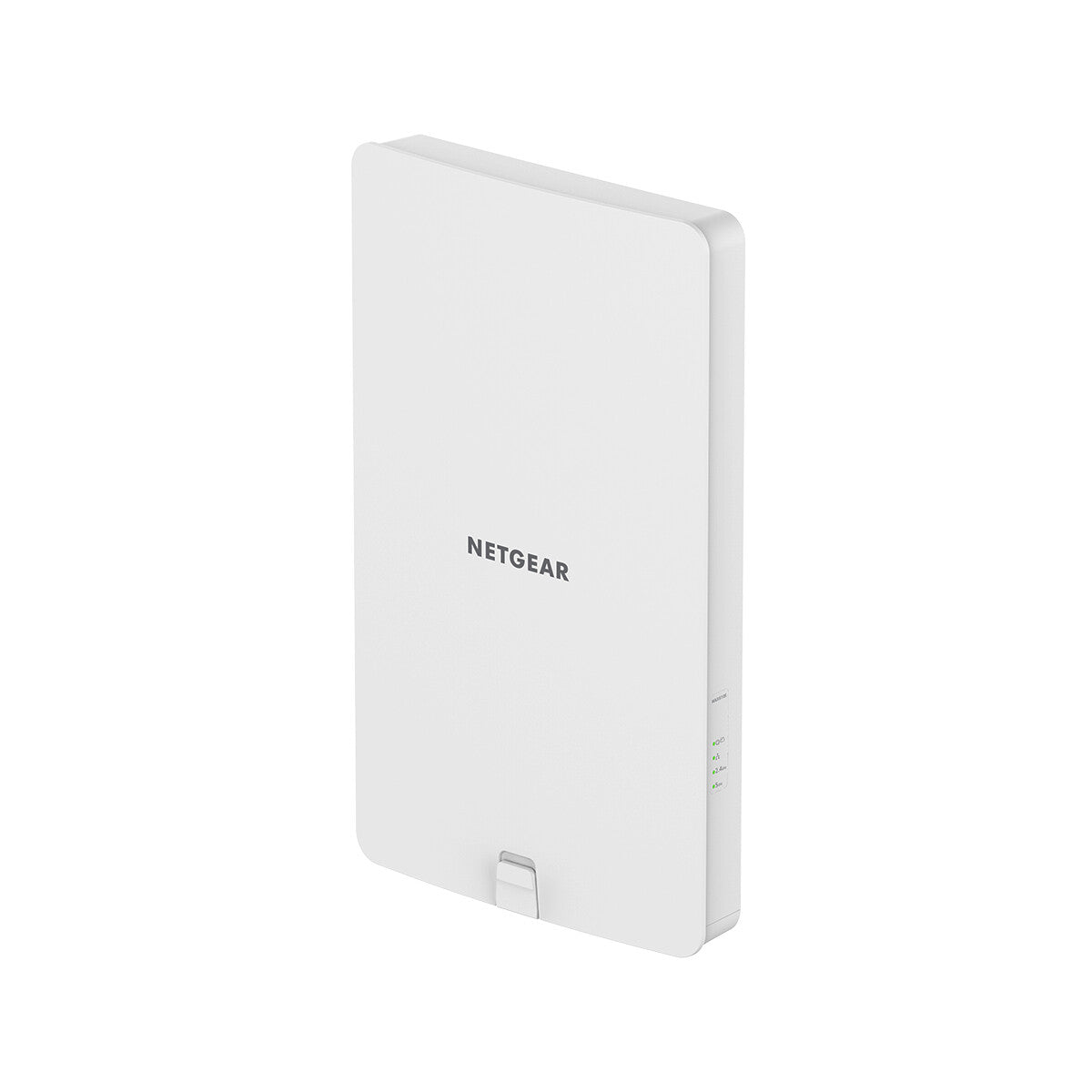

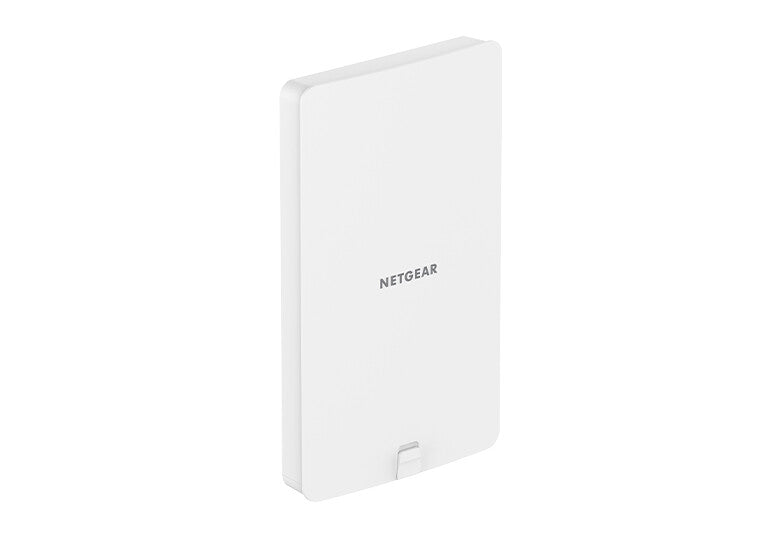

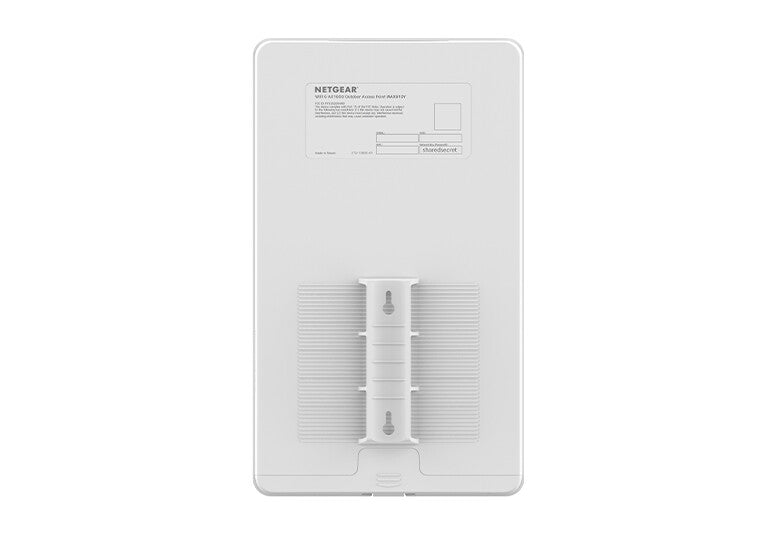

Netgear Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y)

Netgear Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y)

Dual band, 802.11ax, PoE, White, 2x2 MU-MIMO, IP55

  • 2.4 GHz 600 Mbit/s
  • 5 GHz 1200 Mbit/s
  • Maximum data transfer rate: 1800 Mbit/s
  • IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at
  • EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3
  • Power over Ethernet (PoE)
  • Internal
  • SKU:606449152579
  • GTIN/EAN:606449152579
  • MPN:WAX610Y-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610Y is an outdoor wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610Y is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come. WAX610Y is designed to withstand harsh environment conditions including prolonged exposure to sunlight, cold, frost, snow, rainfall, hail and humidity. It is rated IP55 and supports temperatures from -20C to 60C.

The WAX610Y is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610Y also comes with an intuitive local management GUI as one of the choices. The WAX610Y features 2x2 Multi-user MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610Y Insight Managed Outdoor Wireless Access Point
- Wall/ceiling mount kit
- Pole mount kit
- Installation guide

5 years

Features
Adaptive bandwidth management
Yes
VLAN support
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Spread spectrum method
OFDM, OFDMA
MIMO type
Multi User MIMO
MIMO
Yes
Auto MDI/MDI-X
Yes
Networking standards
IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
100,1000,2500 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
600 Mbit/s
Maximum data transfer rate
1800 Mbit/s
5 GHz
Yes
2.4 GHz
Yes
Security
Auto Wireless Distribution System (WDS)
Yes
MAC address filtering
Yes
Security algorithms
EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (typical)
16.1 W
Power over Ethernet (PoE)
Yes
Design
LED indicators
LAN, Power, WLAN
International Protection (IP) code
IP55
Product colour
White
Placement
Ceiling, Pole, Wall
Antenna
Antenna type
Internal
Weight & dimensions
Weight
940 g
Height
34 mm
Depth
305 mm
Width
181 mm
Packaging data
Package weight
11.7 kg
Package height
350 mm
Package depth
430 mm
Package width
390 mm
Packaging content
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
-10 - 50 °C
Logistics data
Harmonized System (HS) code
85176990
