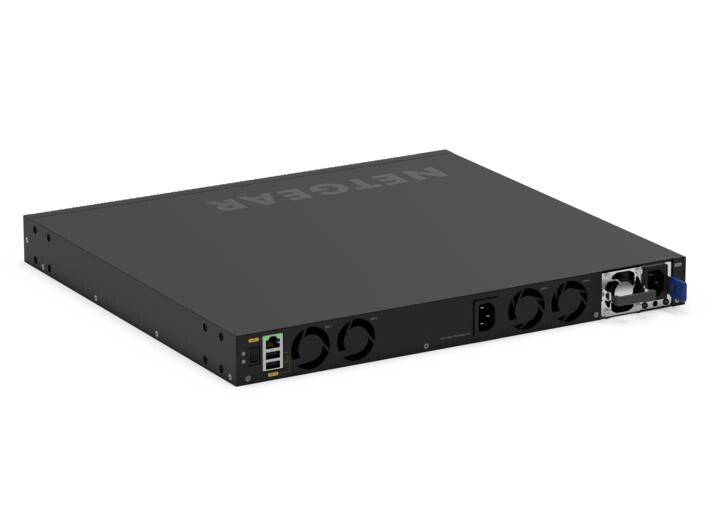

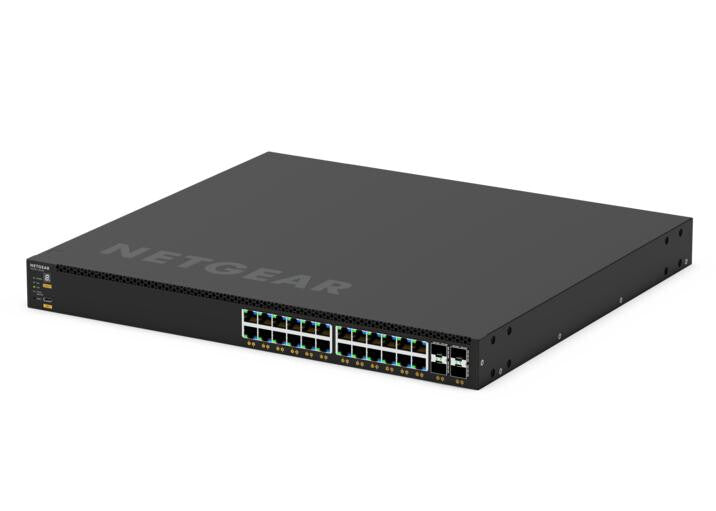

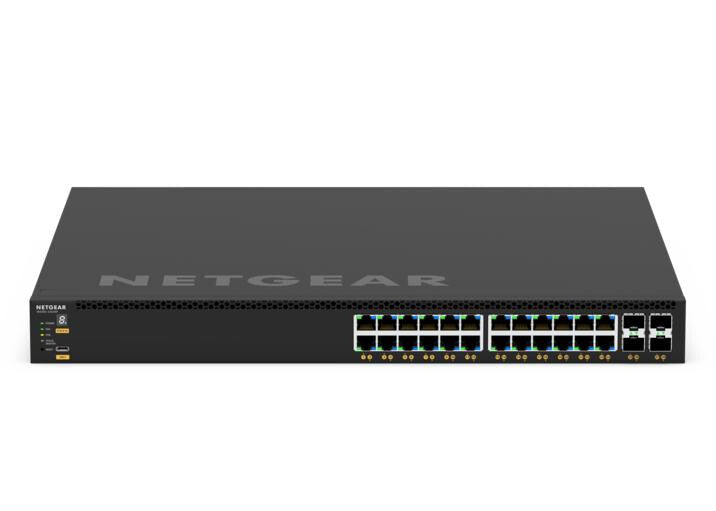

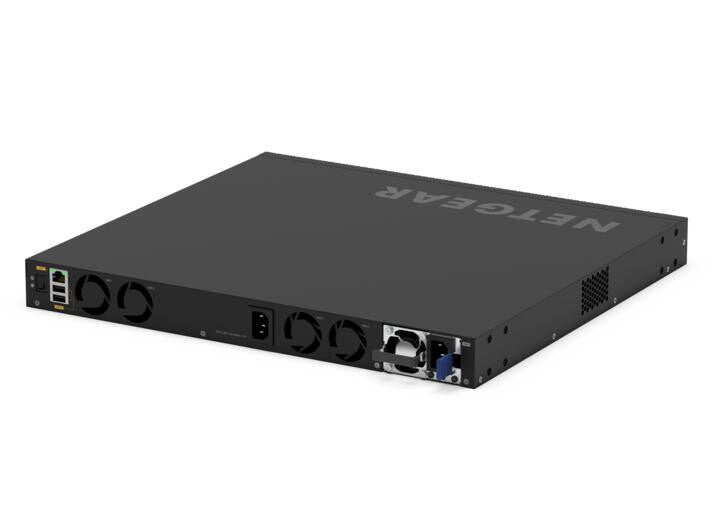

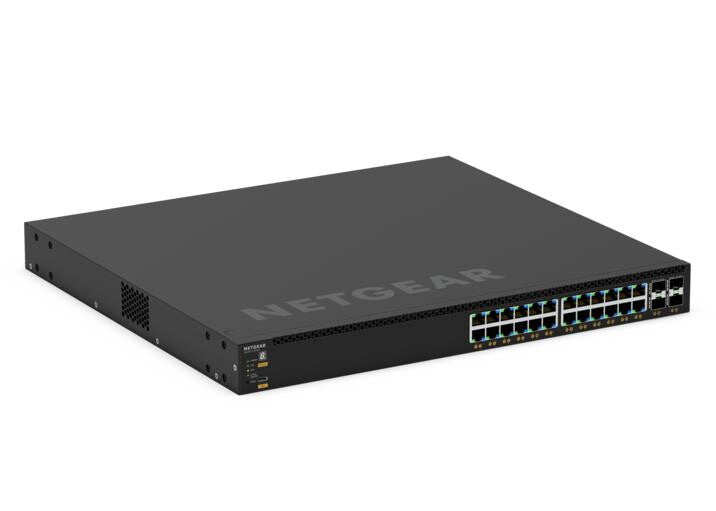

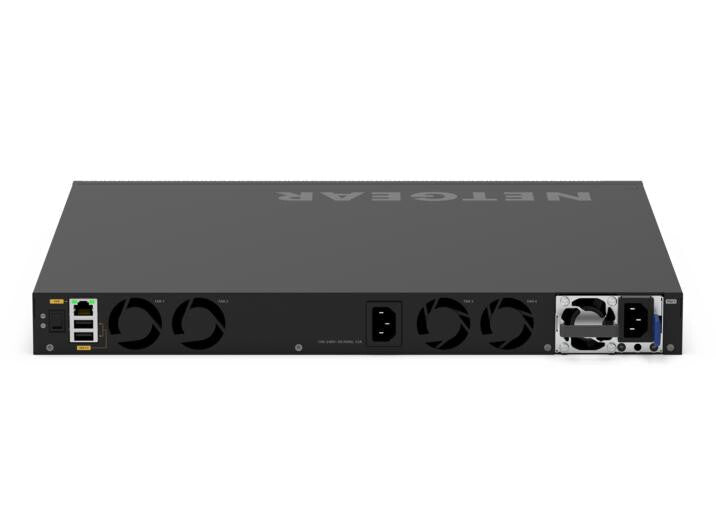

NETGEAR GSM4328 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

NETGEAR GSM4328 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

24 x 1G PoE+ (720W Max), 4 x 10G SFP+, 1U, 440 x 400 x 43.2 mm

  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 880W internal power supply providing 648W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement
  • SKU:606449161922
  • GTIN/EAN:606449161922
  • MPN:GSM4328-100NES

You need to login to view the price.

View full details

NETGEAR GSM4328. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic shaping
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
4
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support
Yes
VLAN support
Yes
Number of VLANs
4093
Data transmission
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Throughput
95.23 Mpps
Packet buffer memory
16 MB
Security
DHCP features
DHCP server, DHCP snooping, DHCPv6 snooping
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Performance
Noise level
52 dB
Power
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
648 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Weight & dimensions
Width
440 mm
Depth
400 mm
Height
43.2 mm
Weight
6.41 kg
