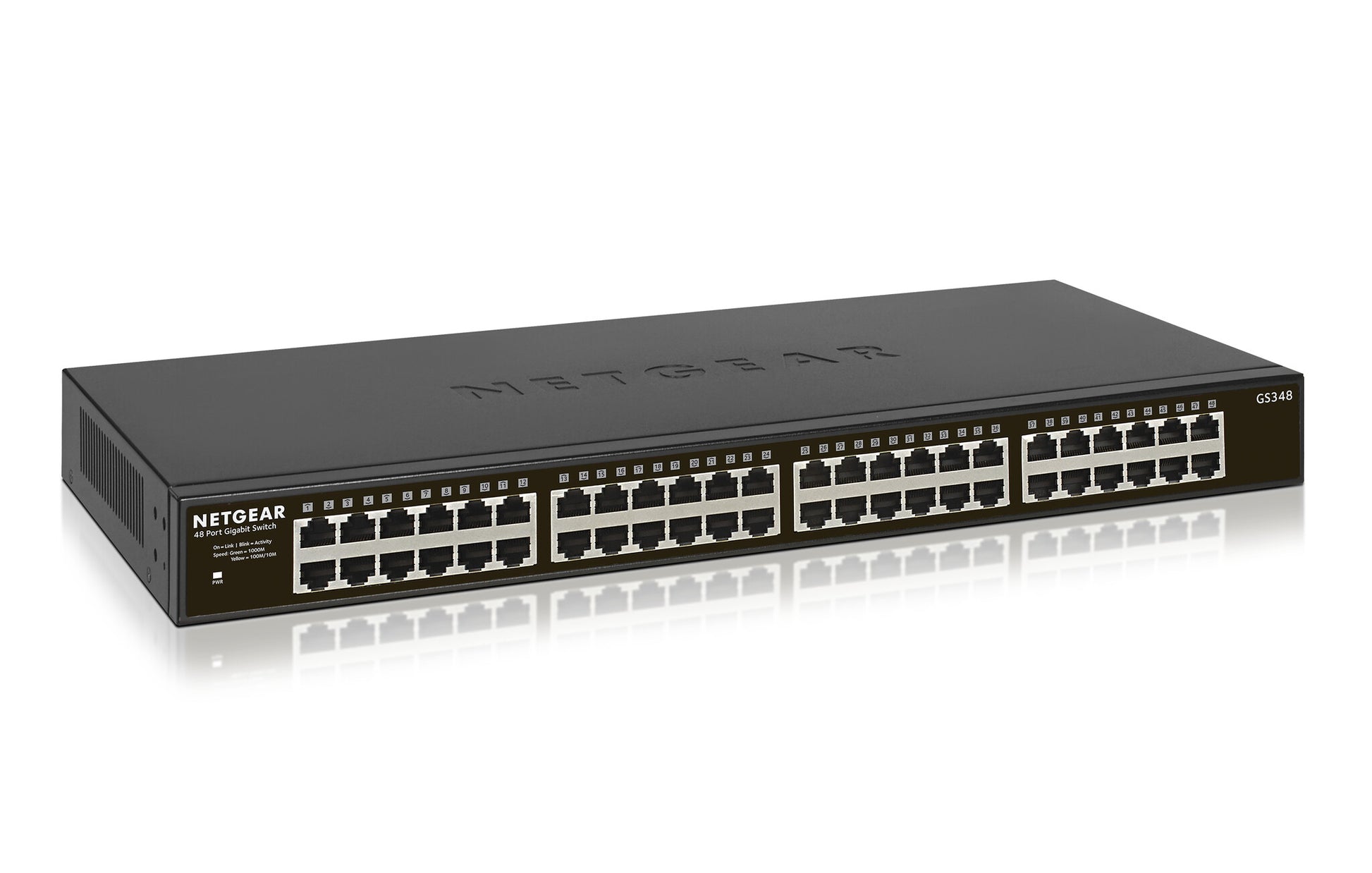

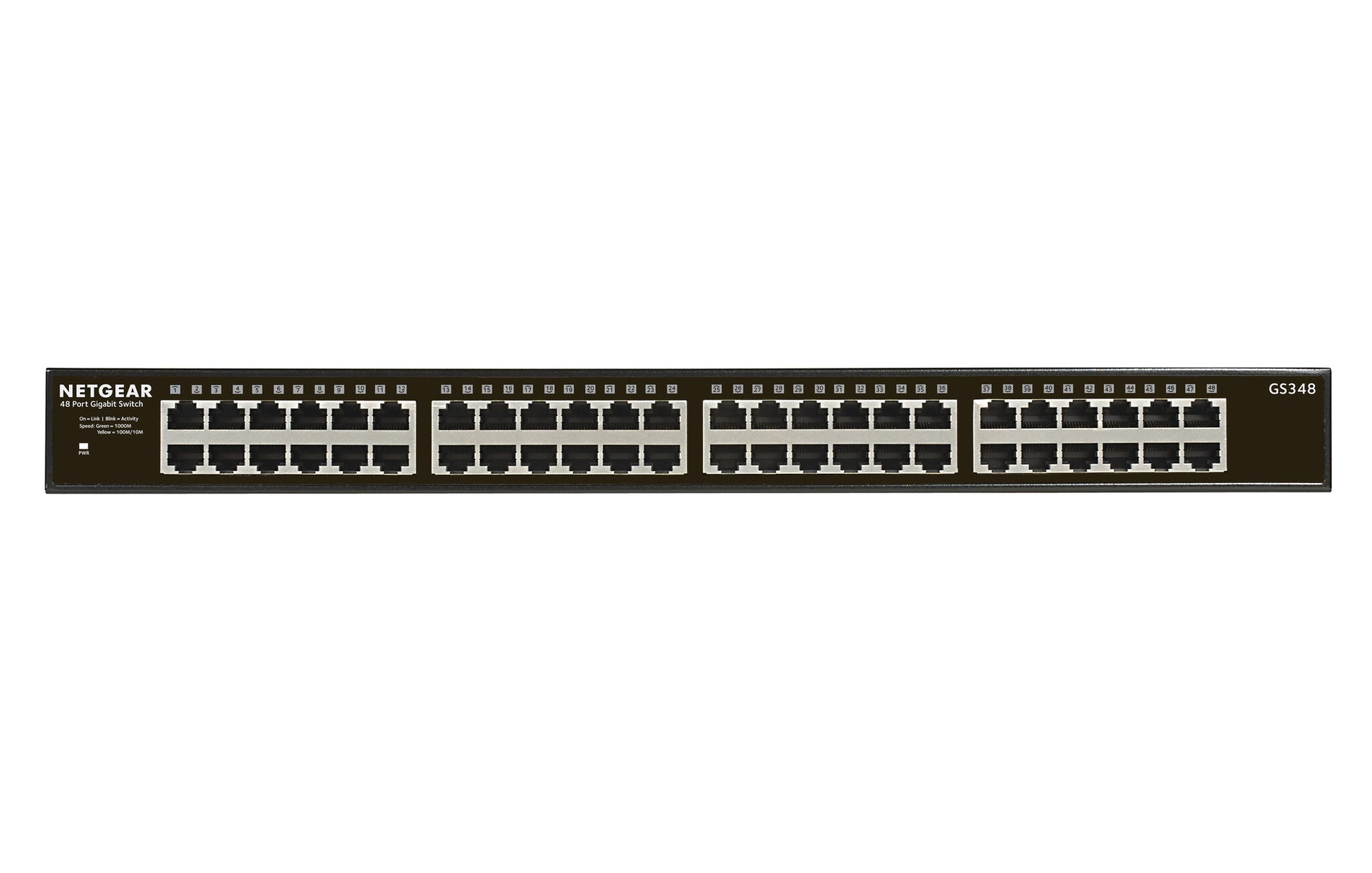

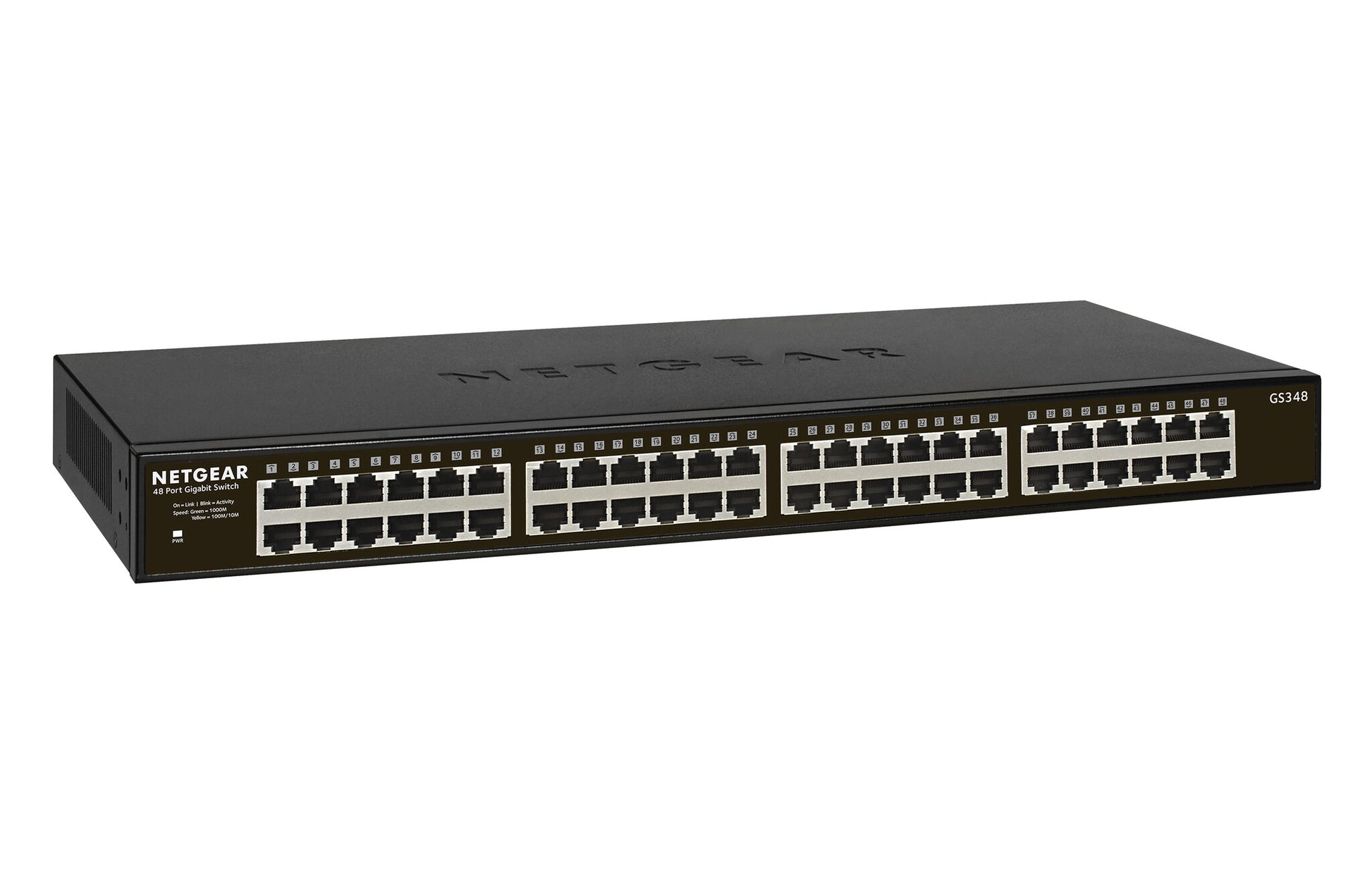

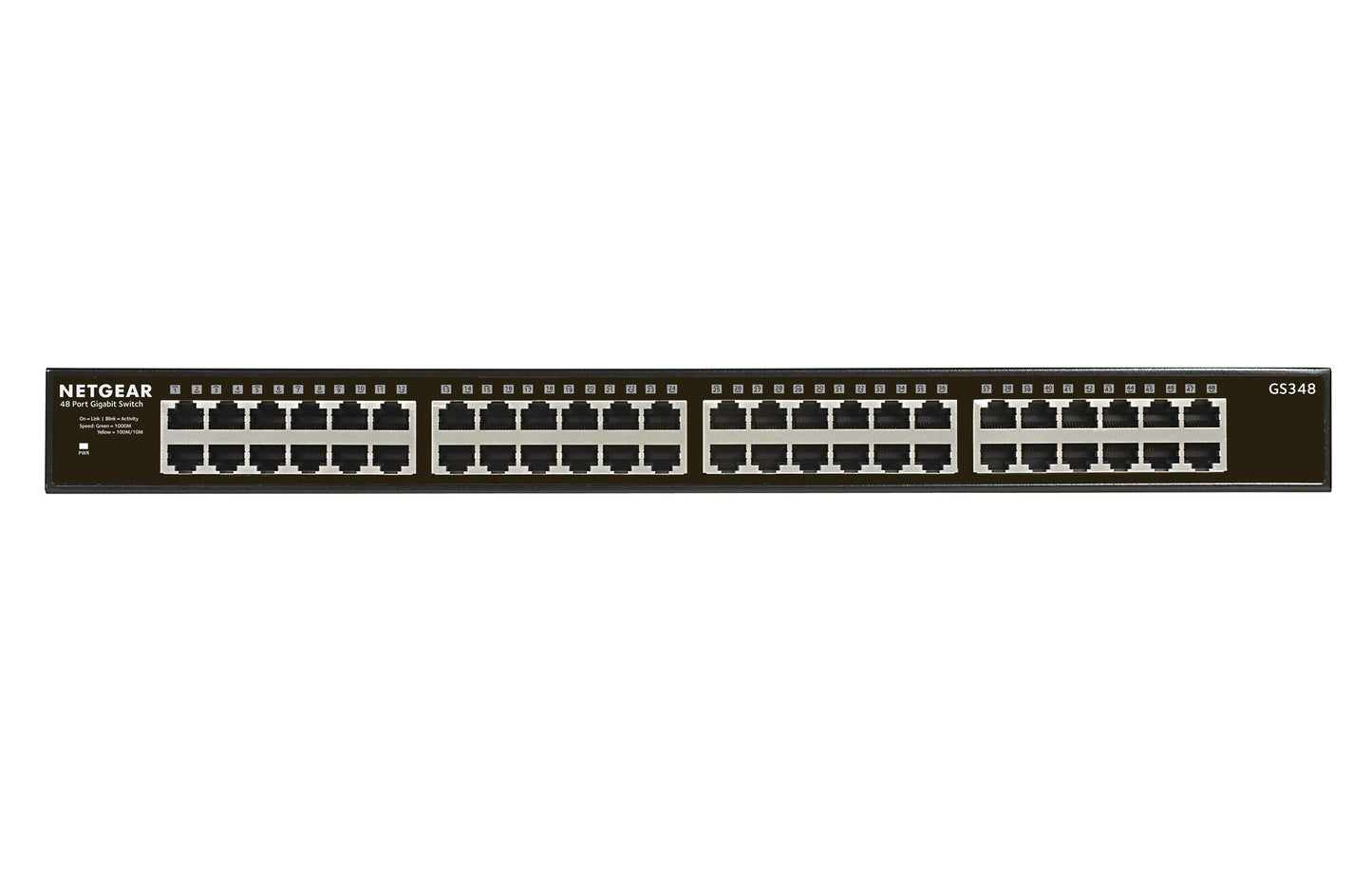

Netgear GS348

Netgear GS348

48-Port Gigabit Ethernet unmanaged Switch, Metal, Black

  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • MAC address table: 16000 entries Switching capacity: 96 Gbit/s
  • 1U Rack mounting
  • AC
  • SKU:606449120219
  • GTIN/EAN:606449120219
  • MPN:GS348-100EUS

You need to login to view the price.

View full details

NETGEAR GS348. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U

Expanding Wired Connectivity for SOHO Networks

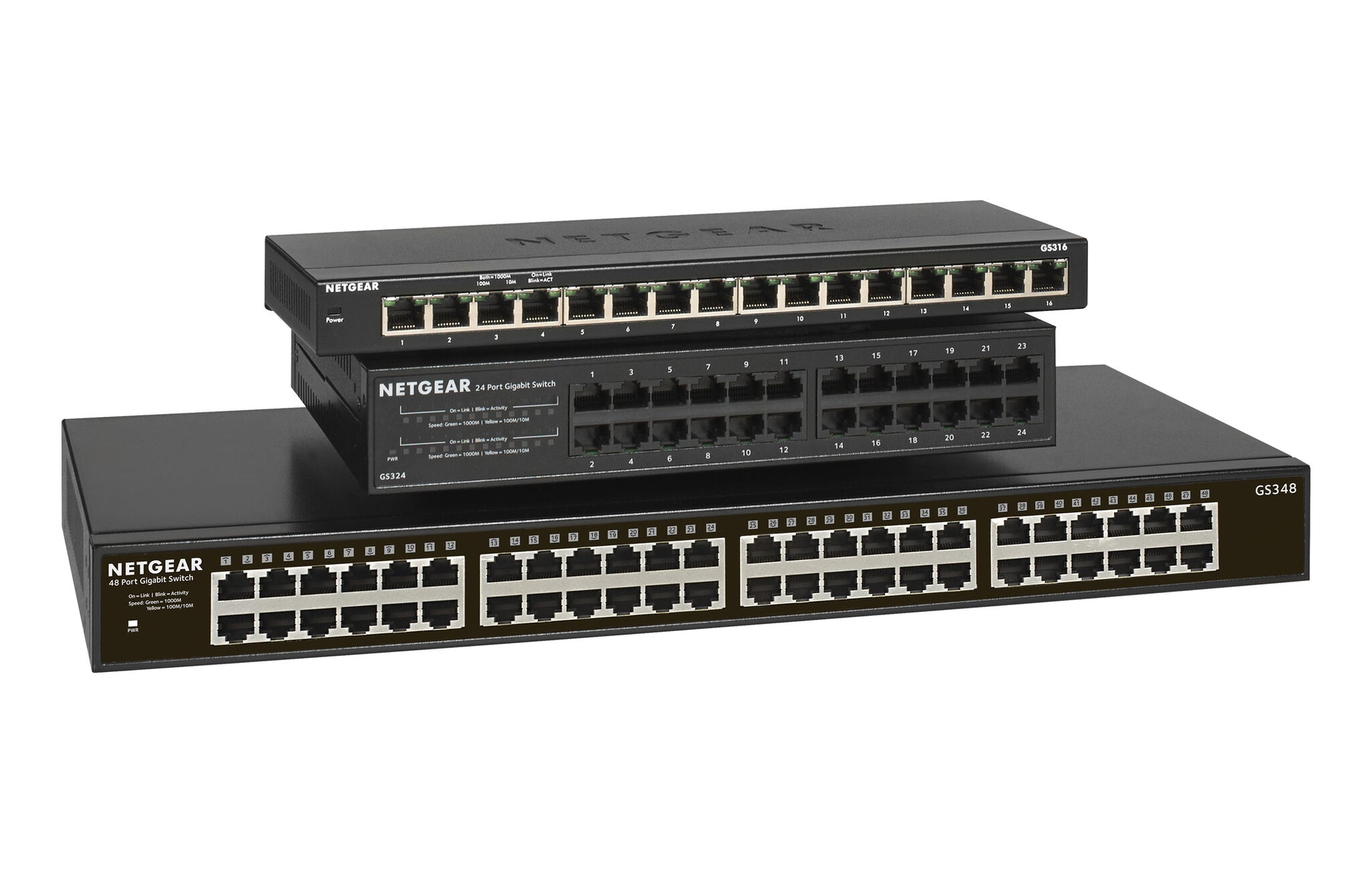

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)

3 Year

Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Ports & interfaces
Power connector
DC-in jack
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet forwarding rate (1 Gbps)
1448000 pps
Jumbo frames
9216
Jumbo frames support
Yes
Latency (1 Gbps)
4 µs
Switching capacity
96 Gbit/s
MAC address table
16000 entries
Design
LED indicators
Activity, Link, Power
Product colour
Black
Form factor
1U
Rack mounting
Yes
Performance
Plug and Play
Yes
Power
Power consumption (max)
23 W
Power consumption (typical)
8.81 W
Input current
1 A
AC input frequency
50 - 60 Hz
AC input voltage
110 - 240 V
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Heat dissipation
7866 BTU/h
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
3.15 kg
Height
43.2 mm
Depth
204 mm
Width
440 mm
Logistics data
Harmonized System (HS) code
85176990
