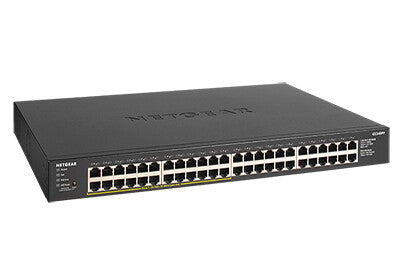

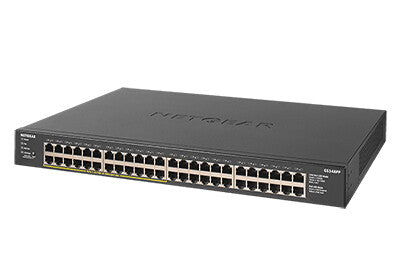

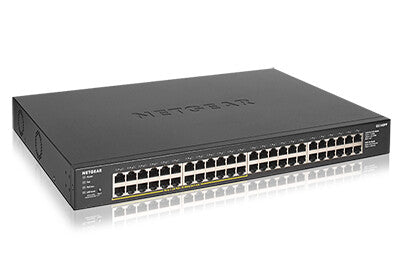

Netgear GS348PP

Netgear GS348PP

GS348PP, 48x 1G RJ-45, 96 Gbps, PoE, 110-240V, 50/60Hz, 440x310x43 mm

  • ETHERNET PORT CONFIGURATION: 48 Gigabit ports
  • POWER-OVER-ETHERNET: 24 PoE+ ports with 380W total power budget to power wireless AP, IP Cameras, IP Phones and much more
  • PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
  • VERSATILE MOUNTING OPTIONS: Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box
  • PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
  • QUIET OPERATION: Ideal for noise-sensitive environments
  • ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet mode
  • BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance
  • SKU:606449145588
  • GTIN/EAN:606449145588
  • MPN:GS348PP-100EUS

You need to login to view the price.

View full details

NETGEAR GS348PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting

NETGEAR SOHO Ethernet Unmanaged Switches
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.

Extended Features

- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent opeartion
- Desktop, wall-mountable or rack-mountable (GS324, GS348)

3-year warranty

Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Cable length detection
Yes
Auto-sensing
Yes
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Data transmission
MAC address table
8000 entries
Switching capacity
96 Gbit/s
Forwarding rate
1.448 Mpps
Latency (1 Gbps)
4 µs
Jumbo frames support
Yes
Jumbo frames
12288
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
1.5 MB
Security
Queue scheduling algorithms
Weighted Round Robin (WRR)
Design
Rack mounting
Yes
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, PoE, Power, Speed
Number of fans
2 fan(s)
Performance
Mean time between failures (MTBF)
570972 h
Power
AC input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
410 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
380 W
Other features
Warranty period
3 year(s)
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
1402.2 BTU/h
Weight & dimensions
Width
440 mm
Depth
310 mm
Height
43 mm
Weight
4.56 kg
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Technical details
Products per shipping (inner) case
2 pc(s)
Shipping (inner) case net weight
13.1 kg
Shipping (inner) case length
24.1 cm
Shipping (inner) case width
56.7 cm
Shipping (inner) case height
43.2 cm
Certificates
Certification
CE, FCC 15 A, IC A, RCM, VCCI, KC
CB, CE LVD, UL
Logistics data
Harmonized System (HS) code
85176990
