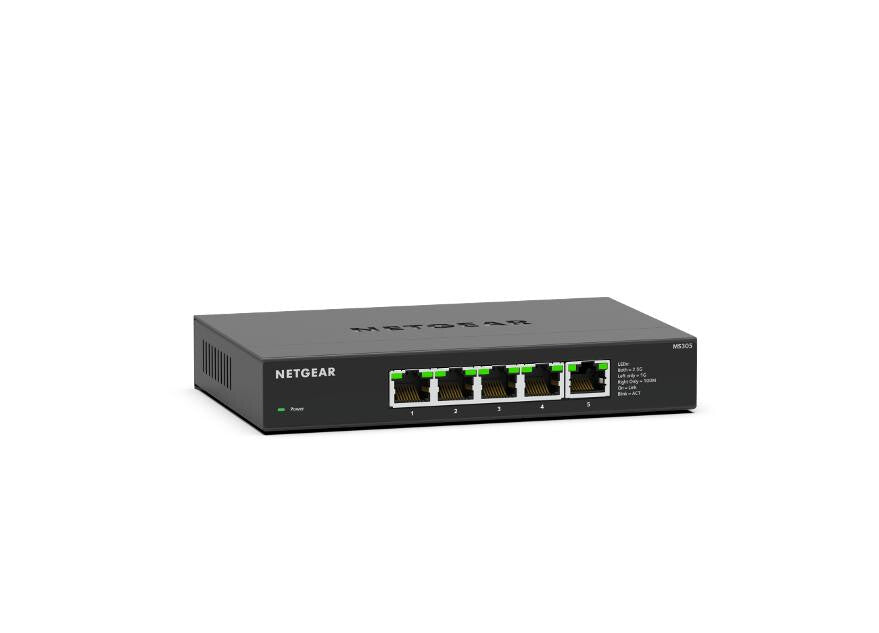

NETGEAR MS305 Unmanaged 2.5G Ethernet (100/1000/2500) Black

NETGEAR MS305 Unmanaged 2.5G Ethernet (100/1000/2500) Black

5-Port, 2.5 G, 9.24W, 158 x 101 x 29 mm, 480 g

  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • DC Power supply included
  • SKU:606449160123
  • GTIN/EAN:606449160123
  • MPN:MS305-100EUS

You need to login to view the price.

View full details

NETGEAR MS305. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.

Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Half duplex
Yes
Full duplex
Yes
Cable length detection
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Auto MDI/MDI-X
Yes
Data transmission
Forwarding rate
3.72 Mpps
Latency (1 Gbps)
2458 µs
Jumbo frames support
Yes
Jumbo frames
9720
Packet buffer memory
1 MB
Design
Rack mounting
No
Stackable
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Number of fans
0 fan(s)
Wall mountable
Yes
Performance
Noise level
0 dB
Fanless
Yes
Mean time between failures (MTBF)
1401743 h
Power
Power source
DC
Power supply included
Yes
DC input voltage
12 V
Input current
1 A
Input voltage
12 V
Power consumption (typical)
4.6 W
Power consumption (max)
9.24 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
29 mm
Weight
480 g
Certificates
Compliance certificates
CCC, Low Voltage Directive (LVD)
