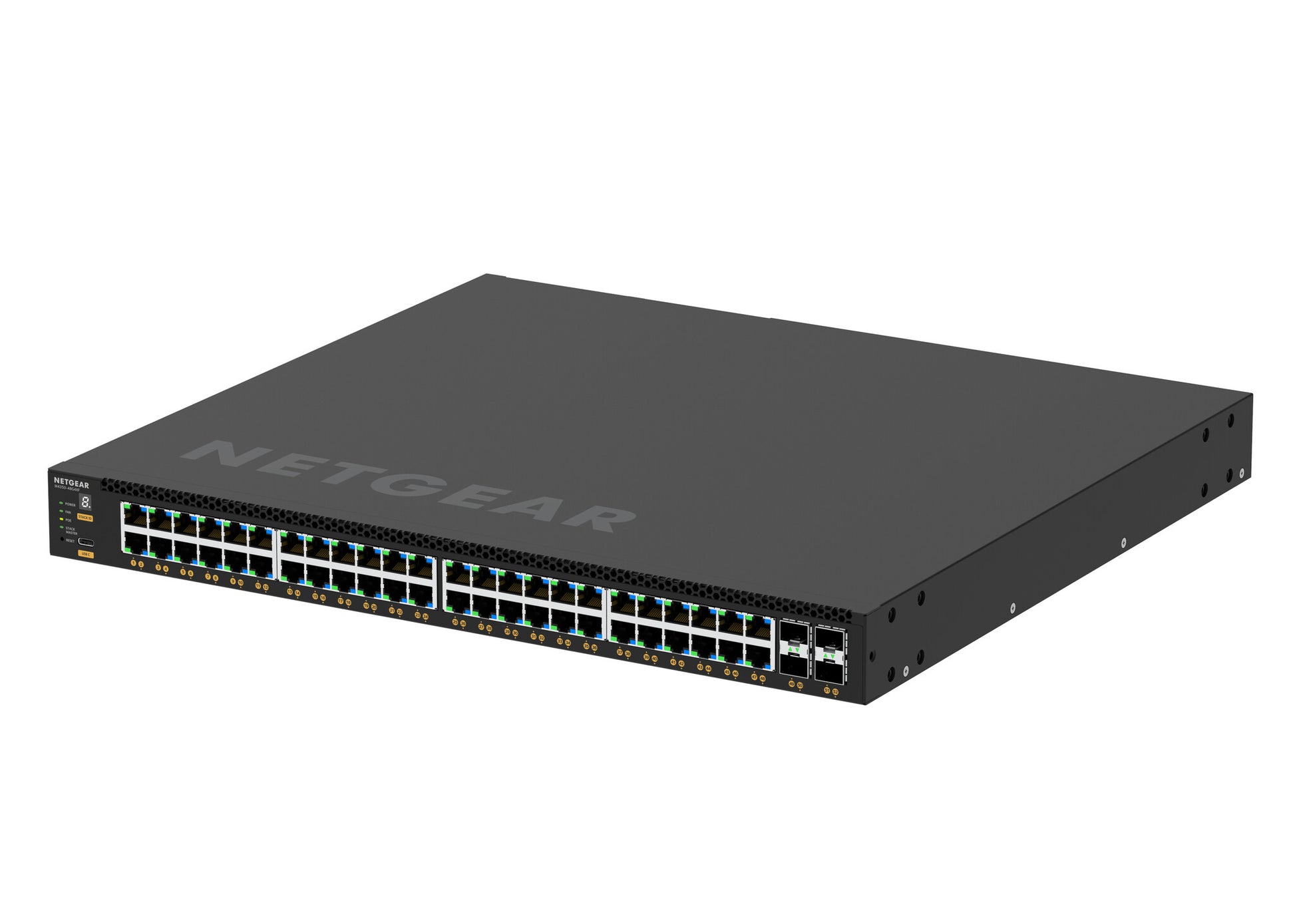

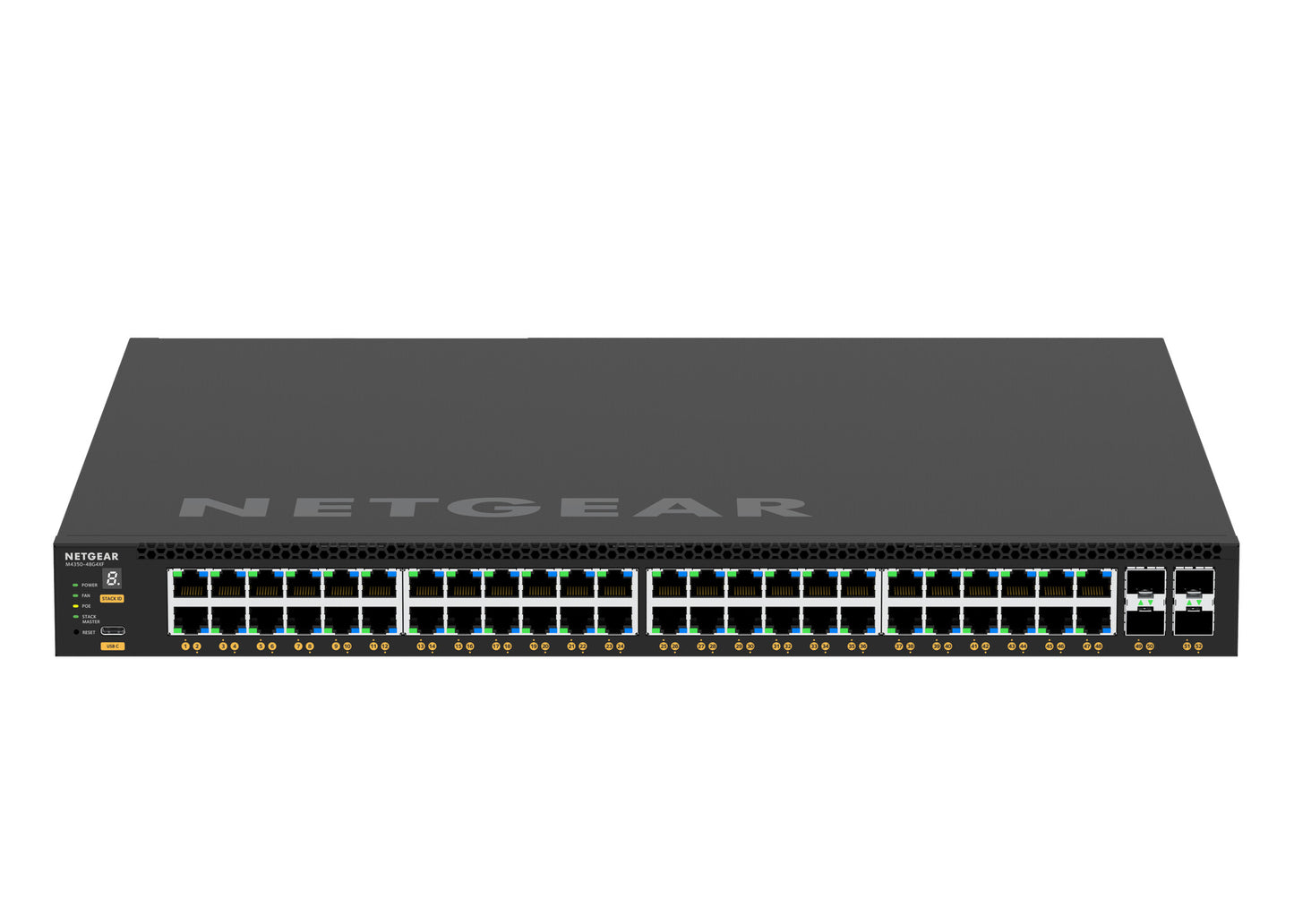

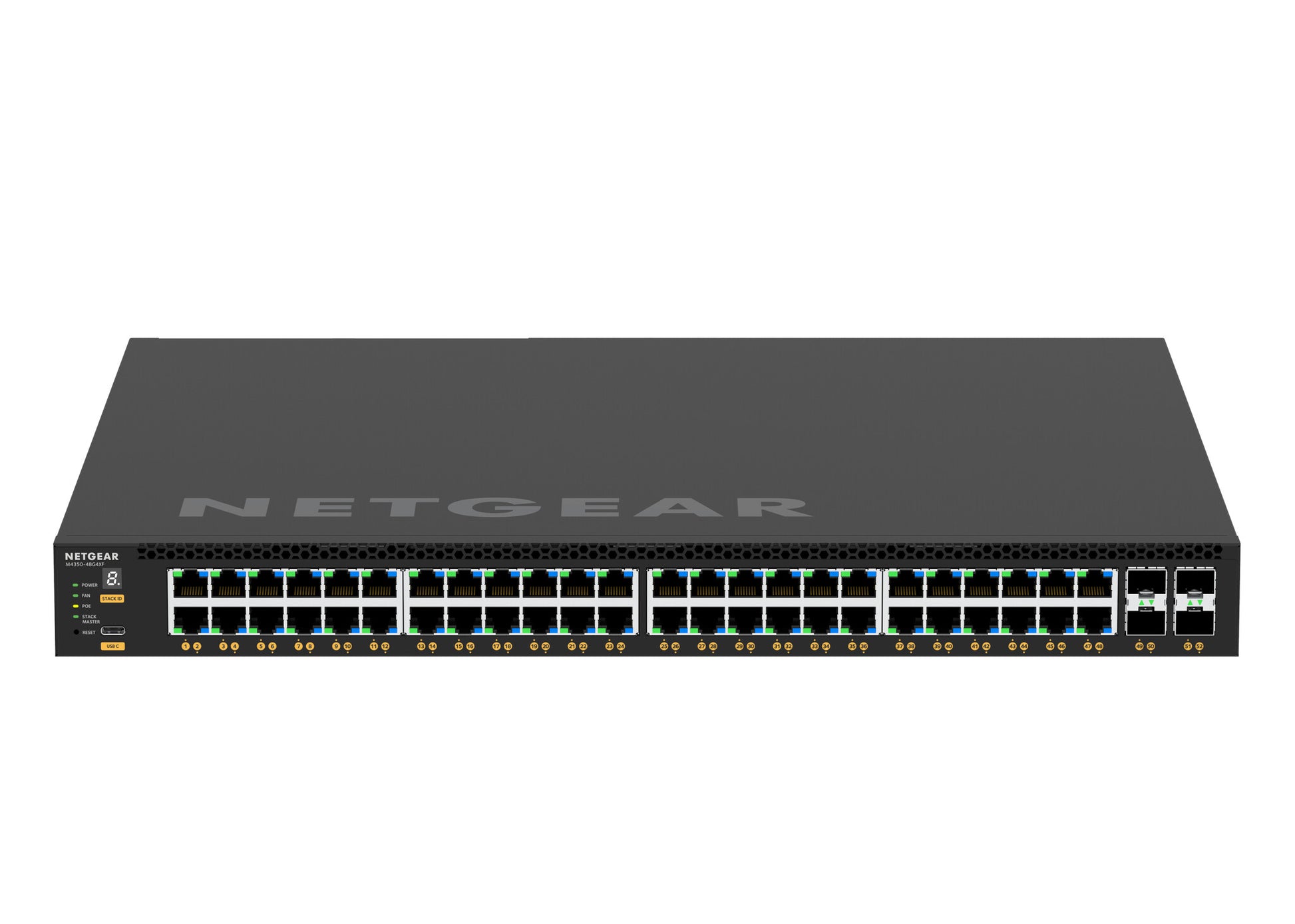

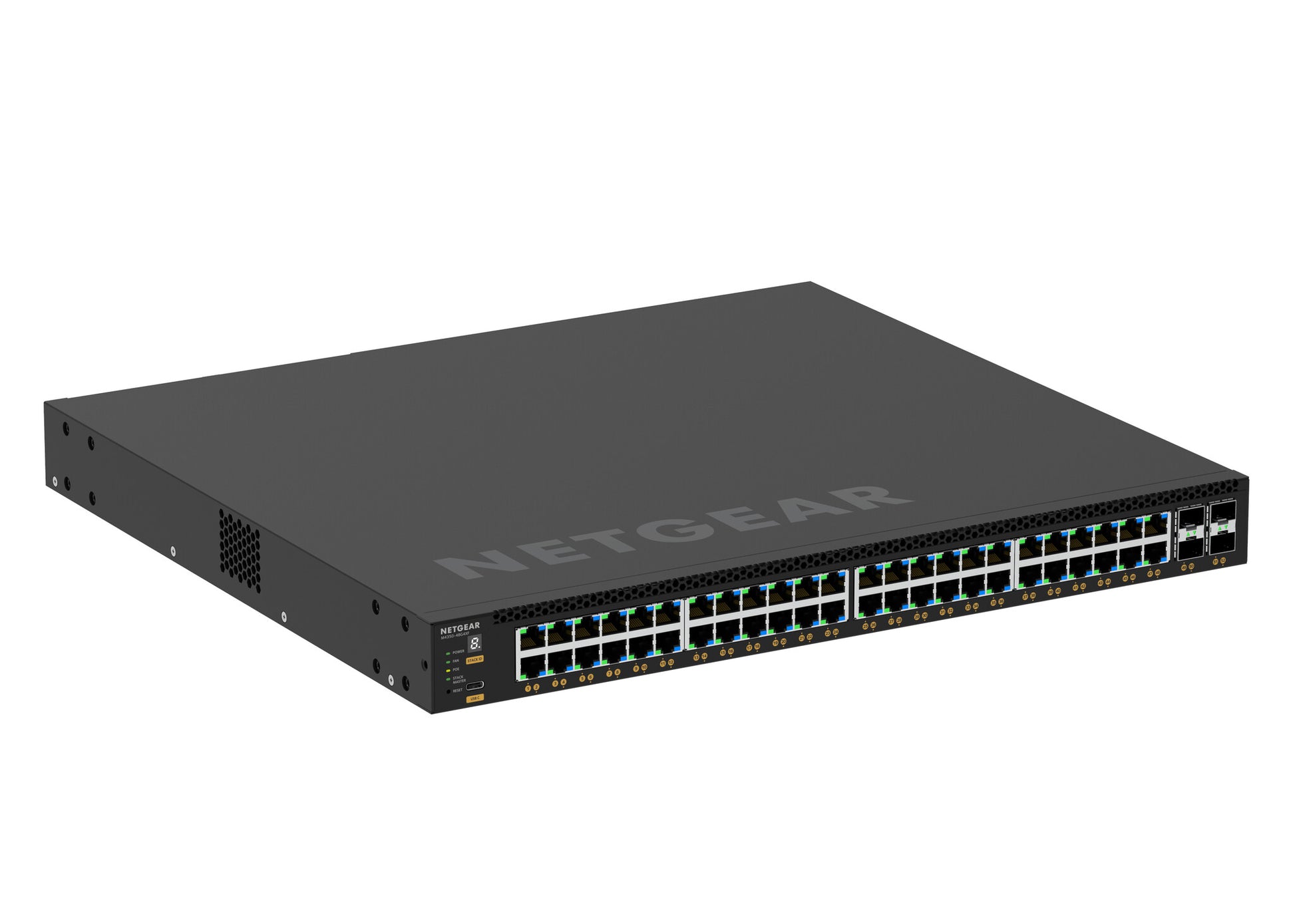

NETGEAR GSM4352 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

NETGEAR GSM4352 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

48 x 1G PoE+, 4 x 10G SFP+, 440 x 400 x 43.2 mm, 7.19 kg

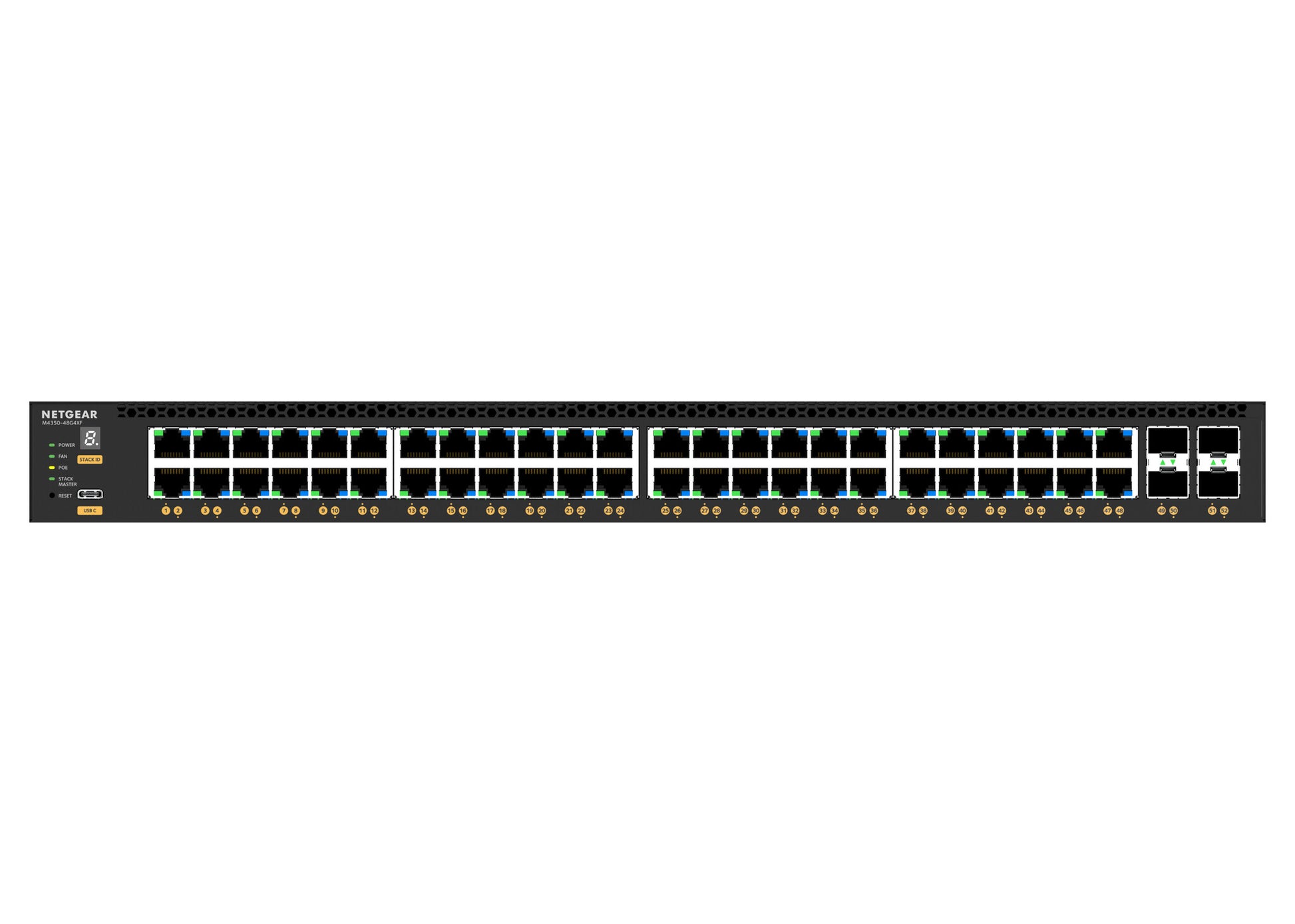

  • 48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 550W internal power supply providing 236W of PoE budget

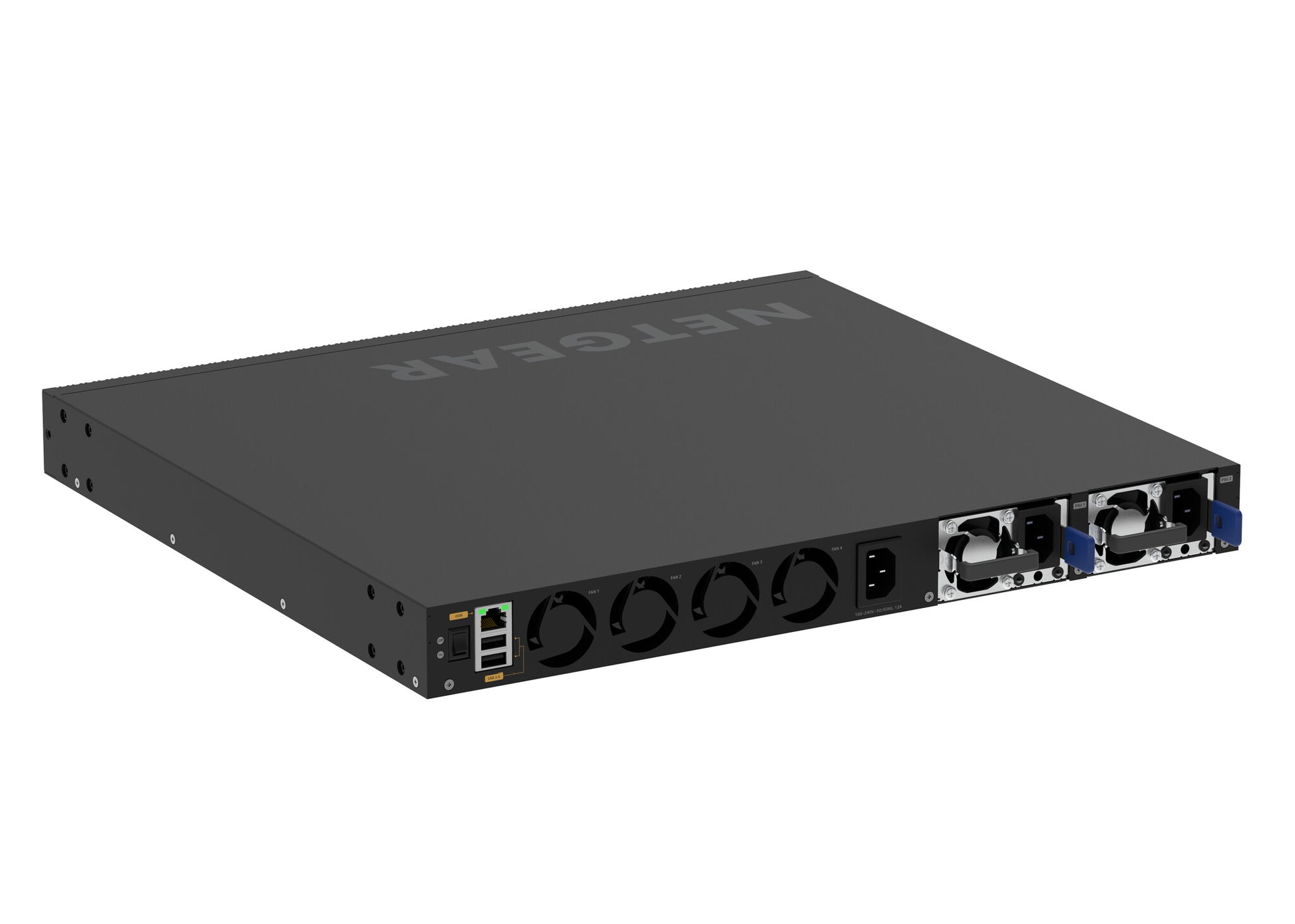

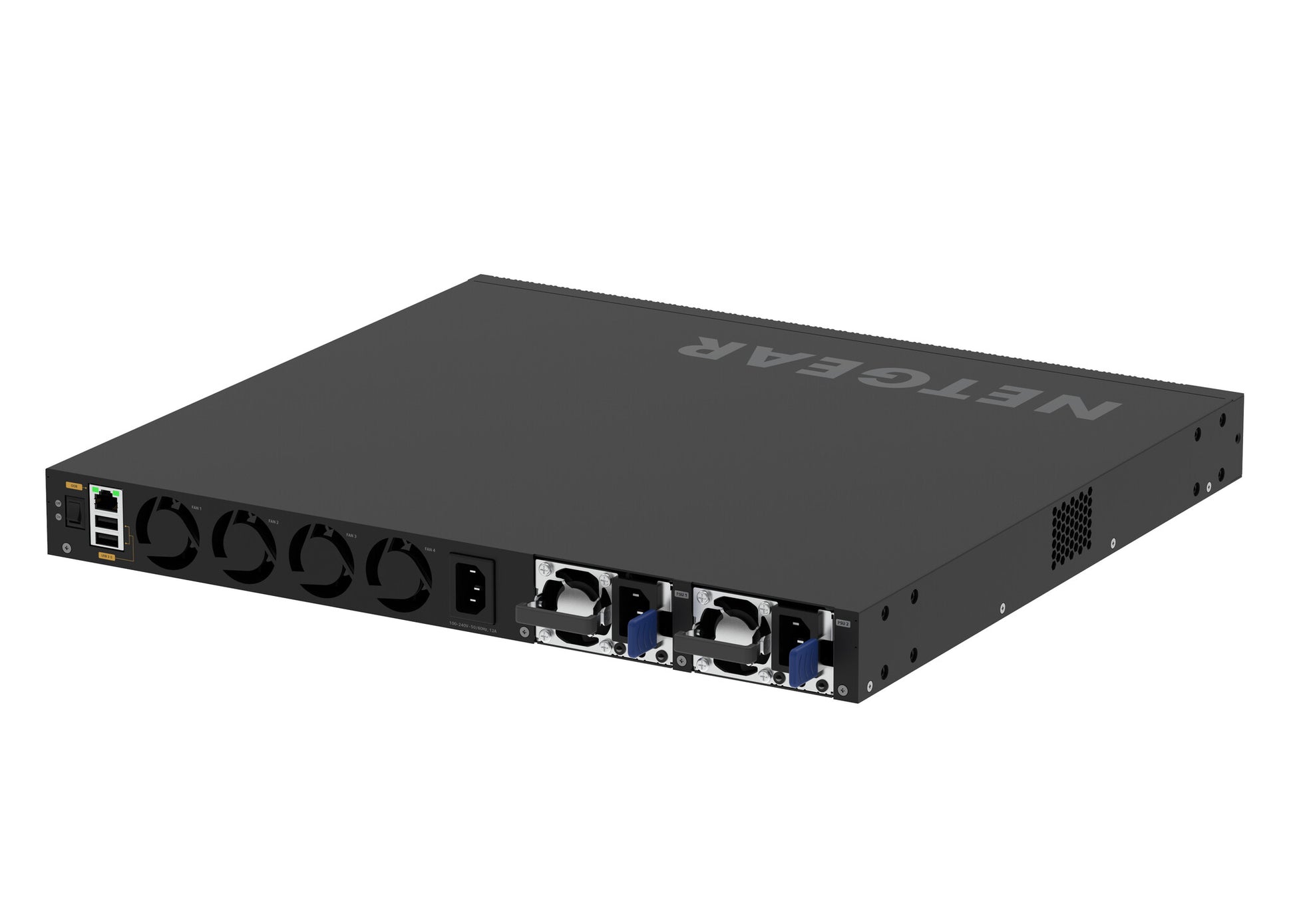

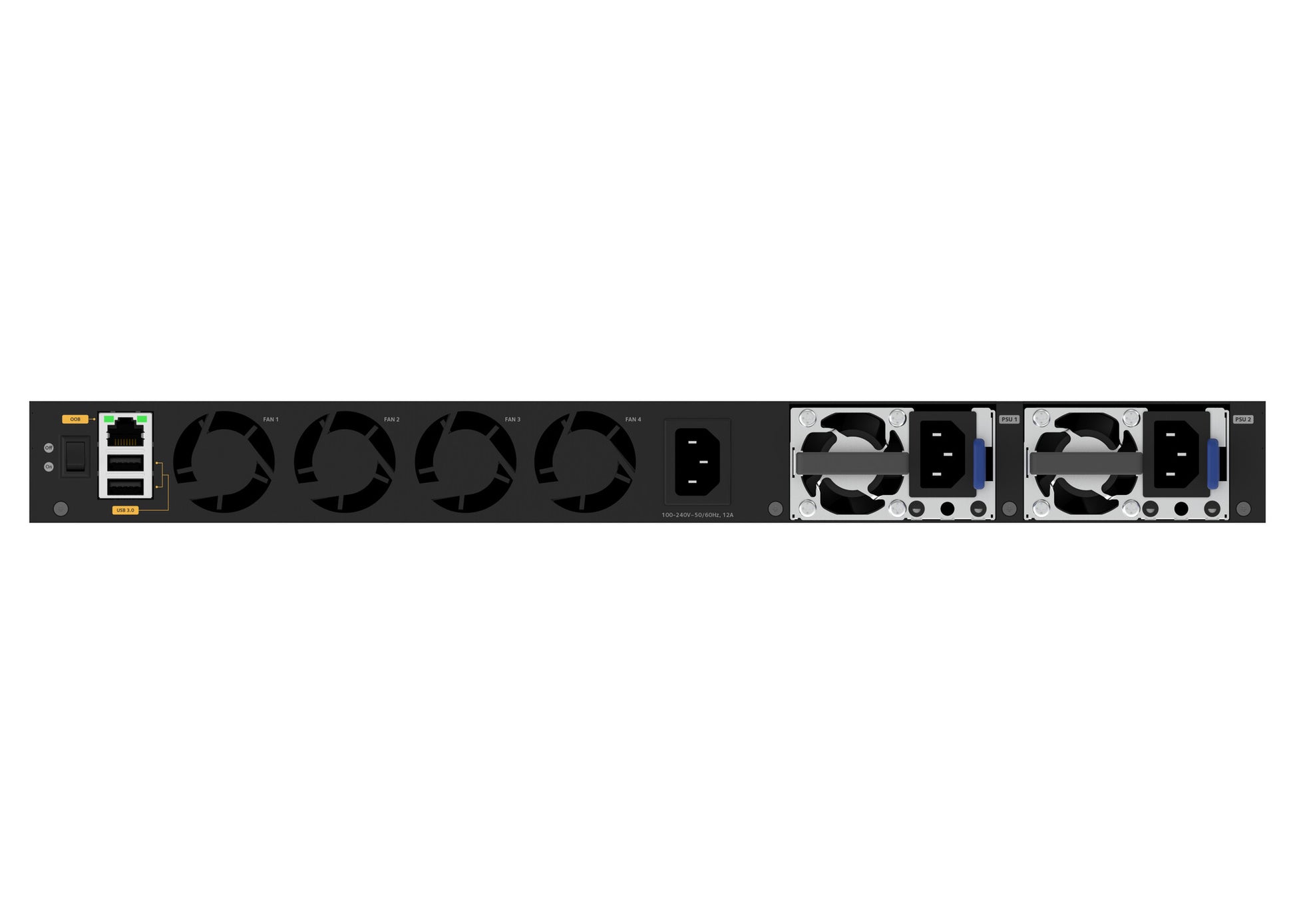

  • 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 1,440W, the redundant PoE budget can also reach 1,440W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • SKU:606449161953
  • GTIN/EAN:606449161953
  • MPN:GSM4352-100NES

You need to login to view the price.

View full details

NETGEAR GSM4352. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

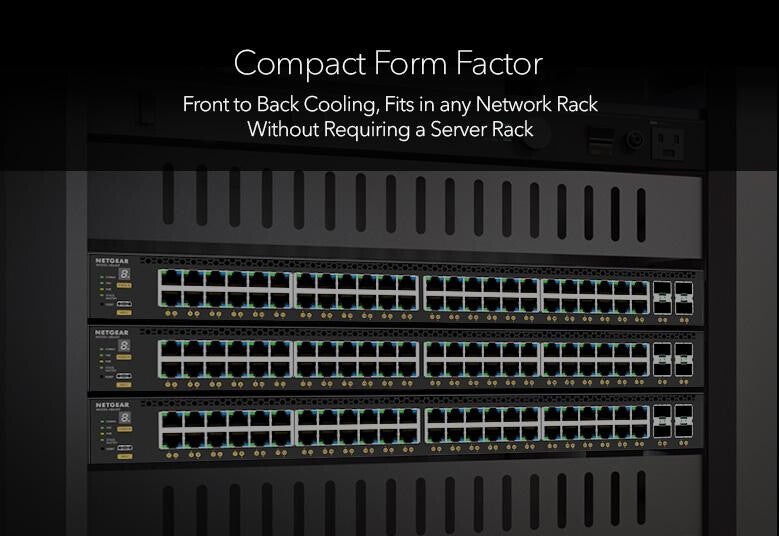

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Limited Lifetime

Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
48
SFP+ module slots quantity
4
Power connector
AC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support
Yes
Policy-based routing
Yes
Full duplex
Yes
6to4 tunnel
Yes
Flow control support
Yes
IPv6 routes
256
IPv4 routes
512
Spanning tree protocol
Yes
Rate limiting
Yes
Broadcast storm control
Yes
Link aggregation
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs
4093
Data transmission
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Throughput
130.94 Mpps
Store-and-forward
Yes
Latency (1 Gbps)
2.2 µs
Latency (10 Gbps)
0.7 µs
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
32 MB
Security
DHCP features
DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
Access Control List (ACL) egress
1023
Access Control List (ACL) ingress
511
IGMP proxy
Yes
IGMP snooping
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted random early detection (WRED)
DoS attack prevention
Yes
Password protection
Yes
Root protection
Yes
Static port security
Yes
MAC address filtering
Yes
Authentication type
RADIUS, TACACS+
Authentication
Guest VLAN, MAC-based authentication
BPDU filtering/protection
Yes
Loop protection
Yes
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Y
Protocols
Management protocols
SNMP V1, V2, V3
Routing protocols
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Airflow direction
Front-to-back airflow
Performance
Built-in processor
Yes
Processor model
ARM Cortex-A57
Processor frequency
1800 MHz
Memory type
DDR4-SDRAM
Internal memory
2048 MB
Flash memory
512 MB
sFlow
Yes
Power
Power source
AC
Power supply included
Yes
Power consumption (typical)
99 W
Power consumption (max)
348 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
48
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
1440 W
Other features
Power supply
550 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Weight & dimensions
Width
440 mm
Depth
400 mm
Height
43.2 mm
Weight
7.19 kg
Packaging content
Cables included
AC, USB Type-C
Quick start guide
Yes
Rack mount kit
Yes
Packaging data
Included power plug types
EU, UK, NA
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
