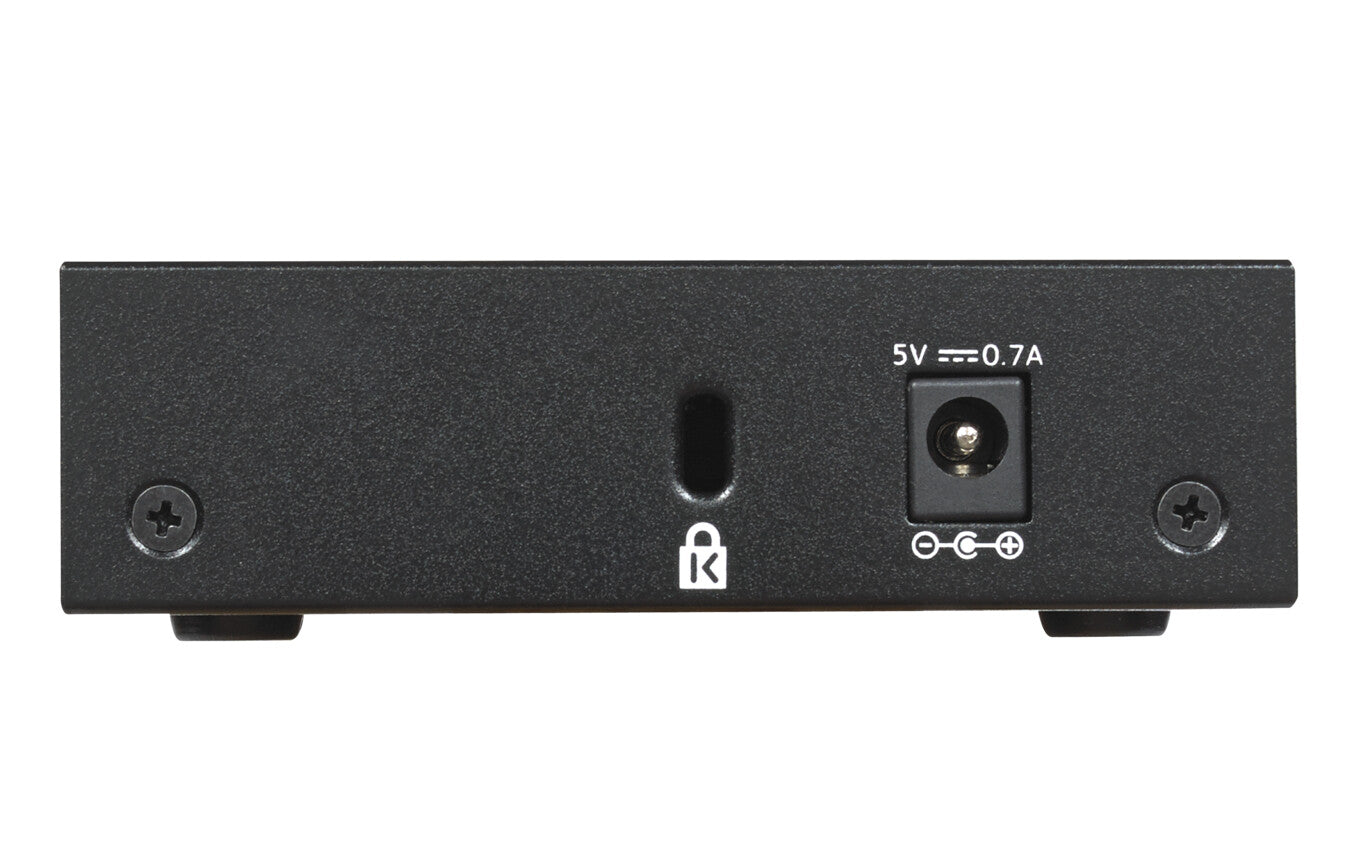

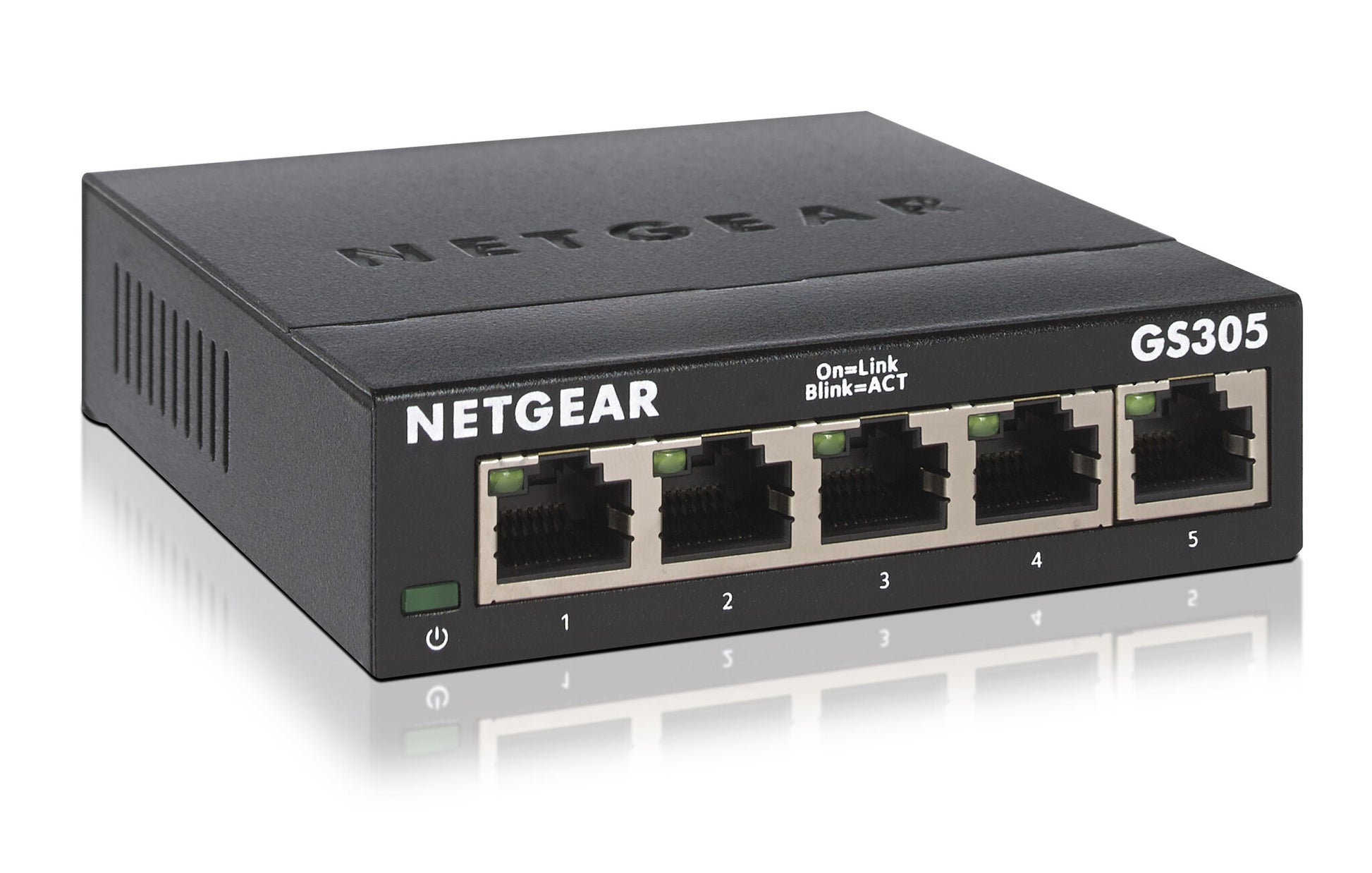

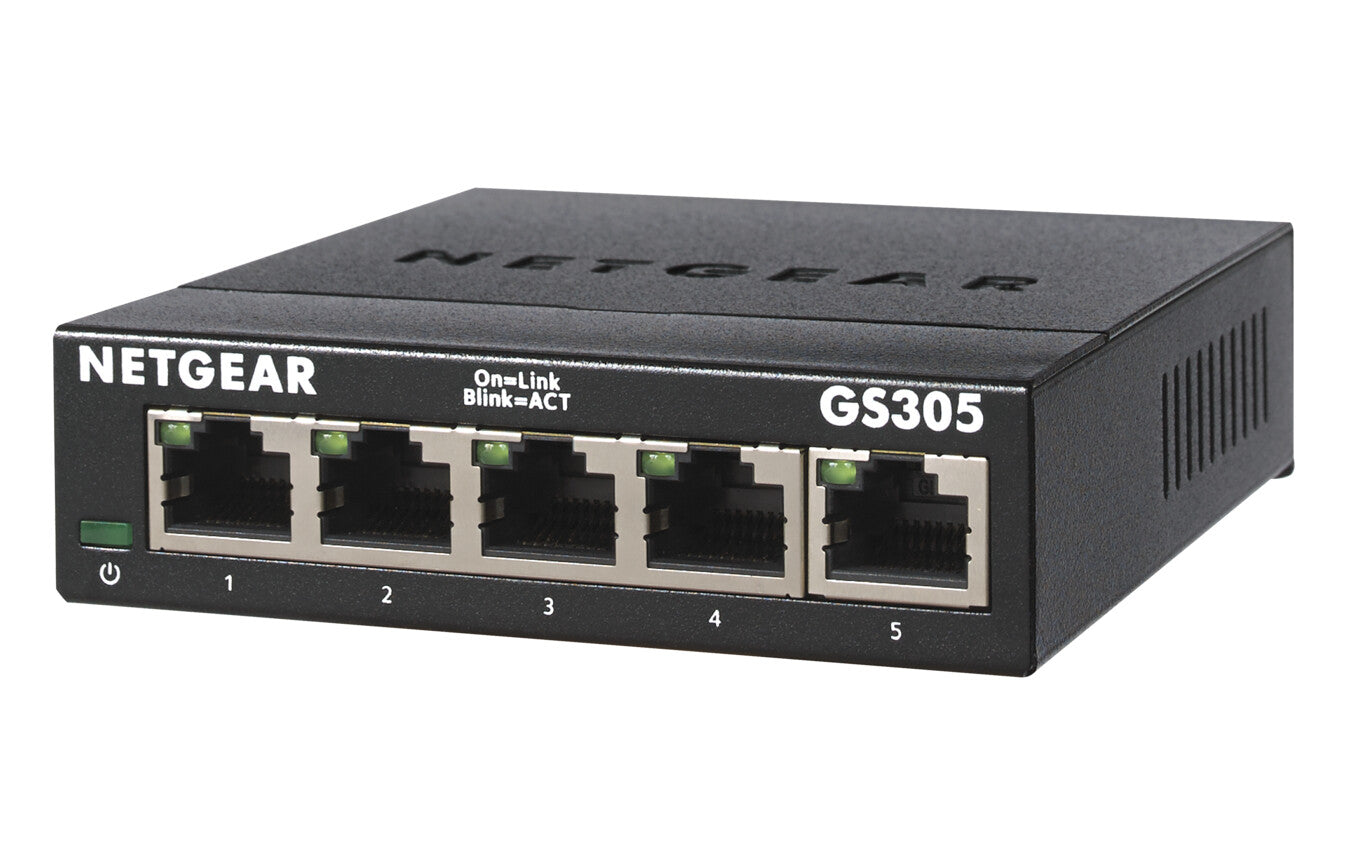

NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

GS305v3, 5x RJ-45, 10/100/1000Mbps, 2K, 128 KB, 10 Gbps, metal

  • Auto-MDI/MDIX eliminates the need for crossover cables
  • LED indicators for ease of use
  • Energy-efficient technology for power savings
  • Fanless design for silent operation
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • 802.1p QoS for traffic/frame prioritization
  • Plug-and-play; no setup required
  • Durable and rugged metal case
  • Ideal for small office and home networks
  • Standards-based technology ensures interoperability with any standards-based devices in the existing network
  • SKU:606449140095
  • GTIN/EAN:606449140095
  • MPN:GS305-300PES

You need to login to view the price.

View full details

NETGEAR GS305. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

3 years

Management features
Switch type
Unmanaged
Switch layer
L2
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5
Power connector
DC-in jack
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable length detection
Yes
Flow control support
Yes
Auto-sensing
Yes
Auto MDI/MDI-X
Yes
Data transmission
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Forwarding rate
1.448 Mpps
Latency (1 Gbps)
2.6 µs
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
128 MB
Design
Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, Power
Wall mountable
Yes
Performance
Mean time between failures (MTBF)
3831422 h
Power
Power consumption (max)
2.15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Warranty period
3 year(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
7.35 BTU/h
Weight & dimensions
Width
101 mm
Depth
94 mm
Height
29 mm
Weight
250 g
Technical details
Products per shipping (inner) case
20 pc(s)
Shipping (inner) case net weight
10.7 kg
Shipping (inner) case length
31.8 cm
Shipping (inner) case width
49.9 cm
Shipping (inner) case height
35.7 cm
Certificates
Certification
CE MarkFCC Part 15 Class BIC Class BRCMVCCI
Logistics data
Harmonized System (HS) code
85176990
