NETGEAR GS305E Managed Gigabit Ethernet (10/100/1000) Black

NETGEAR GS305E Managed Gigabit Ethernet (10/100/1000) Black

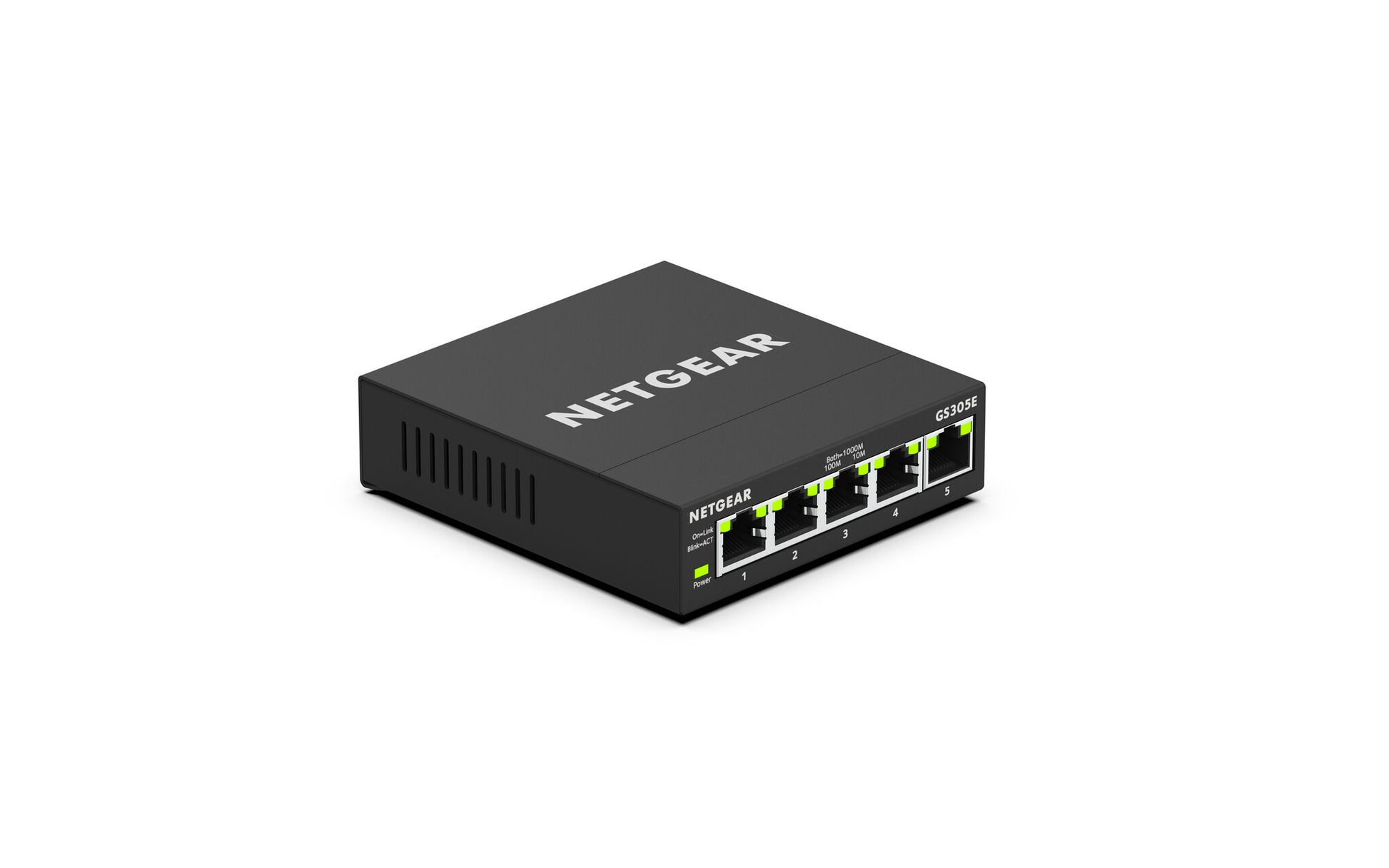

5-port Gigabit Ethernet Smart Managed Plus Switch (GS305E)

  • Enable network configuration and management at the price point of Unmanaged Switches
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Flexible management via easy-to-use web browser-based management GUI or using the PC-based Utility application
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto “denial-of-service” (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Loop detection and broadcast storm controls
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Jumbo frame support
  • SKU:606449140569
  • GTIN/EAN:606449140569
  • MPN:GS305E-100PES

You need to login to view the price.

View full details

NETGEAR GS305E. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.

3-year Limited

Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes
Virtual Cable Test (VCT)
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Port mirroring
Yes
Flow control support
Yes
Rate limiting
Yes
Link aggregation
No
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Port-based VLAN
Number of VLANs
64
Data transmission
MAC address table
8000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Security
DHCP features
DHCP client
IGMP snooping
Yes
DoS attack prevention
Yes
Password protection
Yes
Loop protection
Yes
Design
Rack mounting
No
Product colour
Black
LED indicators
Activity, Link, Power, Speed, System
Performance
Buffer size
128 KB
Noise level
0 dB
Mean time between failures (MTBF)
2531294 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Warranty period
3 year(s)
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Weight & dimensions
Width
94 mm
Depth
100 mm
Height
27 mm
Weight
250 g
Packaging data
Package type
Box
Package width
153 mm
Package depth
237 mm
Package height
61 mm
Package weight
600 g
Technical details
Products per shipping (inner) case
15 pc(s)
Shipping (inner) case net weight
10.1 kg
Shipping (inner) case length
34.4 cm
Shipping (inner) case width
49.7 cm
Shipping (inner) case height
28 cm
Logistics data
Master (outer) case width
344 mm
Master (outer) case length
497 mm
Master (outer) case height
280 mm
Harmonized System (HS) code
85176990
Master (outer) case gross weight
10.2 kg
Products per master (outer) case
15 pc(s)
