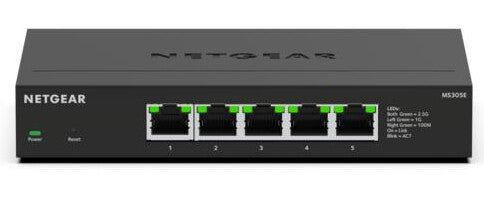

Netgear MS305E

Netgear MS305E

5-Port, 2.5 G, 5.6 W, 158 x 101 x 27 mm, 450 g

  • Effortless Setup with Simple Configuration
  • Five (5) 2.5G Multi-Gigabit Ethernet ports for faster connections and increased efficiency
  • Compact, robust metal desktop case with silent fanless operation
  • Versatile placement options: desktop or wall mounting
  • Convenient monitoring via per port LEDs, displaying activity and speed
  • Easy management with intuitive web-based Interface
  • NETGEAR’s 5-Year hardware warranty for added peace of mind
  • Energy-efficient design in line with IEEE 802.3az standards
  • SKU:606449170634
  • GTIN/EAN:606449170634
  • MPN:MS305E-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR MS305E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch

MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

5 years

Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity
5
Network
Ethernet LAN data rates
100,1000,2500 Mbit/s
Auto MDI/MDI-X
Yes
Cable length detection
Yes
Head-of-line (HOL) blocking
Yes
Full duplex
Yes
Half duplex
Yes
10G support
No
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory
1 MB
Jumbo frames
12288
Jumbo frames support
Yes
Latency (1 Gbps)
4.9 µs
Forwarding rate
3.72 Mpps
Switching capacity
40 Gbit/s
MAC address table
16000 entries
Design
Wall mountable
Yes
Number of fans
0 fan(s)
LED indicators
Yes
Housing material
Metal
Product colour
Black
Stackable
No
Rack mounting
No
Performance
Mean time between failures (MTBF)
4273003 h
Fanless
Yes
Noise level
0 dB
Power
Power consumption (max)
5.6 W
Input voltage
12 V
Input current
1 A
DC input voltage
12 V
Power supply included
Yes
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Warranty period
5 year(s)
Operational conditions
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Weight
450 g
Height
27 mm
Depth
101 mm
Width
158 mm
Certificates
Compliance certificates
CCC, Low Voltage Directive (LVD)
