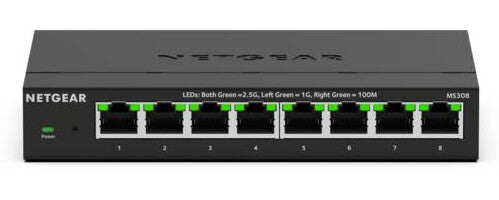

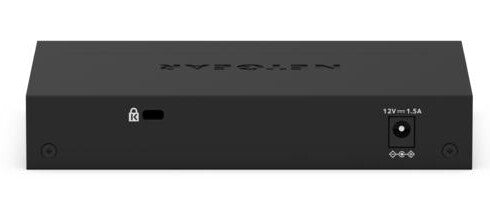

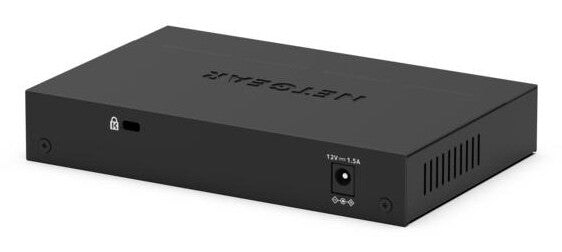

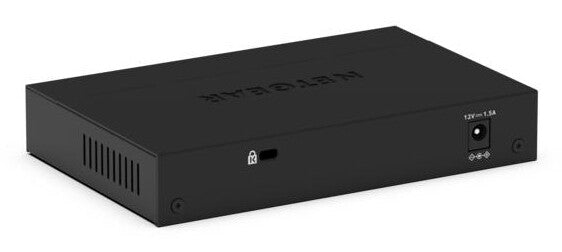

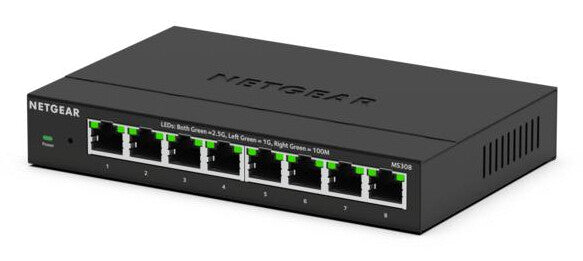

Netgear MS308

Netgear MS308

8-Port, 2.5 G, 9.24W, 158 x 101 x 27 mm, 430 g

  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 16000 entries Switching capacity: 40 Gbit/s
  • DC Power supply included
  • SKU:606449170788
  • GTIN/EAN:606449170788
  • MPN:MS308-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR MS308. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable

NETGEAR 8-Port 2.5G Multi-Gigabit Ethernet Unmanaged Switch

The NETGEAR 8-port 2.5G Multi-Gigabit Unmanaged Switch, MS308, offers businesses an affordable solution to upgrade their networks to multi-gig speeds. Featuring eight (8) 2.5G ports encased in durable metal, the MS308 Multi-Gigabit Ethernet Switch is designed for versatility—it can be placed on a desk, mounted on a wall, or under a table using the included kit.

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.

3 years

Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity
8
Network
Ethernet LAN data rates
100,1000,2500 Mbit/s
Auto MDI/MDI-X
Yes
Cable length detection
Yes
Head-of-line (HOL) blocking
Yes
Full duplex
Yes
Half duplex
Yes
10G support
No
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory
1 MB
Jumbo frames
12288
Jumbo frames support
Yes
Latency (1 Gbps)
4.9 µs
Forwarding rate
3.72 Mpps
Switching capacity
40 Gbit/s
MAC address table
16000 entries
Design
Wall mountable
Yes
Number of fans
0 fan(s)
LED indicators
Yes
Housing material
Metal
Product colour
Black
Stackable
No
Rack mounting
No
Performance
Mean time between failures (MTBF)
3309911 h
Fanless
Yes
Noise level
0 dB
Power
Power consumption (max)
7.98 W
Input voltage
12 V
Input current
1 A
DC input voltage
12 V
Power supply included
Yes
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Warranty period
3 year(s)
Operational conditions
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Weight
430 g
Height
27 mm
Depth
101 mm
Width
158 mm
Certificates
Compliance certificates
CCC, Low Voltage Directive (LVD)
