Netgear MS108UP

Netgear MS108UP

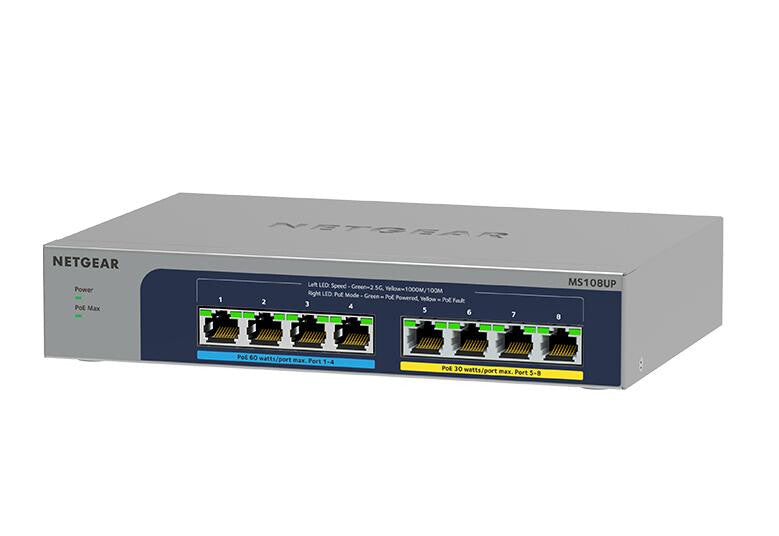

MS108UP - 8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Unmanaged Switch

  • Multi-Gigabit Ethernet
  • Non-Blocking Switching
  • PoE Support
  • Fanless Design
  • PoE Auto-Balance
  • Versatile Mounting Options
  • SKU:606449156874
  • GTIN/EAN:606449156874
  • MPN:MS108UP-100EUS

You need to login to view the price.

View full details

NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
8
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
No
Half duplex
Yes
Full duplex
Yes
Auto-sensing
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Auto MDI/MDI-X
Yes
VLAN support
Yes
Number of VLANs
64
Data transmission
MAC address table
16000 entries
Switching capacity
40 Gbit/s
Latency (1 Gbps)
3.593 µs
Jumbo frames support
Yes
Jumbo frames
12000
Packet forwarding rate (1 Gbps)
1488000 pps
Packet buffer memory
1.5 MB
Design
Rack mounting
No
Housing material
Metal
LED indicators
Activity, Link, PoE, Power
Number of fans
0 fan(s)
Wall mountable
Yes
Electromagnetic compatibility
CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Performance
Fanless
Yes
Mean time between failures (MTBF)
373643.7 h
Power
Power source
DC
Power supply included
Yes

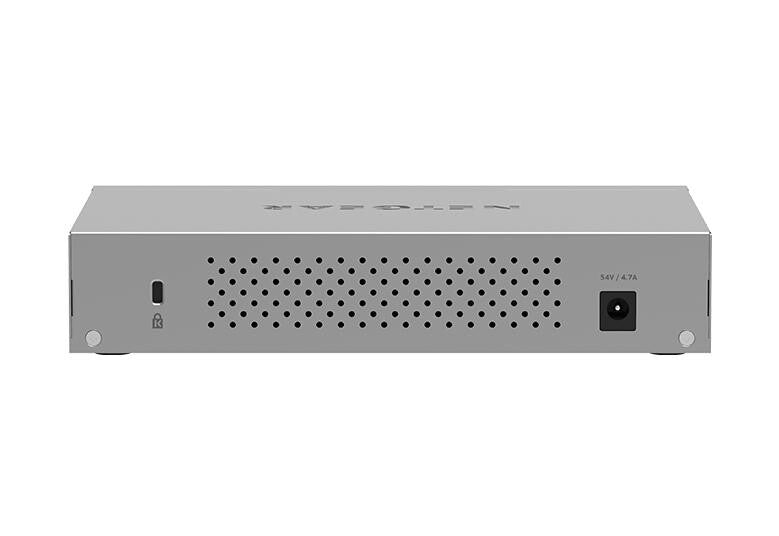

DC input voltage
54 V
Input current
4.7 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
230 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
923.49 BTU/h
Weight & dimensions
Width
210 mm
Depth
140 mm
Height
40 mm
Weight
900 g
Certificates
Certification
CB, CSA, CCC, BSMI, RCM
Logistics data
Harmonized System (HS) code
85176990
