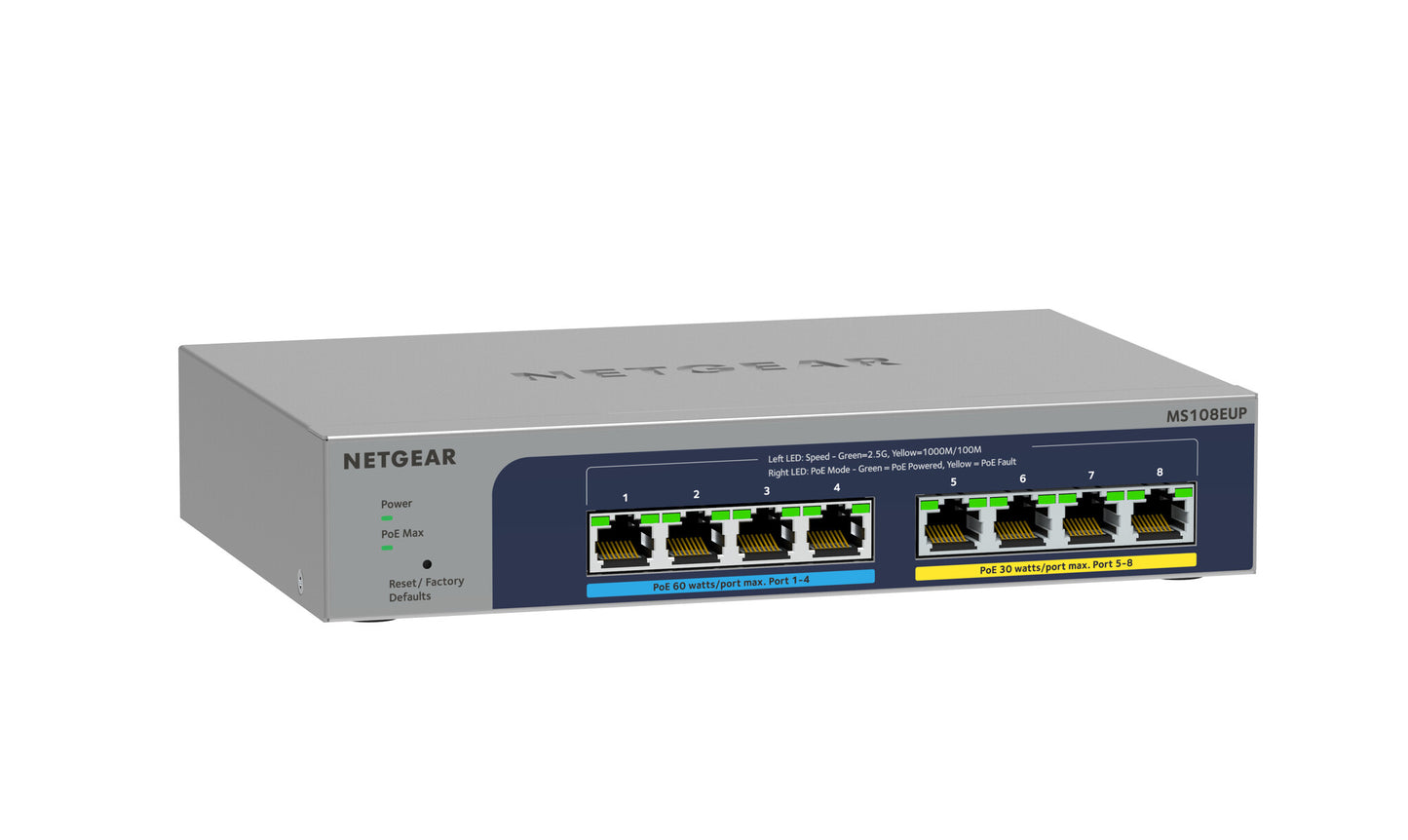

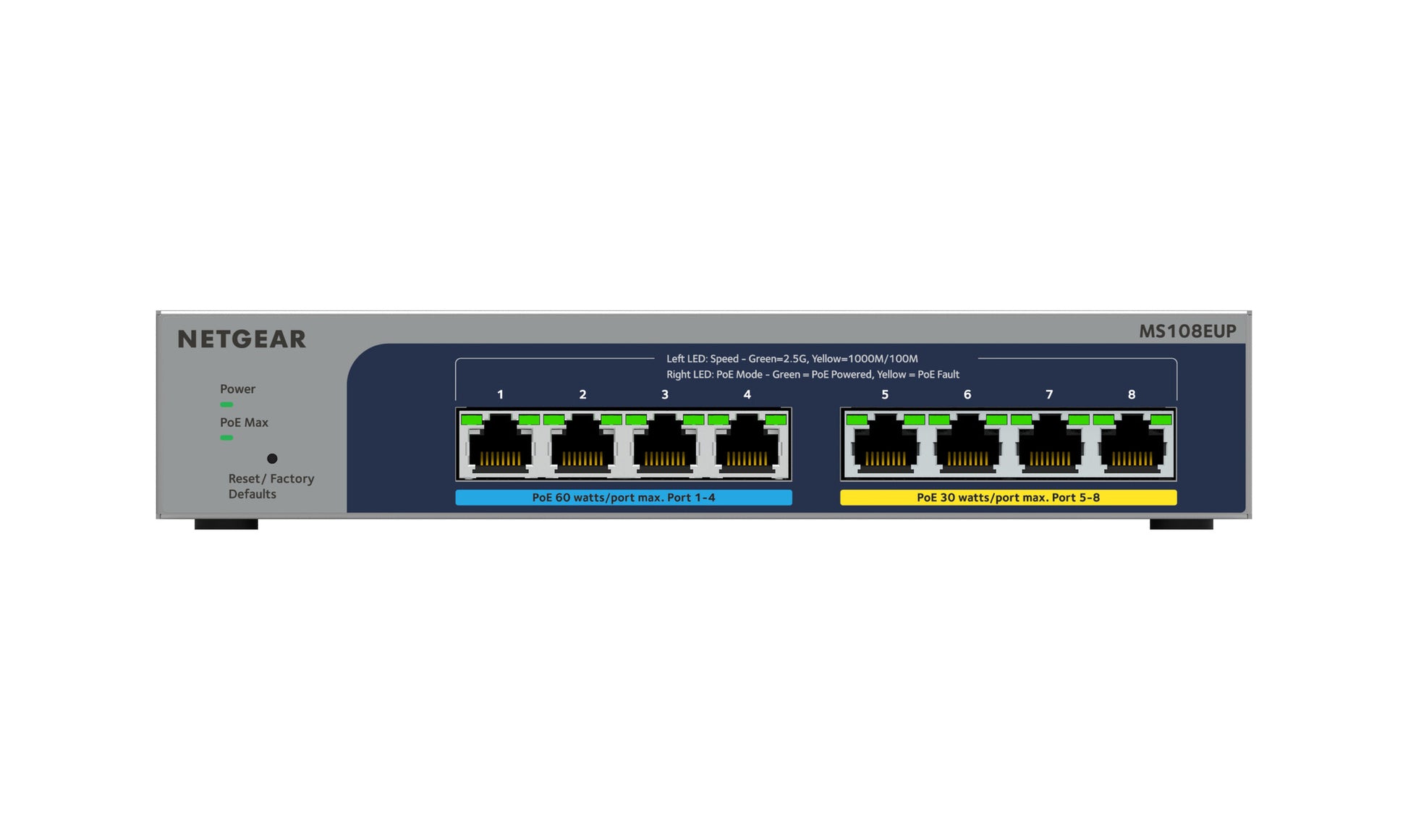

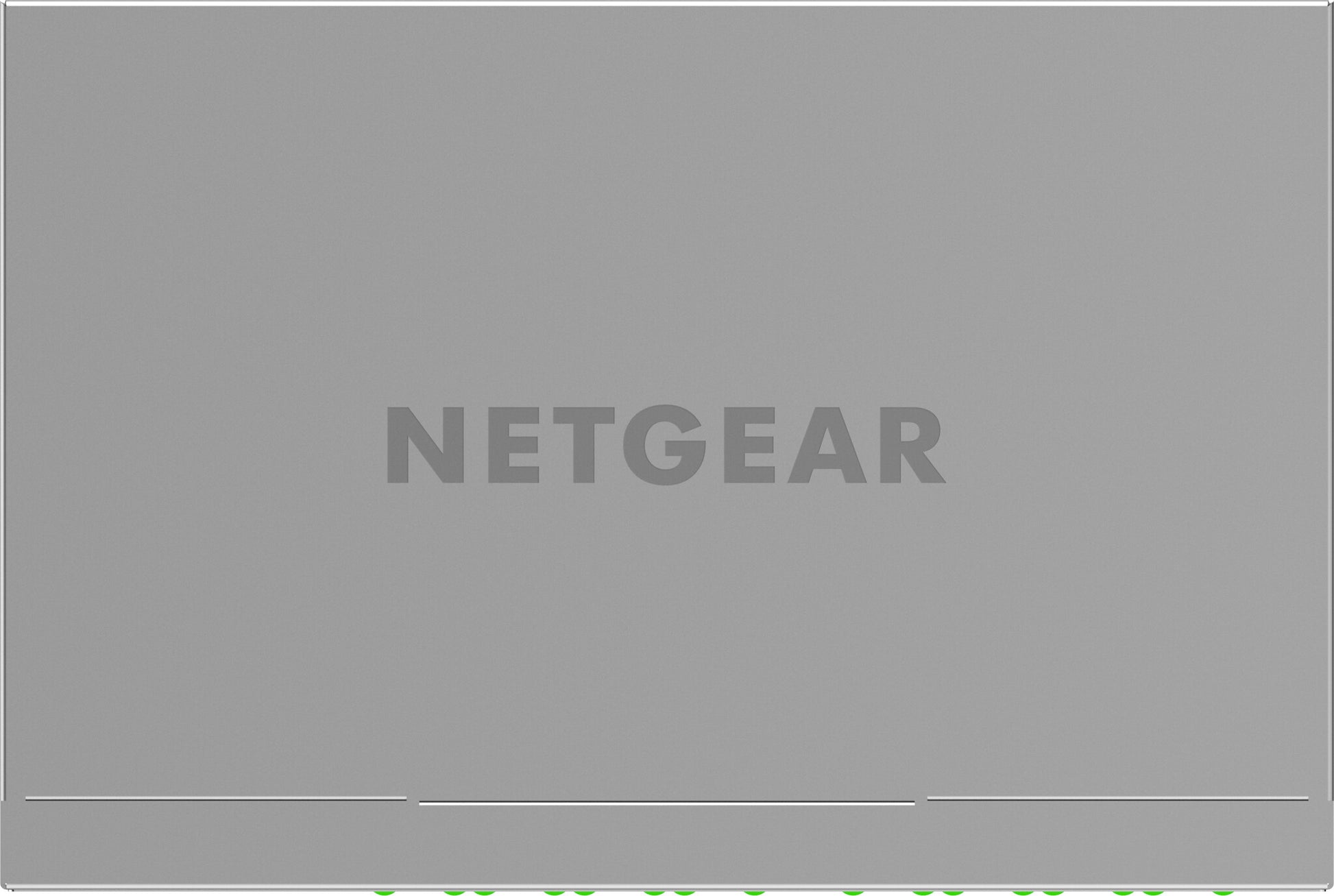

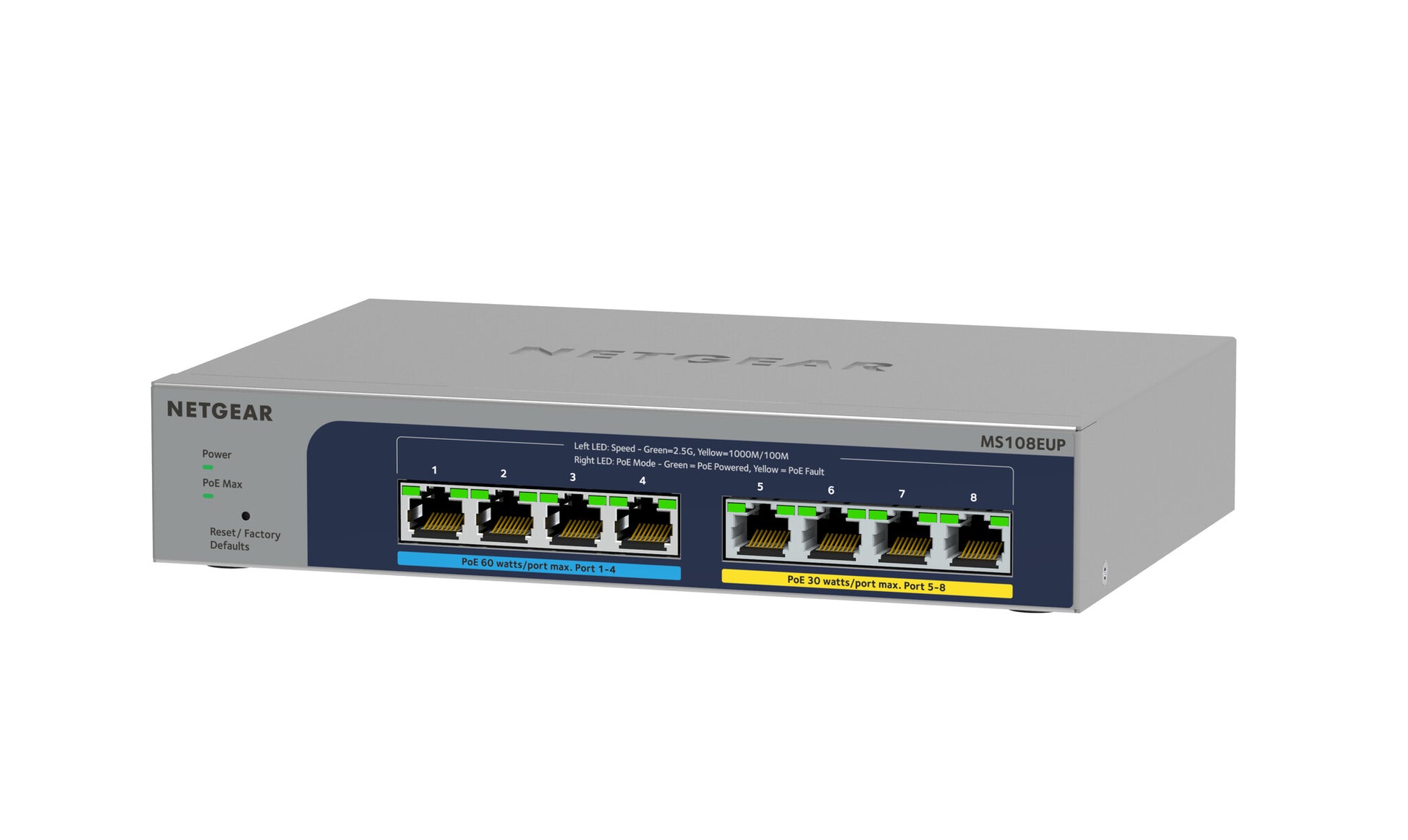

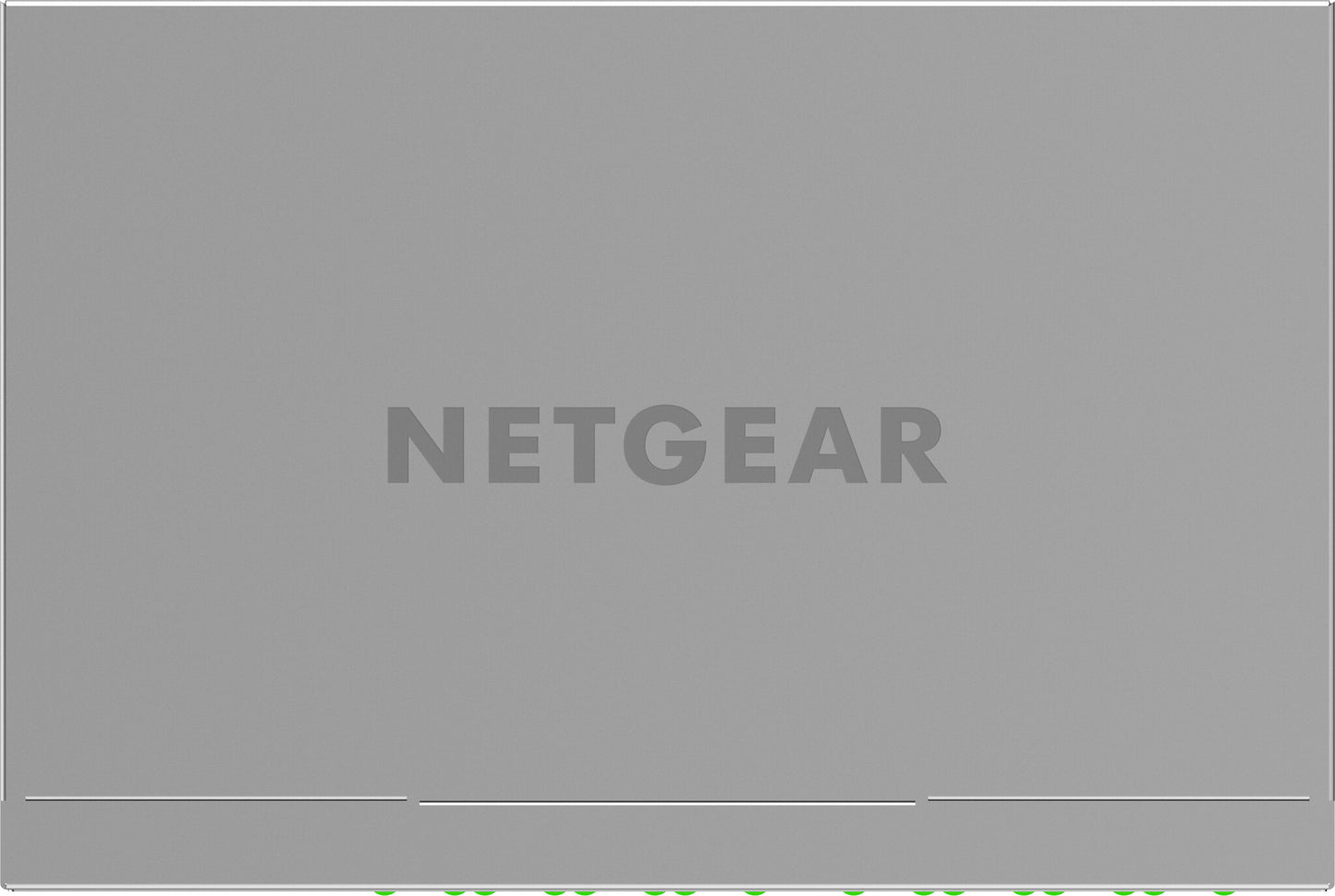

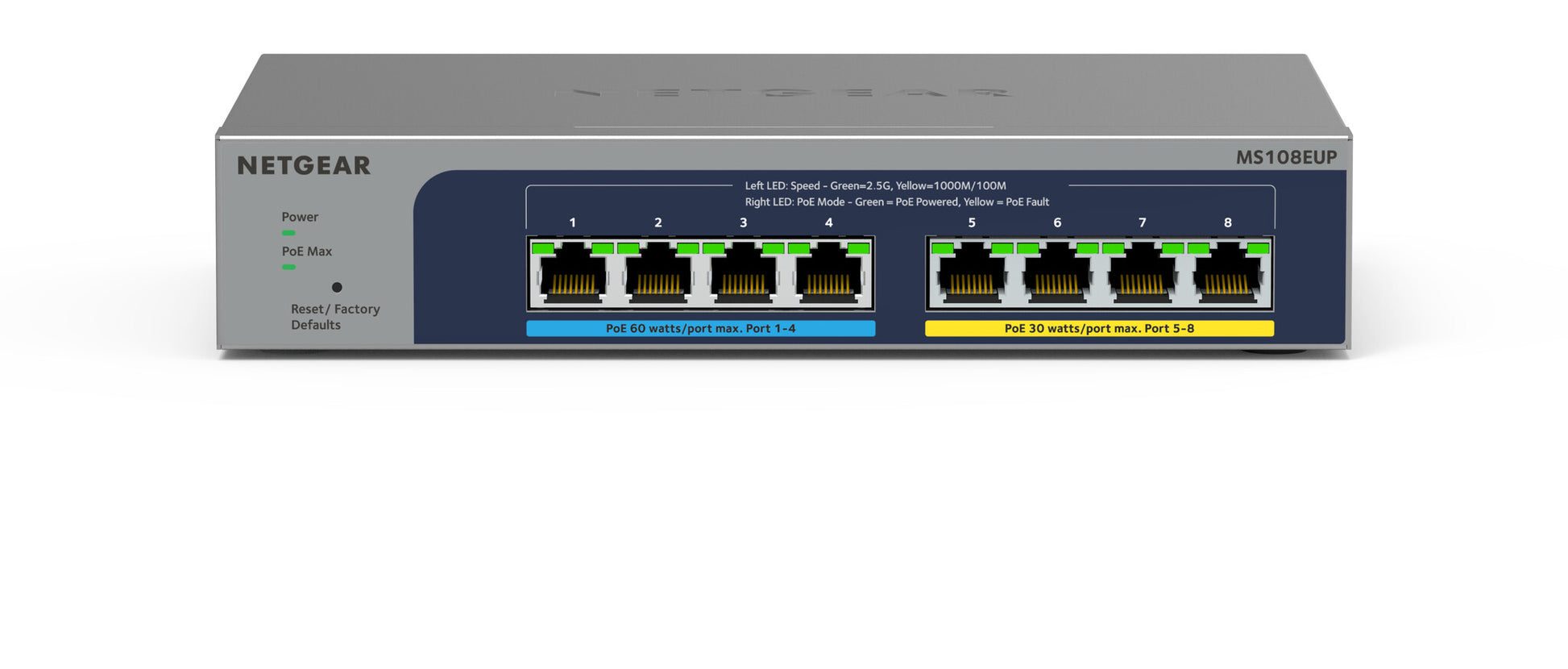

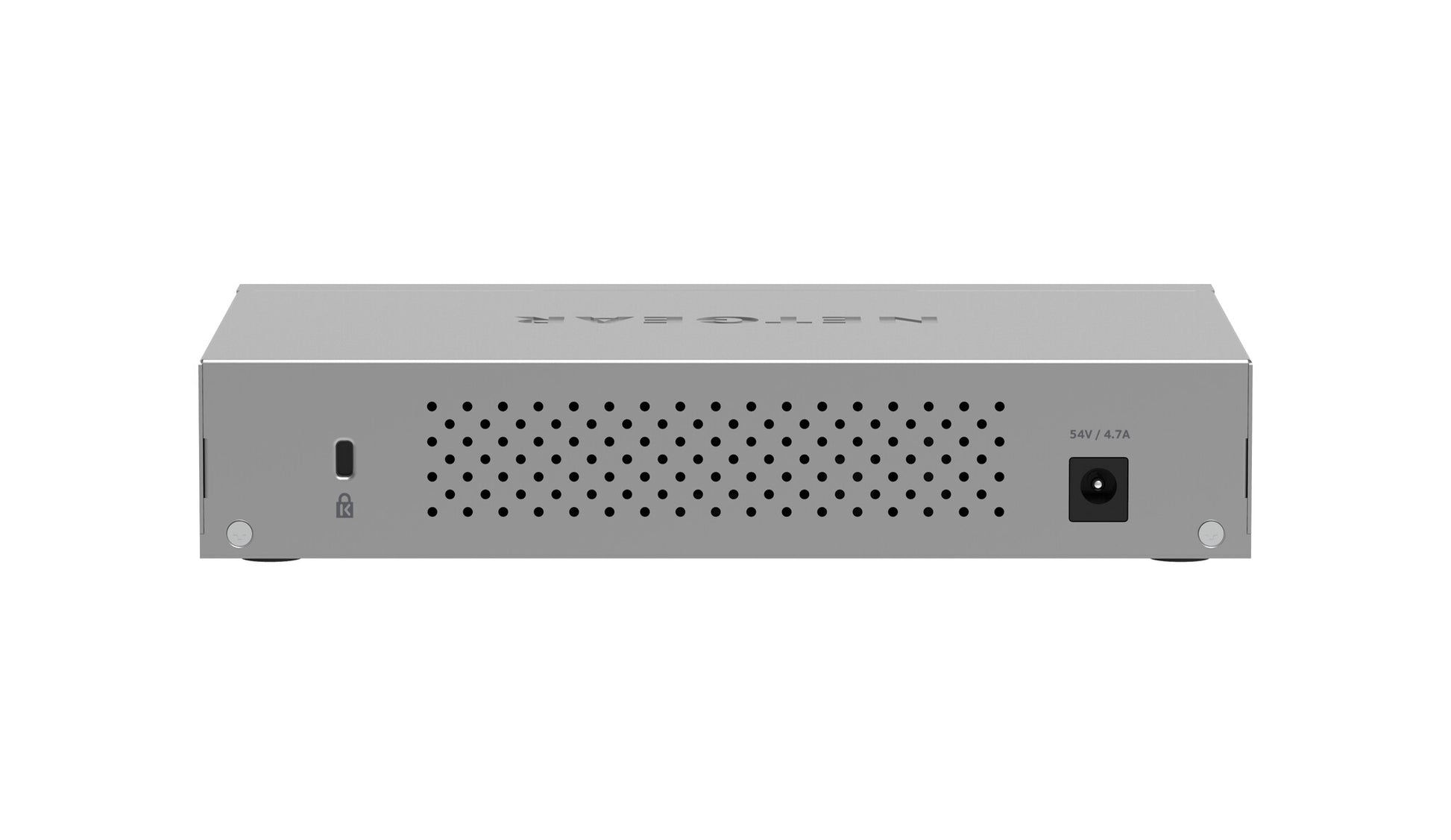

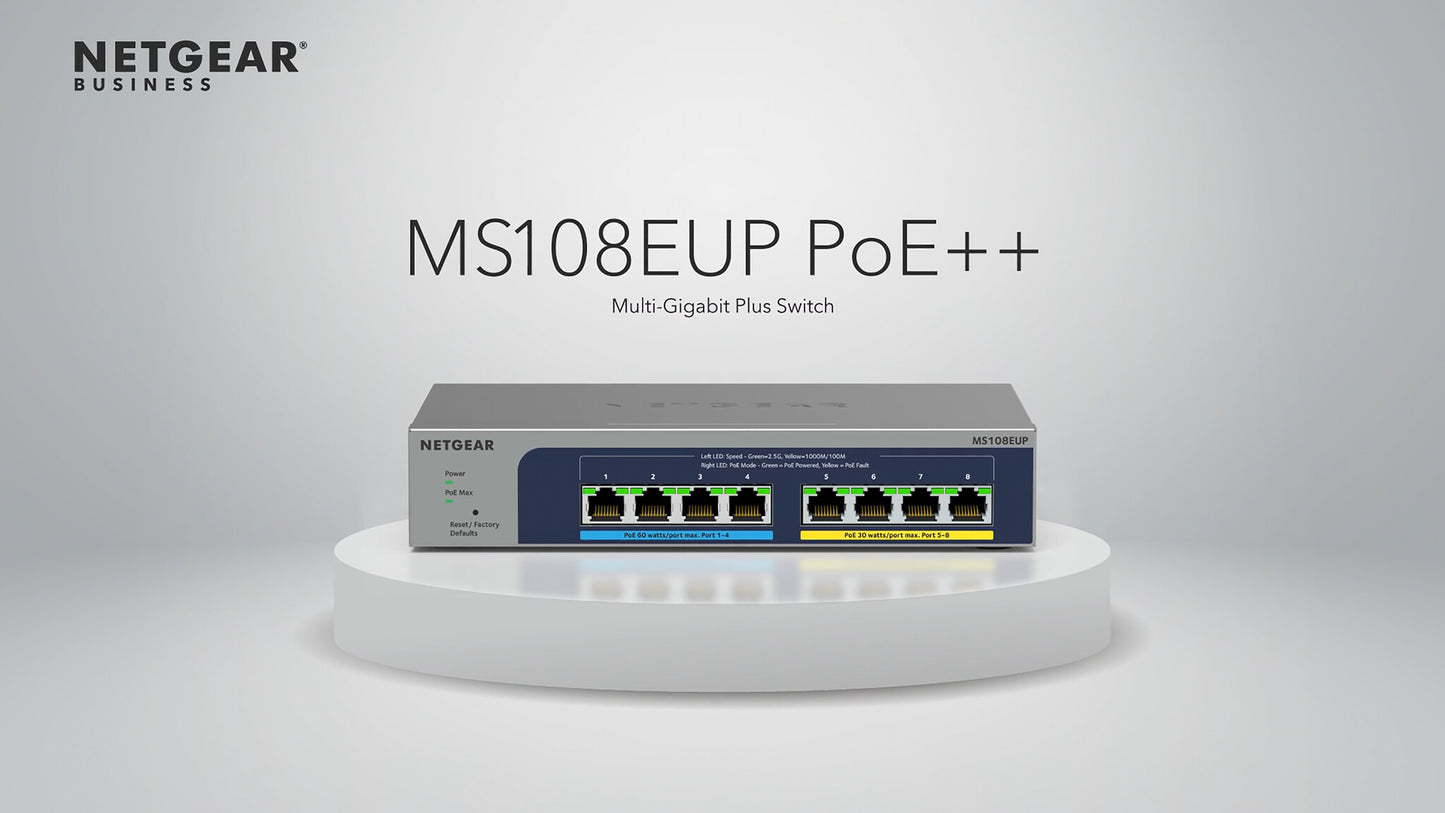

NETGEAR MS108EUP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

NETGEAR MS108EUP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

40Gbps, 16K MAC, 8x 1/2.5G LAN RJ-45, PoE+, 210x140x40 mm

  • 802.3bt standard offering up to 60W/port on Port 1-4, 802.3at (30W/port) on Port 5-8
  • Enable network configuration and management at the price point of Unmanaged Switches
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Business-friendly and easy-to-use web browser-based management GUI
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • SKU:606449156980
  • GTIN/EAN:606449156980
  • MPN:MS108EUP-100EUS

You need to login to view the price.

View full details

NETGEAR MS108EUP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.

Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

Advanced PoE Controls
Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.

Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

Limited lifetime warranty

Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Network
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
100BASE-T, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Rate limiting
Yes
Link aggregation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
Number of VLANs
64
Data transmission
MAC address table
16000 entries
Switching capacity
40 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1.5 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Password protection
Yes
Multicast features
Multicast support
Yes
Number of multicast groups filtered
128
Design
Rack mounting
No
Stackable
No
Product colour
Grey
Housing material
Metal
LED indicators
Yes
Performance
Mean time between failures (MTBF)
373644 h
Power
Power source
PoE
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
230 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Weight & dimensions
Width
210 mm
Depth
140 mm
Height
40 mm
Weight
900 g
Certificates
Certification
CE
FCC 15 B
CE/EN55032/24
CSA
VCCI
ACMA
KC
CCC
BSMI
Logistics data
Harmonized System (HS) code
85176990
