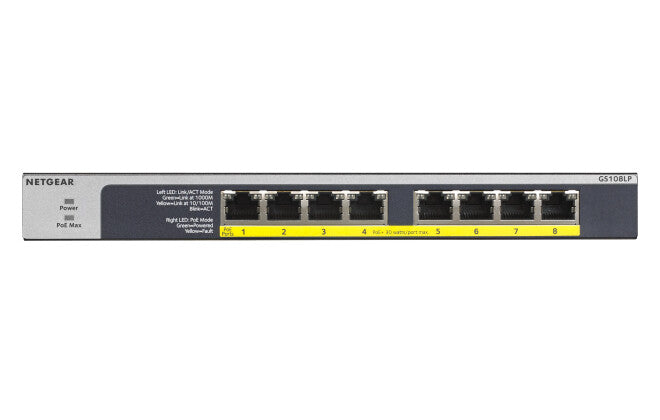

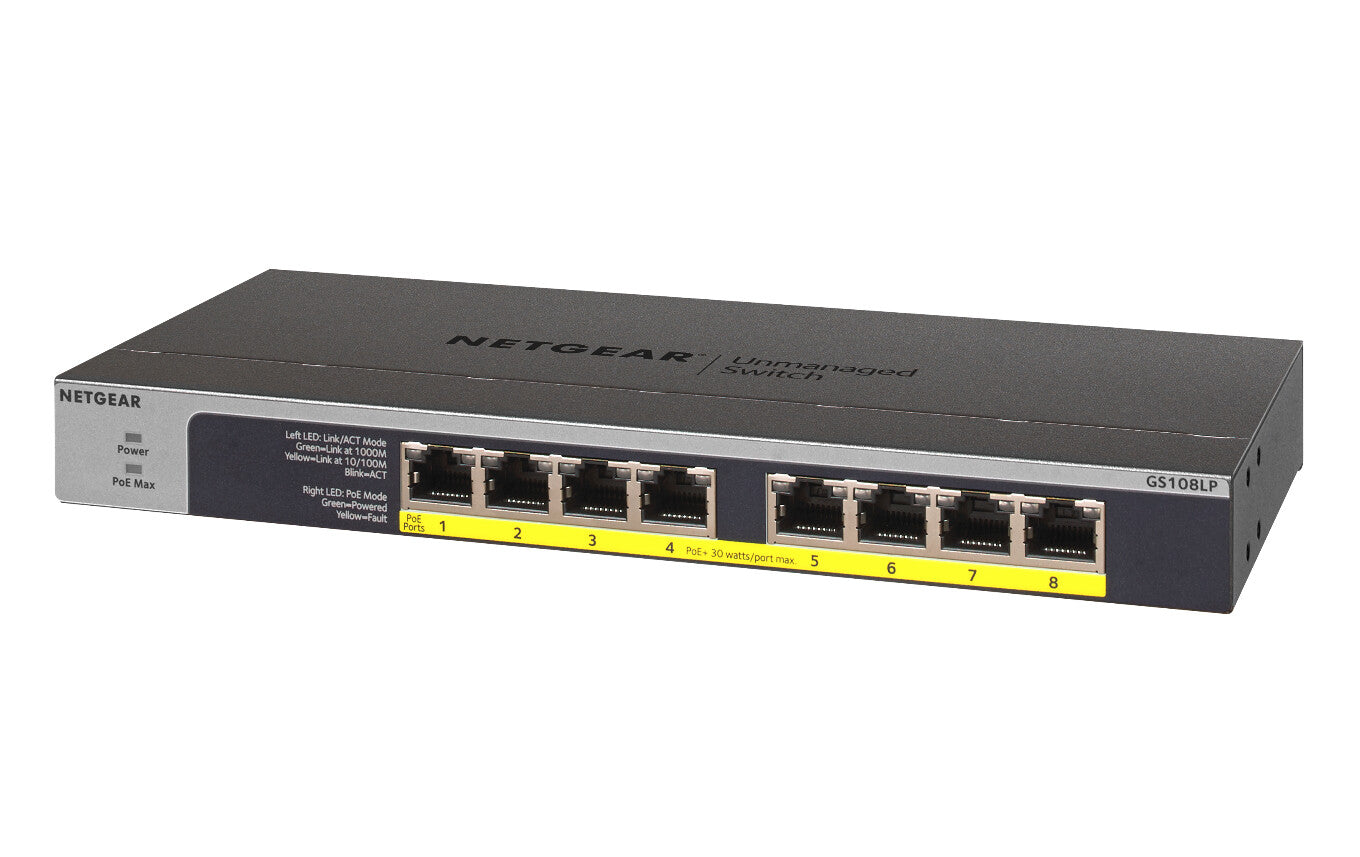

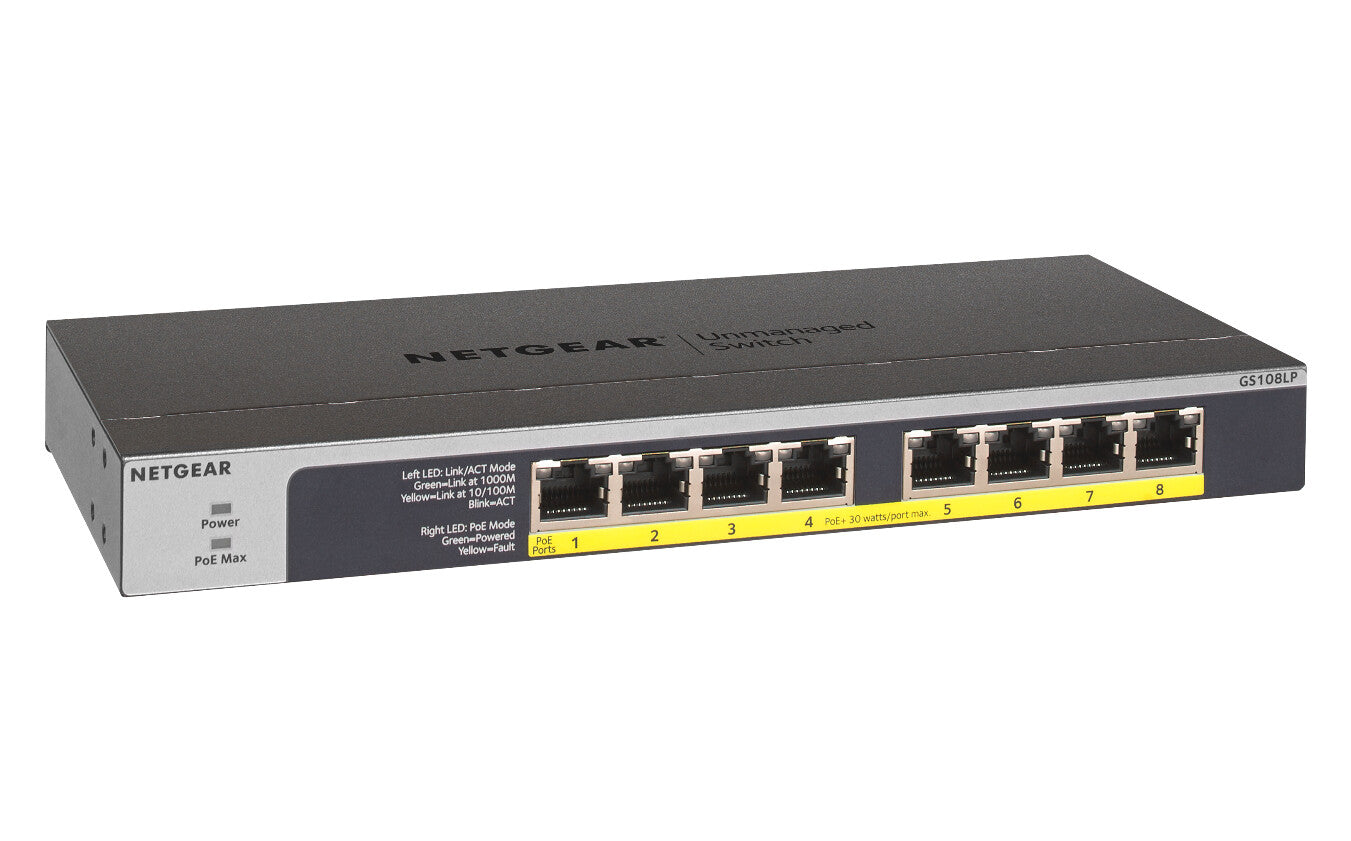

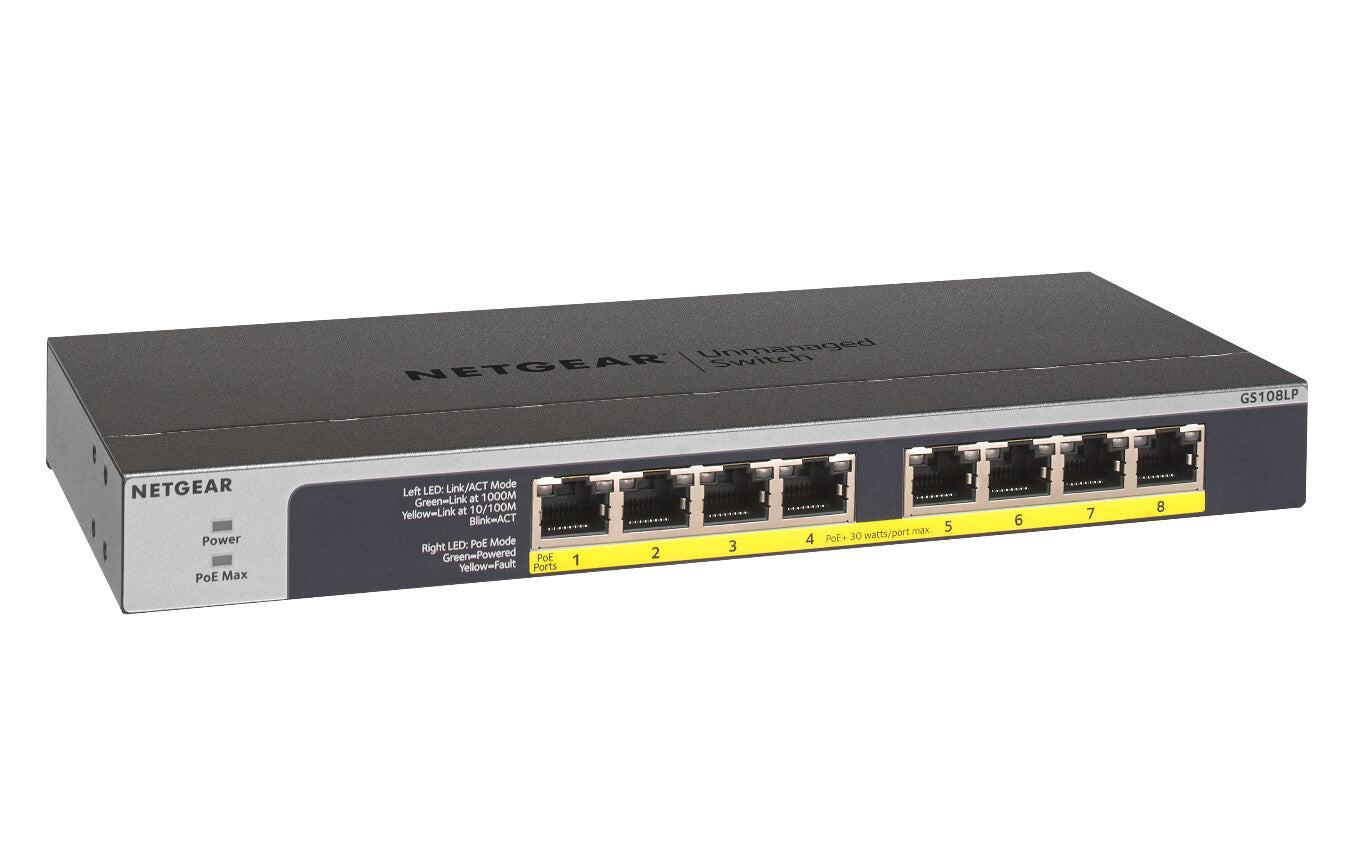

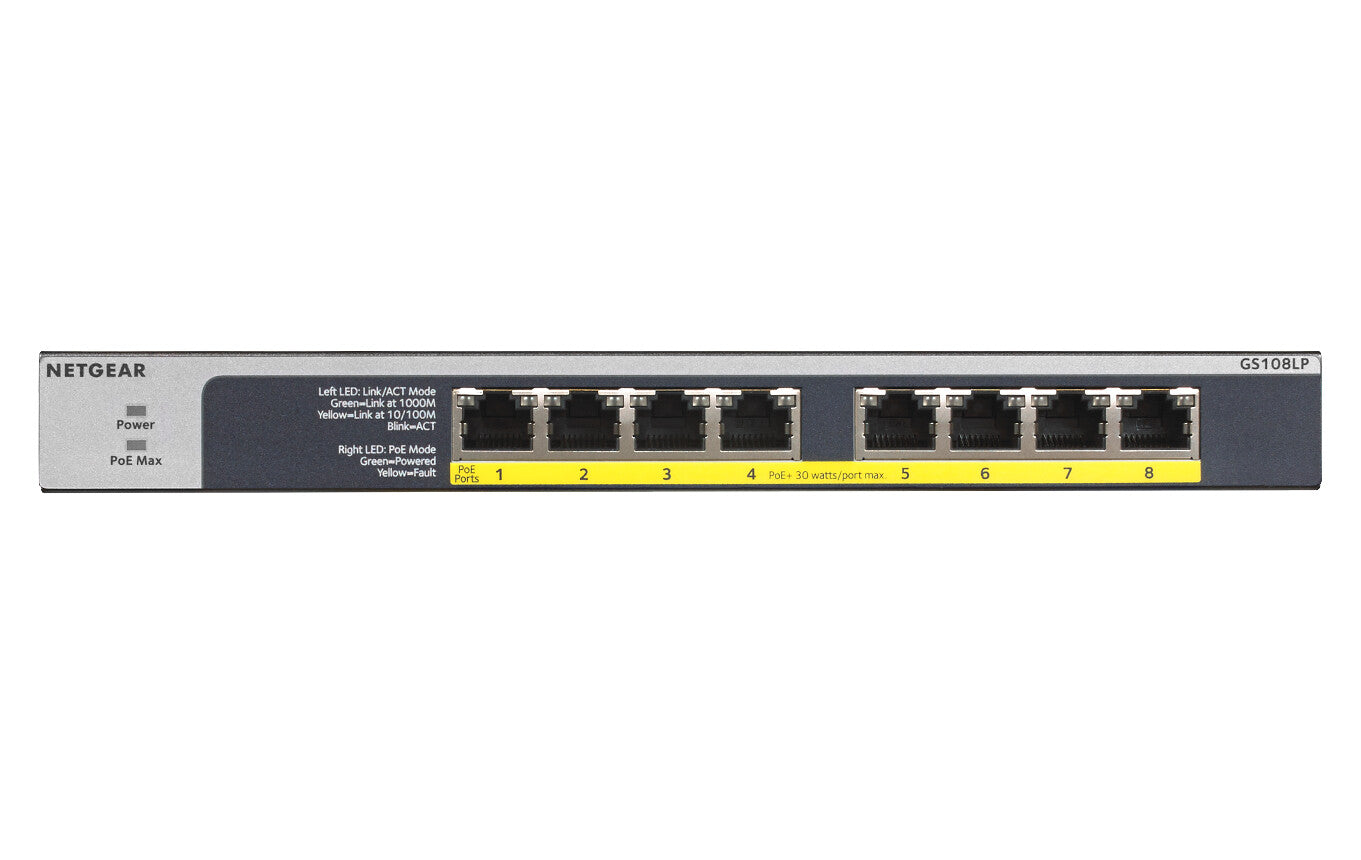

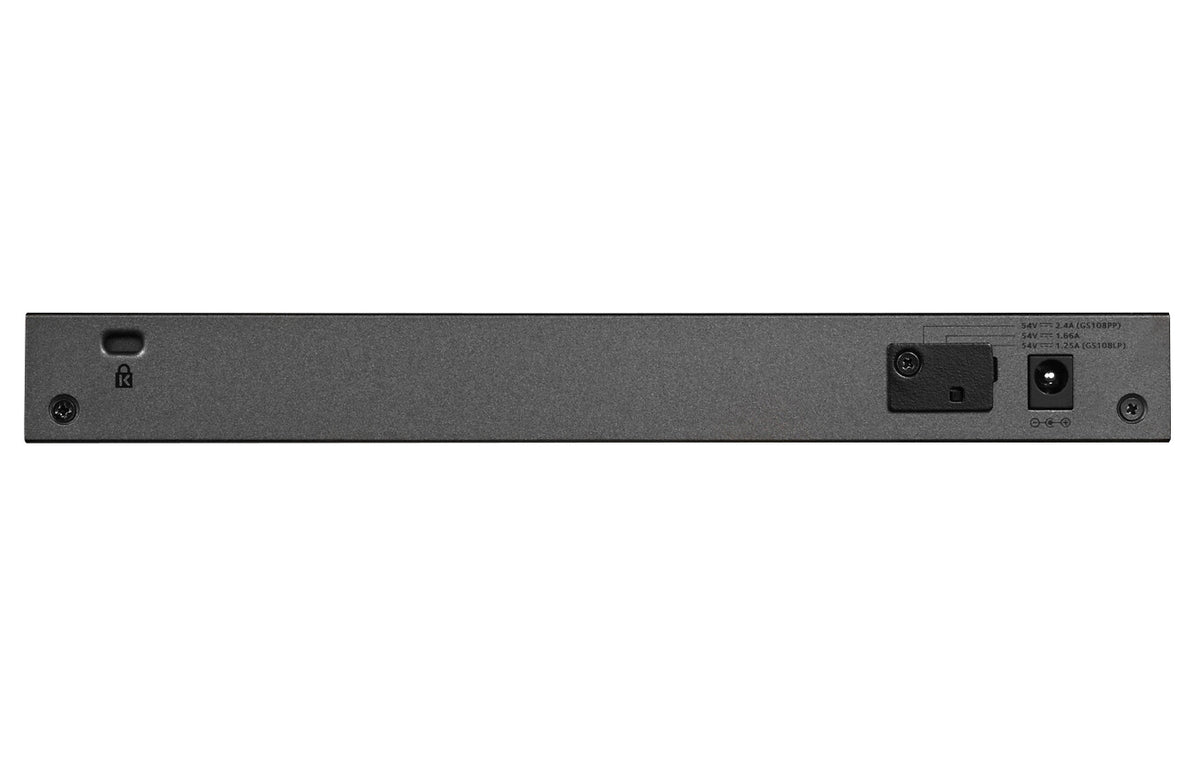

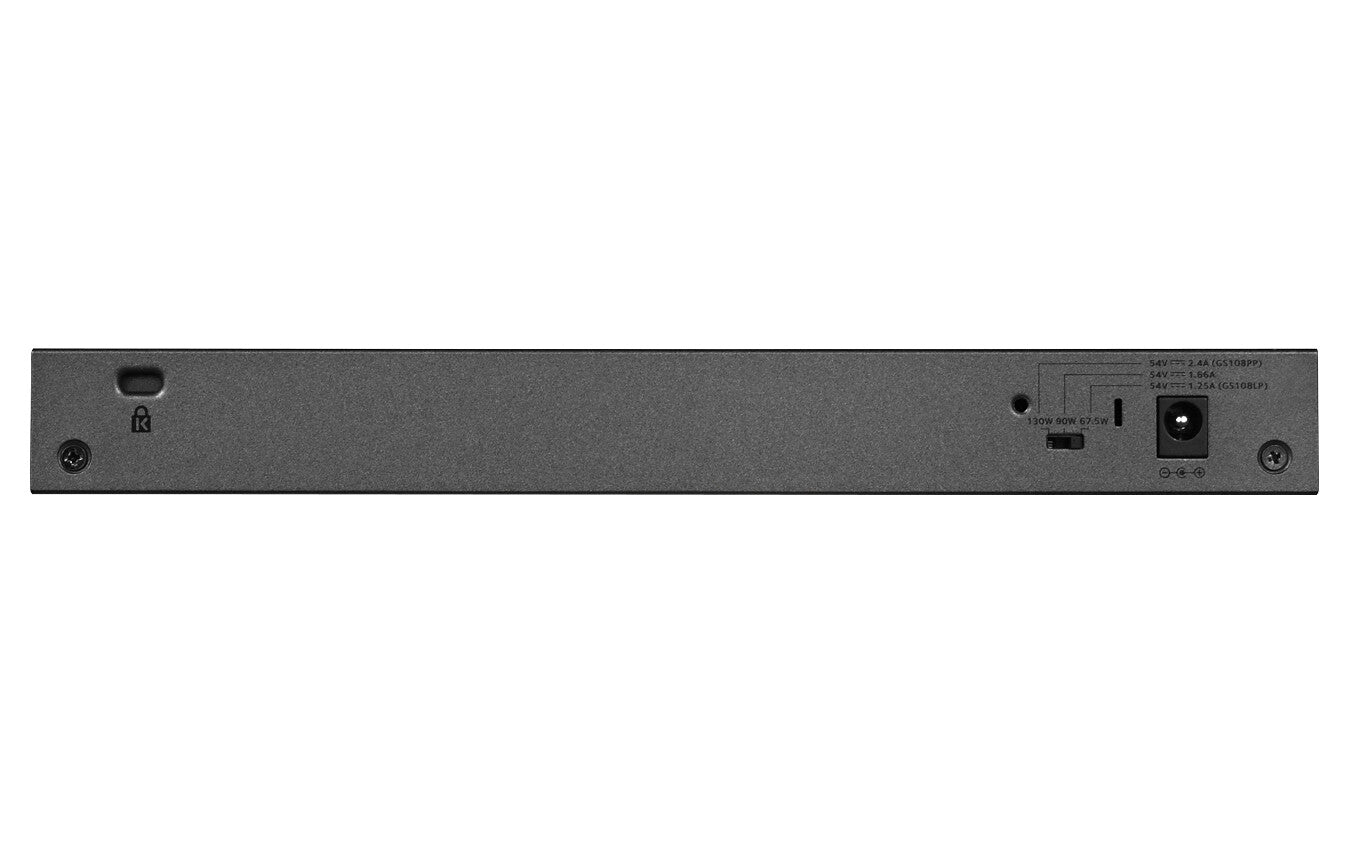

Netgear GS108LP

Netgear GS108LP

8x 10/100/1000Mbps Gigabit Ethernet, 8 PoE+ ports, up to 30W per port, 60W Budget, 0.6kg, Fanless

  • Unmanaged
  • Quality of Service (QoS) support
  • MAC address table: 4000 entries Switching capacity: 16 Gbit/s
  • 1U Rack mounting
  • DC/PoE Power over Ethernet (PoE)
  • SKU:606449134971
  • GTIN/EAN:606449134971
  • MPN:GS108LP-100EUS

You need to login to view the price.

View full details

NETGEAR GS108LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE.... DC input voltage: 54 V. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U

Instant Connectivity with Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

High quality components and Energy Efficiency
NETGEAR switches are built with top quality components to assure a long life. They are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.

PoE+ Support
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power. All models have a built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch.

The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included).

Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Ports & interfaces
Power connector
AC-in jack
Gigabit Ethernet (copper) ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
10G support
No
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames support
Yes
Store-and-forward
Yes
Switching capacity
16 Gbit/s
MAC address table
4000 entries
Design
Wall mountable
Yes
Number of fans
0 fan(s)
LED indicators
Yes
Product colour
Black, Grey
Form factor
1U
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
2752476 h
Plug and Play
Yes
Buffer size
192 KB
Power
Power consumption (max)
130 W
Power consumption (typical)
67.5 W
Input current
1.25 A
DC input voltage
54 V
Power source
DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
60 W
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Heat dissipation
230.85 BTU/h
Operating altitude
0 - 1000 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Weight
600 g
Height
27 mm
Depth
102 mm
Width
236 mm
Logistics data
Harmonized System (HS) code
85176990
