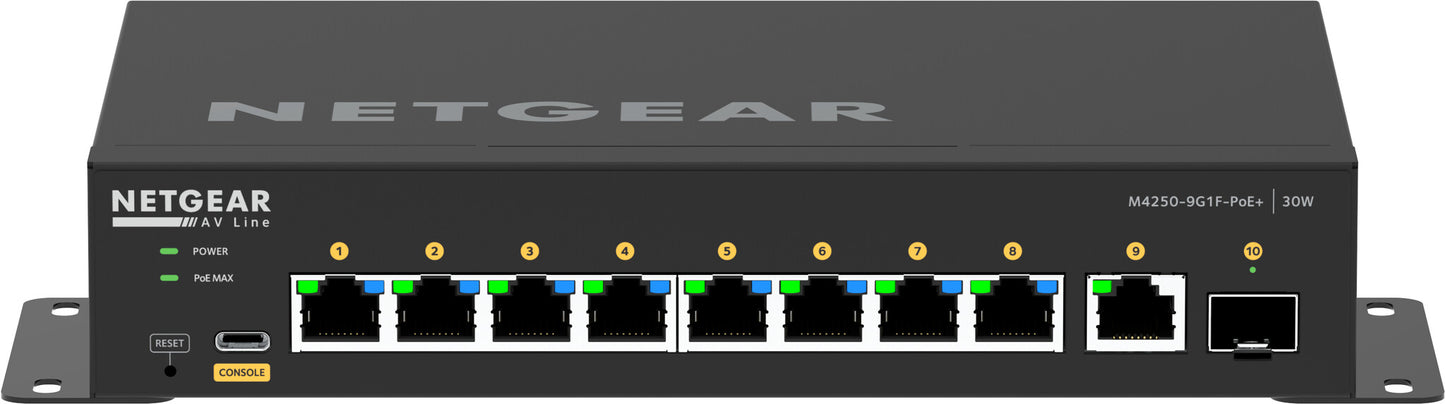

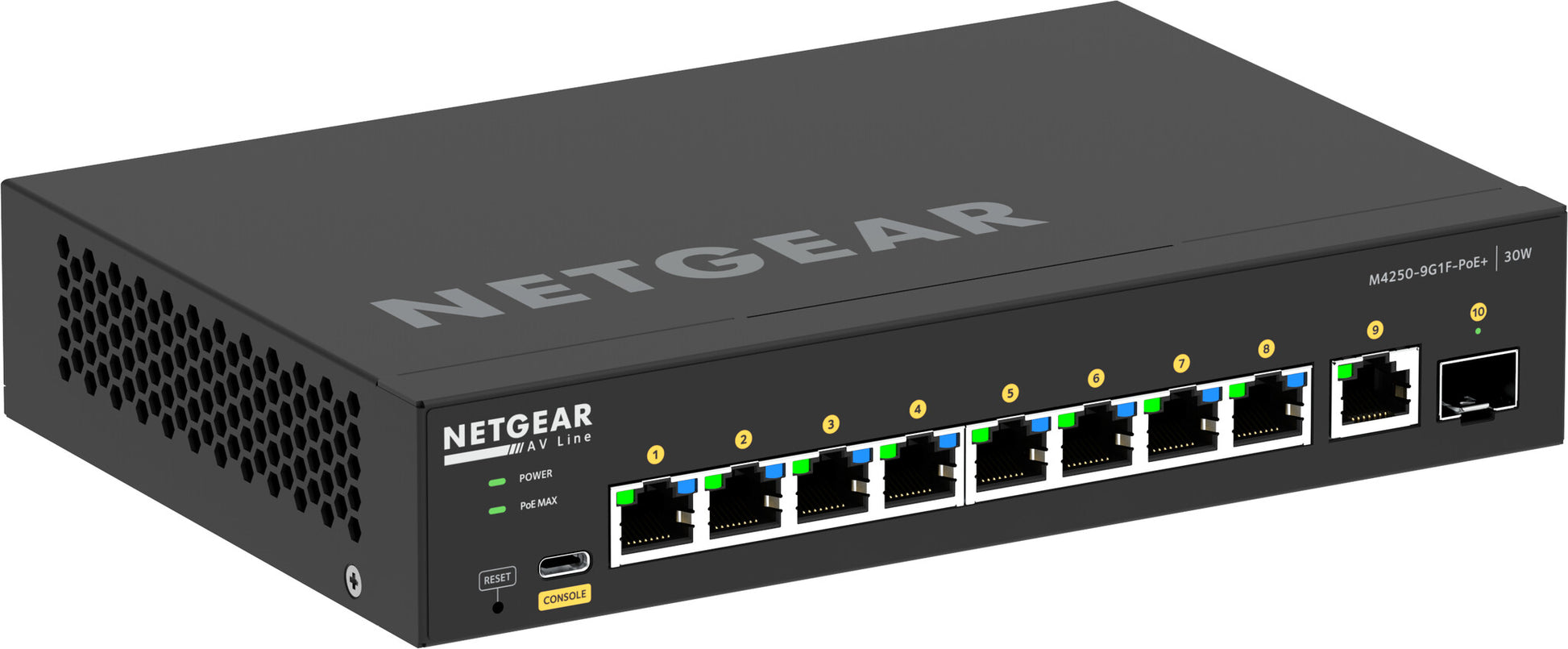

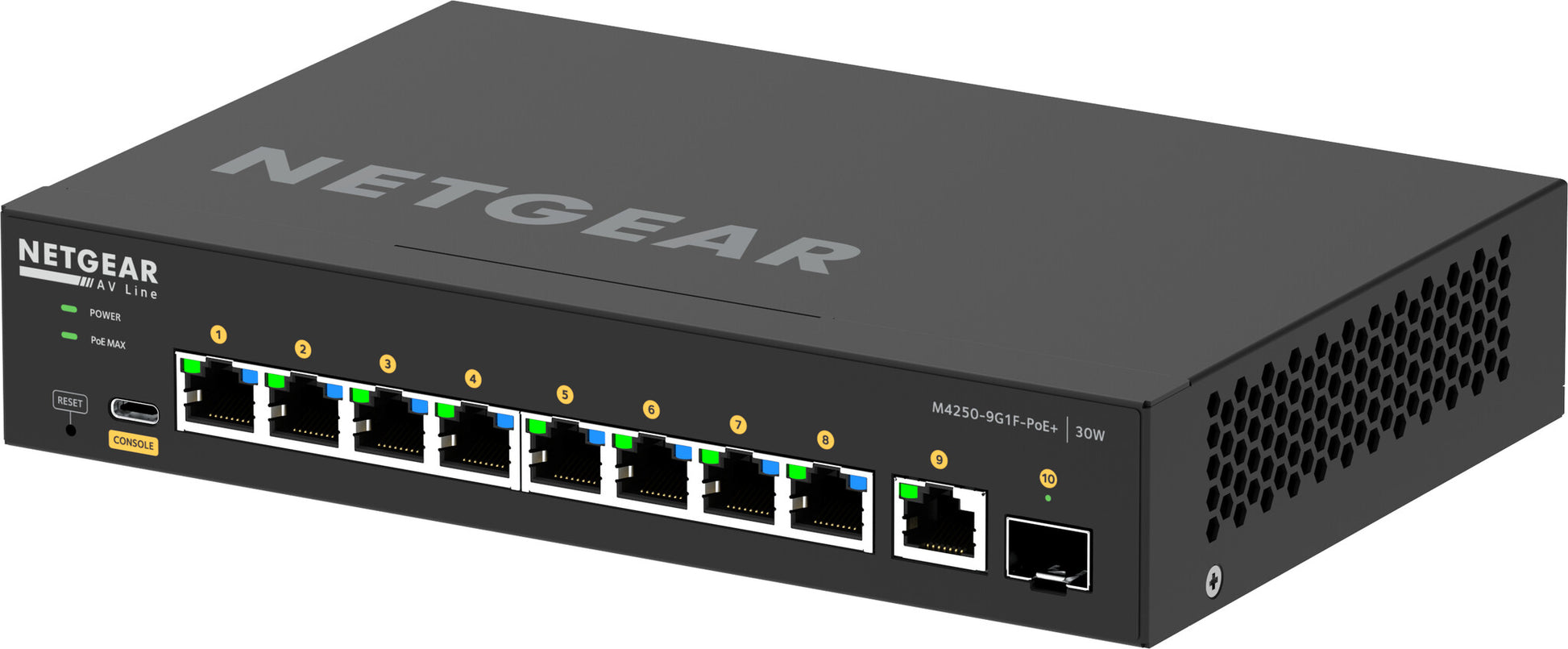

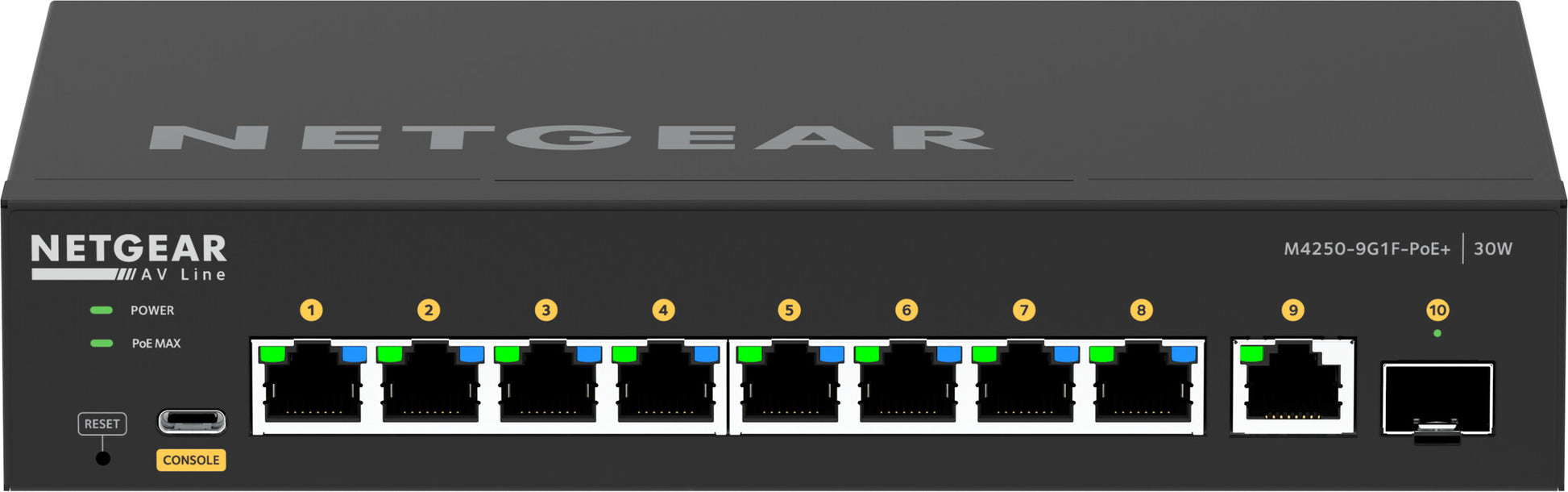

Netgear 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch

Netgear 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch

8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch

  • Managed L2/L3
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 16000 entries Switching capacity: 24 Gbit/s
  • Access Control List (ACL)
  • Rack mounting
  • AC/DC Power supply included Power over Ethernet (PoE)
  • SKU:606449160192
  • GTIN/EAN:606449160192
  • MPN:GSM4210PD-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

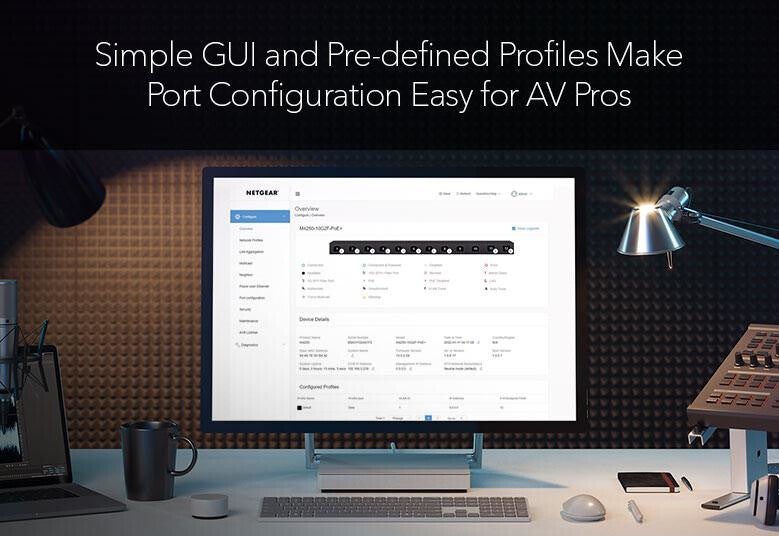

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Management features
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Switch type
Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
Network
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Full duplex
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Data transmission
Store-and-forward
Yes
Switching capacity
24 Gbit/s
MAC address table
16000 entries
Security
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication
Authentication type
RADIUS
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Multicast features
IPv4 multicast entries
2000
Multicast support
Yes
Design
LED indicators
PoE, Power, Status
Product colour
Black
Rack mounting
Yes
Performance
Noise level
30.06 dB
Internal memory
2048 MB
Processor frequency
1250 MHz
Processor model
ARM Cortex-A9
Built-in processor
Yes
Power
AC input frequency
50 - 60 Hz
AC input voltage
220 - 240 V
Power supply included
Yes
Power source
AC/DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
110 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Heat dissipation
559.555 BTU/h
Non-operating altitude
0 - 3000 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
967 g
Height
40 mm
Depth
140 mm
Width
210 mm
Packaging content
User guide
Yes
Manual
Yes
