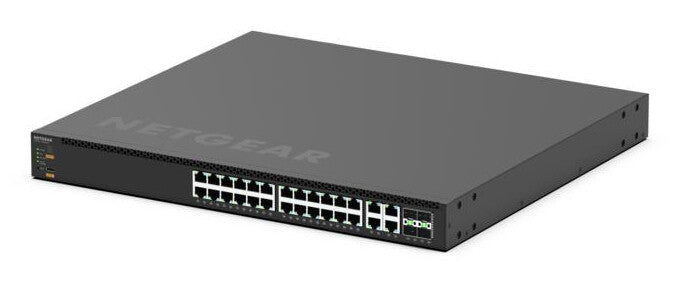

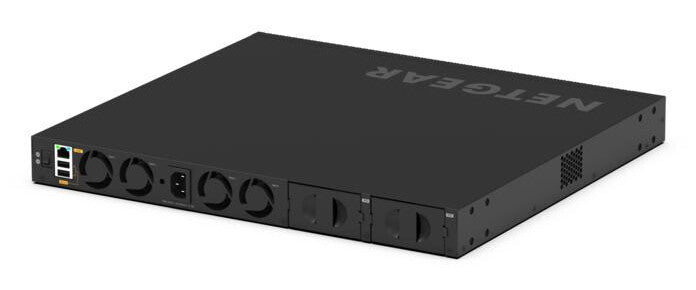

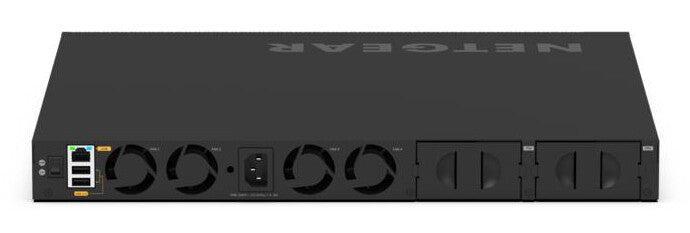

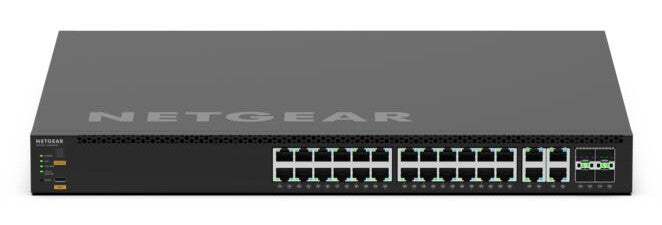

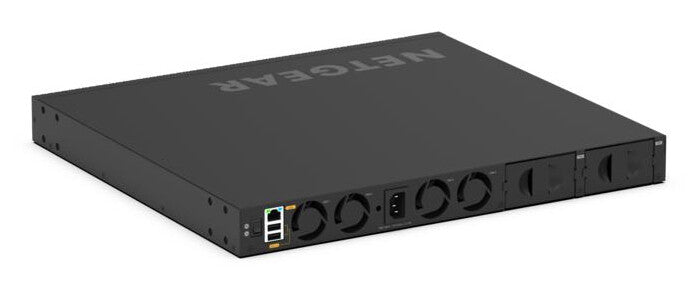

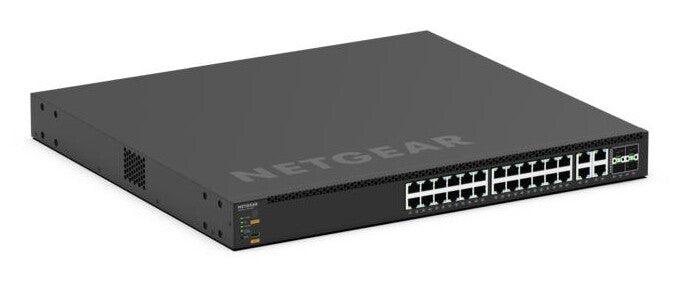

Netgear MSM4332

Netgear MSM4332

10G, SFP28, PoE++, 25GBASE-X, 800W, 522W PoE, 1U

  • 420W internal power supply.
  • 1 slot for modular power supply (1+1 redundancy).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
  • SKU:606449172850
  • GTIN/EAN:606449172850
  • MPN:MSM4332-100NES

You need to login to view the price.

View full details

NETGEAR MSM4332. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 28, Console port: USB. Switching capacity: 400 Gbit/s. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

POWER AND
THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350

FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

Management features
Switch type
Managed
Switch layer
L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
28
Fiber ports quantity
4
Fiber optic connector
SFP28
Console port
USB
SFP28 ports quantity
4
Network
10G support
Yes
Copper ethernet cabling technology
2.5GBASE-T, 10GBASE-T
Data transmission
Switching capacity
400 Gbit/s
Jumbo frames support
Yes
Security
IGMP proxy
Yes
IGMP snooping
Yes
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Performance
Memory type
DDR4-SDRAM
Internal memory
4000 MB
Noise level
66 dB
Power
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE++ (4PPoE)
Power over Ethernet (PoE) ports quantity
28
Total Power over Ethernet (PoE) budget
2520 W
Weight & dimensions
Width
440 mm
Depth
400 mm
Height
43.2 mm
Weight
7.38 kg
Packaging content
Cables included
AC, USB
Manual
Yes
Rack mount kit
Yes
