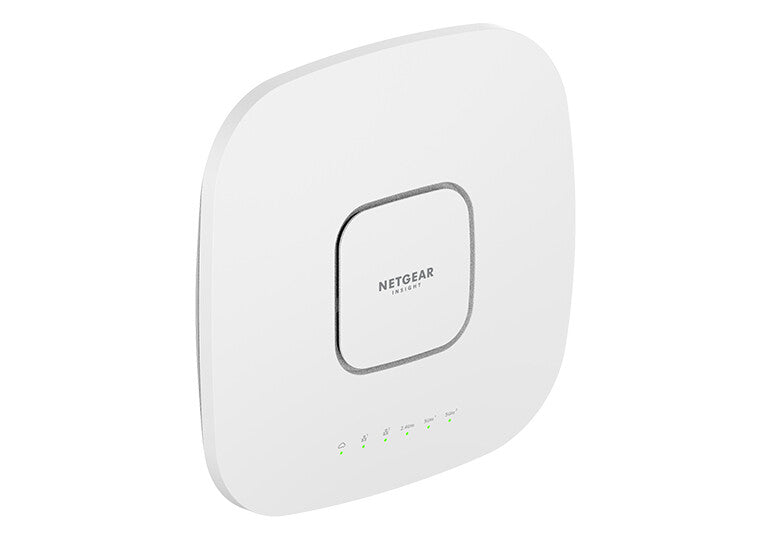

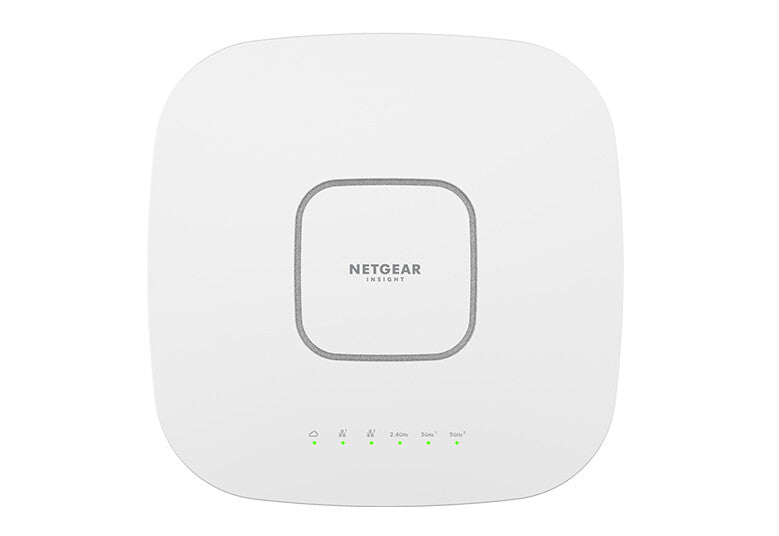

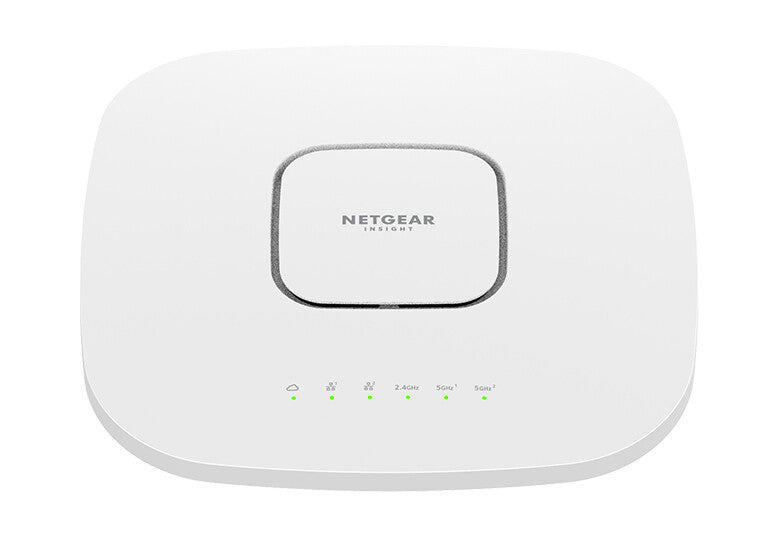

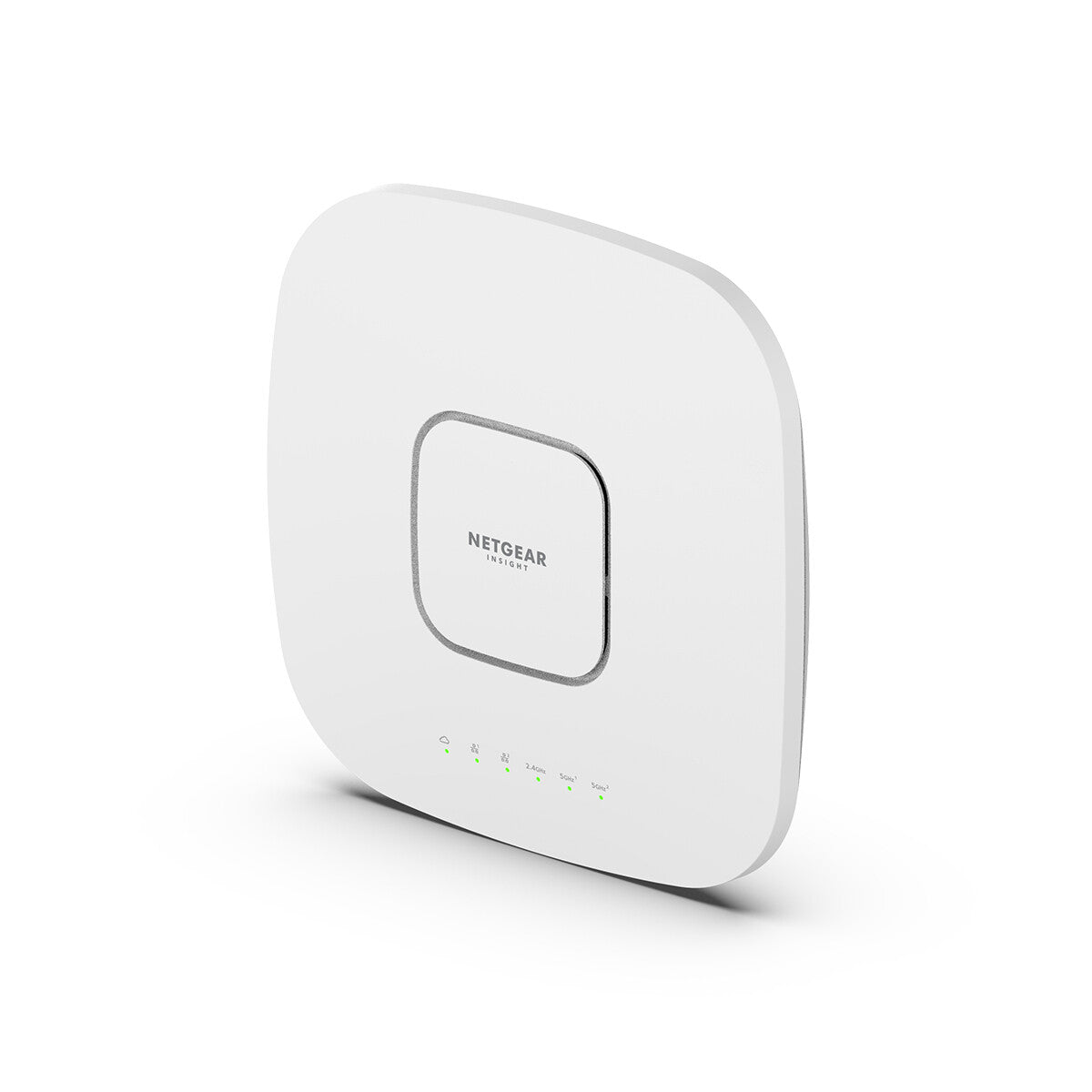

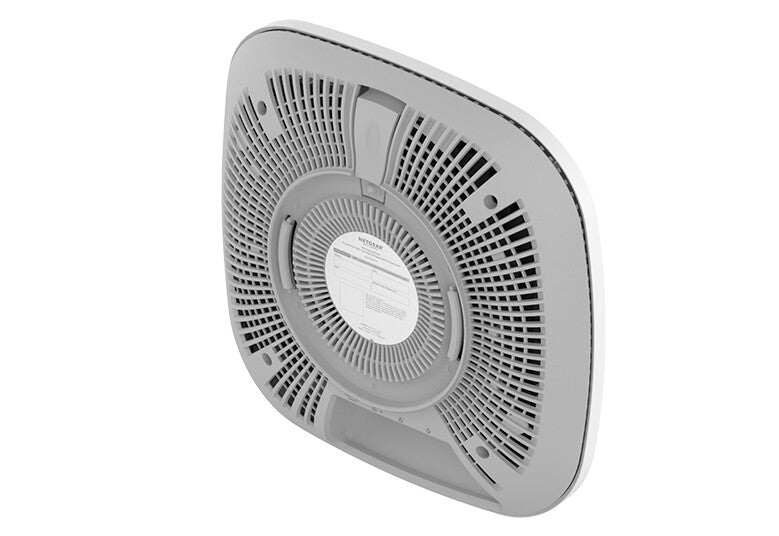

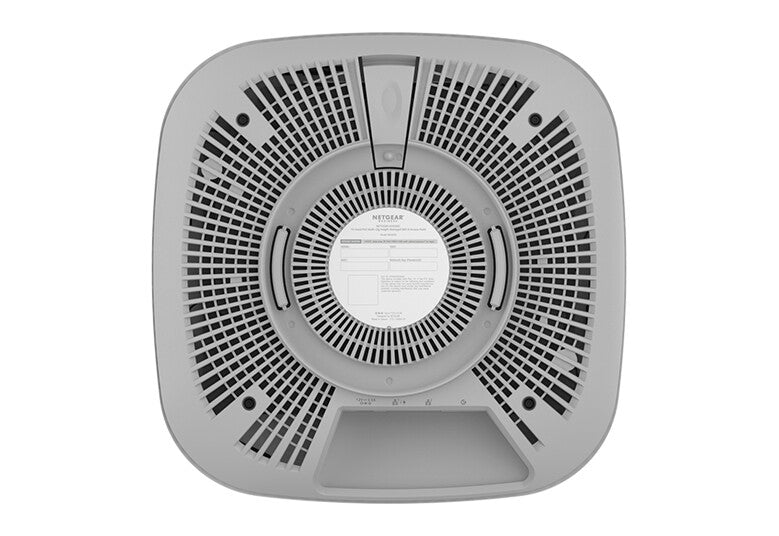

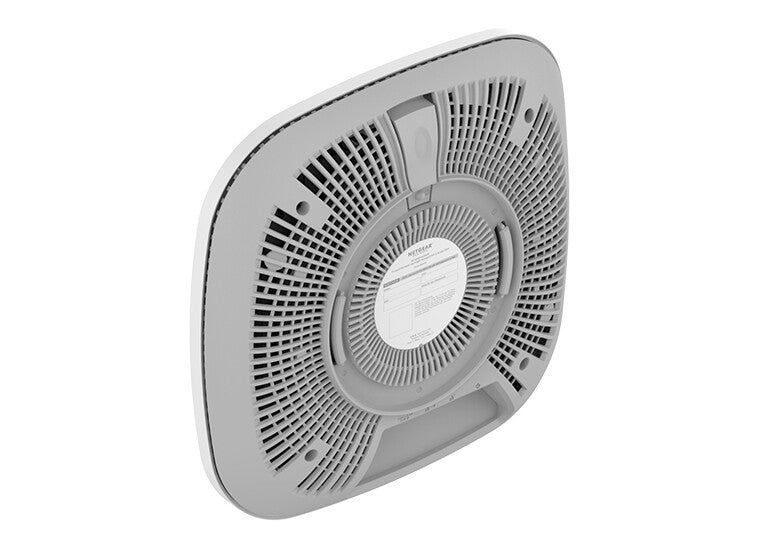

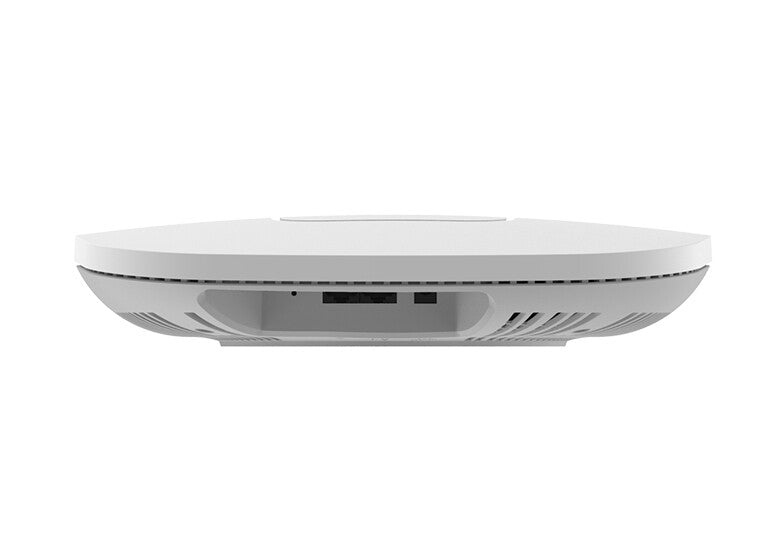

Netgear Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630)

Netgear Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630)

AX6000 Tri-Band PoE Multi-Gig WiFi 6 Access Point

  • 2.4 GHz 1200 Mbit/s
  • 5 GHz 2400 Mbit/s
  • Maximum data transfer rate: 6000 Mbit/s
  • IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
  • EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
  • Power over Ethernet (PoE)
  • Internal
  • SKU:606449153965
  • GTIN/EAN:606449153965
  • MPN:WAX630-100EUS
Add To Favorite

You need to login to view the price.

View full details

NETGEAR Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630). 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for small and medium sized business.

REMOTE CLOUD MANAGEMENT
Plug-and-play set up and remote management of small business networks

NETWORK TOPOLOGY
A single, holistic view of wired and wireless networks for further troubleshooting

HIGH-DENSITY WIFI MANAGEMENT
Deep wireless management features with more tools to deploy small and large WiFi networks

Business-Level Security
WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)
Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability

Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
NETGEAR INSIGHT FOR VARS
Multi-location & multi-tenant remote network management from a single pane-of-glass

Easy Setup
Set up, configure, and manage with NETGEAR Insight

Remote Management
Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included

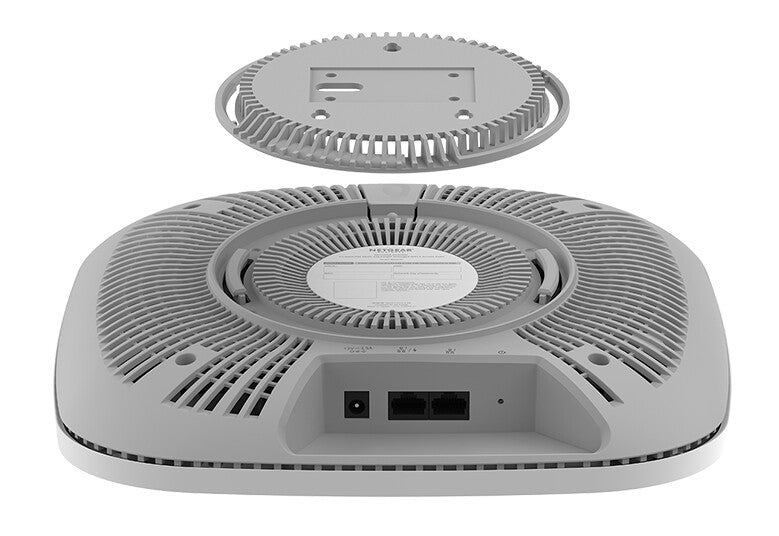

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included

Features
VLAN support
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Modulation
OFDM
Spread spectrum method
OFDM, OFDMA
MIMO type
Multi User MIMO
MIMO
Yes
Auto MDI/MDI-X
Yes
Number of users
200 user(s)
Networking standards
IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
100,1000,2500 Mbit/s
Maximum data transfer rate (5 GHz)
2400 Mbit/s
Maximum data transfer rate (2.4 GHz)
1200 Mbit/s
Maximum data transfer rate
6000 Mbit/s
5 GHz
Yes
2.4 GHz
Yes
Security
Remote Authentication Dial-In User Service (RADIUS)
Yes
Auto Wireless Distribution System (WDS)
Yes
Service Set Identifier (SSID) features
SSID broadcast, SSID broadcast on/off
MAC address filtering
Yes
Security algorithms
EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
Management features
Web-based management
Yes
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
Power
Output current
3.5 A
Output voltage
12 V
Power over Ethernet (PoE)
Yes
Design
LED indicators
Yes
Reset button
Yes
Product colour
White
Placement
Ceiling, Wall
Antenna
Antenna gain level (max)
4.3 dBi
Antenna type
Internal
Weight & dimensions
Weight
956 g
Height
55.5 mm
Depth
268.3 mm
Width
266.6 mm
Packaging content
Quick start guide
Yes
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Logistics data
Harmonized System (HS) code
85176990
