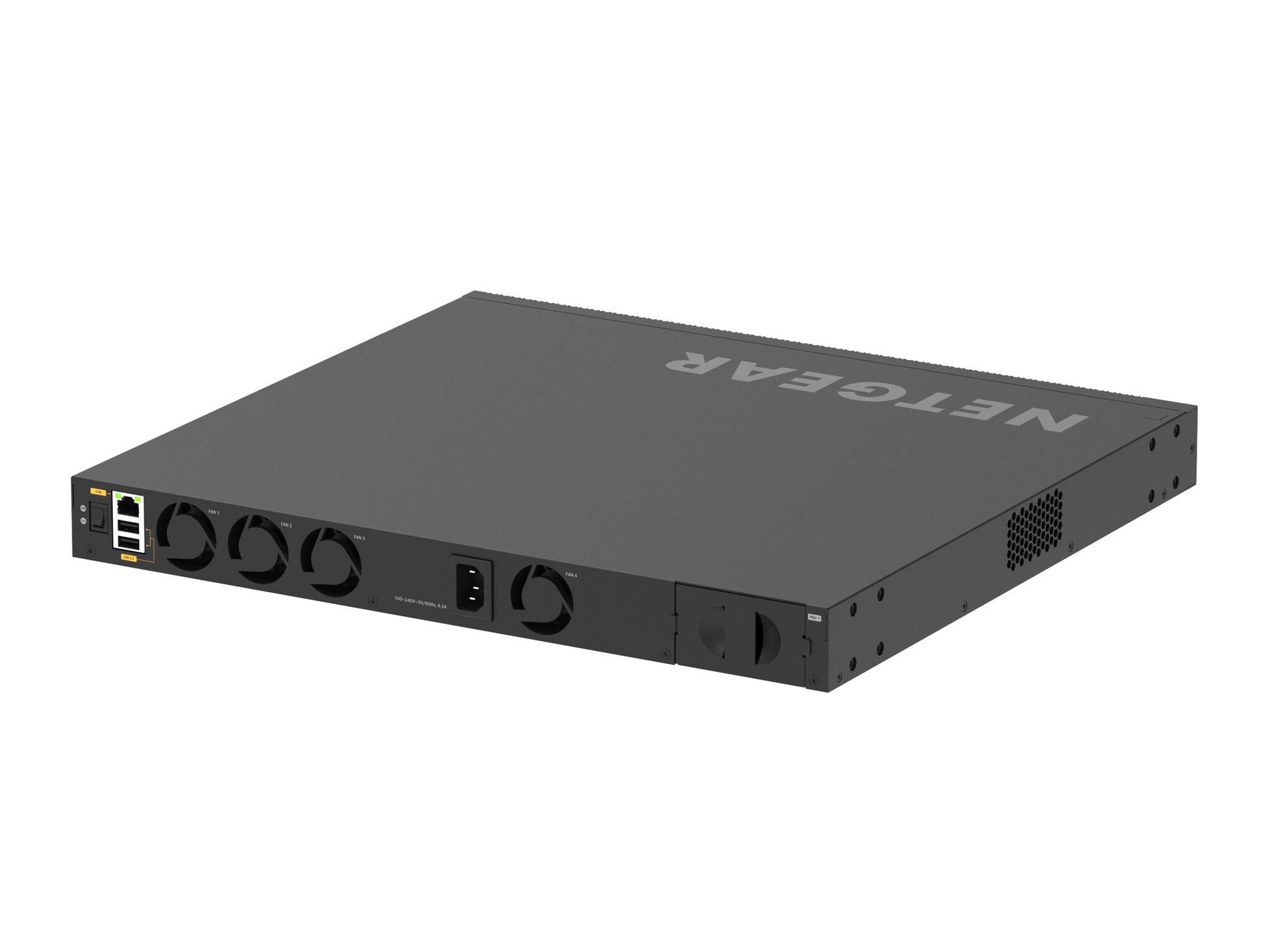

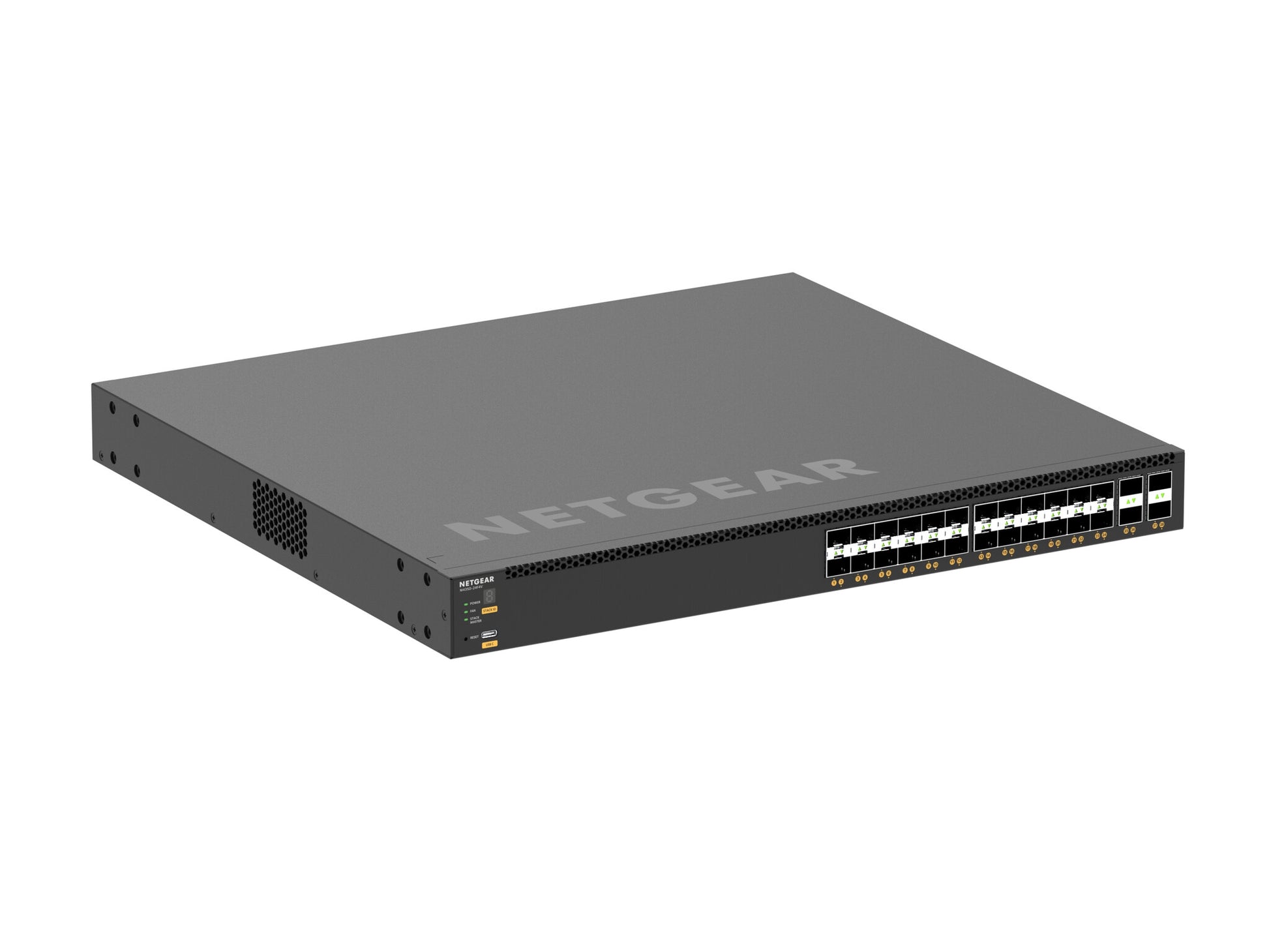

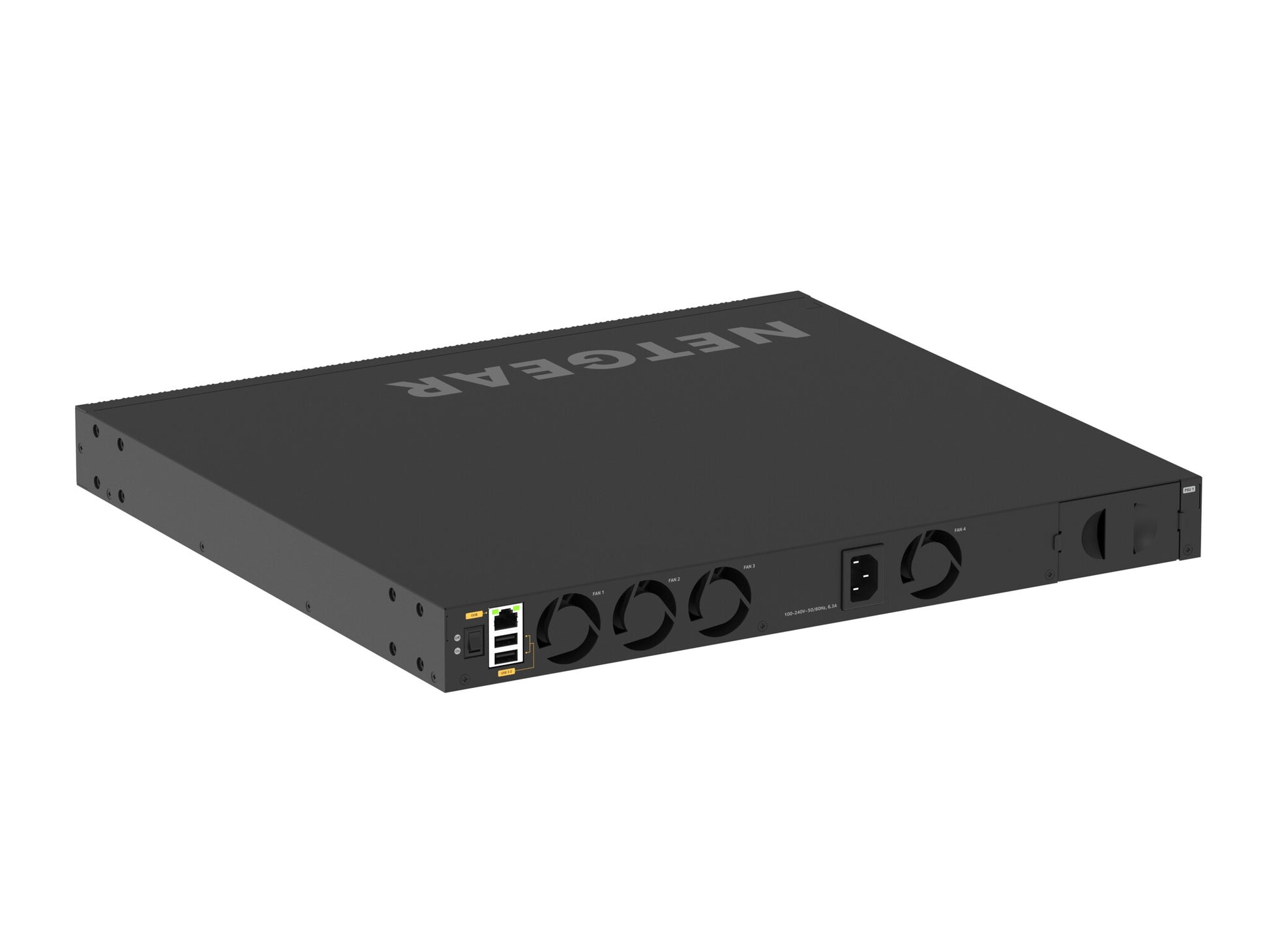

Netgear M4350-24F4V

Netgear M4350-24F4V

24 x 10GBASE-X SFP+, 4 x 25GBASE-X SFP28, 240W, L3, 440 x 400 x 43.2 mm, 6.25Kg

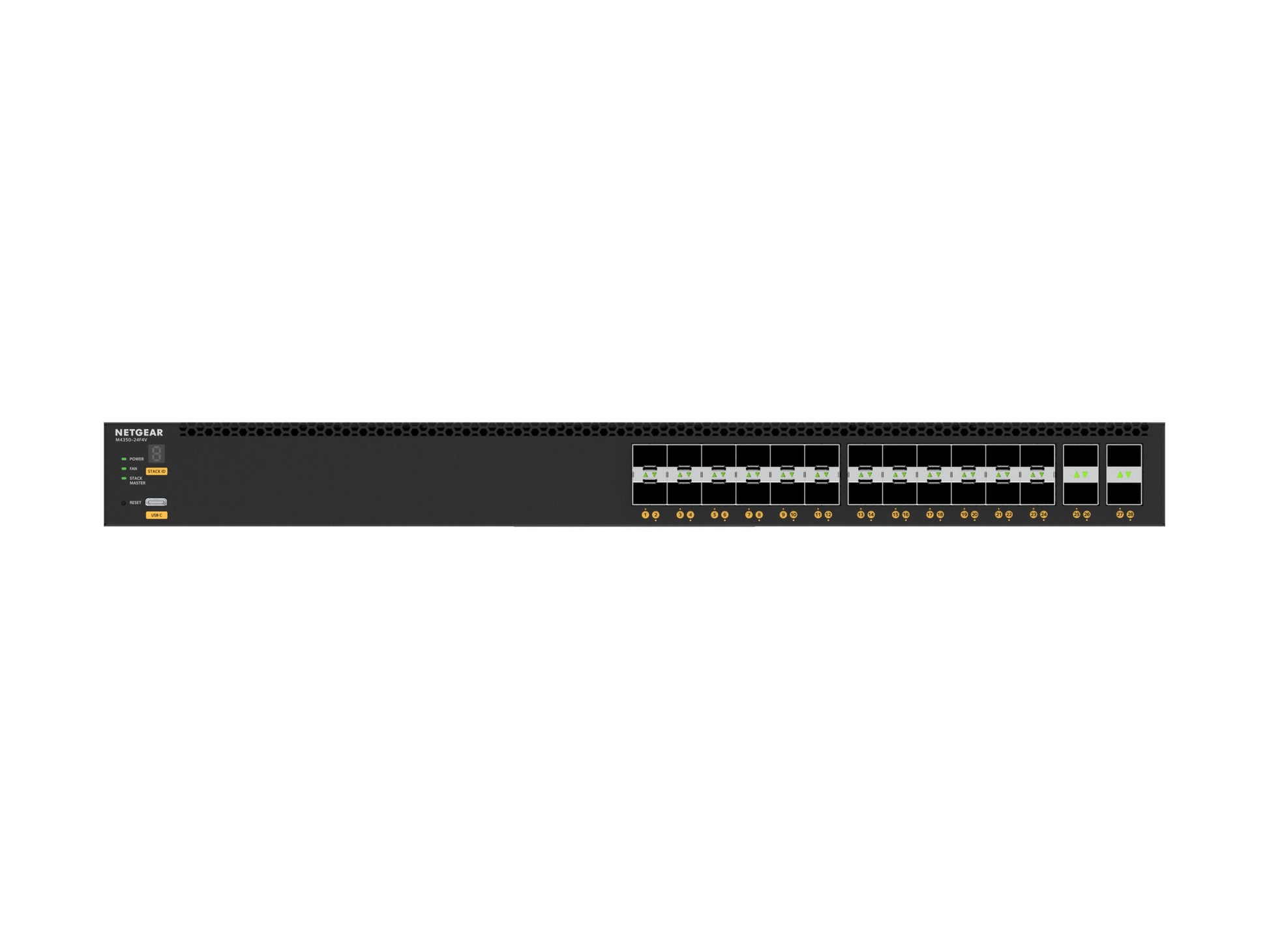

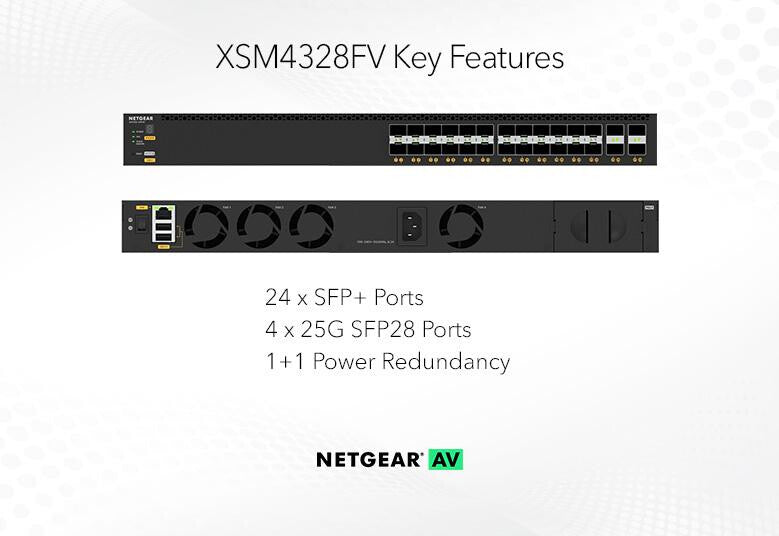

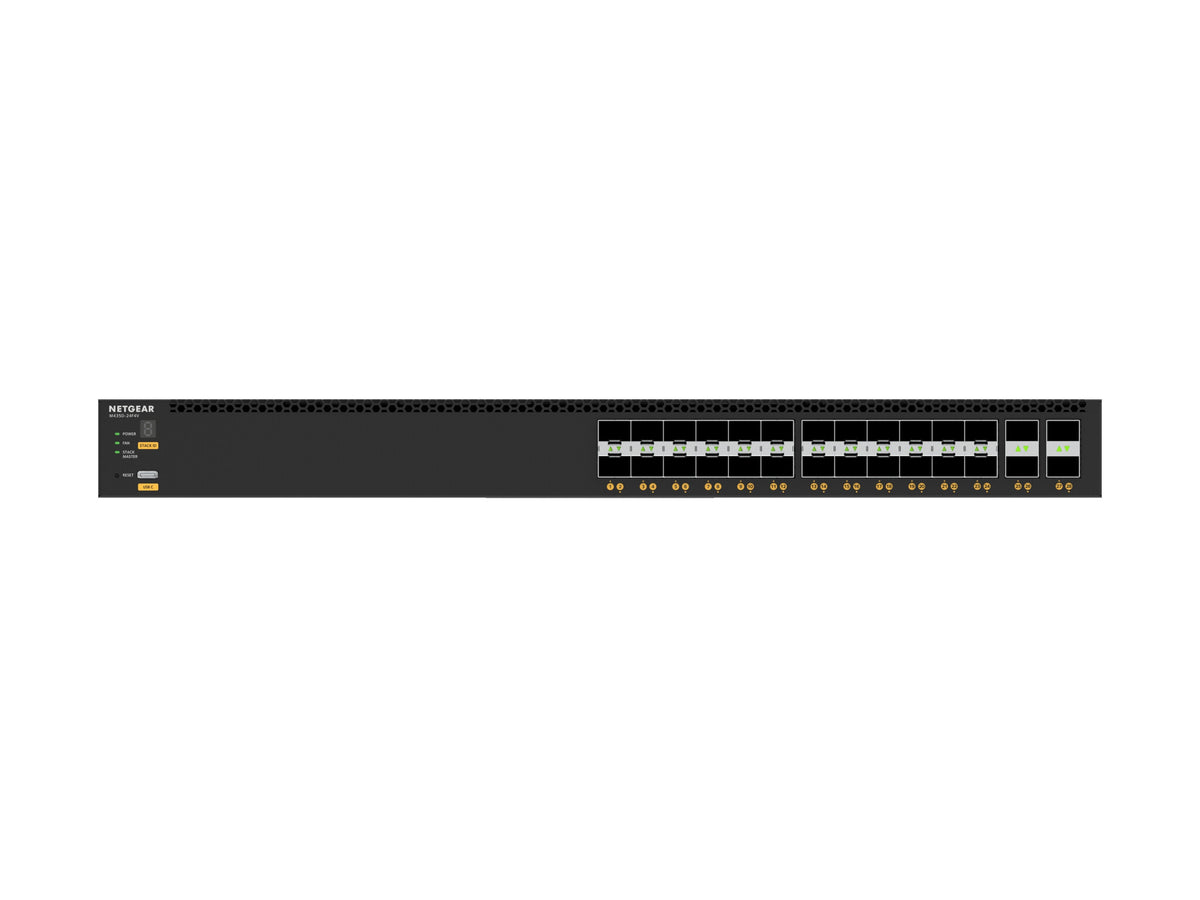

  • 24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
  • 240W internal power supply

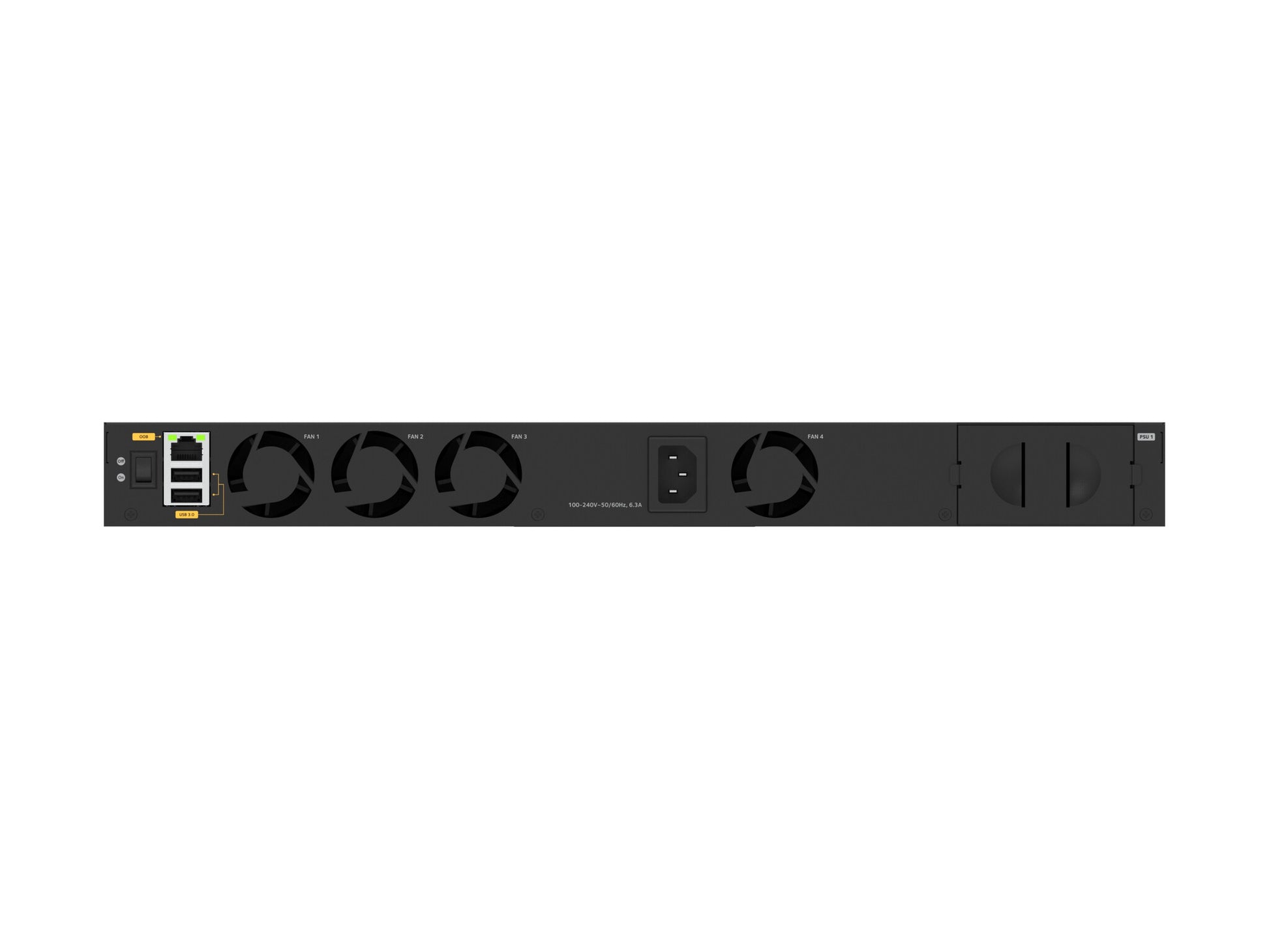

  • 1 slot for modular power supply (1+1 redundancy)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • SKU:606449161397
  • GTIN/EAN:606449161397
  • MPN:XSM4328FV-100NES
Add To Favorite

You need to login to view the price.

View full details

NETGEAR M4350-24F4V. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

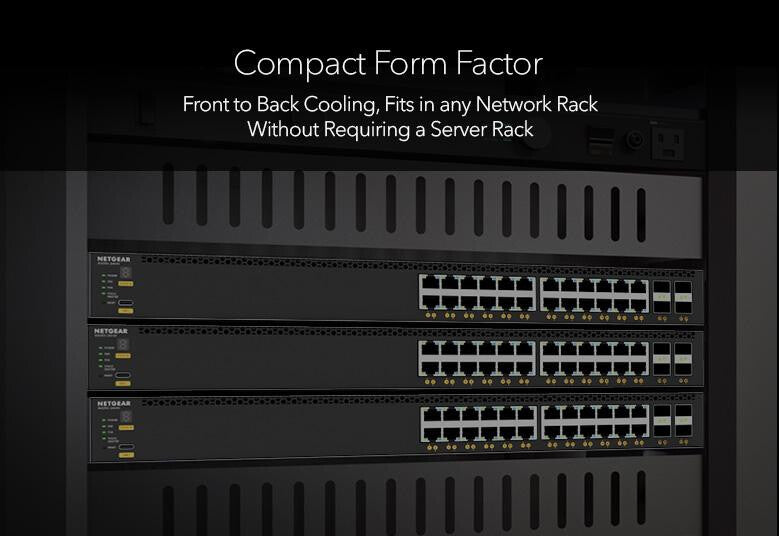

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Limited Lifetime

Management features
ARP inspection
Yes
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Switch type
Managed
Ports & interfaces
Power connector
AC-in jack
USB 2.0 ports quantity
2
SFP28 ports quantity
4
Console port
RJ-45
SFP+ module slots quantity
24
Basic switching RJ-45 Ethernet ports type
No
Network
Number of VLANs
4093
Virtual LAN features
MAC address-based VLAN, Private VLAN, Voice VLAN
VLAN support
Yes
Flow control support
Yes
6to4 tunnel
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
IPv4 routes
512
IPv6 routes
256
Policy-based routing
Yes
Full duplex
Yes
10G support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
Data transmission
Packet buffer memory
32 MB
Jumbo frames
12000
Jumbo frames support
Yes
Static route
Yes
Latency (10 Gbps)
0.63 µs
Latency (1 Gbps)
1.06 µs
Store-and-forward
Yes
Throughput
505.92 Mpps
Switching capacity
680 Gbit/s
MAC address table
16000 entries
Security
MAC address filtering
Yes
Static port security
Yes
Root protection
Yes
Password protection
Yes
DoS attack prevention
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication
Authentication type
RADIUS, TACACS+
IGMP proxy
Yes
IGMP snooping
Yes
Access Control List (ACL) ingress
511
Access Control List (ACL) egress
1023
Access Control List (ACL)
Yes
DHCP features
DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast Listener Discovery (MLD) snooping
Y
Multicast support
Yes
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Routing protocols
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Management protocols
SNMP V1, V2, V3
Design
Airflow direction
Front-to-back airflow
LED indicators
Yes
Product colour
Black
Form factor
1U
Stackable
Yes
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
778741 h
sFlow
Yes
Noise level
61.8 dB
Flash memory
512 MB
Internal memory
2048 MB
Memory type
DDR4-SDRAM
Processor frequency
1800 MHz
Processor model
ARM Cortex-A57
Built-in processor
Yes
Power
Power consumption (typical)
119.3 W
Input current
6.3 A
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power supply included
Yes
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Power supply
240 W
Operational conditions
Heat dissipation
374.6 BTU/h
Non-operating altitude
0 - 3000 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
6.25 kg
Height
43.2 mm
Depth
400 mm
Width
440 mm
Packaging content
User guide
Yes
Rack mount kit
Yes
Cables included
AC, USB Type-C
Packaging data
Included power plug types
EU, NA, UK
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
