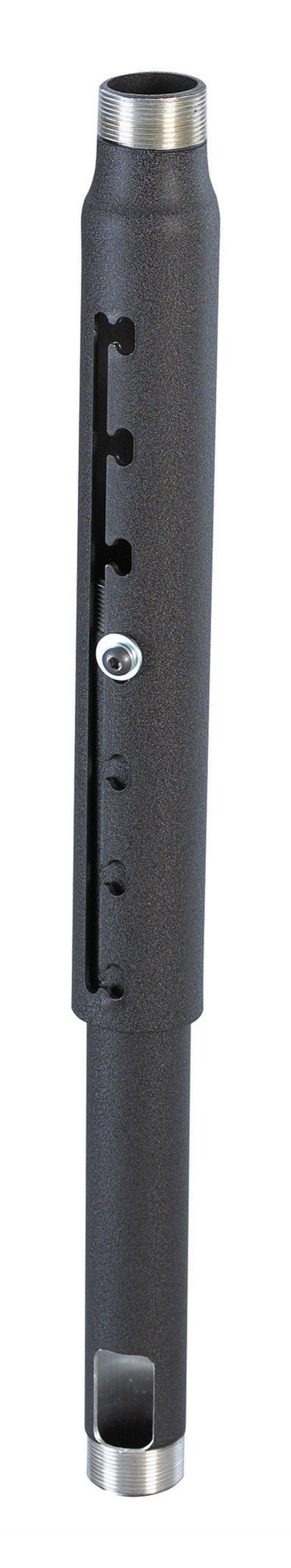

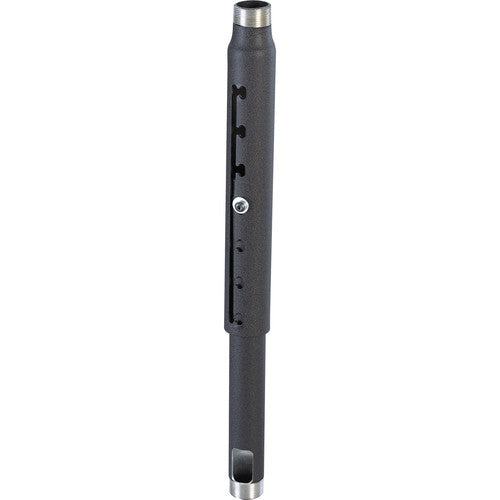

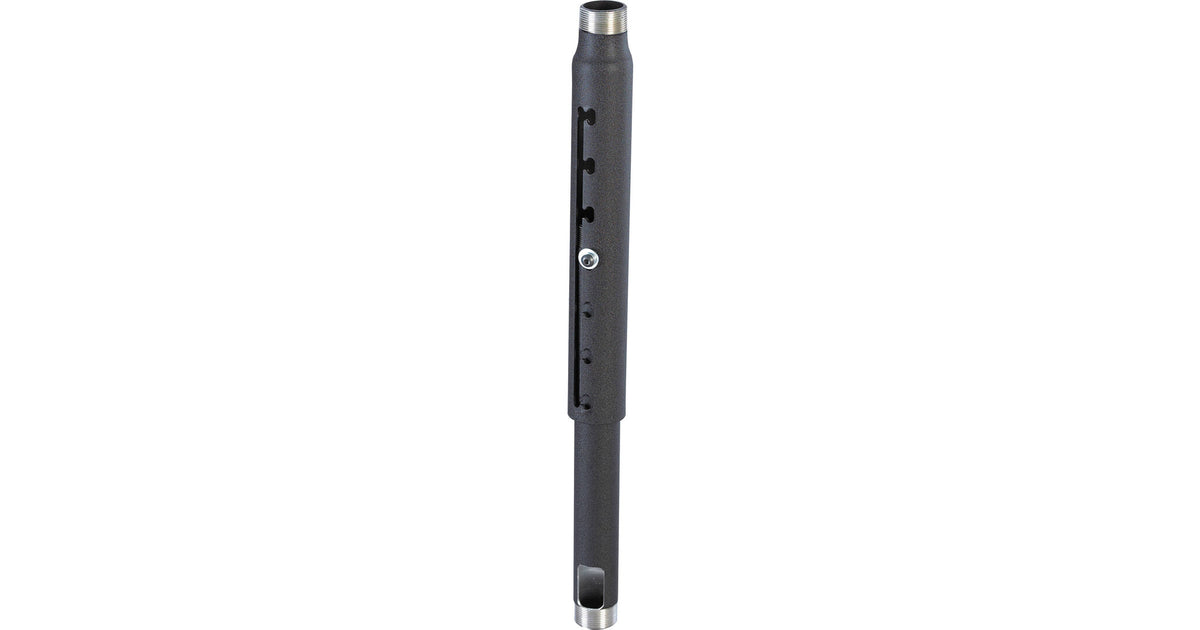

Chief CMS012018, 30.5-45.7 cm, Adjustable

Black aluminum adjustable extension column that lowers ceiling-mounted projectors and flat panel displays between 30.5 and 45.7 cm, with 1-1/2 NPT threads on both ends.

  • Adjusts from 30.5 to 45.7 cm in 2.5 cm steps without taking the mount apart
  • Rated for up to 226.8 kg, for projectors and flat panel displays
  • Flow-through cable port keeps cable runs routed inside the column
  • Included set screw adds stability against vibration
  • Black aluminum construction with a 10-year limited manufacturer warranty
  • SKU:841872092676
  • GTIN:841872092676
  • MPN:CMS012018

You need to login to view the price.

View full details

Adjustable ceiling extension column for projectors and displays

Chief CMS012018, 30.5-45.7 cm, Adjustable

The Chief CMS012018 is a 12 to 18 inch adjustable extension column from Chief, a Legrand AV brand, for installers who need to hang a projector or flat panel display at a set drop below the ceiling. It threads onto a 1-1/2 NPT ceiling plate or any other 1-1/2 NPT accessory, so it fits the common Chief ceiling mounting system. It is aimed at corporate meeting rooms, classrooms and similar indoor spaces where a ceiling-mounted display needs to sit at the right viewing height. The main benefit for the end user is a mount that can be re-set to a new height later without dismantling the installation.

Height Re-Set Without Disassembly

Height Re-Set Without Disassembly

The column uses a notched adjustment design: the inner and outer tubes are re-positioned and locked at a new length in roughly 2.5 cm steps, without unscrewing the column from the ceiling plate or removing the display. The length range is 30.5 to 45.7 cm. For the end user this means a projector or screen that sits too low or too high after installation can be corrected in minutes, for example after a room layout change or when a different presenter needs a different sightline. The installer keeps the same ceiling plate and cabling in place, which shortens service visits. The adjustment is locked with a screw, so the chosen height stays fixed in normal use.

Flow-Through Cable Routing

Flow-Through Cable Routing

The column has an integrated cable port on one end and an open flow-through bore, so power and signal cables can run from the ceiling plate down through the column to the display. Cables are kept inside the tube rather than hanging loose beside the projector or screen. For the end user this gives a tidier room, fewer cables exposed to people walking below, and less chance of cables snagging or being pulled during routine use. It is a practical advantage on installations where cable runs must be concealed or kept tidy, though it does not replace proper strain relief at the display itself.

Adjust 30.5–45.7 cm without disassembly. Rated 226.8 kg.

UL and TÜV listed · 10-year limited manufacturer warranty

Set Screw Locking Against Wobble

Set Screw Locking Against Wobble

A set screw is supplied for the column, which the distributor literature describes as adding stability to the installation. A projector or display on a long, unsecured pole can sway or shift when the building vibrates or when doors close, which shows up as a wobbling image. Locking the column properly reduces that movement. For the end user this translates into a steadier picture and less time spent re-aligning the display. The set screw must be tightened as part of the installation procedure described in the Chief manual.

Rated Load With Structural Requirement

Rated Load With Structural Requirement

The CMS012018 is rated for a maximum load of 226.8 kg (500 lb), and the distributor listings give UL and TÜV certification. The Chief installation manual, however, states that the combined weight of all components must not exceed that rating, that the load limit can be lower if another component in the mounting system has a smaller rating, and that the supporting structure must be able to carry five times the combined weight of the equipment. For a dealer this means the structural check is part of the sale. For the end user it protects against an overloaded or under-supported display falling from the ceiling. The column is not for outdoor use.

Performance2 specifications
Maximum load capacity226.8 kg
Weight capacity limitationMay be limited to the lowest weight capacity of any other component, accessory or mounting system
Design9 specifications
ColorBlack
MaterialAluminum
Height adjustment increment2.5 cm
Adjustment designNotched design, adjustment without disassembly
Cable managementFlow-through with integrated port on one end
Adjustment increment with locking slot5.1 cm
Adjustment holesTwo in columns 15.2 cm or longer
Outer tube diameter (adjustable column)5.9 cm
Cable access openingProvided on columns 22.9 cm or longer
Weight & dimensions8 specifications
Overall height45.7 cm
Overall width5.9 cm
Overall depth5.9 cm
Length range (adjustable)30.5-45.7 cm
Weight1.36 kg
Width58.4 mm
Depth58.4 mm
Height2743.2 mm
Packaging data2 specifications
Package weight1.11 kg
Box dimensions (L x W x H)39.4 x 8.9 x 8.9 cm
Packaging content2 specifications
Package contentsSpeed-Connect CMS-012018 adjustable extension column, set screw, mounting hardware (screws, lock and flat washers, nuts), two hex keys
Set screwIncluded
Operational conditions3 specifications
Outdoor useNot permitted
Structural requirementSupporting structure must carry five times the combined weight of the equipment
AttachmentsUse only attachments recommended by the manufacturer
Certificates3 specifications
CertificationsUL Listed, TÜV Certified
TAA complianceTAA Compliant
ListingListed for use with listed Chief ceiling plates and mounts
Other features6 specifications
Thread connectionNPT 1-1/2 threaded on both ends
CompatibilitySpeed-Connect
Device supportedProjector, flat panel display
Limited warranty10 years (limited manufacturer warranty)
Column standardANSI/ASME B1.20.1 (Schedule 40), steel or aluminum - ASTM B221
EAN841872092676
Features3 specifications
Brand compatibilityChief
Product colourBlack
CertificationTAA
Technical details1 specification
Compliance certificatesTAA
Logistics data1 specification
Harmonized System (HS) code85299097
