Chief CMS012018W, 30.5-45.7 cm, Adjustable

Adjustable aluminum extension column for ceiling-mounted projectors and flat panel displays, extending from 30,5 to 45,7 cm and rated for 226,8 kg.

  • Notched design changes height without disassembling the column
  • Flow-through cable management with integrated port keeps cables out of sight
  • Set screw reduces vibration-related projector or screen wobble
  • Rated for 226,8 kg combined load, for projectors and flat panel displays
  • Aluminum construction with 10-year limited warranty from Chief
  • SKU:841872092690
  • GTIN:841872092690
  • MPN:CMS012018W

You need to login to view the price.

View full details

Adjustable aluminum ceiling extension column, 30,5-45,7 cm

Chief CMS012018W, 30.5-45.7 cm, Adjustable

The Chief CMS012018W is a Speed-Connect adjustable extension column from Chief (Legrand AV) that lowers a ceiling-mounted projector or display to the required height. It threads onto any 1.5 NPT ceiling plate or accessory, so it suits integrators who need a fixed-height ceiling install that can still be fine-tuned later. The manufacturer positions the column for space-constrained AV setups and lists applications such as 21:9 ultrawide formats, conferencing and meeting spaces, lecture capture and recording, and workspaces. Its main benefit for the end user is that the display can be re-levelled or moved to a better viewing height after installation without taking the mount apart.

Height Changes Without Taking the Mount Apart

Height Changes Without Taking the Mount Apart

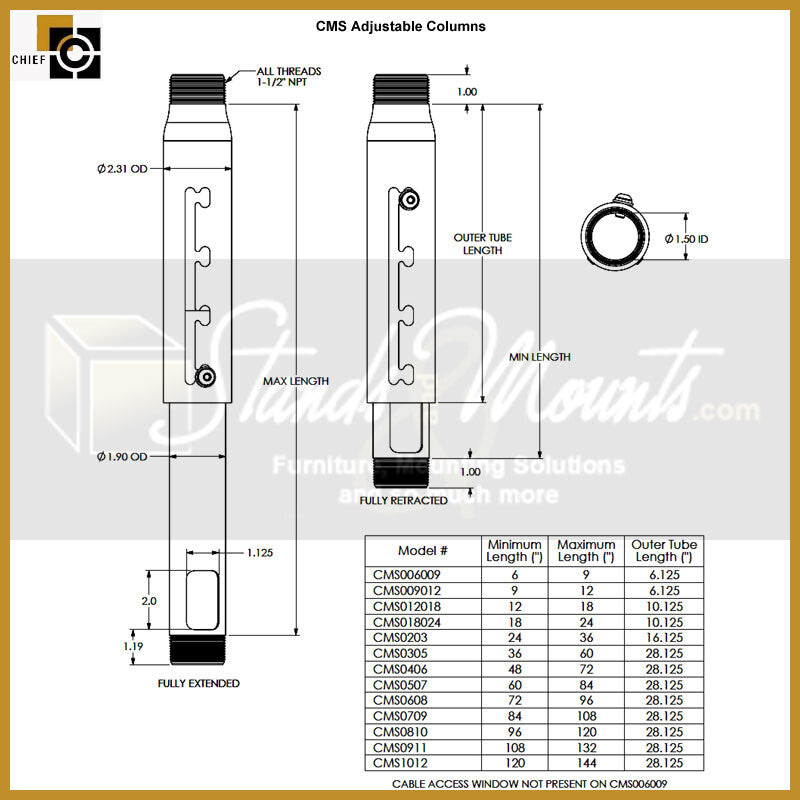

The column uses a notched design that steps the length in 2,54 cm increments (the source describes 1-inch steps) without disassembly. In practice, an installer can correct a projector or display height after the ceiling plate is already fixed, rather than unbolting the assembly. For the end user, this means the image can be lined up with the screen or sightline once it is in place, and a later adjustment does not require a service visit that interrupts the room. The column's adjustable range is 30,5-45,7 cm.

Cables Routed Inside the Column

Cables Routed Inside the Column

The column has flow-through cable management with an integrated port on one end, so cables for the projector or display can run inside the tube instead of hanging exposed. That keeps the ceiling run tidier, reduces the chance of cables being snagged or pulled, and gives a cleaner look in meeting rooms and lecture halls where the mount is visible. Where the cable route needs a particular orientation, the manual notes that the cable access opening can be rotated before the installation is finalised.

Change the height without taking the column apart.

UL listed · 10-year limited warranty · Rated 226,8 kg

Set Screw Reduces Wobble, 226,8 kg Rating

Set Screw Reduces Wobble, 226,8 kg Rating

A set screw is included to add stability and reduce building vibration that could make a projector image or screen wobble. The column is rated for a maximum weight of 226,8 kg. The manual is explicit that the limit applies to the combined weight of everything attached, and that the capacity can be limited by the lowest-rated accessory or mount in the chain. Installers should check the full load before specifying it. The product is intended for indoor use only, and the manual warns against outdoor use.

UL Listed, Limited 10-Year Warranty

UL Listed, Limited 10-Year Warranty

The column is listed by UL and carries TÜV certification according to the manual, and it is backed by a 10-year limited warranty from Chief. For end customers this gives a long service life on a structural part that holds a projector or display overhead. Certification status needs checking for the specific project: one distributor lists the column as not TAA compliant, while two others describe it as TAA compliant, so public-sector buyers should confirm this before quoting.

Performance4 specifications
Maximum weight capacity226,8 kg
CompatibilitySpeed-Connect
System compatibilitySpeed-Connect
Brand compatibilityChief
Design11 specifications
ModelCMS012018W
Product typeMounting extension (adjustable)
ColorWhite
MaterialAluminum
Length range30,5-45,7 cm
Length adjustment increment2,54 cm
Adjustment typeNotched, without disassembly
Threading1,5 NPT, both ends
Cable managementFlow-through, integrated port on one end
Set screw includedYes
Available finishesBlack, White, Silver
Weight & dimensions4 specifications
Width58.4 mm
Depth58.4 mm
Height2743.2 mm
Weight1,36 kg
Packaging data1 specification
Package weight1.11 kg
Packaging content1 specification
Included hardwareScrews, lock and flat washers, nuts (2), set screw, two hex keys
Operational conditions1 specification
Intended useIndoor use only
Certificates2 specifications
CertificationsTÜV, UL listed, TAA
Warranty10 years limited
Features2 specifications
Product colourWhite
CertificationTAA
Technical details1 specification
Compliance certificatesTAA
Other features3 specifications
Recommended applicationsCeiling-mounted projectors and flat panel displays; 21:9 ultrawide format, conferencing and meeting spaces, lecture capture and recording, workspace
EAN0841872092690
Harmonized System (HS) code85299097
