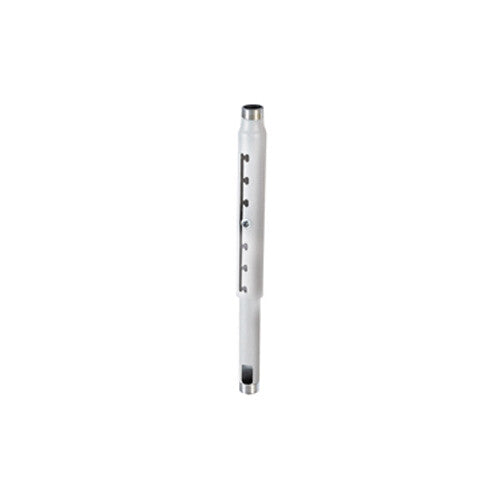

Chief CMS018024W, 45.7-61.0 cm, Adjustable — Adjustable ceiling extension column for projectors and displays
The Chief CMS018024W is a white, adjustable extension column designed for ceiling-mounted projectors and flat panel displays in commercial and professional AV installations. It spans an adjustable range of 45,7 to 61,0 cm, giving installers precise control over drop height without requiring disassembly. Built from high-quality aluminum and threaded with standard 1.5" NPT fittings on both ends, it integrates seamlessly with Chief's full range of ceiling plates and projector mount accessories. Rated for loads up to 226,8 kg, UL Listed, TUV certified, and TAA compliant, it is well-suited for education, corporate, government, and hospitality environments where reliability and flexibility are essential.
Tool-Free Height Adjustment on the Job
The CMS018024W uses a notched-column design that lets the installer change the drop length — in 2,54 cm steps, across a 45,7–61,0 cm range — without taking the system apart. On a typical projector installation this means the mount can be hung, cabled, and then fine-tuned to the exact throw distance or screen alignment needed, all from the ceiling without a second trip. The included set screw locks the chosen length and significantly reduces the micro-vibrations that can cause a suspended projector or display to wobble during presentations. For environments such as lecture theatres or conference rooms where projector image stability is critical, this combination of adjustability and positive locking delivers a noticeably cleaner result.
Universal 1.5" NPT Compatibility
Both ends of the column carry standard 1.5" NPT threads, which is the industry-standard thread pitch used across Chief's entire ceiling plate and projector mount accessory ecosystem. This means the CMS018024W can be inserted into any existing Chief 1.5" NPT ceiling plate — fixed, structural-ceiling, or suspended-tile — and accepts any Chief projector head or flat-panel drop adapter on the lower end. For installers who stock Chief hardware, this column simply works with whatever ceiling plate and mount head are already on the van, with no adapters needed. It also means future hardware upgrades (swapping a projector mount for a flat-panel adapter, for example) can be done without replacing the column itself.
226,8 kg Rated Load for Heavy Commercial Hardware
With a maximum load rating of 226,8 kg, this column is built well beyond the demands of even the heaviest professional laser projectors or large commercial flat-panel displays. The aluminum construction keeps the column itself light, but the structural rating means integrators do not need to downgrade to a stiffer fixed column just to meet load requirements. This is particularly relevant in rental-staging or permanent large-venue installs where the projector weight, combined with a heavy ceiling plate and cabling, can push a lesser column towards its limits. The UL Listing and TUV certification back up the structural rating with independent third-party verification.
TAA Compliant for Government and Public-Sector Projects
The CMS018024W carries Trade Agreements Act (TAA) compliance, which is a mandatory purchasing criterion for US federal government agencies and many state or institutional procurement programmes. For integrators active in the government, defence, education, or healthcare sectors, specifying TAA-compliant hardware from the outset avoids procurement rejections and project delays. Chief's compliance documentation is well established and accepted by GSA schedule buyers, making the CMS018024W a straightforward choice when building a TAA-compliant mount kit alongside other Chief ceiling hardware.
