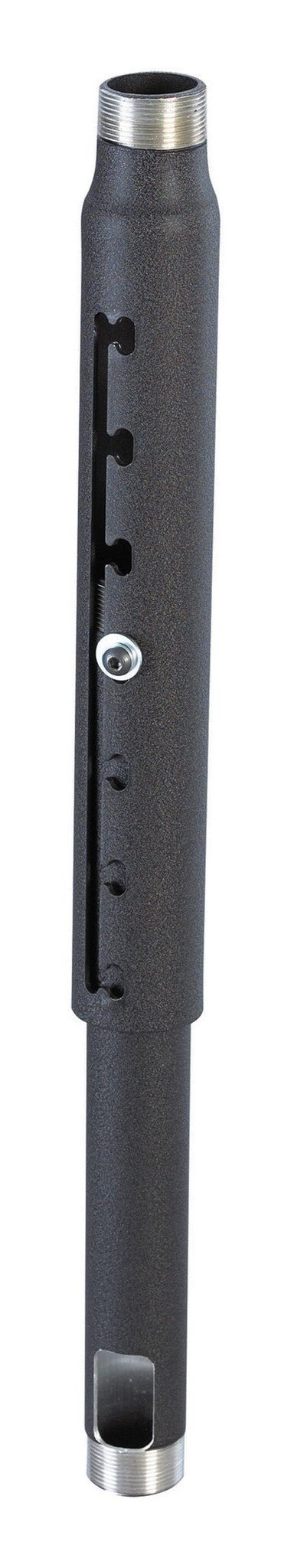

Chief CMS0203, 61-91 cm, Adjustable — Adjustable ceiling extension column for projectors and displays
The Chief CMS0203 is a heavy-duty adjustable extension column designed to precisely position ceiling-mounted projectors and flat panel displays at the correct drop height. Compatible with any Chief 1.5" NPT ceiling plate or mount accessory, it suits a wide range of commercial and professional AV installations — from corporate boardrooms and classrooms to houses of worship and auditoriums. Its continuously adjustable notched design lets installers dial in the exact hanging height without ever having to fully disassemble the system, saving time on the job and making future height adjustments equally straightforward. Built from aluminium and rated for up to 226,8 kg, it combines lightweight handling with genuine structural reliability.
Tool-Free Height Adjustment in the Field
The CMS0203 uses a patented notched-column design that lets installers change the hanging length — anywhere between 61 and 91 cm — in 2,54 cm steps without loosening the mount from the ceiling or detaching the projector. This is a genuine time-saver during initial setup, but its real value shows up during post-installation adjustments: if a room is reconfigured, a screen is repositioned, or a new projector model is fitted, the drop height can be recalibrated in minutes rather than requiring a full re-hang. A set screw locks the chosen position securely, preventing any drift over time or from building vibrations that could otherwise cause a ceiling-mounted display to wobble during presentations.
Universal 1.5" NPT Compatibility
Both ends of the CMS0203 are machined with standard 1.5" NPT pipe threads, making it directly compatible with the full Chief ceiling plate and mount ecosystem — as well as any third-party accessory using the same thread standard. In practice this means a single column SKU integrates seamlessly with Chief's full range of projector mounts, ceiling plates, and pipe fittings without adapters or custom hardware. For integrators managing large installations with varied equipment, this universality reduces parts count and simplifies spares management. Columns are available in black (CMS0203), silver (CMS0203S), and white (CMS0203W) to match the ceiling finish of the installation environment.
Integrated Flow-Through Cable Management
The column includes an integrated cable routing port at one end, allowing signal and power cables to pass through the hollow aluminium tube from the ceiling plenum directly to the projector or display — completely concealed within the column body. This eliminates external cable trays or unsightly dangling cables, which is particularly important in client-facing spaces such as conference rooms, auditoriums, and high-end classrooms where a clean ceiling line is part of the overall design intent. Concealed cabling also reduces the risk of accidental disconnection and simplifies future cable replacements, since cables can be pulled through the tube without touching the mount itself.
High Structural Capacity in a Lightweight Body
Constructed from extruded aluminium, the CMS0203 is rated to support up to 226,8 kg — far exceeding the weight of any current commercial projector or large-format flat panel display. Aluminium construction also keeps the column's own weight low, which eases handling on the job site and reduces shipping costs compared to steel alternatives. The column is UL Listed, confirming that it has been independently tested to relevant safety standards — a requirement for many commercial building codes and corporate procurement specifications. The combination of high rated load, certified safety, and lightweight material makes it appropriate for permanently installed, high-traffic environments.
TAA Compliance for Government and Education Procurement
The CMS0203 is Trade Agreements Act (TAA) compliant, meaning it qualifies for use on US federal government contracts and publicly funded projects that require domestically produced or designated-country goods. For AV integrators bidding on government, education, or defence projects, TAA compliance is often a non-negotiable specification requirement — stocking TAA-compliant accessories from the outset avoids last-minute substitutions that can delay project delivery. Chief backs the product with a 10-year warranty, which aligns with the long service life expected in public-sector and corporate installations.
