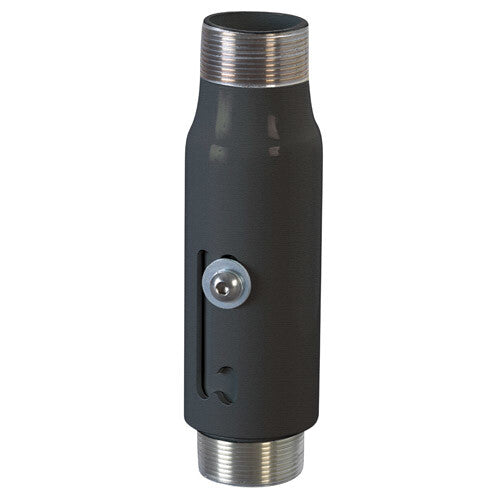

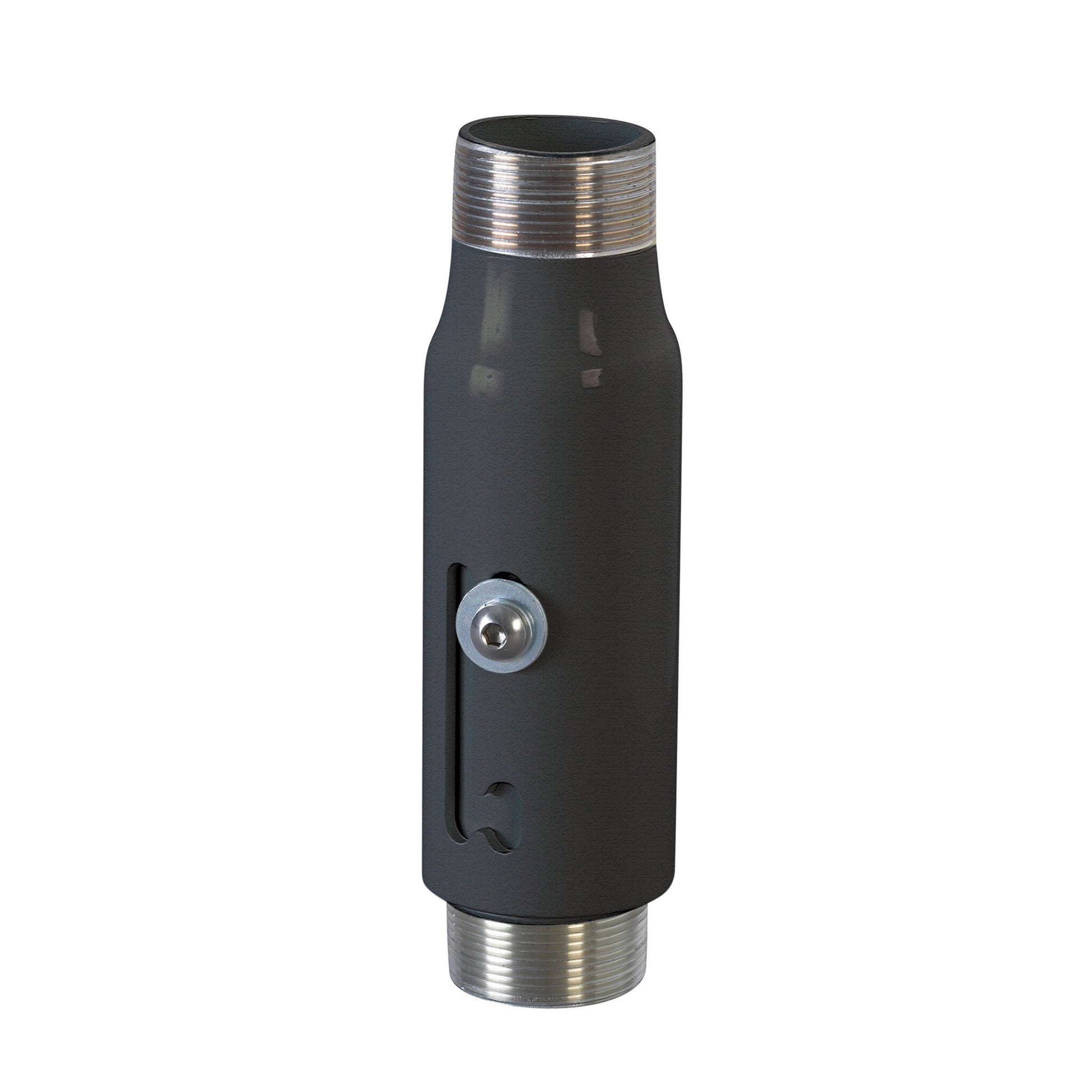

Chief CMS006009, 15.2-22.9 cm, Adjustable — Adjustable ceiling extension column for AV mounts
The Chief CMS006009 is a Speed-Connect adjustable extension column designed to set the precise drop height of ceiling-mounted projectors or flat panel displays. Threaded on both ends with a standard 1.5" NPT connection, it is compatible with the full range of Chief ceiling plates, mounts, and accessories. The column adjusts between 15,2 and 22,9 cm in 2,54 cm increments using a patented notched design — no tools or disassembly required — making it ideal for retrofit installations or situations where the exact ceiling height is only known on-site. Lightweight aluminium construction simplifies handling during installation and reduces shipping costs. Suited to corporate, education, and worship spaces where projector or display height needs to be dialled in quickly and cleanly.
Tool-Free Length Adjustment in the Ceiling
The CMS006009 uses Chief's notched Speed-Connect design, which lets an installer change the column length in 2,54 cm increments without removing the mount from the ceiling or loosening threaded connections. In practice this means that if a projector ends up too high or too low after initial hanging — a very common site condition — the installer simply slides the column to the next notch and locks it with the set screw, rather than ordering a different fixed-length pipe and revisiting the site. This dramatically shortens commissioning time and virtually eliminates the labour cost of a second visit. A set screw provides positive locking once the final position is confirmed, so the finished installation is as rigid as a fixed column.
Integrated Cable Management Port
One end of the column includes a dedicated cable routing port that allows signal and power cables to pass through the interior of the pipe rather than being surface-routed on the outside. This keeps the ceiling installation looking clean and professional — an important detail in boardrooms, classrooms, and houses of worship where exposed cabling is unacceptable. The through-pipe routing also protects cables from accidental snagging during ceiling tile access and makes future cable replacement straightforward without having to strip away external cable ties or conduit.
High Load Capacity with Lightweight Aluminium Build
Despite weighing well under 1 kg, the CMS006009 is rated to support up to 227 kg — far above the weight of any commercial projector or flat panel display it would typically carry. The aluminium construction not only delivers this strength-to-weight ratio but also resists corrosion in air-conditioned environments and makes one-person installation realistic. Because the column is light, shipping costs are minimised and stock is easy to hold. The 10-year limited Chief warranty covers the column for the lifespan of most AV installations, reducing long-term liability for the integrator.
Universal 1.5" NPT Compatibility
Both ends of the CMS006009 are threaded to the 1.5" NPT standard, which is the industry-standard pipe thread used across Chief's entire ceiling mount ecosystem — ceiling plates, spider mounts, projector mounts, and flat panel ceiling adapters. This means the column can be freely mixed with any compatible Chief component regardless of generation, and is also interoperable with third-party accessories that follow the same NPT standard. For integrators who stock a range of Chief ceiling hardware, a single column SKU covers a wide variety of project configurations without the need to verify thread compatibility on a job-by-job basis.
