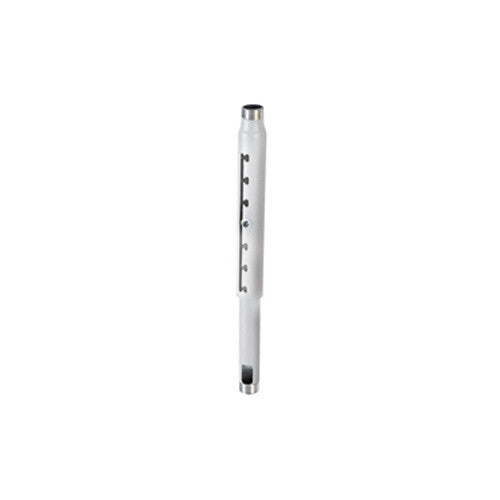

Chief CMS009012W, 22.9-30.5 cm, Adjustable

White aluminum adjustable extension column with a 22,9-30,5 cm range and 226,8 kg rated load, for lowering ceiling-mounted projectors and displays.

  • Lowers ceiling-mounted projectors and displays to the right viewing height
  • Adjusts in 2,5 cm steps via notched design, no disassembly needed
  • Aluminum body with flow-through cable exit for a tidy installation
  • Rated for 226,8 kg, with a set screw to reduce wobble from building vibration
  • 10-year manufacturer warranty, TAA compliant and UL listed
  • SKU:841872104782
  • GTIN:841872104782
  • MPN:CMS009012W

You need to login to view the price.

View full details

Adjustable 22,9-30,5 cm aluminum extension column for ceiling mounts

Chief CMS009012W, 22.9-30.5 cm, Adjustable

The Chief CMS009012W is a white aluminum extension column for ceiling-mounted projectors and flat-panel displays. It threads into any Chief NPT ceiling plate or accessory and lets an installer lower the display to a comfortable viewing height without replacing the mount. Chief positions the CMS series for meeting rooms, lecture spaces, workspaces and hospitality or retail installations, where the right height depends on room layout, seating or sightlines. Its main benefit is that the height can be corrected after commissioning with little effort, which keeps the display usable as the room changes.

Height Changes Without Taking the Mount Apart

Height Changes Without Taking the Mount Apart

The column uses a notched design that lets the installer change its length in 2,5 cm steps without disassembling the assembly. Across its 22,9-30,5 cm range, a projector or screen can be raised or lowered after installation, for example when a seating plan, a sightline or the ceiling layout changes. For the end user this means the display can be corrected in a short visit rather than a full remount. The included set screw adds stability once the height is set, so the position stays put during normal use.

Flow-Through Cable Management

Flow-Through Cable Management

The column has a flow-through design with an integrated port at one end, so cables can be routed through the column and exit at that point instead of hanging along the outside of the pole. This keeps the cable run concealed and reduces the chance of cables being snagged or pulled loose. For the end user, a ceiling-mounted display in a meeting room, lecture hall or lobby looks tidier, and the installer has one clean route to plan rather than external cable trunking to add.

22,9-30,5 cm range. 226,8 kg rated. Adjust without disassembly.

10-year manufacturer warranty · TAA compliant · UL listed

Rated for 226,8 kg With Vibration Control

Rated for 226,8 kg With Vibration Control

The column is rated for a maximum load of 226,8 kg, which covers the projectors and flat-panel displays typically hung from a ceiling column. The source material notes that building vibration can make a projector image or screen wobble, and the included set screw is there to reduce that. For the end user this means a steadier picture and a more dependable install over time. Installers should still check the combined weight and rating of the whole mounting chain, because the stack is only as strong as its weakest component.

Performance2 specifications
Maximum weight capacity226,8 kg
CompatibilityListed Chief ceiling plates and mounts specified for use with 1-1/2" NPT
Design8 specifications
ColorWhite
Material of constructionAluminum
Product typeAdjustable extension column
Height adjustment increment2,5 cm
Adjustment designNotched design, adjustable without disassembly
Set screwIncluded, for added stability
Cable managementFlow-through, with integrated cable exit port on one end
ThreadingNPT, both ends
Weight & dimensions5 specifications
Minimum length22,9 cm
Maximum length30,5 cm
Minimum inner diameter3,9 cm
Width58.4 mm
Depth58.4 mm
Packaging data2 specifications
Package weight843.68 g
Box dimensions (LxWxH)31,8 x 9,7 x 9,1 cm
Packaging content1 specification
Included itemsExtension column, set screw, screw, lock washer, flat washer, 2 nuts, 2 Allen wrenches
Certificates2 specifications
CertificationTAA
ComplianceTAA Compliant
Features2 specifications
Brand compatibilityChief
Product colourWhite
Logistics data1 specification
Harmonized System (HS) code85299097
Other features5 specifications
BrandChief
Intended useCeiling-mounted projectors and flat panel displays
Warranty10 years manufacturer warranty
Applications21:9 Ultrawide Format; Conferencing & Meeting Spaces; Lecture Capture & Recording; Workspace
EAN841872104782

Specifications are checked against the manufacturer's documentation where available.
