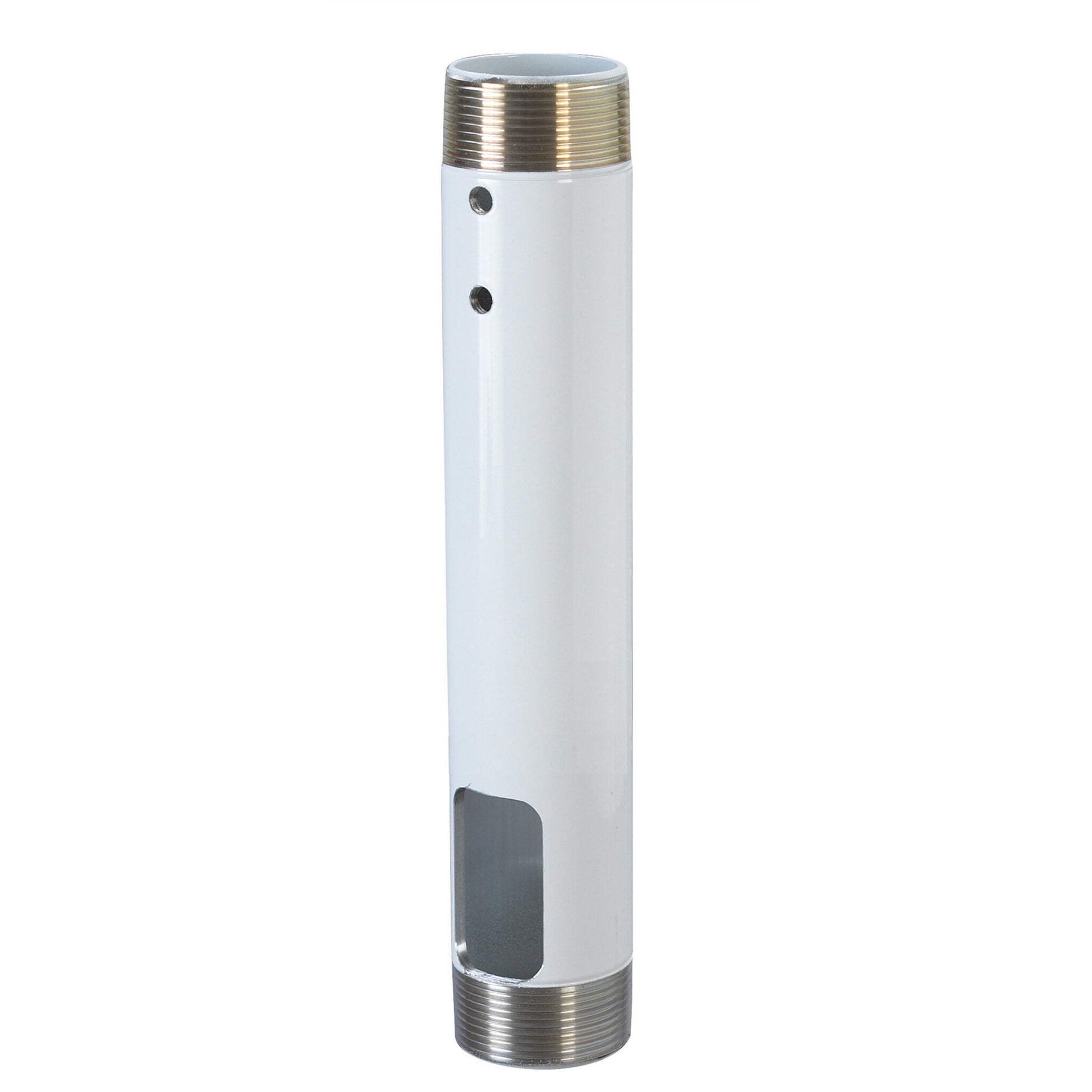

Chief CMS018W, 45.7 cm, Fixed — Fixed 45.7 cm ceiling extension column, white
The Chief CMS018W is a 45.7 cm fixed aluminium extension column designed to lower ceiling-mounted projectors or flat-panel displays to the correct drop height. Part of Chief's Speed-Connect CMS series, it targets AV integrators working in corporate, education, and conference-room environments where a precise, fixed drop distance is required. The column's 1.5" NPT threading on both ends connects to any compatible Chief ceiling plate or accessory, while integrated flow-through cable management keeps signal and power cables concealed for a professional finish. TAA compliant and UL/TUV certified, it ships in white to blend with suspended-ceiling environments.
Precise Fixed Drop — No Guesswork on Site
At exactly 45.7 cm (18"), the CMS018W gives installers a defined, unchanging drop distance from ceiling plate to mount interface. Fixed-length columns are the right choice wherever the mounting height is known at design time — classrooms with suspended ceilings at a standard height, corporate boardrooms with a specific sightline requirement, or auditoriums with predetermined projection throw. Because no adjustment mechanism is involved, there is nothing to slip or drift over time; the projector or display stays at exactly the position set on day one, with zero ongoing maintenance needed for height.
Flow-Through Cable Management
The hollow aluminium column acts as a conduit: all signal, power, and control cables are routed through the inside of the pole and exit through a dedicated port at the lower end. This means no exposed cable runs along the outside of the column, delivering a clean, professional installation that passes visual inspection in high-visibility environments such as boardrooms, lecture theatres, or retail showrooms. It also protects cables from accidental pulls or snagging during room changeovers, reducing the risk of damage or intermittent faults over the product's lifetime.
Universal 1.5" NPT Threading — Broad System Compatibility
Both ends of the CMS018W are machined to the industry-standard 1.5" NPT (National Pipe Taper) thread, the same standard used across Chief's full range of ceiling plates, speed-connect mounts, and projector interfaces. This means the column slots into existing Chief infrastructures without adapters, and can be combined with black (CMS018) or silver (CMS018S) variants of the same column when height extensions need to be stacked. For integrators managing mixed-manufacturer sites, the NPT standard is also compatible with many third-party mounting systems, giving maximum flexibility during design.
Aluminium Construction: Light, Strong, Corrosion-Resistant
The column is machined from aluminium rather than steel, which cuts shipping weight significantly — a practical benefit when ordering multiple units for a large rollout across many rooms. Despite the lower mass, the load rating of 227 kg far exceeds any projector or flat-panel display likely to be hung from it, so structural safety is not a trade-off. Aluminium also does not corrode in the humid or variable-temperature environments found above suspended ceilings, supporting Chief's 10-year warranty promise without risk of structural degradation over time.
TAA Compliant — Eligible for Government and Public-Sector Projects
The CMS018W meets the requirements of the US Trade Agreements Act (TAA), confirming that it is manufactured or substantially transformed in a TAA-designated country. This is a hard requirement for products specified on US federal, state, and many local government contracts, as well as defence and education projects that draw on public funding. Specifying a TAA-compliant column alongside a TAA-compliant mount and ceiling plate keeps the entire assembly within compliance, avoiding potential procurement rejections or contract disputes at the point of delivery.
