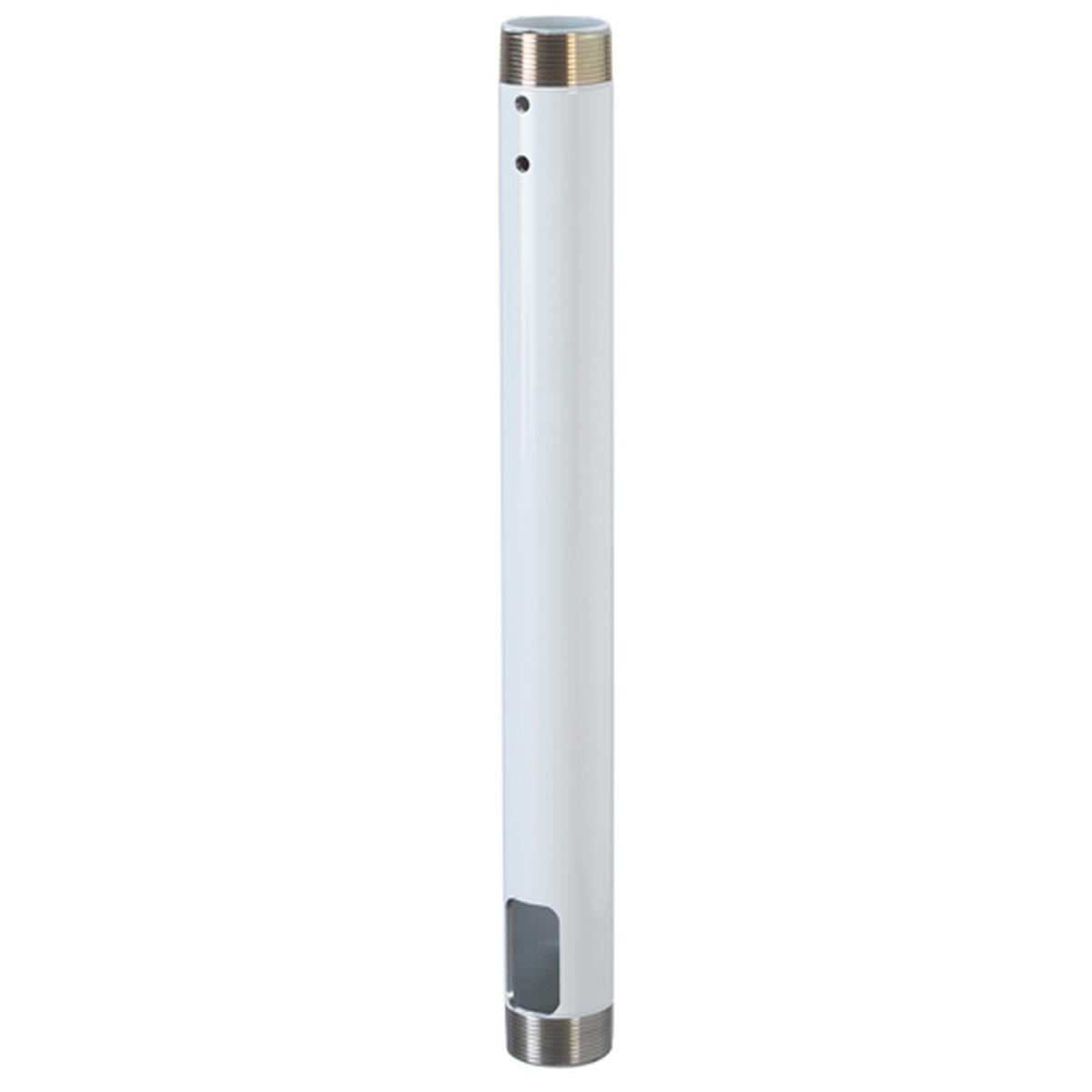

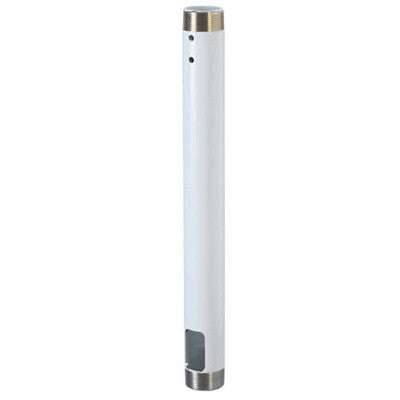

Chief CMS024W, 61 cm, Fixed

Fixed 61 cm aluminum ceiling extension column from Chief's CMS Series for lowering projectors and flat-panel displays in indoor AV installations.

  • Fixed 61 cm drop: a rigid one-piece column for a known ceiling-to-display distance
  • Flow-through cabling with an access opening keeps cables hidden inside the column
  • Rated for 226 kg combined load, subject to a verified ceiling structure
  • TAA compliant and UL listed for government and public-sector projects
  • 1-1/2 NPT threads pair with Chief ceiling plates; for indoor use only
  • SKU:841872076331
  • GTIN:841872076331
  • MPN:CMS024W

You need to login to view the price.

View full details

Fixed 61 cm aluminum ceiling extension column

Chief CMS024W, 61 cm, Fixed

The Chief CMS024W is a fixed-length aluminum extension column for lowering ceiling-mounted projectors and flat-panel displays to a set height. It is aimed at AV integrators fitting conferencing and meeting spaces, lecture capture rooms and workspaces, where a display has to hang at a precise drop from the ceiling. The column threads into a Chief ceiling plate and gives a concealed route for cables inside the drop. Because the length is fixed, it suits installations where the ceiling-to-screen distance is already known, with no adjustment hardware to set on site.

Fixed 61 cm Drop in One Piece

Fixed 61 cm Drop in One Piece

This is a non-adjustable column: the drop length is fixed, so it suits installs where the projector or display height is known in advance. Compared with the adjustable CMS version, there are no telescoping sections or height-adjustment screws to set and check on site. For the installer that means fewer parts and a shorter install. For the end user it means a rigid mount whose height stays where it was set. It fits a standard meeting room or a lecture room where the projector position is fixed from the start.

Flow-Through Cable Routing

Flow-Through Cable Routing

The column is hollow and has a cable access opening, so signal and power cables can run inside it from the ceiling plate down to the mounted device instead of hanging exposed. The Legrand manual states that the access opening is provided on columns 22,9 cm or longer, and that it can be rotated so cables exit below the plate when needed. For the end user this gives a tidier finish under the ceiling and fewer loose cables that people can snag or pull on.

61 cm fixed drop. 226 kg rating. TAA compliant.

UL listed · Chief ceiling plate compatible · Indoor use only

Rated for 226 kg Combined Load

Rated for 226 kg Combined Load

The manual rates the CMS Series extension columns at 500 lb (226 kg) for the combined weight of all components attached to them. The rating can be limited by the weakest component, accessory or mounting system in the chain, so the total hung weight has to be checked against every part. The manual also requires the installer to confirm that the structure can carry five times the combined weight before installing. This is the figure to verify for heavy projectors or large displays with brackets and mounts added. For the end user, a documented rating and a verified structure are what keep a ceiling-hung display safe over time.

TAA Compliant and UL Listed

TAA Compliant and UL Listed

The column is listed as TAA compliant, which matters for government and public-sector projects that must buy Trade Agreements Act-compliant products. Distributor listings also show UL listing and TÜV certification. Public buyers often require these documents at tender stage, so the product can be specified without a separate compliance exception. For the end user, the installation then meets the purchasing rules of the organisation that owns the room.

Chief Ceiling Plate Compatibility

Chief Ceiling Plate Compatibility

The column is threaded 1-1/2 NPT at both ends and the manual lists it for use with Listed Chief ceiling plates and mounts specified for that thread, plus the UL-listed truss ceiling adapter CMS380. This lets an installer build the drop from one manufacturer's system instead of mixing threads and adapters from different brands. The result for the end user is a mounting chain whose parts are designed to go together, with fewer mismatch problems at install time.

Indoor Installations Only

Indoor Installations Only

The manual explicitly says not to use this product outdoors. Its aluminum column and white finish are intended for ceiling mounts inside offices, classrooms, auditoriums and meeting spaces. Outdoor or semi-exposed ceiling positions, such as covered terraces or loading areas, fall outside the stated use. For the end user this is a clear placement boundary: the column should be specified for dry, interior locations only.

Performance2 specifications
Maximum weight capacity226 kg
Weight capacity limitationMay be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.
Design6 specifications
Product seriesCMS Series
Column typeFixed length
MaterialAluminium
Product colourWhite
Thread1-1/2 NPT, both ends
Cable managementFlow-through with cable access opening
Weight & dimensions4 specifications
Height610 mm
Width48.3 mm
Depth48.3 mm
Weight1.36 kg
Packaging data1 specification
Package weight988.83 g
Operational conditions1 specification
Outdoor useNot permitted
Certificates3 specifications
CertificationTAA
TAA compliantYes
Compliance certificatesTAA
Features2 specifications
Brand compatibilityChief
CompatibilitySpeed-Connect
Logistics data1 specification
Harmonized System (HS) code85299097
Other features13 specifications
BrandChief
Ceiling plate compatibilityListed for use with Listed Chief ceiling plates and mounts specified for 1-1/2 NPT
Truss ceiling adapterCMS380 (UL listed)
InstallationFour full threads into ceiling plate/adapter; secured by set screw
Cable access openingProvided on columns 9" or longer (229 mm)
Structural requirementStructure must support five times the combined weight of all equipment
Intended useChief accessories and mounts
Ceiling plate/adapterNot included
Projector/display mountNot included
Set screwProvided with plate/adapter
Parts noteParts B-J are only included with adjustable length columns
Applications21:9 Ultrawide Format; Conferencing & Meeting Spaces; Lecture Capture & Recording; Workspace
EAN841872076331

Specifications are checked against the manufacturer's documentation where available.
