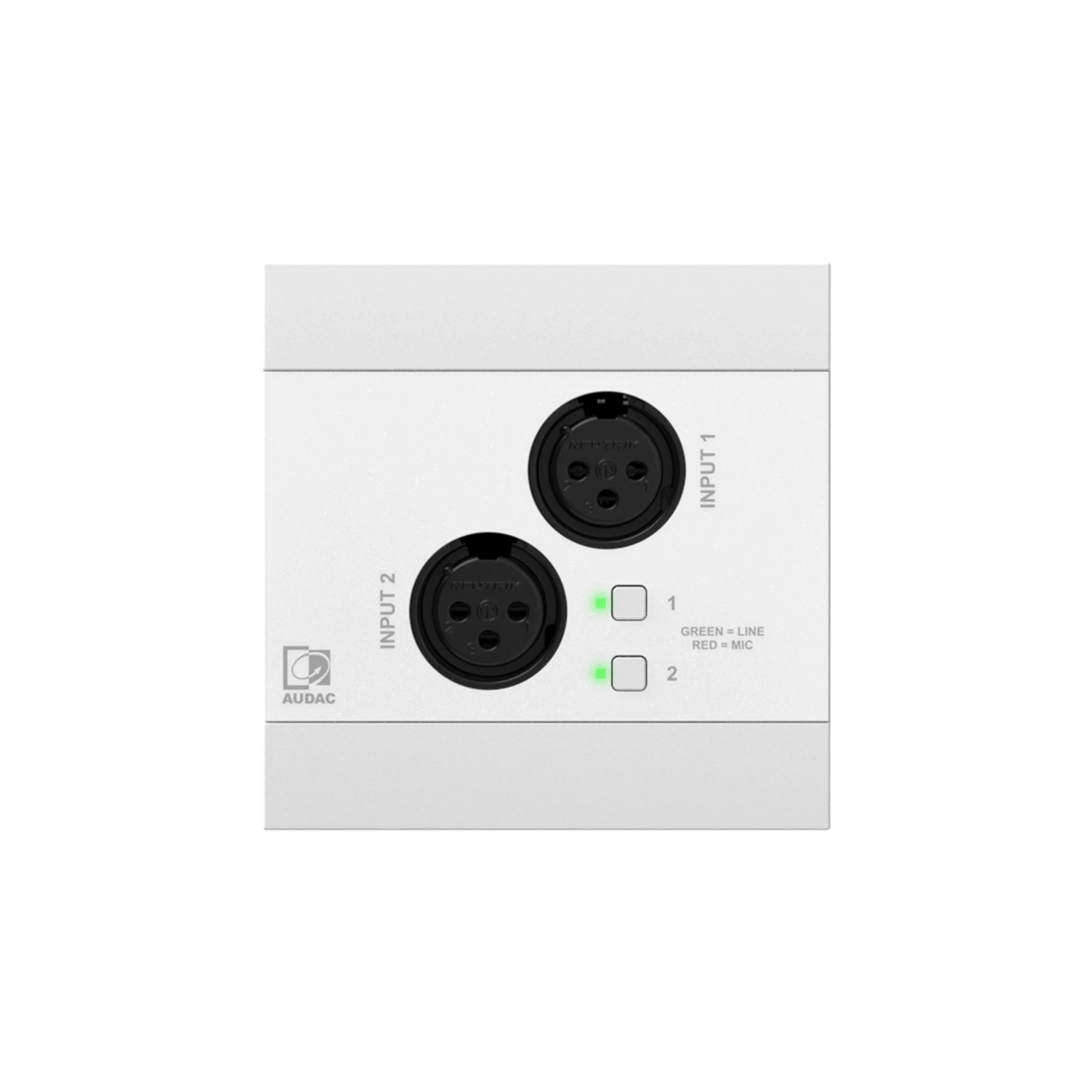

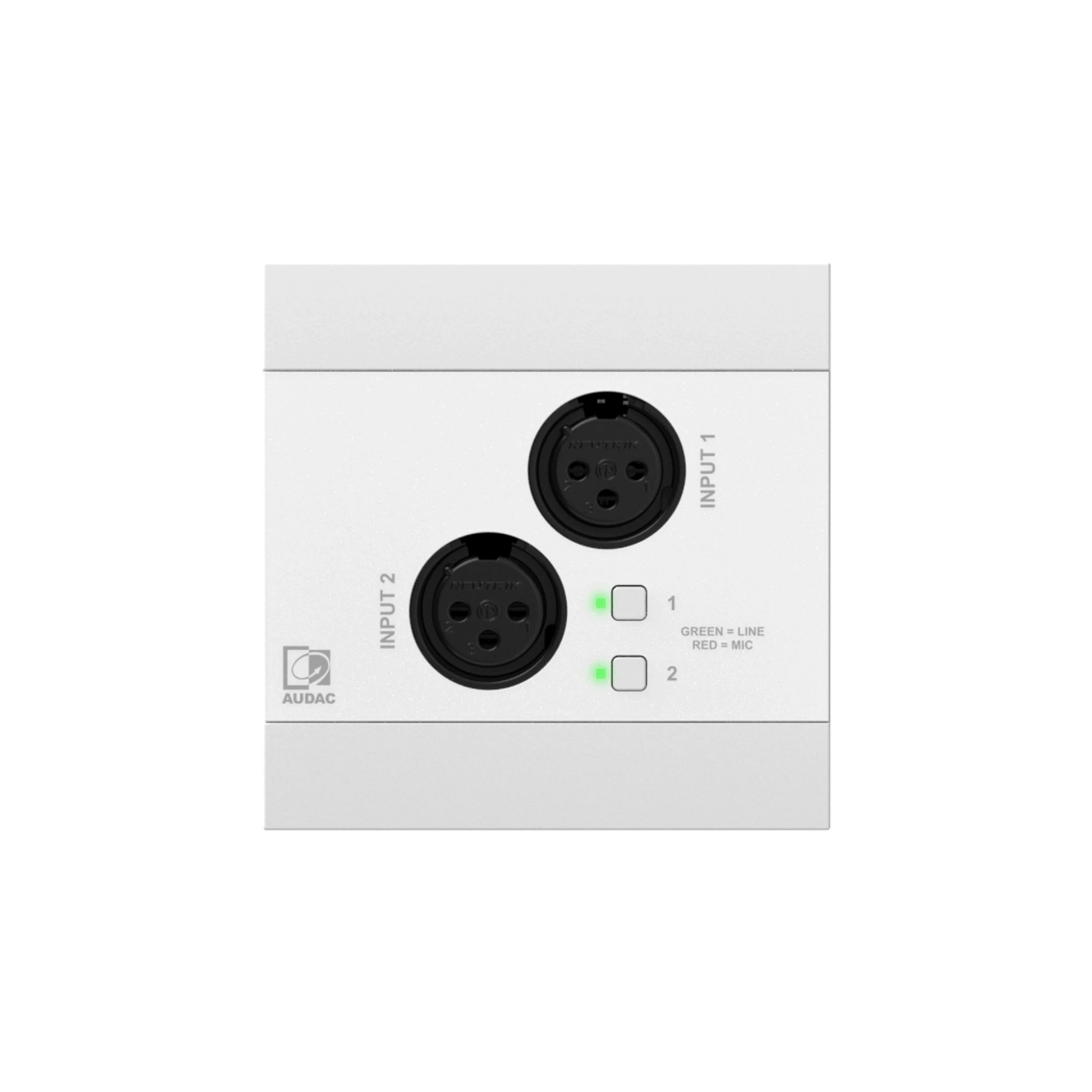

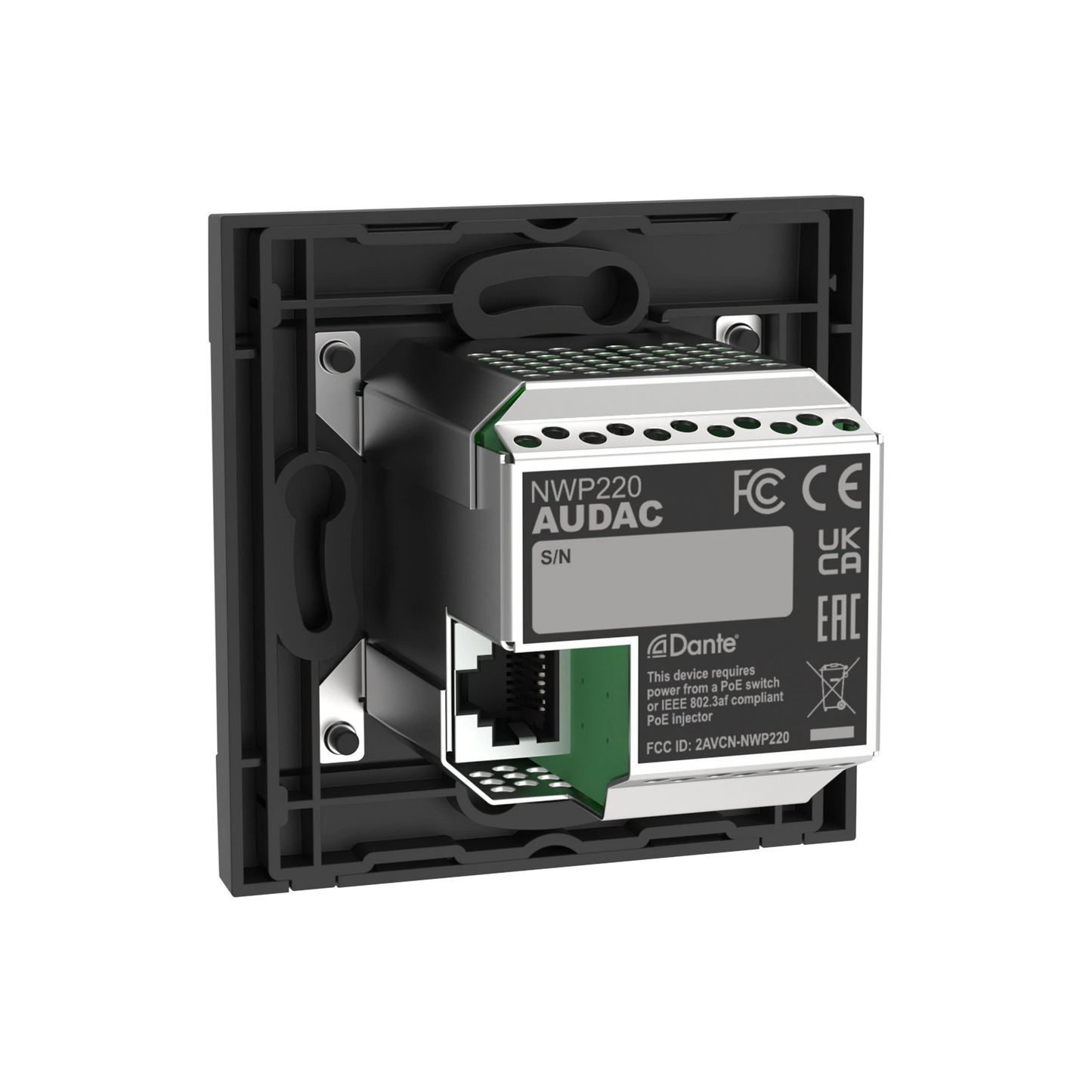

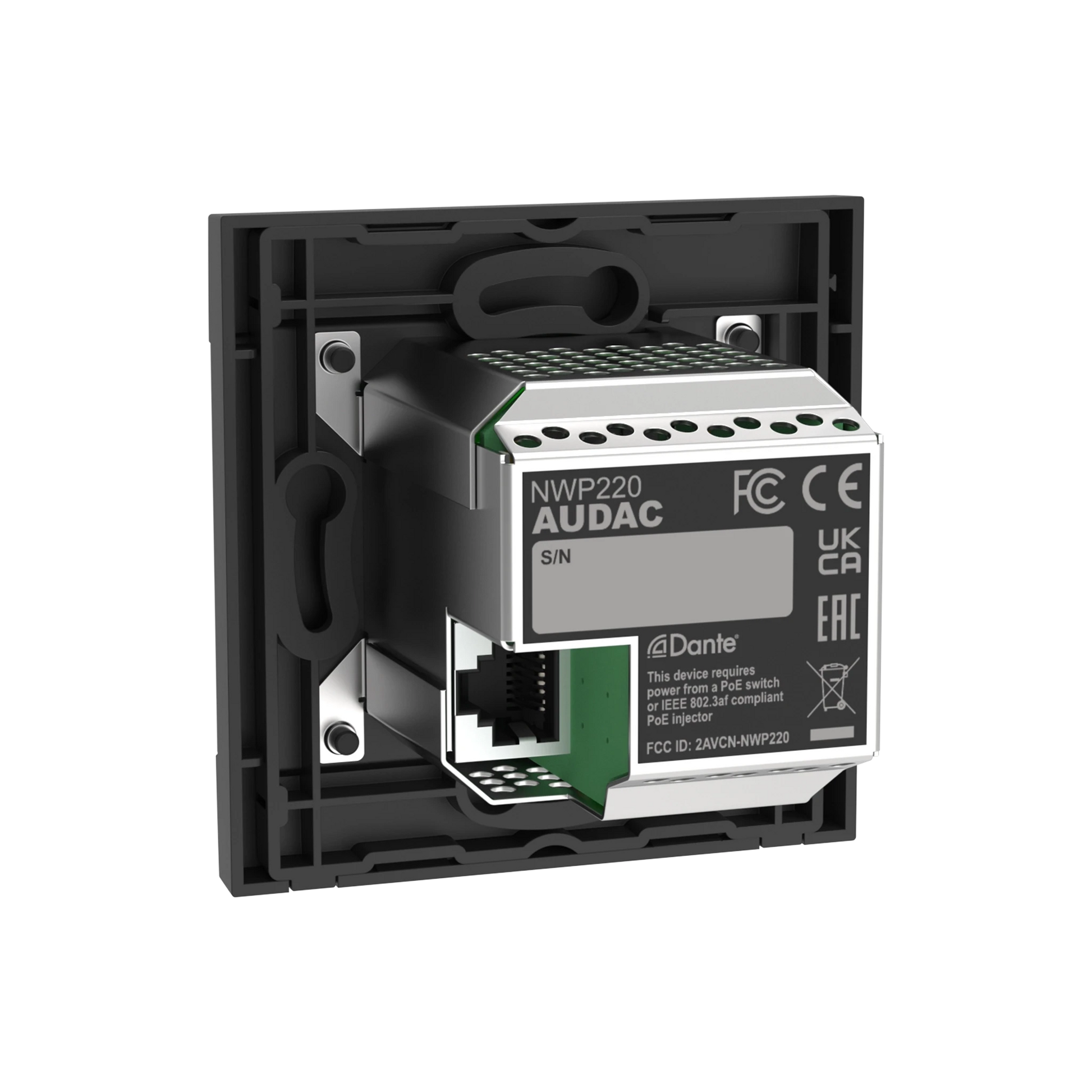

NWP220/W Network input panel - 2 x XLR + BT (4 CH), White

NWP220/W Network input panel - 2 x XLR + BT (4 CH), White

  • 2 x XLR inputs
  • Integrated Bluetooth receiver
  • Internal mixing & DSP processing
  • 4-channel Dante™/AES67
  • SKU:NWP220/W
  • GTIN/EAN:
  • MPN:NWP220/W
Add To Favorite

You need to login to view the price.

View full details

The NWP220 is a Dante™/AES67 network input panel, featuring two XLR input connectors and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.

The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP220 is compatible with any PoE network-based installation.

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white color options are available to blend into any architectural design.

System specifications
Inputs
2 x XLR female (in)
Control
2 buttons - Mic / Line switching
Indicators
2 LED’s (RGB) - Input status
Configurable settings
IP settings Device name Input range (Mic / Line) Gain Phantom power DSP (EQ) Mixing
Configuration
Audac Touch™
Integrated DSP
Yes (EQ)
Automatic level control
Yes
Phantom power
+48 V DC
Power Supply
PoE powered (IEEE 802.3at)
Connectors
RJ45 (network + PoE) 1 x XLR female (audio in)
Product Features
Construction
ABS
Front finish
Elegant front panel with glass
Colours
White (RAL9003) (NWP220/W) Black (RAL9005) (NWP220/B)
Compatible devices
Any Dante™/AES67 compatible audio device
Dimensions
80 x 80 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
