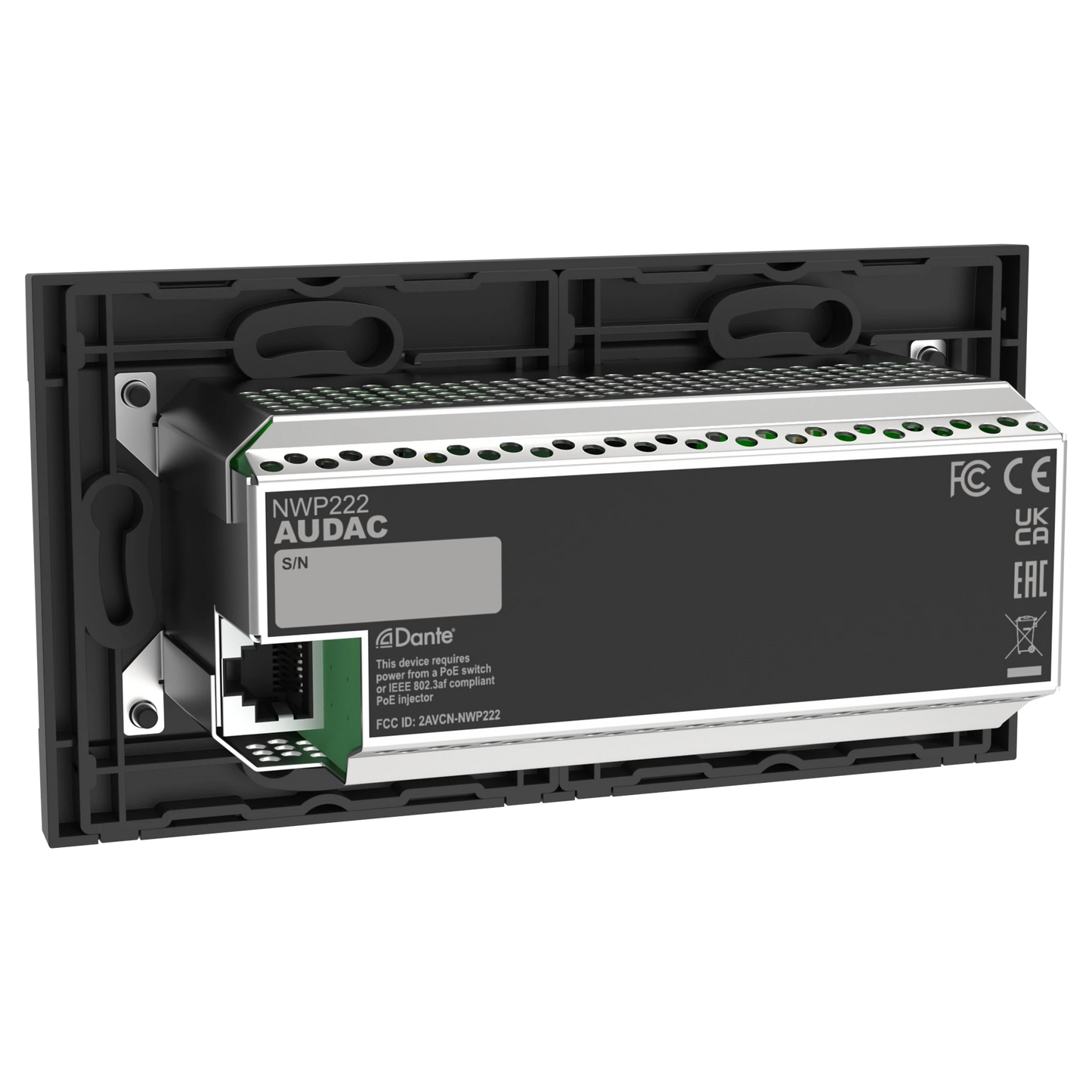

NWP222/B Network in- & output panel - 2 x XLR in- & out + BT (4 x 2 CH), Black

NWP222/B Network in- & output panel - 2 x XLR in- & out + BT (4 x 2 CH), Black

  • 2 x XLR inputs & outputs
  • Integrated Bluetooth receiver
  • 4-channel Dante™/AES67
  • Internal mixing & DSP processing
  • SKU:NWP222/B
  • MPN:NWP222/B

You need to login to view the price.

Add To Favorite
View full details

The NWP222 is a Dante™/AES67 network input panel, featuring two XLR input and output connectors and an integrated Bluetooth receiver, which can be used to transmit or receive audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones.

Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app.

The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

System specifications

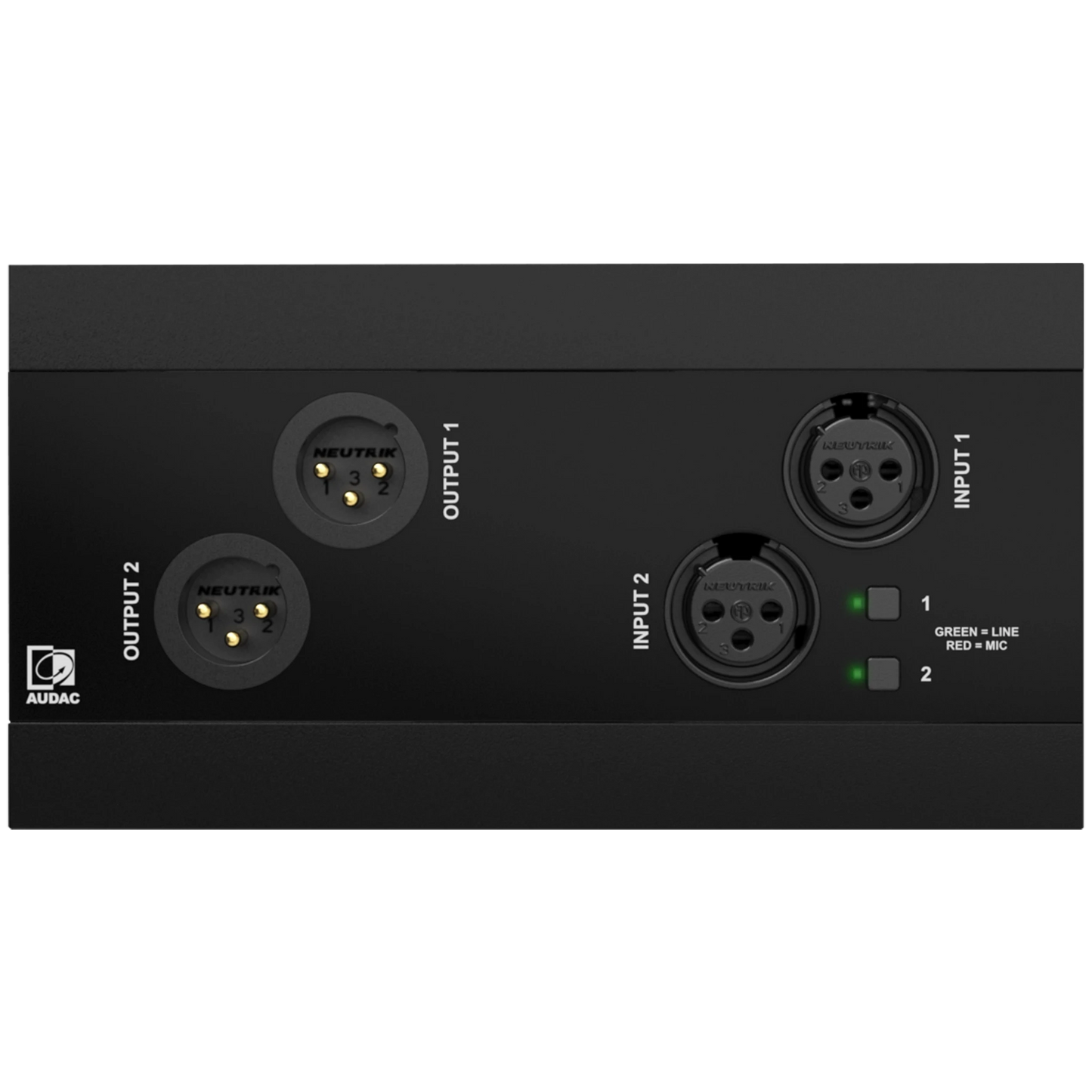

2 x XLR female (in) 2 x XLR male out
2 buttons - Mic / Line switching
2 LED’s (RGB) - Input status
Configurable settings
IP settings Device name Input range (Mic / Line) Gain Phantom power DSP (EQ) Mixing
Audac Touch™
Integrated DSP
Yes (EQ)
Automatic level control
Phantom power
+48 V DC
Power Supply
PoE powered (IEEE 802.3at)
XLR Female (mic in) RJ45 (network + PoE) 1 x XLR male (audio out)
Product Features
Front finish
Elegant ABS front panel with glass
White (RAL9003) Black (RAL9005)
Compatible devices
Any Dante™/AES67 compatible audio device
160 x 88 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
