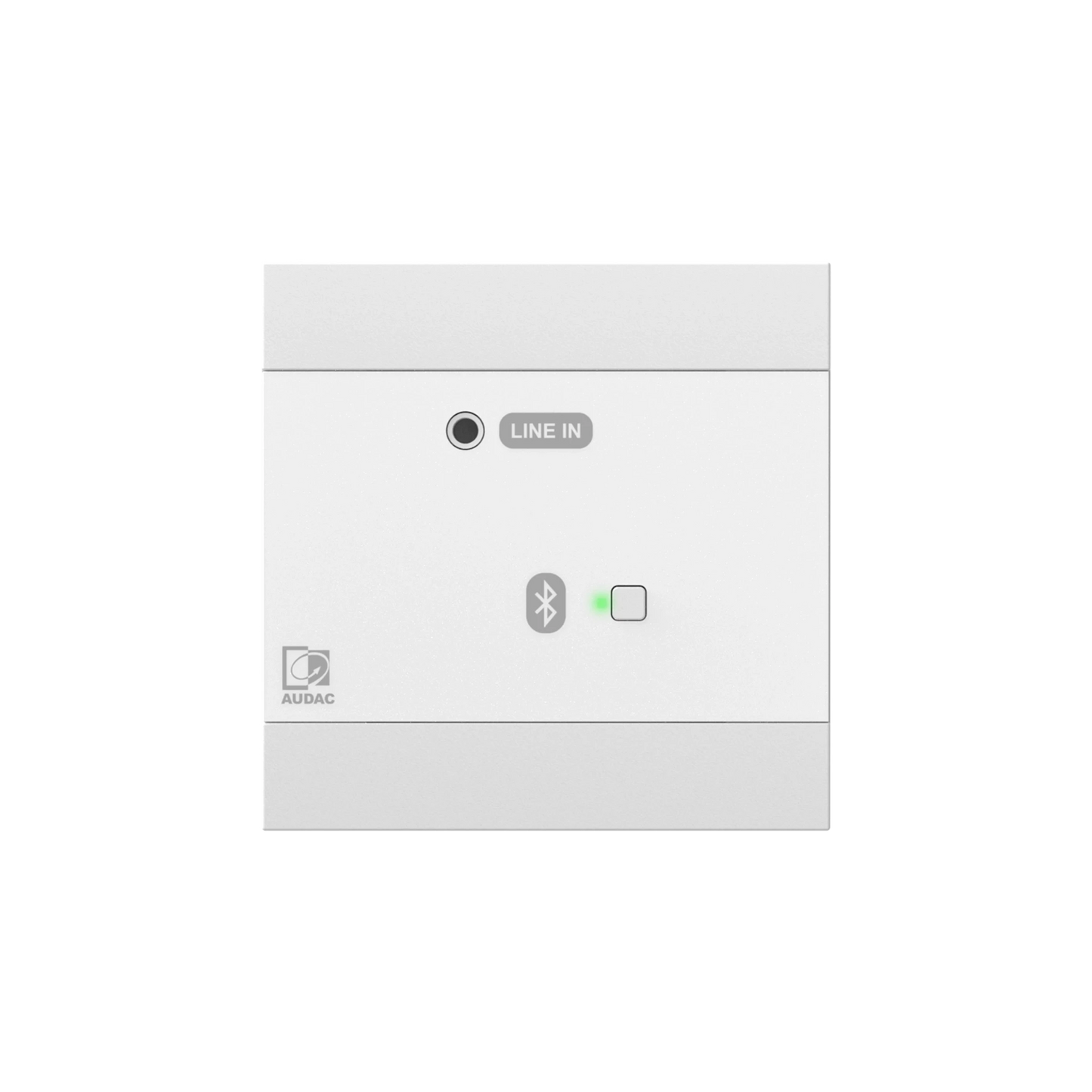

NWP300/W Network input panel - BT + 3.5 mm jack (4 CH), White

NWP300/W Network input panel - BT + 3.5 mm jack (4 CH), White

  • 4-channel Dante™/AES67
  • Mix any or all inputs internally to save channels on both sides
  • Full DSP processing with WaveDynamics™ support
  • All mixing and processing is easily done from AUDAC Touch™
  • Enable Bluetooth or disable the button functions completely from AUDAC Touch™
  • 3.5mm stereo jack input
  • Integrated Bluetooth receiver
  • SKU:NWP300/W
  • GTIN/EAN:
  • MPN:NWP300/W

You need to login to view the price.

View full details

The NWP300 is a Dante™/AES67 network input panel, featuring a single 3.5 mm stereo jack stereo input connection and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP300 is compatible with any PoE network-based installation.

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white color options are available to blend into any architectural design.

Product Features
Installation standard
Compatible with EU installation materials
Dimensions
80 x 80 mm (W x H) (Remote wall panel)
Compatible devices
Any Dante™/AES67 compatible audio device
Colours
White (RAL9003) Black (RAL9005)
Front finish
Elegant ABS front panel with glass
Construction
ABS
System specifications
Connectors
RJ45 (network + PoE) 3.5 mm Jack stereo
Power Supply
PoE powered (IEEE 802.3at)
Phantom power
+48 V DC
Automatic level control
Yes
Integrated DSP
Yes (EQ)
Configuration
Audac Touch™
Configurable settings
IP settings Device name Gain DSP (EQ) Mixing
Indicators
1 LED (RGB) - Bluetooth status
Control
1 button - Bluetooth discoverable
Inputs
Bluetooth 3.5 mm Jack
