NWP320/W Network input panel - 2 x XLR + 3.5 mm jack + BT (4 CH), White

NWP320/W Network input panel - 2 x XLR + 3.5 mm jack + BT (4 CH), White

  • 2 x XLR inputs
  • 3.5mm stereo jack input
  • Integrated Bluetooth receiver
  • Internal mixing & DSP processing
  • 4-channel Dante™/AES67
  • SKU:NWP320/W
  • MPN:NWP320/W

You need to login to view the price.

Add To Favorite
View full details

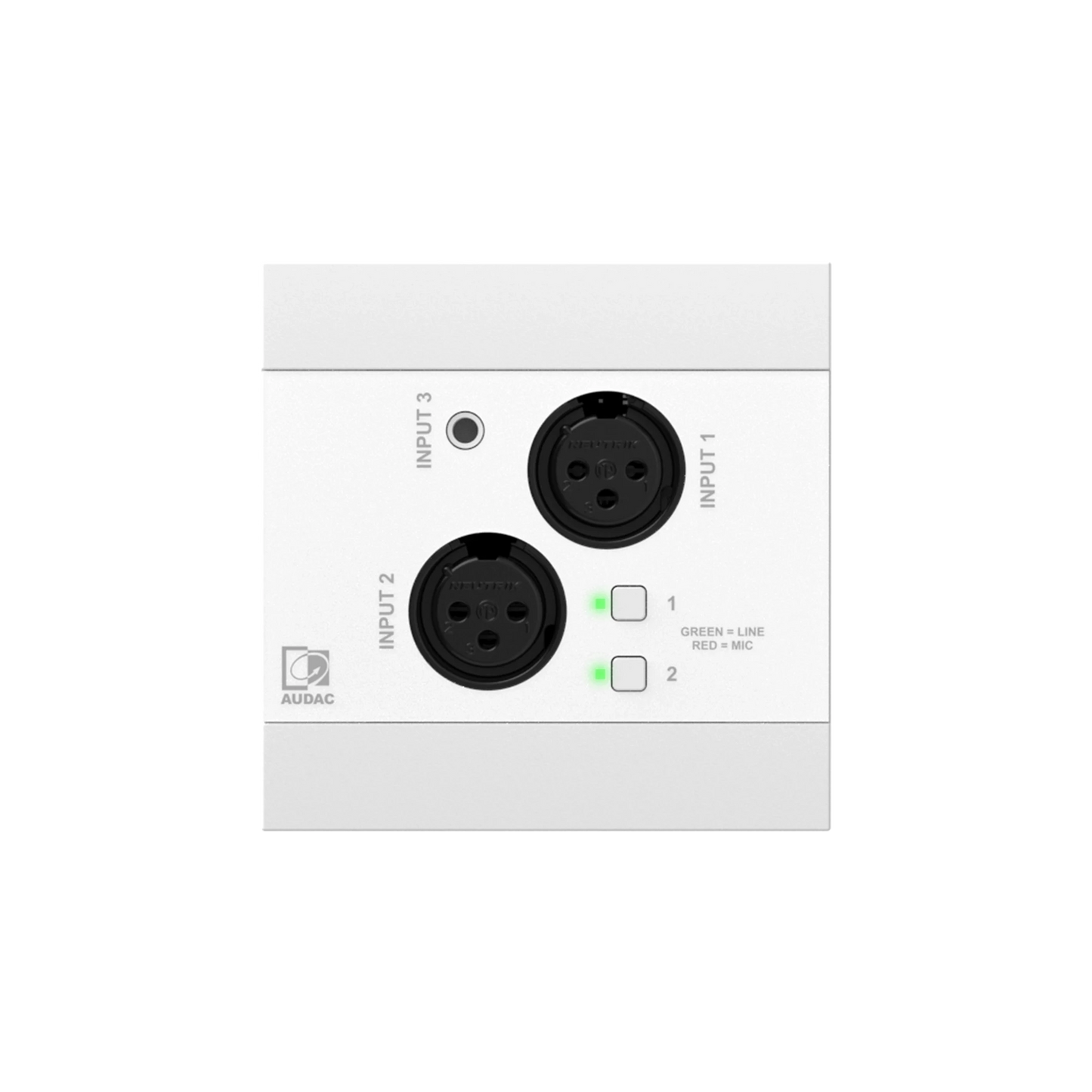

The NWP320 is a Dante™/AES67 network input panel, featuring two XLR input connectors, a single 3.5 mm stereo jack stereo input connection, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP320 is compatible with any PoE network-based installation.

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white color options are available to blend into any architectural design.

System specifications
2 x XLR female (in) 3.5 mm Jack (Stereo)
2 buttons - Mic / Line switching
2 LED’s (RGB) - Input status
Configurable settings
IP settings Device name Input range (Mic / Line) Gain Phantom power DSP (EQ) Mixing
Audac Touch™
Integrated DSP
Yes (EQ)
Automatic level control
Phantom power
+48 V DC
Power Supply
PoE powered (IEEE 802.3at)

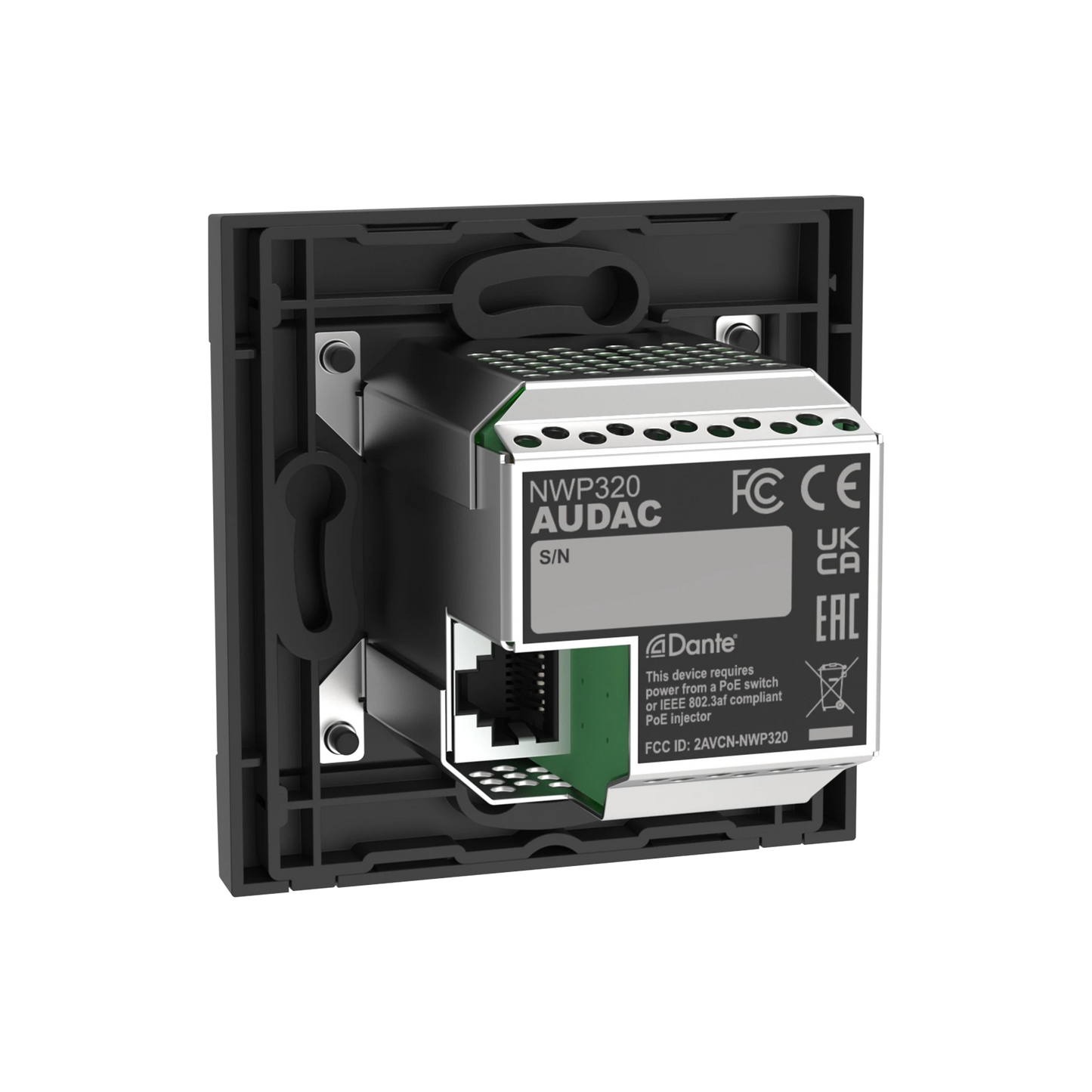

RJ45 (network + PoE) 1 x XLR female (audio in)
Product Features
Front finish
Elegant ABS front panel with glass
White (RAL9003) Black (RAL9005)
Compatible devices
Any Dante™/AES67 compatible audio device
80 x 80 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
