4096 x 2160, HDMI, RS-232, RJ45, 410g
Atlona AT-OME-RX11. Type: Network transmitter & receiver, Maximum transfer distance: 100 m, Data transfer rate: 24 Mbit/s. Product colour: Black, Certification: CE, FCC, UL. AC input voltage: 100 - 240 V, AC input frequency: 50 -60 Hz, Power consumption (typical): 15.12 W. Width: 109 mm, Depth: 133 mm, Height: 26 mm

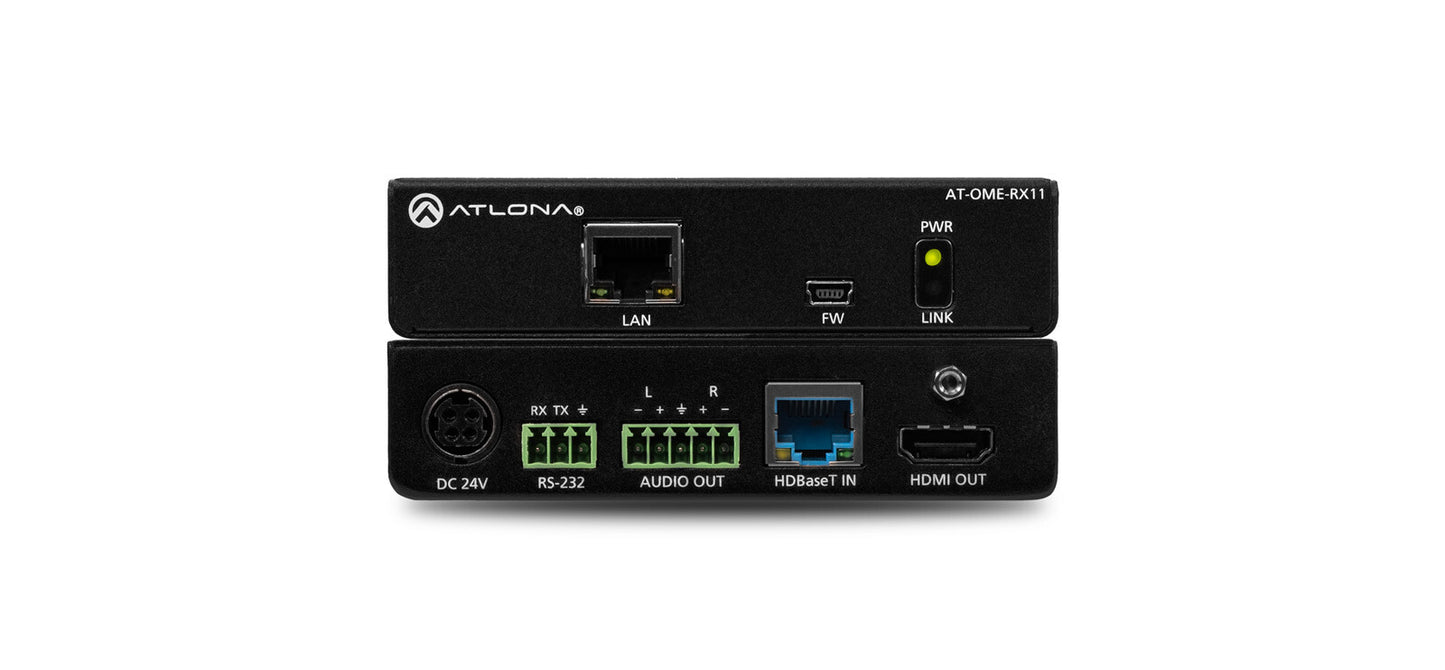

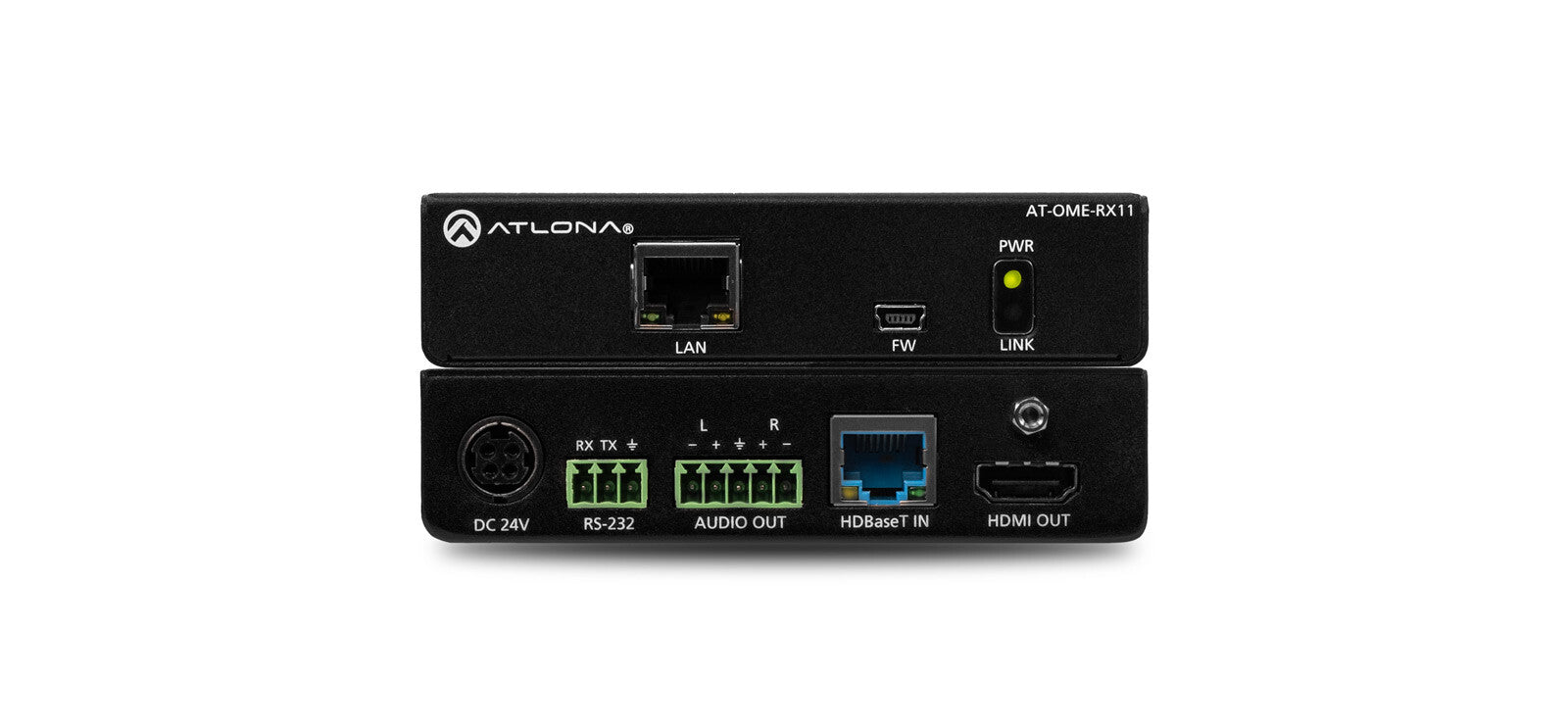

HDBaseT Receiver for HDMI with Audio
The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally, this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered, and can deliver remote powering over HDBaseT to an Atlona Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter.
The OME-RX11 incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation applications. The Ethernet port on the OME-RX11 is for IP pass-through with the transmitter.
Applications
- Complete system integration
The OME-RX11 and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
- Larger system applications
The OME-RX11 offers a new option for legacy Atlona transmitters and switchers with HDBaseT outputs, to provide audio de-embedding for feeding into an amplifier and speakers.
