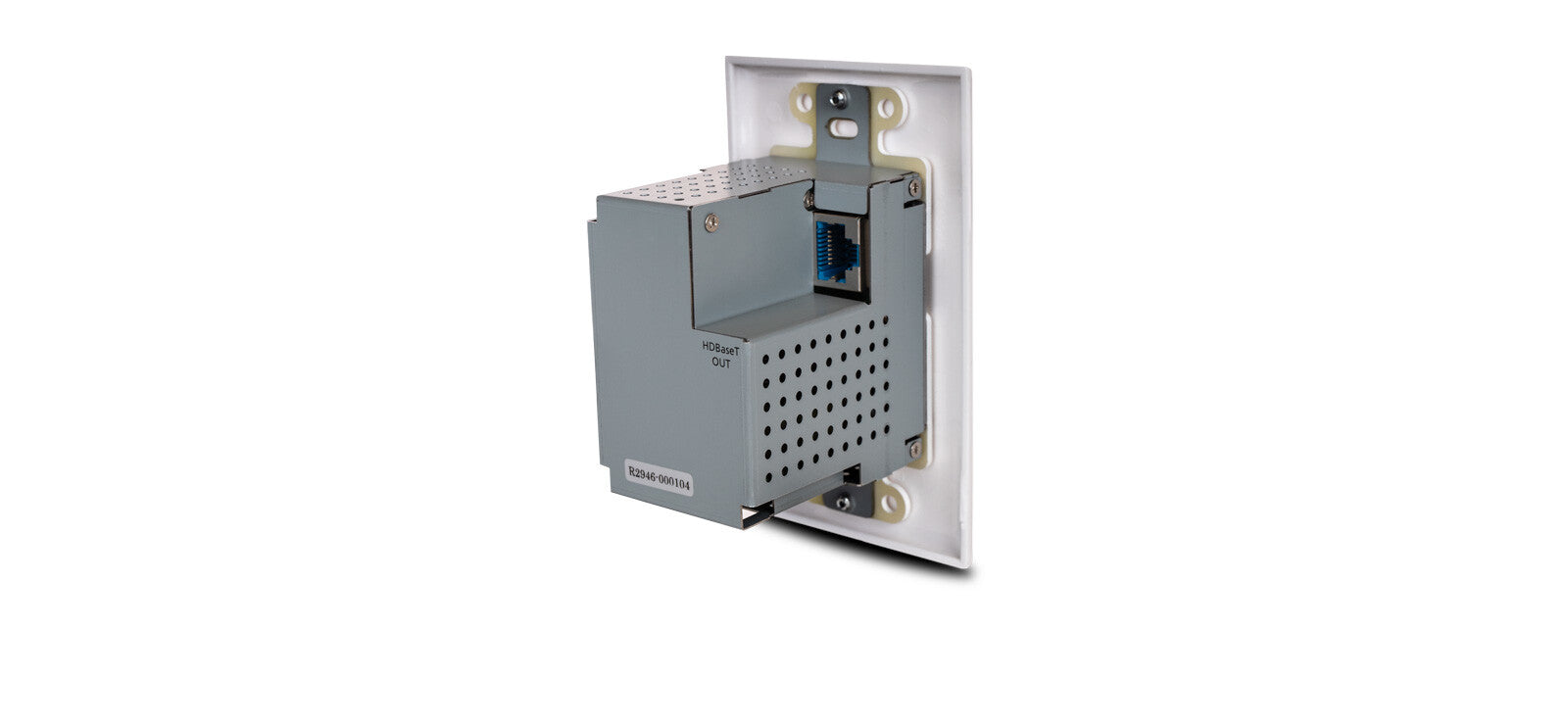

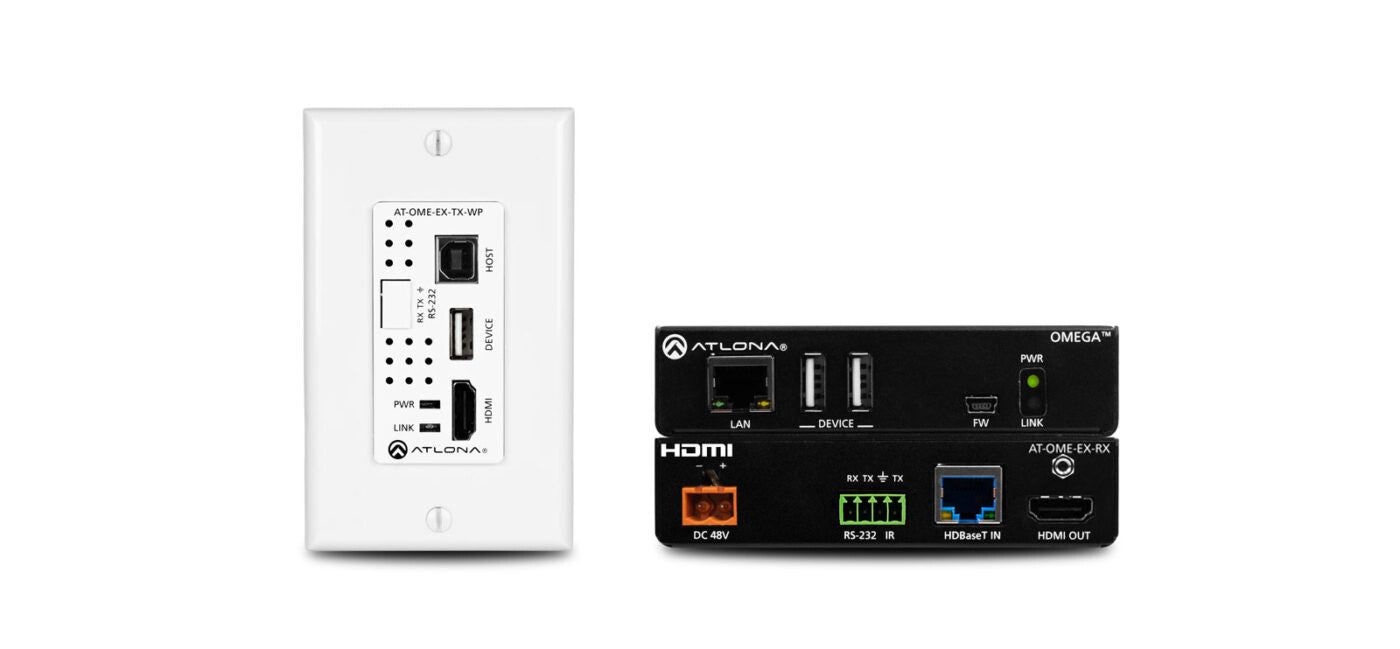

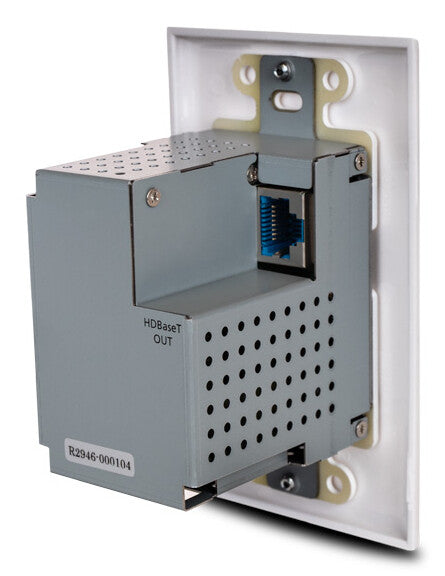

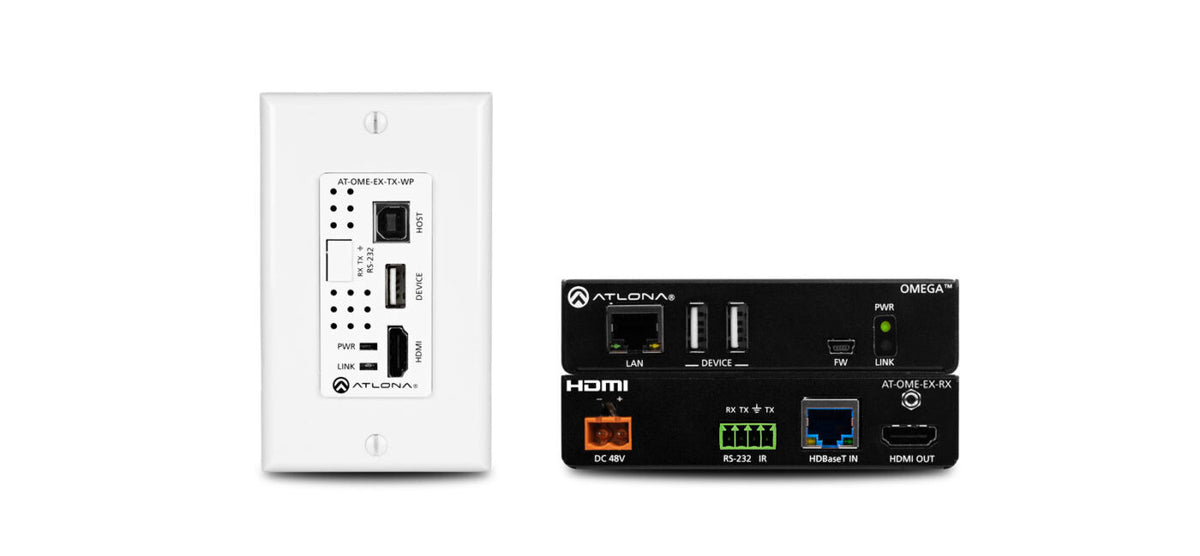

Omega HDBT TX w/USB WP and RX Kit

Omega HDBT TX w/USB WP and RX Kit

Wallplate HDBaseT TX/RX for HDMI with USB

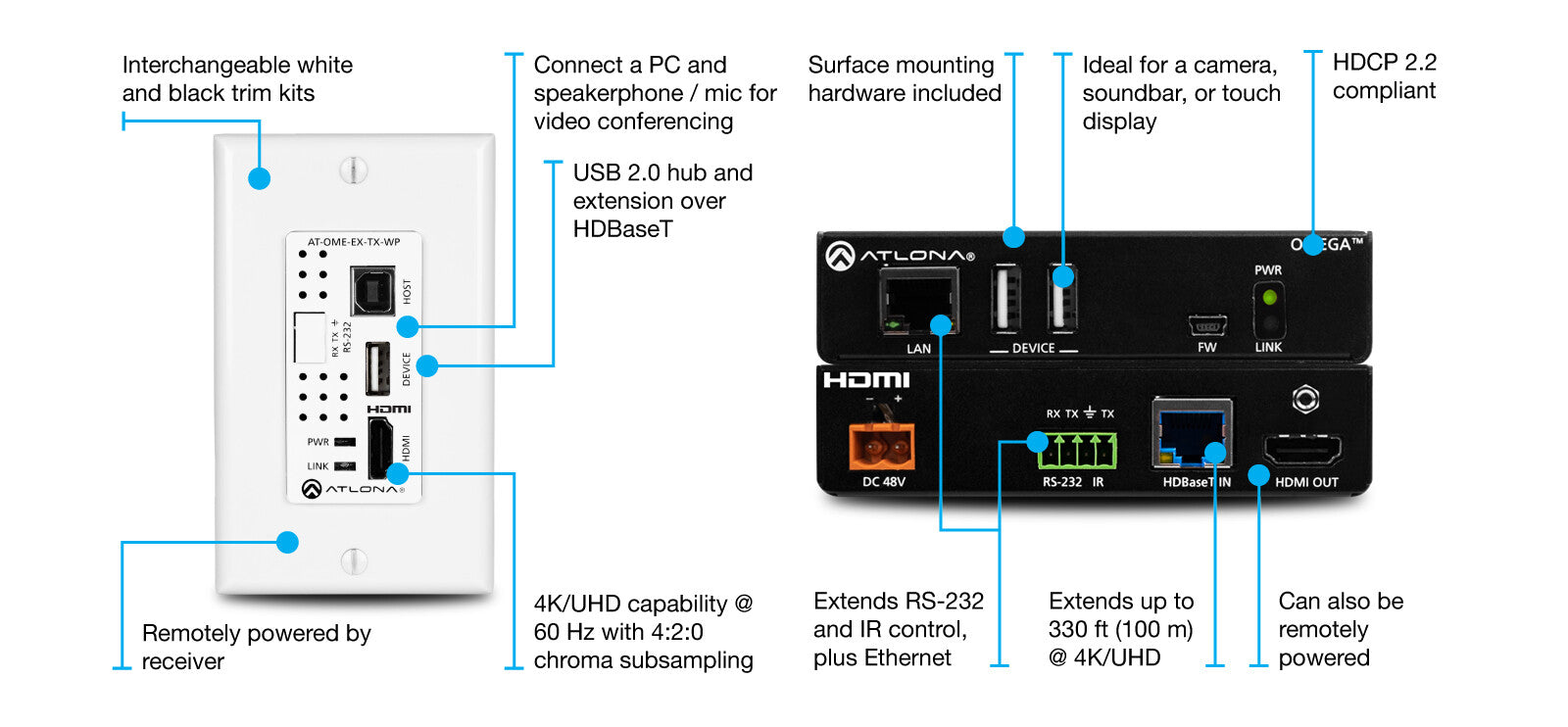

  • HDBaseTTM extender kit for HDMI®, power, control, and USB
  • USB 2.0 interfacing and extension up to 330 feet (100 meters)

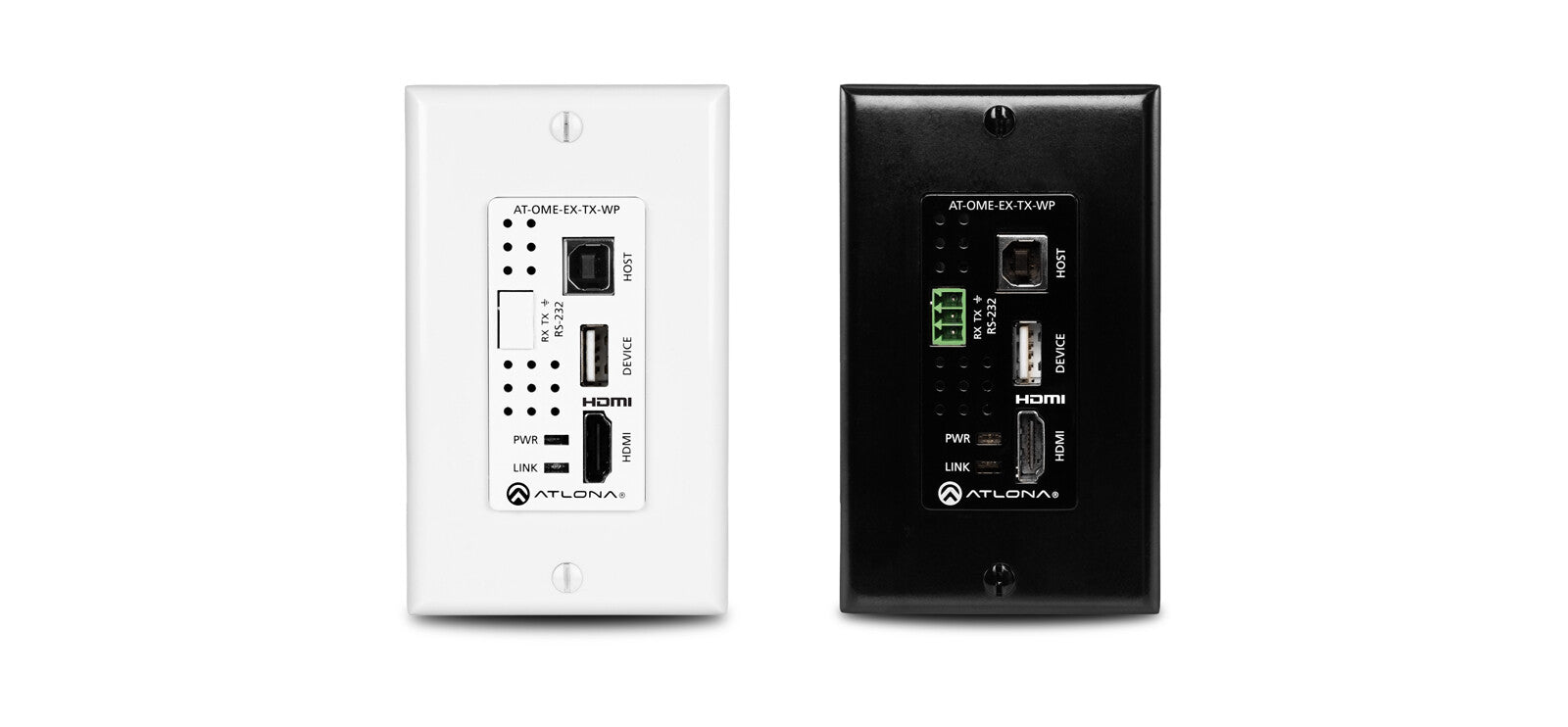

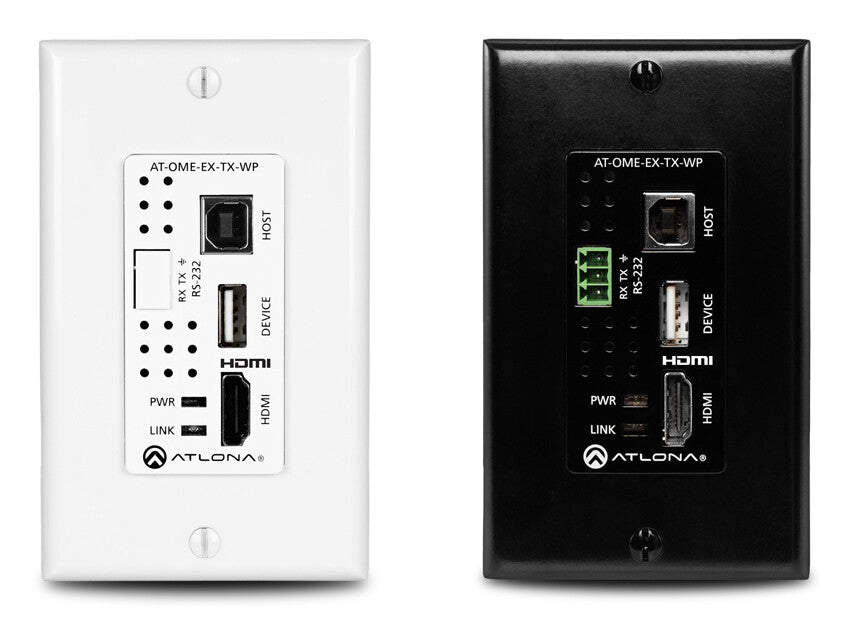

  • US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 2.2 compliant
  • Transmitter powered by receiver over HDBaseT
  • Also available: AT-OME-EX-WP-KIT-LT (70 meter extension)
  • SKU:846352006358
  • GTIN/EAN:846352006358
  • MPN:AT-OME-EX-WP-KIT

You need to login to view the price.

View full details

Atlona AT-OME-EX-WP-KIT. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Power source type: USB, Power consumption (typical): 11.18 W. Width: 45.8 mm, Depth: 67 mm, Height: 103.5 mm

Features
Product colour
Black, White
LED indicators
Yes
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions
2048 x 1080, 3840 x 2160, 4096 x 2160
Audio formats supported
LPCM, PCM
HDCP
Yes
Colour depth
24 bit
HDCP version
2.2
Maximum transfer distance
100 m
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum resolution
4096 x 2160 pixels
Type
AV transmitter & receiver
Ports & interfaces
RS-232 input ports
1
USB connector type
USB Type-A, USB Type-B
USB ports quantity
2
HDMI in
1
HDMI version
2.0
HDBaseT port
Yes
RJ-45 output ports
1
Connectivity technology
Wired
Power
Power consumption (typical)
11.18 W
Power source type
USB
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
180 g
Height
103.5 mm
Depth
67 mm
Width
45.8 mm
