Atlona AT-OME-RX11

Atlona AT-OME-RX11. Product type: AV matrix switcher, Maximum resolution: 4096 x 2160 pixels, Supported resolutions: 4096×2160 @ 60/50/30/25/24 Hz 3840×2160 @60/50/30/25/24 Hz 1920x1080p @.... Housing colour: Black, Housing material: Metal, Certification: CE, FCC, UL. USB connector type: USB Type-A, USB Type-B, USB Type-C. Power consumption (max): 104 W, Power consumption (typical): 8.6 W, Power supply location: Rear. Width: 219.5 mm, Depth: 254 mm, Height: 44 mm

Introduction

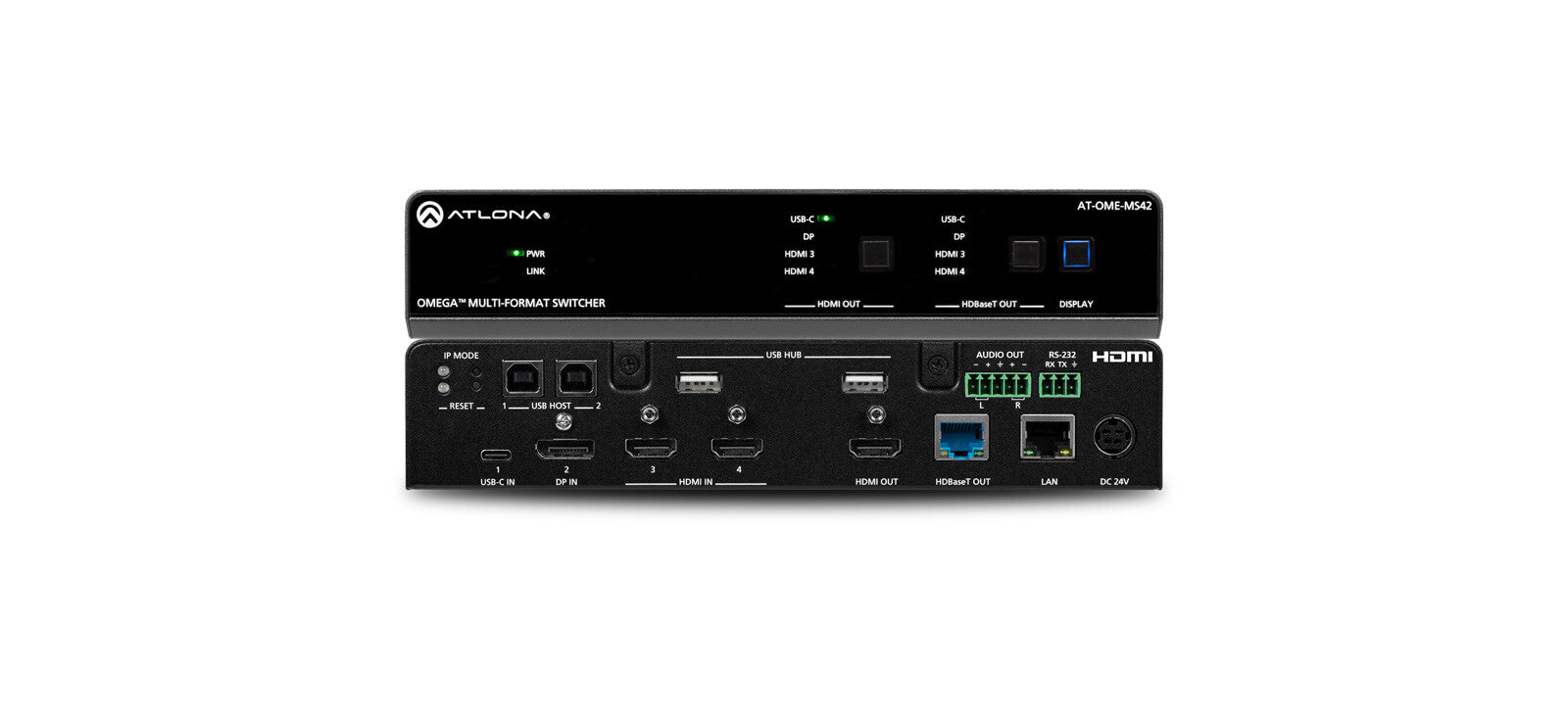

The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs, plus HDMI and HDBaseT outputs. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-MS42 includes USB 2.0 and USB-C interfaces for three host PCs, plus two peripheral devices such as a camera, microphone, speakerphone, or keyboard and mouse.
It is ideal for video conferencing and many other 4K presentation applications with the OME-EX-RX receiver and OME-SR21 scaling receiver.

Applications

- Video conferencing
With the OME-EX-RX or OME-SR21 receiver, this switcher provides interfacing for local and remote USB devices for soft codec conferencing, with video and USB switched together between host PCs. As a matrix switcher with downscaling, the OME-MS42 is also ideal for hardware-based video conferencing, with the ability to route and optimize any source content to the codec far-end.

- Meeting rooms and conference rooms
The OME-MS42 can serve as an AV integration centerpiece in a credenza, with interfacing into sources in the rack.

- Auditoriums and lecture halls
This switcher can be used for presenting 4K video content through the projector, while also optimizing for a 1080p confidence monitor.
