Omega 3x1 TX with Analog Audio Output

Omega 3x1 TX with Analog Audio Output

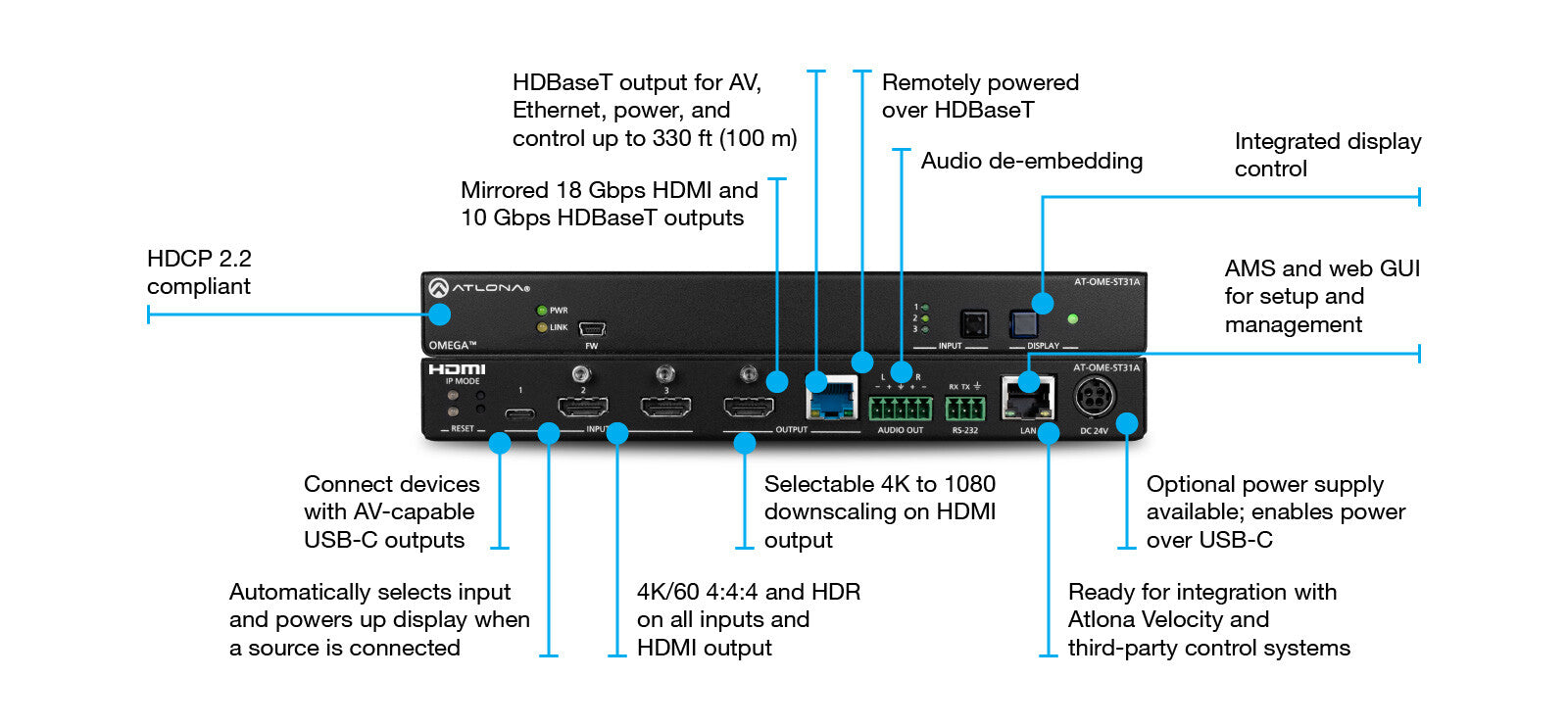

Three-Input Switcher and HDBaseT Transmitter with USB-C and HDMI Inputs

  • 3×1 HDBaseTTM switcher with USB-C and HDMI inputs
  • USB-C input for AV and device powering (does not support data)
  • Mirrored HDBaseT and HDMI outputs
  • Designed for remote powering over HDBaseT
  • Local powering available with optional AT-PS-245-D4 power supply
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling (local ports)
  • Automatic input selection and automatic display control
  • Audio de-embedding
  • SKU:846352006198
  • GTIN/EAN:846352006198
  • MPN:AT-OME-ST31A

You need to login to view the price.

View full details

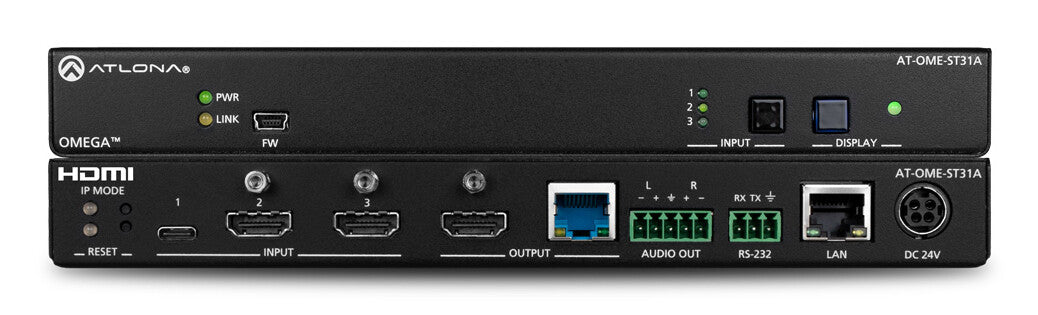

Atlona AT-OME-ST31A. Maximum resolution: 4096 x 2160 pixels, HDCP version: 1.4/2.2, Ethernet LAN data rates: 10,100,1000 Mbit/s. Housing colour: Black, Certification: FCC, RCM, cULus, CE, RoHS. USB connector type: USB Type-C. Power consumption (max): 101.5 W, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz. Width: 219 mm, Depth: 152 mm, Height: 26 mm

USB-C and HDMI video inputs.
For connecting the latest laptops, you’re all covered.

Supports 4K/60 with 1080p downscaling.
No need to worry about backward incompatibility.

Flexible powering.
Power an under-table OME-ST31A over HDBaseT, or locally.

Features
Supported resolutions
4096×2160 (DCI) @ 60(1)/30/25/24 Hz3840×2160 (UHD) @ 60(1)/30/25/24 Hz1080p @ 60/59.9/50/30/29.97/25/24/23.98 Hz1080i @ 60/59.94/50 Hz720p @ 60/59.94/50 Hz720x576p @ 50 Hz720x576i @ 50 Hz640x480p @ 60/59.96 Hz640x480i @ 60 Hz
Supported chroma subsampling
4:2:2, 4:4:4, 4:2:0
Audio formats supported
DTS, LPCM, PCM
Ethernet LAN data rates
10,100,1000 Mbit/s
High Dynamic Range (HDR) supported
Yes
HDCP version
1.4/2.2
HDCP
Yes
Audio channels
2
Maximum resolution
4096 x 2160 pixels
Design
Certification
FCC, RCM, cULus, CE, RoHS
LED indicators
Yes
Housing colour
Black
Ports & interfaces
DC-in jack
Yes
RS-232 ports
1
USB ports quantity
1
USB connector type
USB Type-C
RJ-45 output ports
1
HDMI version
2.0
HDMI output ports quantity
1
HDMI input ports quantity
2
Power
Output voltage
24 V
Input current
3 A
AC input frequency
50/60 Hz
AC input voltage
100 – 240
Power consumption (max)
101.5 W
Operational conditions
Operating relative humidity (H-H)
20 - 95%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 45 °C
Weight & dimensions
Weight
880 g
Height
26 mm
Depth
152 mm
Width
219 mm
Packaging content
Manual
Yes
