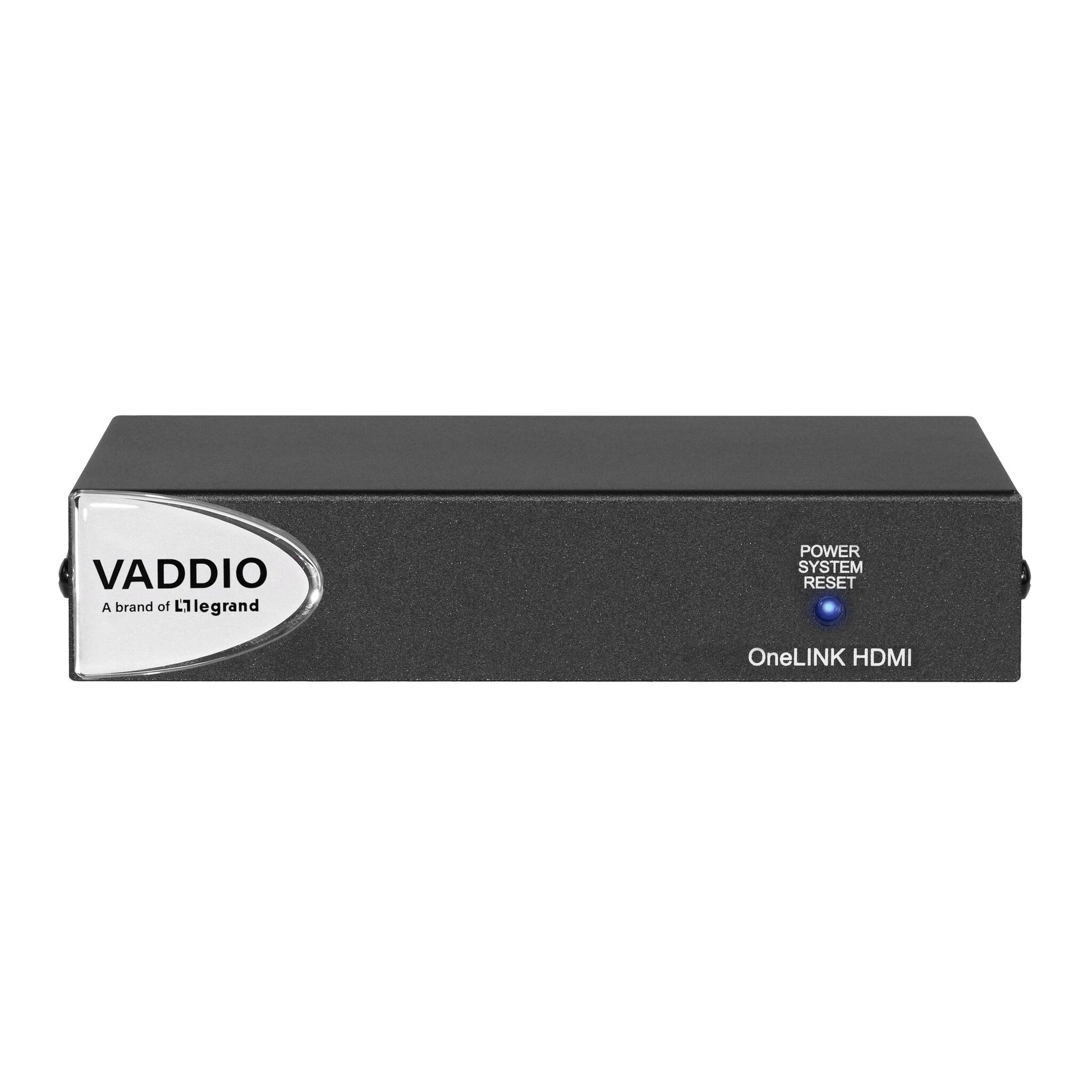

Vaddio OneLINK HDMI Extension for HDBaseT Cameras

Vaddio OneLINK HDMI Extension for HDBaseT Cameras

1 x HDMI Out, 3 x RJ-45, IR, DC, Black, 703 g, EU/UK

  • More flexibility in camera placement
  • HDBaseT interface extends power, video and control up to 328 ft (100 m)
  • Plug and play usability
  • Intuitive browser-based user interface for configuration and system administration
  • SKU:0840077500849
  • GTIN/EAN:0840077500849
  • MPN:999-1105-143

You need to login to view the price.

View full details

Vaddio OneLINK HDMI Extension for HDBaseT Cameras. Type: AV repeater, Cable types supported: Cat5e, Cat6, Cat7, Maximum transfer distance: 100 m. Connectivity technology: Wired. Width: 212.8 mm, Depth: 152.4 mm, Height: 43.7 mm. Package weight: 2.72 kg. Cables included: AC

More Flexibility for Room Design and Installation
Compatible with Vaddio's HDBaseT cameras, this OneLINK kit provides more freedom of choice for camera selection and equipment placement.

Features
Type
AV repeater
Cable types supported
Cat5e, Cat6, Cat7
Maximum transfer distance
100 m
Frame rate
60 fps
Rack mounting
Yes
Remote control type
IR
ID3 Tag display
Yes
Plug and Play
Yes
Supported video modes
720p, 1080p
Product colour
Black
Certification
CE,FCC,TAA
Compatible products
RoboSHOT 12/30 HDBT/RoboSHOT 20 UHD/DocCAM 20 HDBT

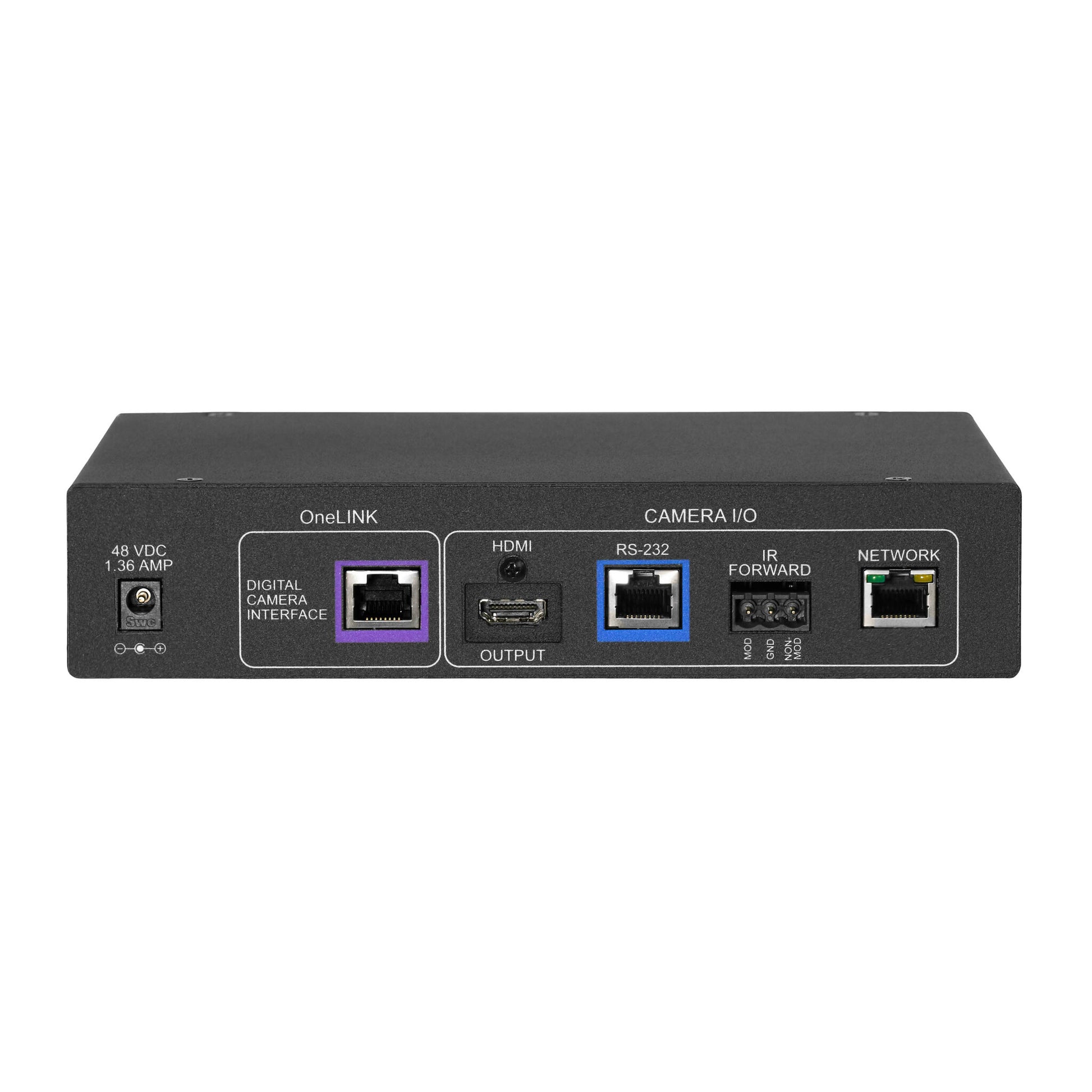

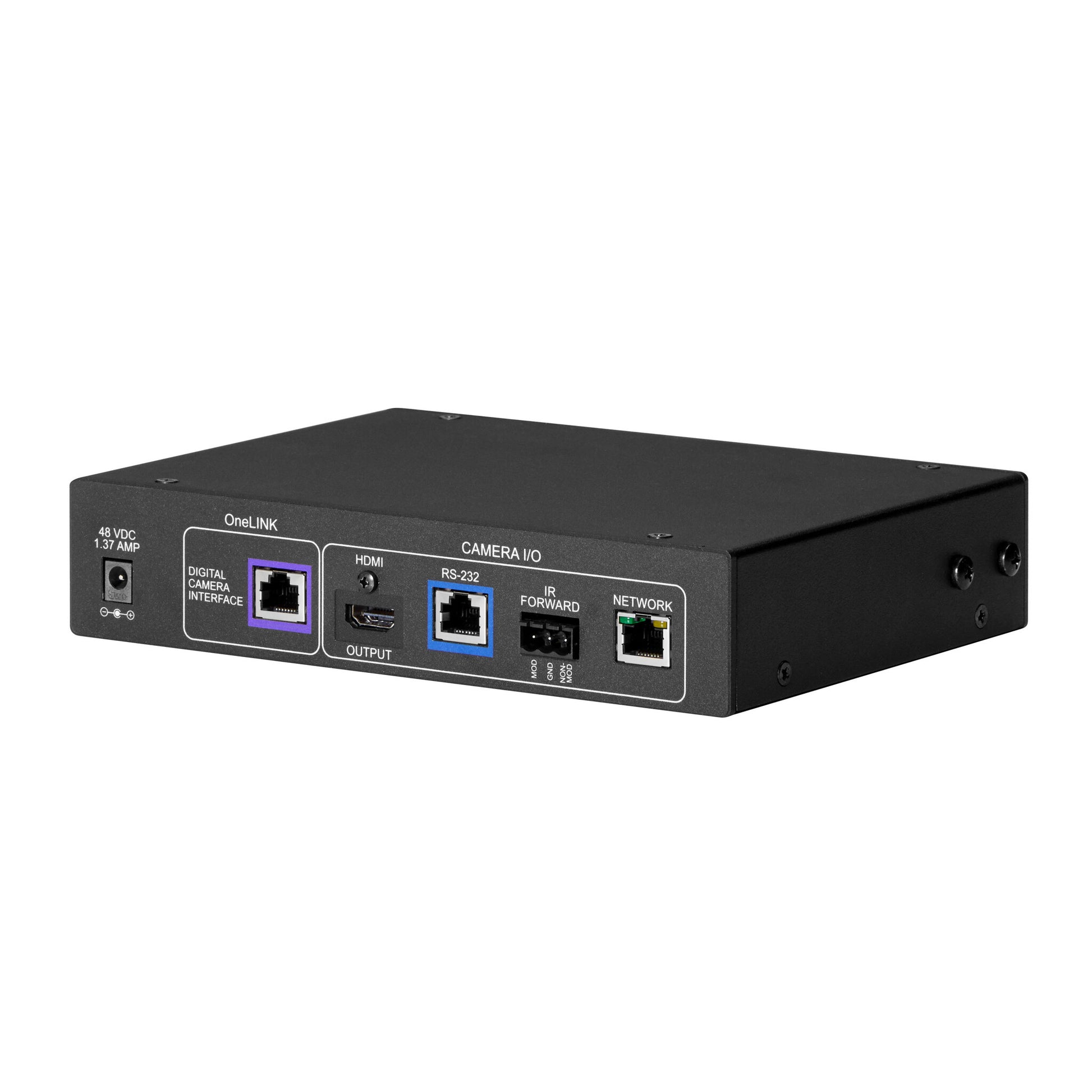

Ports & interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
RJ-45 input ports
2
RJ-45 output ports
1
Number of HDMI outputs
1
Remote (IR) input
1
DC-in jack
Yes
Operational conditions
Storage relative humidity (H-H)
20 - 80%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
212.8 mm
Depth
152.4 mm
Height
43.7 mm
Weight
703.07 g
Packaging data
Package weight
2.72 kg
Packaging content
AC adapter included
Yes
Cables included
AC
Quick start guide
Yes
Technical details
Compliance certificates
Federal Communications Commission (FCC), CE, TAA
