iiyama OPC51104BC-1

iiyama OPC51104BC-1

OPS PC, Intel® Core™ i5-11300H, Intel Iris Xe Graphics, 8GB DDR4 RAM, M2 256GB SSD, WiFi (2.4 GHz/5 GHz), 1GB LAN, Bluetooth 5.2, 2xUSB3.0, 2xUSB2.0, USB Type-C, HDMI-out, HD Audio (Mic-in/Line-out), TPM2.0, Microsoft Windows® 11 IoT Enterprise

  • Mini PC Black 95 W
  • Intel® Core™ i5 i5-11300H 2.6 GHz
  • 8 GB DDR4-SDRAM
  • 256 GB SSD
  • Intel Iris Xe Graphics
  • Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6 (802.11ax) Bluetooth 4.0
  • Windows 11 IoT Enterprise
  • SKU:4948570033171
  • GTIN/EAN:4948570033171
  • MPN:OPC51104BC-1

You need to login to view the price.

Add To Favorite
View full details

iiyama OPC51104BC-1. Processor frequency: 2.6 GHz, Processor family: Intel® Core™ i5, Processor model: i5-11300H. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Wi-Fi. Operating system installed: Windows 11 IoT Enterprise. Power supply: 95 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1 kg. Product colour: Black

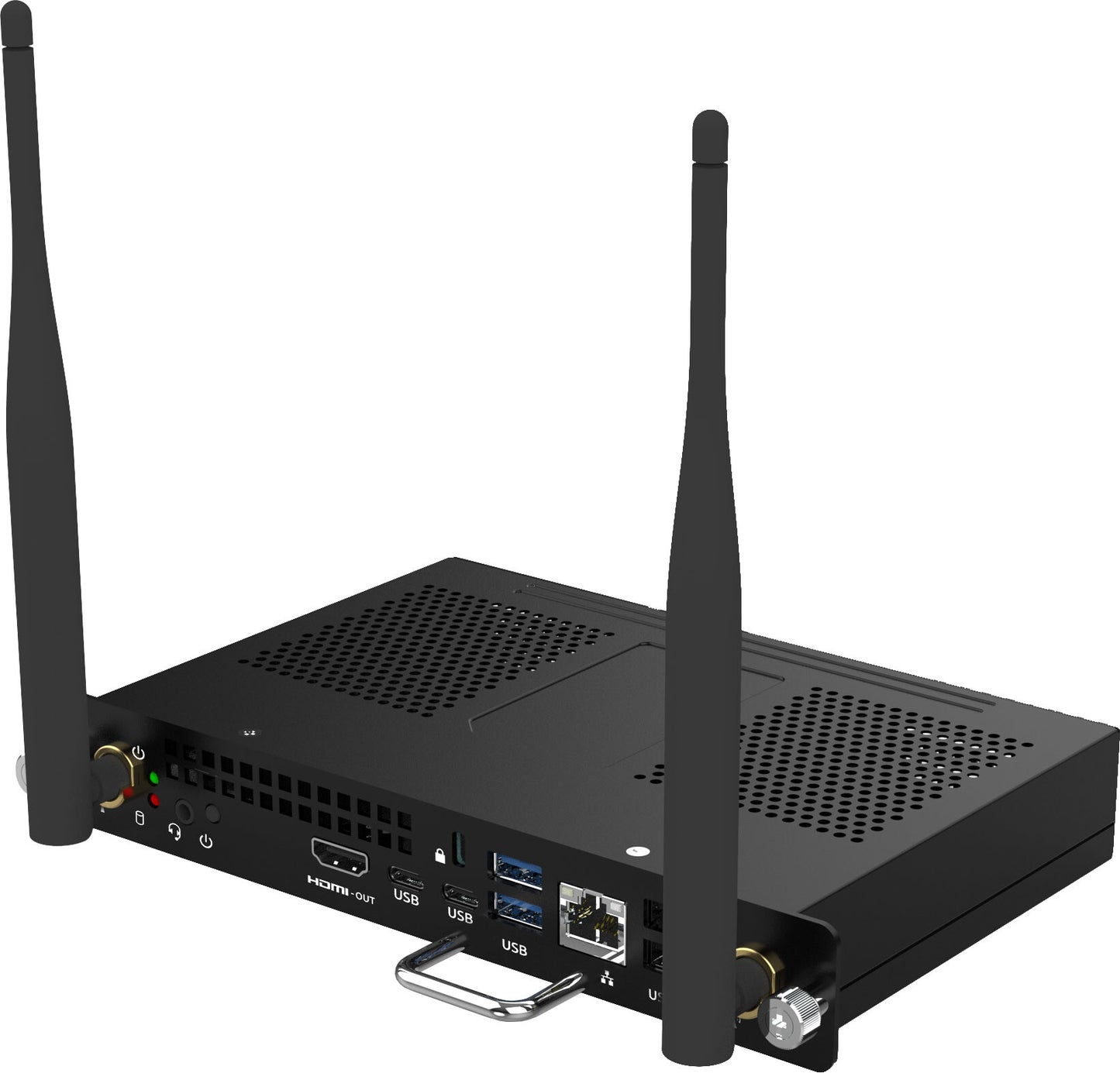

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51104BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1meter distance. Simply slide in the iiyama OPS slot PC and get started right away.

Warranty: -

Processor
Configurable TDP-down
28 W
Configurable TDP-down frequency
2.6 GHz
Configurable TDP-up frequency
3.1 GHz
Configurable TDP-up
35 W
Processor threads
8
Processor cache type
Smart Cache
Processor cache
8 MB
Processor boost frequency
4.4 GHz
Processor frequency
2.6 GHz
Processor cores
4
Processor model
i5-11300H
Processor family
Intel® Core™ i5
Processor manufacturer
Intel
Memory
Internal memory type
DDR4-SDRAM
Internal memory
8 GB
Storage
SSD form factor
M.2
SSD capacity
256 GB
Storage media
SSD
Total storage capacity
256 GB
Graphics
On-board graphics card model
Intel Iris Xe Graphics
On-board GPU manufacturer
Intel
Discrete graphics card model
Not available
On-board graphics card
Yes
Discrete graphics card
No
Network
Bluetooth version
4.0
Bluetooth
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Microphone in
Yes
HDMI version
2.0
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
Design
Product colour
Black
Chassis type
Mini PC
Performance
Sound pressure level
34 dB
Product type
Mini PC
Software
Operating system installed
Windows 11 IoT Enterprise
Processor special features
CPU configuration (max)
1
Power
Power consumption (standby)
0.5 W
Power supply
95 W
Operational conditions
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-10 - 50 °C
Operating temperature (T-T)
0 - 45 °C
Weight & dimensions
Weight
1 kg
Height
30 mm
Depth
119 mm
Width
180 mm
Packaging content
Display included
No
