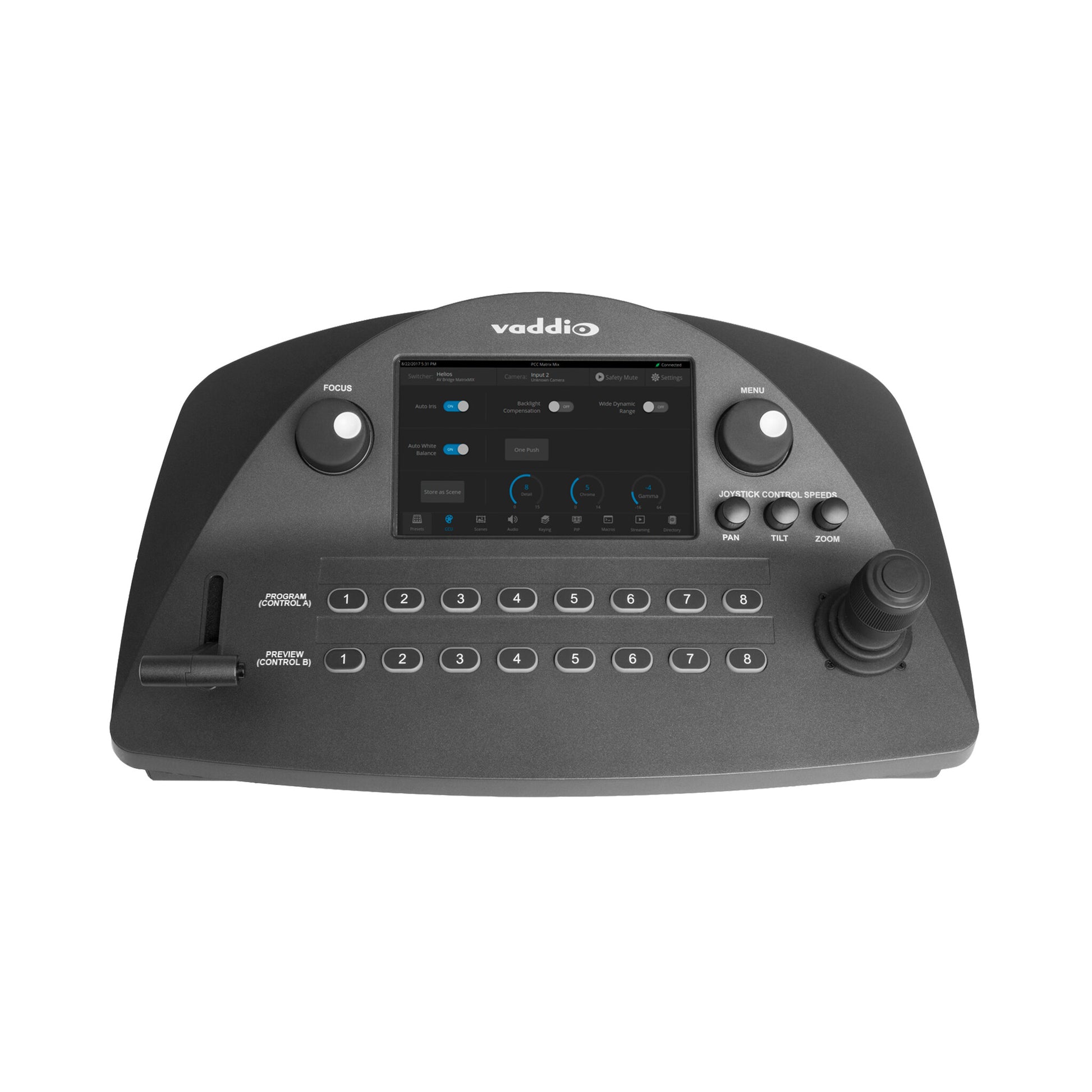

Vaddio PCC MatrixMIX Live Production Controller

Vaddio PCC MatrixMIX Live Production Controller

  • Easy-to-find camera functions, pan, tilt and zoom speed control knobs
  • Illuminated push buttons for camera selection
  • Large focus knob for fine control with auto/manual toggle and three-axis Hall-effect joystick
  • Browser-based user interface for control anywhere
  • SKU:0840077501334
  • GTIN/EAN:0840077501334
  • MPN:999-5755-001

You need to login to view the price.

View full details

Vaddio PCC MatrixMIX Live Production Controller. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 60 fps. Video formats supported: H.264. Display diagonal: 17.8 cm (7"). Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Power source type: PoE, Power consumption (max): 25 W

Video
HD type
Full HD
Supported video modes
1080p
Maximum frame rate
60 fps
Performance
Maximum number of cameras supported
8
Video formats supported
H.264
Display
Built-in display
Yes
Display diagonal
17.8 cm (7")
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
Number of HDMI outputs
1
RJ-45 ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
1
Power
Power source type
PoE
Power consumption (max)
25 W
Weight & dimensions
Width
432 mm
Depth
279 mm
Height
126 mm
Weight
3.3 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Packaging content
PoE adapter included
Yes
Cables included
LAN (RJ-45)
Manual
Yes
