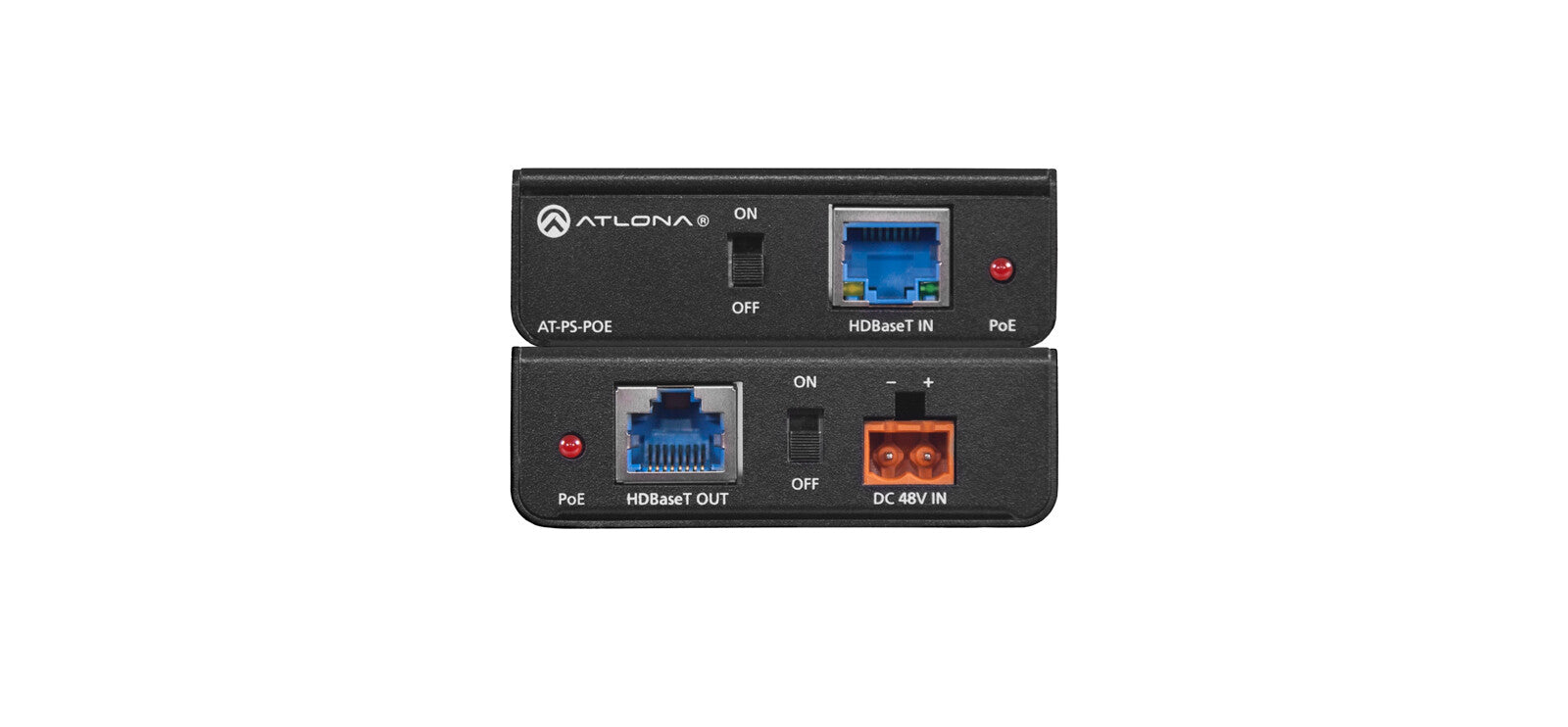

Atlona AT-PS-POE

Atlona AT-PS-POE

Atlona Mid-span Power supply for PoE

  • Power supply for remotely powering devices on HDBaseT transmission lines
  • Mid-span power supply
  • Power switches for incoming and outgoing line
  • Supports 4K/UHD signals
  • Upgrade for legacy PoCc systems
  • Low-profile, discreet enclosure
  • SKU:846352004842
  • GTIN/EAN:846352004842
  • MPN:AT-PS-POE

You need to login to view the price.

View full details

Atlona AT-PS-POE. Type: Network transmitter. Networking standards: IEEE 802.3af, Bandwidth: 10.2 GHz. Product colour: Black, LED indicators: PoE. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power consumption (max): 15.2 W. Width: 73 mm, Depth: 70 mm, Height: 24 mm

The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows either or both HDBaseT endpoint devices to be remotely powered. The power supply features two power switches to selectively send power upstream or downstream. The PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver.

The PS-POE is ideal for Atlona HDBaseT endpoint devices used with HDBaseT-equipped products that do not provide power, including projectors, switchers, or third-party endpoints.

10 years

Performance
Type
Network transmitter
Network
Networking standards
IEEE 802.3af
Bandwidth
10.2 GHz
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 ports quantity (transmitter)
1
RJ-45 ports quantity (receiver)
1
Design
Product colour
Black
LED indicators
PoE
On/off switch
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
15.2 W
Output voltage
48 V
Output current
0.83 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (transmitter)
20 - 90%
Weight & dimensions
Width
73 mm
Depth
70 mm
Height
24 mm
Weight
190 g
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
