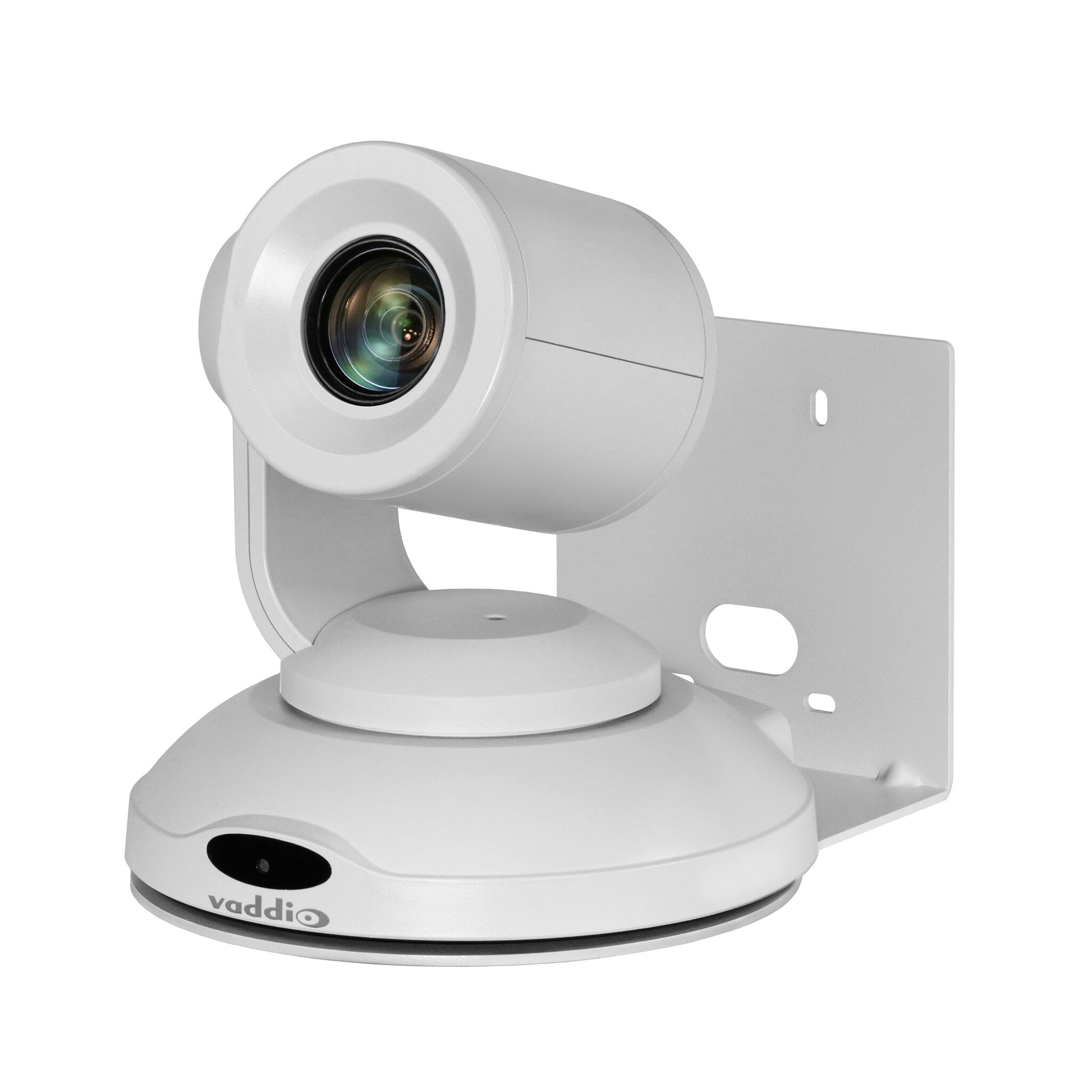

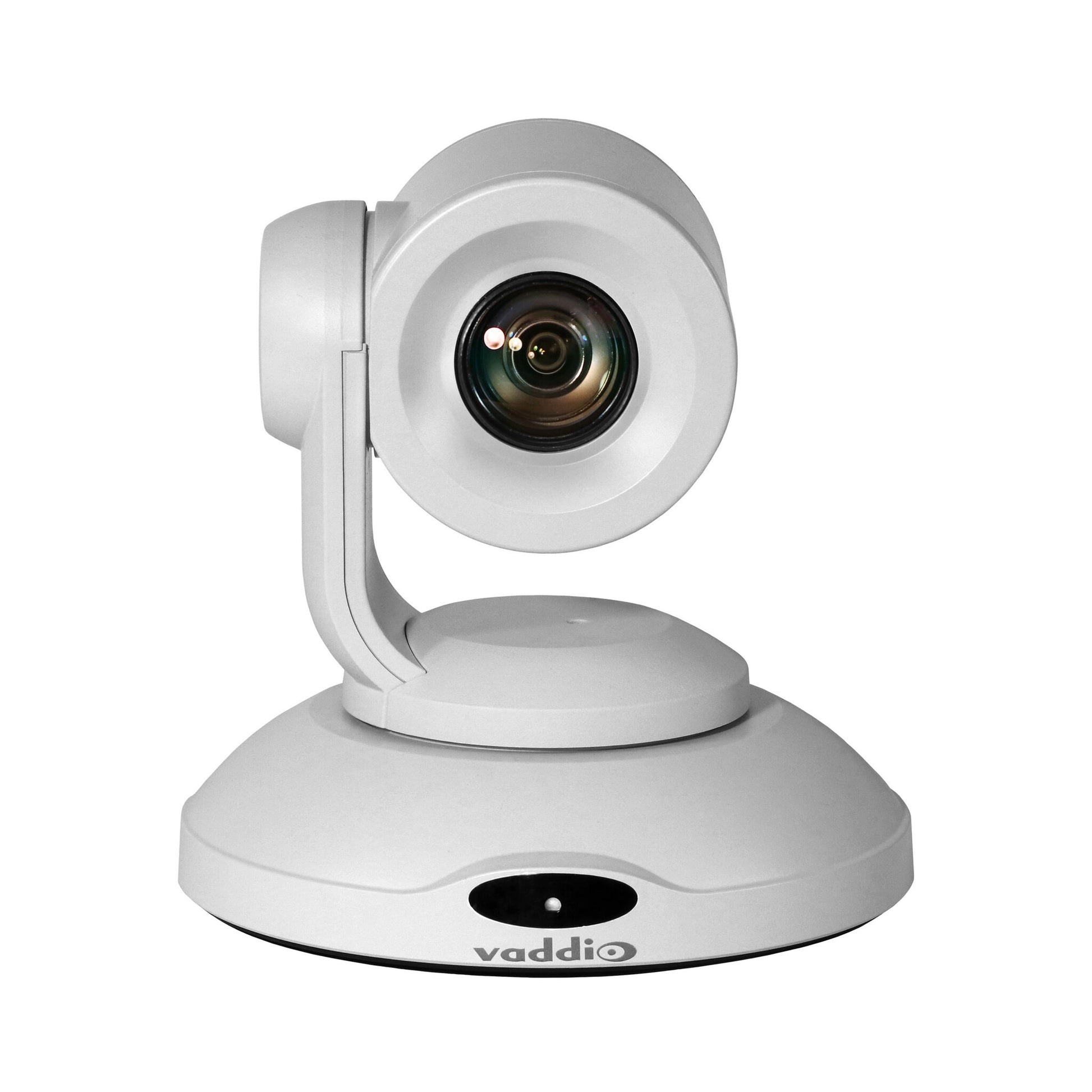

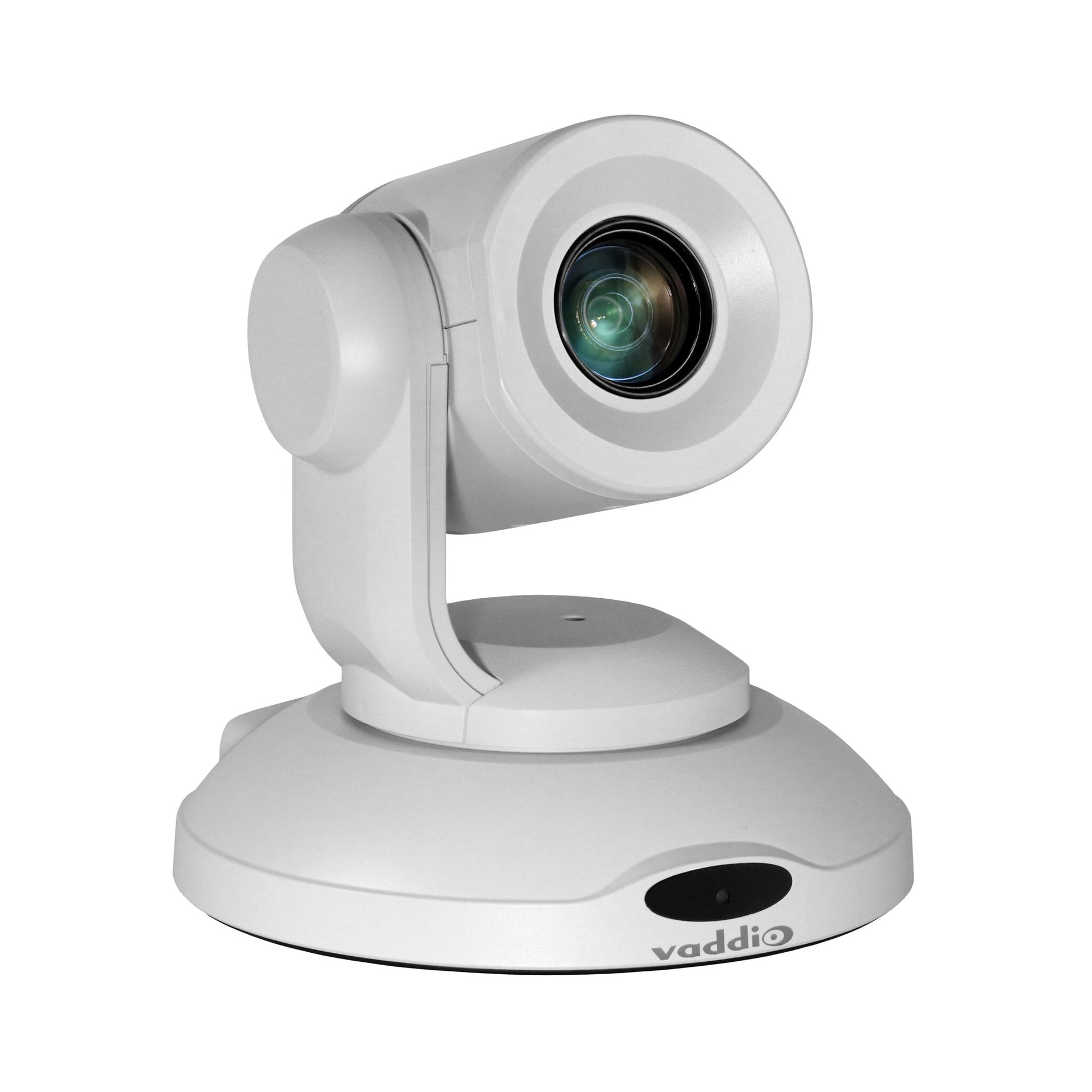

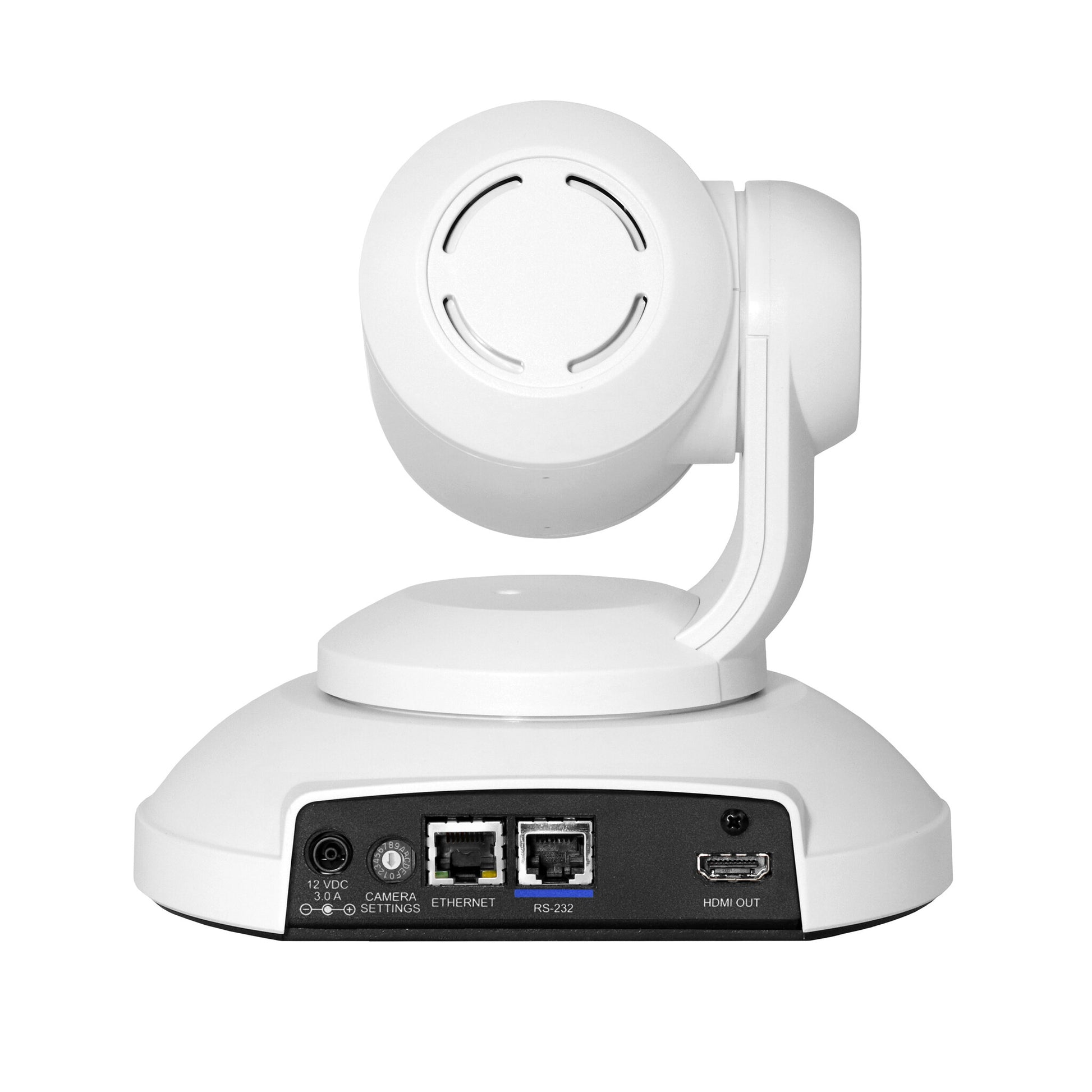

Vaddio PrimeSHOT 20 HDMI

Vaddio PrimeSHOT 20 HDMI

1/3” Panasonic CMOS, 2.38 MP, 20x, HDMI, S-Video, 10/100 RJ-45, 1080p, 1.54 kg, White, EU/UK

  • 2.38 MP CMOS 25.4 / 3 mm (1 / 3")
  • Full HD 60 fps
  • Optical zoom: 20
  • Signal-to-Noise Ratio (SNR): 50 dB
  • Remote control function
  • Black
  • SKU:0840077501099
  • GTIN/EAN:0840077501099
  • MPN:999-30420-001W

You need to login to view the price.

View full details

Vaddio PrimeSHOT 20 HDMI. Megapixel (approx.): 2.38 MP, Sensor type: CMOS. HD type: Full HD, Supported video modes: 360p, 480i, 480p, 576i, 720p, 1080i, 1080p, Maximum frame rate: 60 fps. Optical zoom: 20x. Product colour: Black

Vaddio’s PrimeSHOT 20 HDMI HD PTZ camera offers high definition performance at an outstanding value. With flexible output options like HDMI and S-video, the PrimeSHOT can replace existing standard definition pan tilt zoom cameras or be used as an initial system upgrade. PrimeSHOT 20 HDMI features 20x optical zoom, plus an easy, intuitive web-based user interface for remote configuration, management and control.

Confidently deploy the PrimeSHOT across the entire enterprise with Vaddio’s standard IP management and streaming capabilities. Ideal for large meeting rooms, lecture halls and houses of worship, PrimeSHOT 20 HDMI provides outstanding low-light performance, and best in class 1080p image quality.

Camera
Megapixel (approx.)
2.38 MP
Sensor type
CMOS
Optical sensor size
25.4 / 3 mm (1 / 3")
Effective sensor resolution
2.12 MP
Optical zoom
20x
Focal length range
4.7 - 94 mm
Horizontal field of view (tele)
2.9°
Horizontal field of view (wide)
55.4°
Minimum illumination
0.5 lx
Signal-to-Noise Ratio (SNR)
50 dB
Aperture range (F-F)
4.7 - 94
White balance
Auto, Manual
Focus adjustment
Auto/Manual
Wide Dynamic Range (WDR)
Yes
Number of camera presets
16
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
PTZ control
Yes
Sync system
Internal
Maximum working distance (tele)
150 cm
Minimum working distance (wide)
50 cm
3D NR (Noise Reduction)
Yes
Video
Maximum frame rate
60 fps
HD type
Full HD
Supported video modes
360p, 480i, 480p, 576i, 720p, 1080i, 1080p
Design
Product colour
Black
Tilt angle range
-30 - 90°
Pan range
-160 - 160°
Web-based management
Yes
Ports & interfaces
HDMI ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Network
Ethernet LAN data rates
10,100 Mbit/s
Packaging content
Remote control included
Yes
Cables included
AC
AC adapter included
Yes
Quick start guide
Yes
Technical details
Harmonized System (HS) code
85258900
Audio
Noise reduction
Yes
Performance
Remote control function
Yes
Remote control type
RF Wireless
Weight & dimensions
Width
180 mm
Depth
165 mm
Height
184 mm
Weight
1.54 kg
