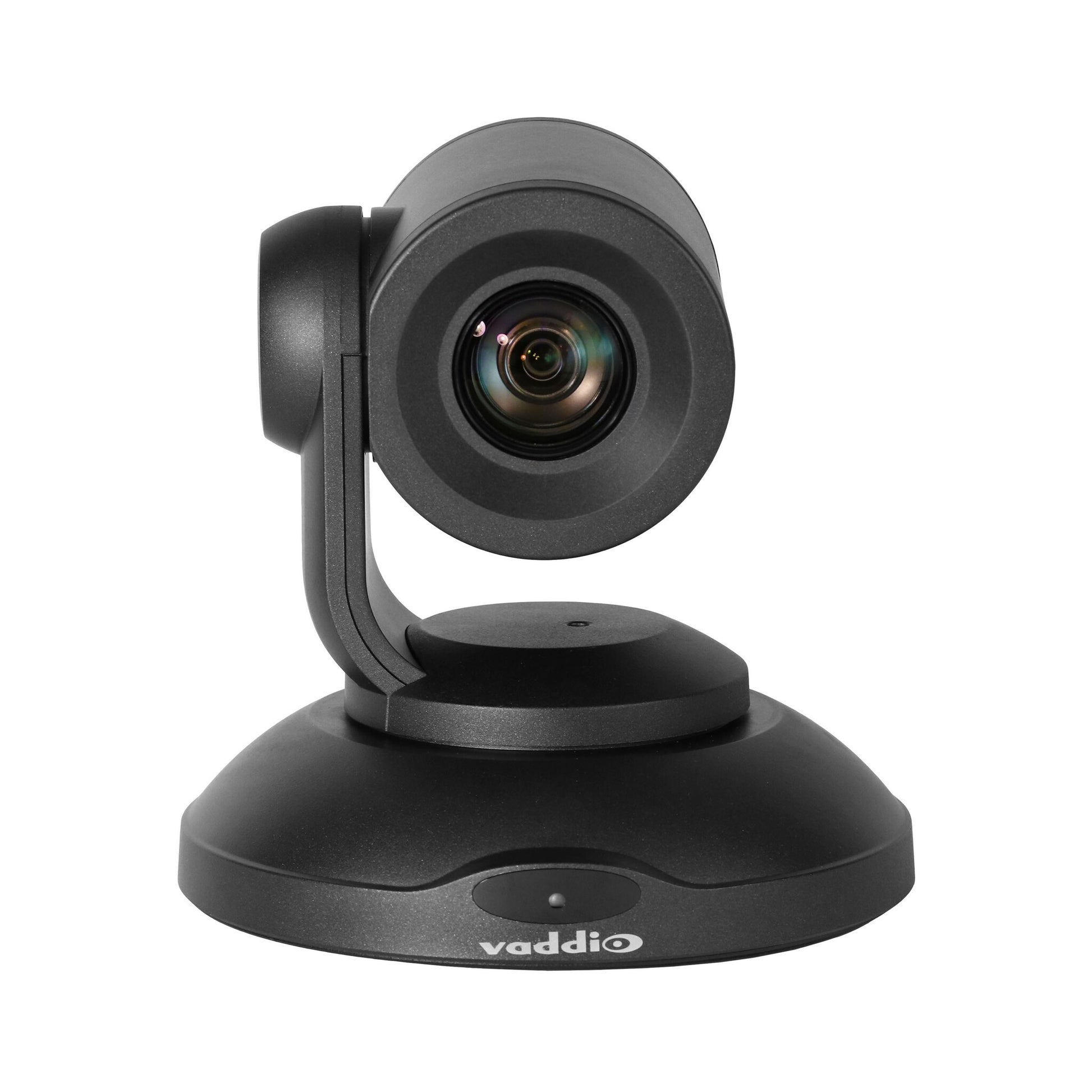

Vaddio PrimeSHOT 20 HDMI with HDMI Extender

Vaddio PrimeSHOT 20 HDMI with HDMI Extender

1/3'' CMOS, 2.38 MP, 20x, HDMI, S-Video, 10/100 RJ-45, 1080p, HDMI In, HDMI Out, RJ-45 In, RJ-45 Out, 1.54 kg, White/Black, EU/UK

  • Horizontal field of view 55° (wide) to 3° (tele) at 20x
  • Simultaneous HDMI, S-Video and IP streaming outputs
  • Administrative control via web interface
  • HDMI extender sends PrimeSHOT 20 HDMI signal up to 230 ft when using a Cat6a cable
  • SKU:0840077508630
  • GTIN/EAN:0840077508630
  • MPN:999-30420-801

You need to login to view the price.

View full details

Vaddio PrimeSHOT 20 HDMI with HDMI Extender. Product type: Personal video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 360p, 480i, 480p, 576i, 720p, 1080i, 1080p, Maximum frame rate: 60 fps. Optical zoom: 20x. Ethernet LAN. Product colour: Black

Cost-effective professional A/V camera with HDMI extender. Simultaneous HDMI, S-Video, and IP (H.264) streaming. Recommended for large meeting rooms, training rooms, lecture halls and houses of worship.

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Vaddio’s PrimeSHOT 20 HDMI HD PTZ camera offers high definition performance at an outstanding value. With flexible output options like HDMI and S-video, the PrimeSHOT can replace existing standard definition pan tilt zoom cameras or be used as an initial system upgrade. PrimeSHOT 20 HDMI features 20x optical zoom, plus an easy, intuitive web-based user interface for remote configuration, management and control.

Confidently deploy the PrimeSHOT across the entire enterprise with Vaddio’s standard IP management and streaming capabilities. Ideal for large meeting rooms, lecture halls and houses of worship, PrimeSHOT 20 HDMI provides outstanding low-light performance, and best in class 1080p image quality.

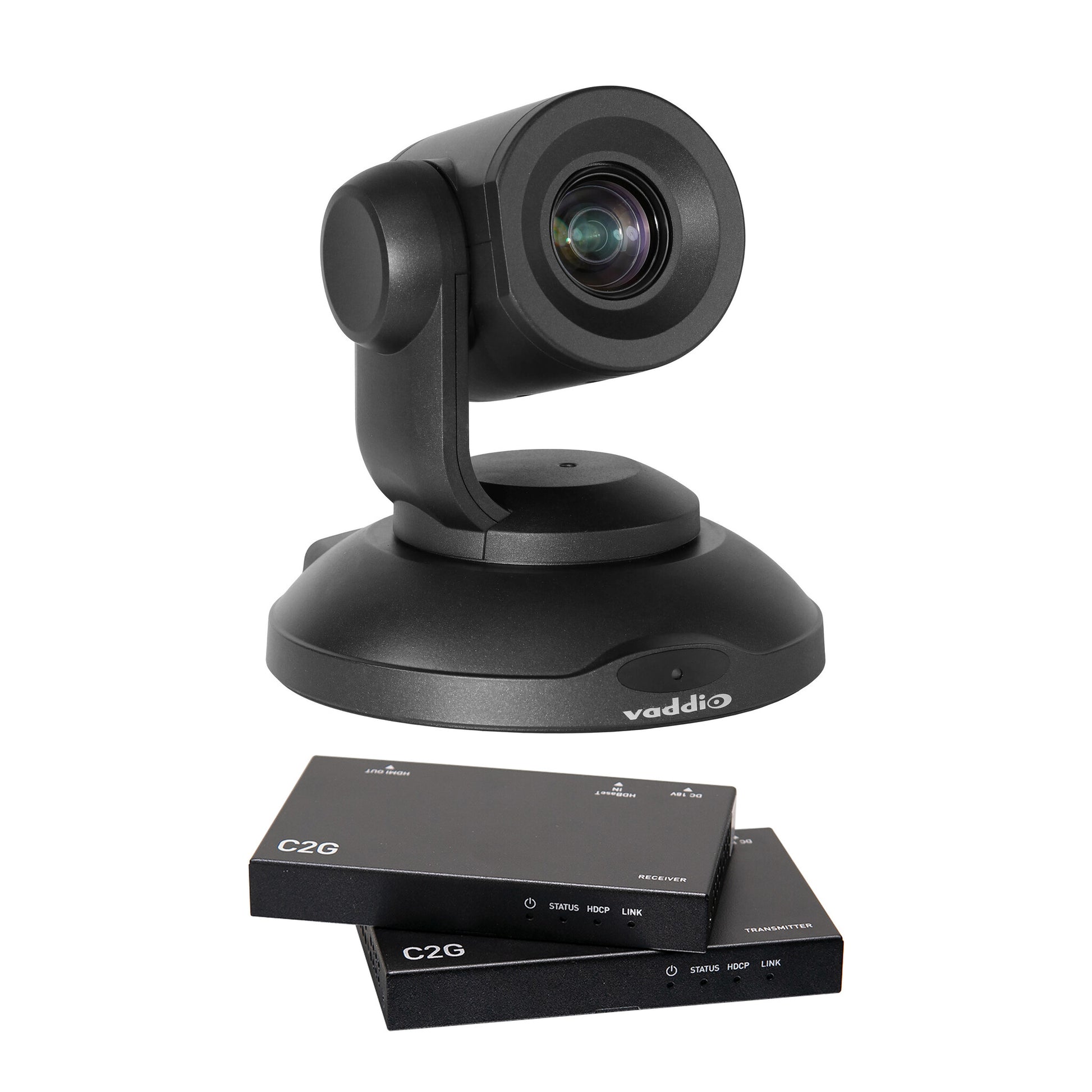

This Package Includes:

- PrimeSHOT 20 HDMI camera (black or white)

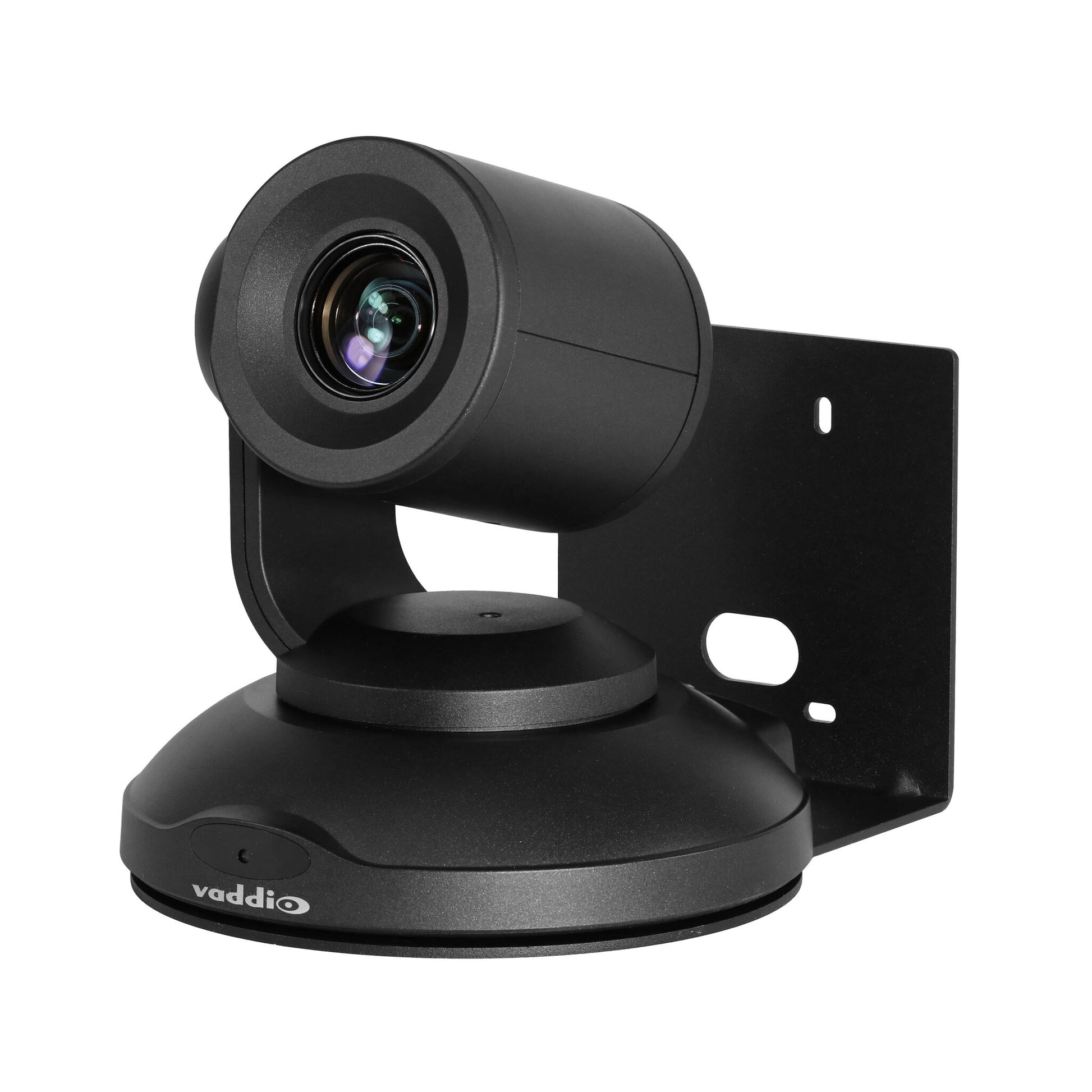

- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander
- C2G HDMI Extender, transmitter unit
- C2G HDMI Extender, receiver unit
- 12V power supply with AC cord set(s) for camera
- 18VDC power supply with AC cord set(s) for extender
- 1 ft (0.3 m) high-speed HDMI cable
- Quick-start card

3 years

Performance
Product type
Personal video conferencing system
Product colour
Black
Signal-to-Noise Ratio (SNR)
50 dB
Pan range
-160 - 160°
Tilt angle range
-30 - 90°
Analog signal format system
NTSC, PAL
PTZ control
Yes
Video
HD type
Full HD
Supported video modes
360p, 480i, 480p, 576i, 720p, 1080i, 1080p
Maximum frame rate
60 fps
Audio
Noise reduction
Yes

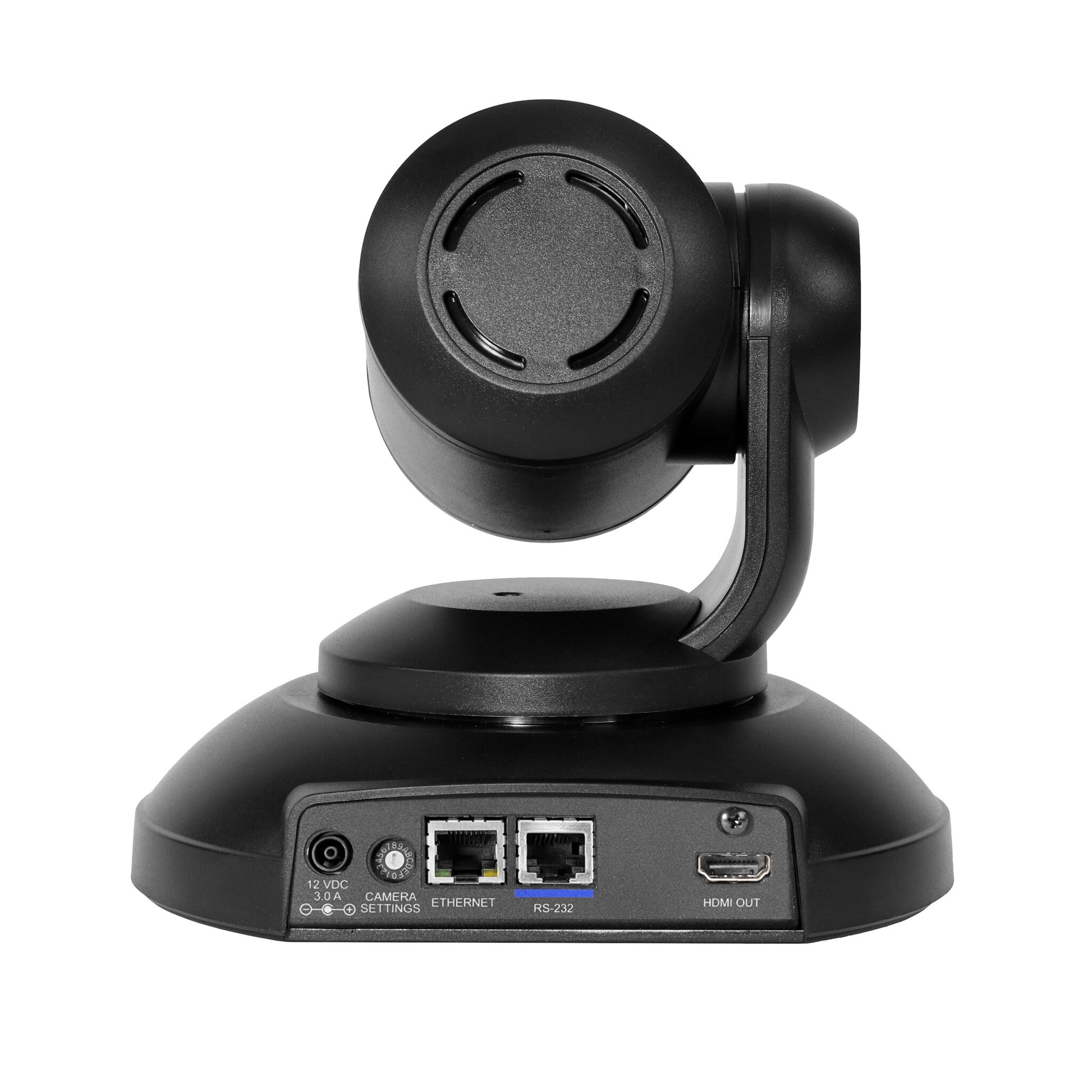

Ports & interfaces
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
S-Video outputs quantity
1
Interface module
Interface module HDMI ports quantity
1
Interface module HDMI input ports quantity
1
Interface module Ethernet LAN (RJ-45) ports
2
Interface module DC input port
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100 Mbit/s
Web-based management
Yes
Management protocols
Telnet
Camera
Megapixel (approx.)
2.38 MP
Optical zoom
20x
Effective sensor resolution
2.12 MP
Sensor type
CMOS
Image sensor size
1/3"
Wide end viewing angle (normal mode)
55.4°
Tele end viewing angle (normal mode)
2.9°
Focus adjustment
Auto/Manual
Remote control interface
IR Wireless
Aperture range (F-F)
1.6 - 3.5
Minimum illumination
0.5 lx
White balance
Auto, Manual
Closest focusing distance (wide)
0.5 m
Closest focusing distance (tele)
1.5 m
Sync system
Internal
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
Operational conditions
Storage relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Power
Power source type
DC
DC output voltage
12 V
Certificates
Certification
FCC Part 15, EN55032, 2015, KN22 2008, EN55024, 2010, KN24 2008
Weight & dimensions
Width
71 mm
Depth
65 mm
Height
72.5 mm
Weight
3.4 kg
Packaging content
External interface module included
Yes
Cables included
AC
Wall mounting kit
Yes
User guide
Yes
Camera included
Yes
Remote control included
Yes
