Origin Acoustics PC50W-TB

The Origin PRO PC50W-TB is a professional 2-way in-ceiling loudspeaker from the Origin Acoustics Professional Collection, designed for commercial audio installations in restaurants, retail spaces, hospitality venues, and corporate environments. Finished in white and bundled with a tile bridge for seamless drop-ceiling mounting, the PC50W-TB delivers the audiophile sound quality Origin is known for in a robust, integrator-friendly package. With 70V and 100V distributed audio support, a patented Multi-Motion Pivot tweeter, and heavy-duty installation hardware, it simplifies large-scale deployments without compromising sonic performance.

70V and 100V Distributed Audio Ready

The PC50W-TB includes a premium multi-tap transformer selectable between 70V and 100V operation, with power tap settings of 30W, 15W, 7.5W, and 3.8W on 70V, and 30W, 15W, 7.5W on 100V. This matters because distributed audio systems are the standard wiring method in commercial installations — restaurants, hotels, retail chains, and corporate campuses all typically run 70V or 100V lines that can serve dozens of speakers from a single amplifier channel. The front-mounted tap switch makes adjusting zone volume levels straightforward during commissioning, without rewiring. The transformer is described by Origin as 'nearly transparent,' meaning the sonic impact of the distribution circuitry is kept to a minimum — the result is noticeably cleaner, more faithful reproduction than budget commercial alternatives.

Patented Multi-Motion Pivot Tweeter

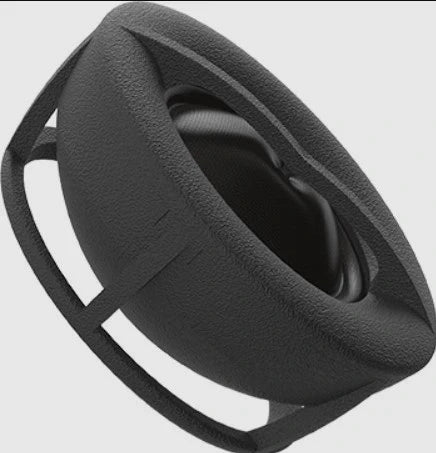

The 3/4" silk Dual Plane Stabilized Diaphragm (DSPD) tweeter uses Origin's patented Multi-Motion Pivot technology, allowing it to angle up to 30 degrees off-axis in any direction after installation. This is a genuine differentiator in the commercial in-ceiling category, where most competitors offer fixed tweeters. In practice, it means the high-frequency energy can be aimed precisely at the primary listening zone — whether that's a dining area below an off-center ceiling grid, a hotel corridor, or a retail floor with an irregular layout. The DSPD diaphragm design also eliminates distortion from asymmetric cone flexing, which allows a lower crossover frequency and results in a cleaner, more natural treble response.

Commercial-grade clarity. One speaker, two grilles, ready to install.

UL 1480A and UL 2043 certified · Limited 5-year warranty

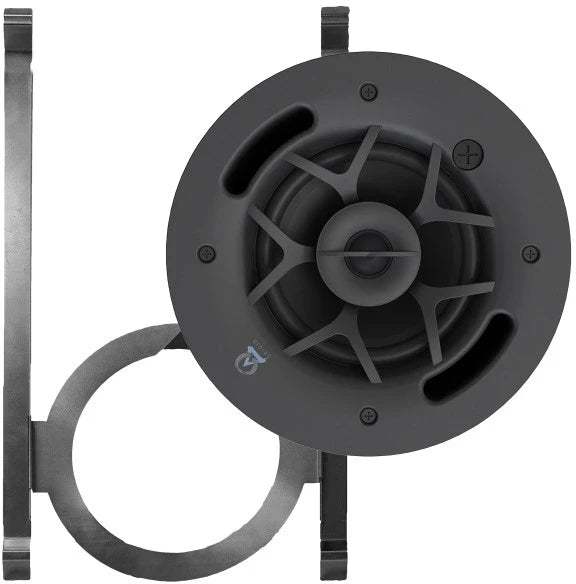

Tile Bridge Included for Drop-Ceiling Mounting

The '-TB' suffix in the model number indicates this unit ships with a tile bridge accessory included in the box. A tile bridge is an essential adapter for suspended grid ceilings (T-bar or drop ceilings), allowing the speaker basket to be supported by the ceiling tile frame rather than requiring a separate backcan or structural backing above. This is the most common ceiling type in commercial environments — offices, hospitality spaces, and retail stores almost universally use it. Having the bridge included in the box avoids a separate purchase and ensures the integrator arrives on site with everything needed for a complete installation. Pairing it with the included Euro-block connectors, spring-loaded dog-ears, and integrated conduit lock, the PC50W-TB is engineered to reduce on-site installation time.

UL-Certified for Commercial and Plenum Environments

The PC50W-TB carries UL 1480A certification (Standard for Speakers for Commercial and Professional Use) and UL 2043 (Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air-Handling Spaces). In practical terms, UL 2043 is required for speakers installed above suspended ceilings where the plenum space is used as an air return — which describes the majority of commercial building ceilings. Without this rating, a speaker cannot legally be installed in those spaces in jurisdictions that follow the National Electrical Code (NFPA 70) and NFPA 90A. Specifying a UL 2043-rated speaker removes a common compliance obstacle on commercial jobs and is often a contractual requirement on institutional and hospitality projects.

Wide 120° Coverage in a Compact 5.25" Format

The PC50W delivers 120-degree conical coverage — the widest dispersion of any speaker in Origin's Professional In-Ceiling line. This characteristic makes it particularly suitable for lower ceiling heights or applications requiring fewer speakers to cover a given floor area, such as open-plan offices, café seating areas, or hotel corridors. With a maximum SPL of 106dB and 89dB sensitivity at 1m, it handles moderate ambient environments comfortably without running the amplifier hard. The ported enclosure pushes usable bass extension down to 54Hz (-10dB), which is notably deep for a 5.25" driver, reducing the need for supplemental subwoofer coverage in background music applications.
