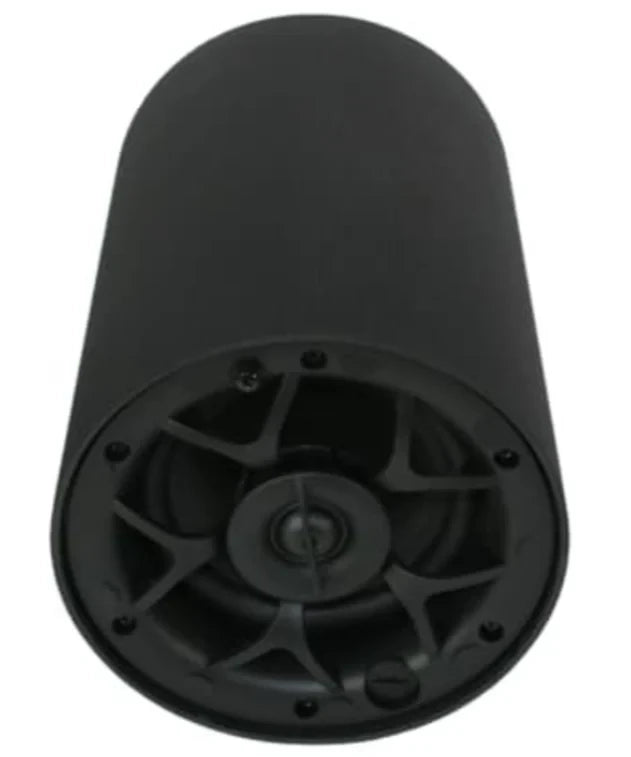

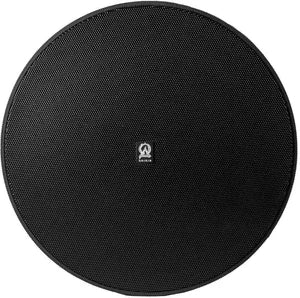

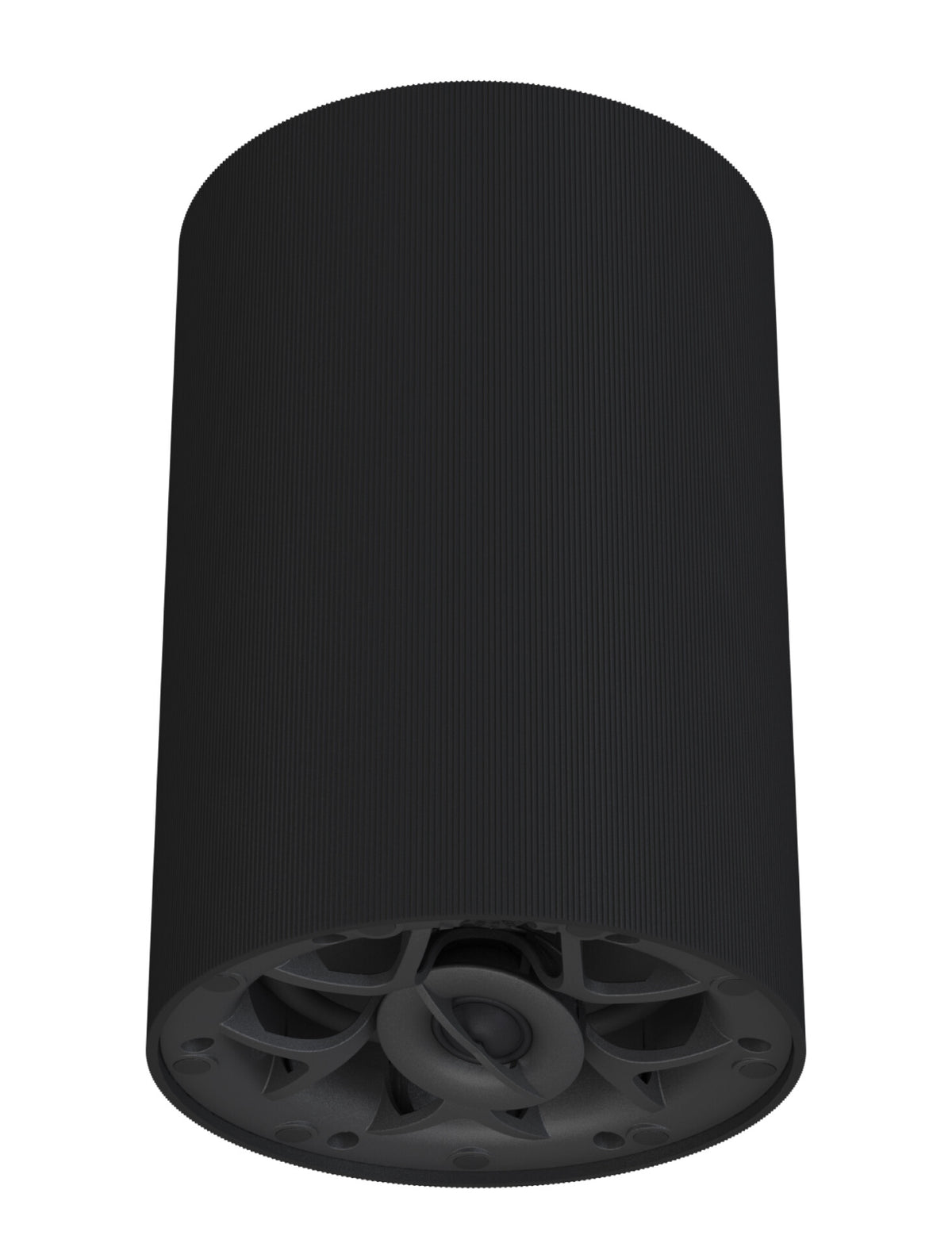

Origin Acoustics PP50B

The Origin Acoustics PP50B is a professional-grade pendant loudspeaker designed for commercial audio installations in restaurants, retail spaces, houses of worship, hospitality venues, and corporate environments. Part of the Origin Acoustics Professional Collection, it delivers audiophile-quality sound in a sleek, ultra-modern enclosure. With its built-in 70/100V transformer, it integrates seamlessly into distributed audio systems while providing rich, deep bass through a rear-facing 5" tuned passive radiator. The pivoting silk DSPD tweeter and 120° conical coverage ensure every corner of a space is evenly filled with clear, detailed sound — making it an ideal choice for installers who refuse to compromise on performance in commercial settings.

Rear Passive Radiator for Powerful Bass

The PP50B uses a rear-facing 5" tuned passive radiator alongside the primary 5.25" polypropylene woofer. This design effectively doubles the acoustic cabinet volume for low-frequency reproduction without increasing the physical enclosure size. The result is deep, full bass that would typically require a much larger speaker — a critical advantage in commercial spaces where a compact pendant form factor is required but thin, tinny sound is not acceptable. End users in restaurants, hotels, or retail settings benefit from music that genuinely fills the room rather than simply covering it with midrange frequencies.

Pivoting DSPD Tweeter for Precise Dispersion

The 1" Silk Dual Plane Stabilized Diaphragm (DSPD) tweeter is mounted on Origin's patented Multi-Motion Pivoting (MMP) system, enabling it to be independently aimed after installation. With a 120° conical coverage angle, it provides wide and even high-frequency dispersion — but the ability to physically pivot the tweeter means the installer can fine-tune aiming toward key listening zones after the speaker body is in its fixed pendant position. In practice, this eliminates the hot spots and dead zones that fixed tweeters create in asymmetric commercial spaces, giving the end user consistent, detailed sound across the whole listening area without equalisation workarounds.

Big bass. Wide coverage. Zero compromise on install.

UL 1480A certified · Gripple suspension kit included

Front-Accessible 70-100V Transformer with Multiple Taps

The PP50B integrates a premium, nearly transparent 70V/100V transformer directly into the enclosure, with the tap switch accessible from the front of the speaker without disassembly. Taps are available at 30W, 15W, 7.5W, and 3.75W on 70V, and 30W, 15W, and 7.5W on 100V. This flexibility allows a single amplifier to drive many speakers across long cable runs — a standard requirement in commercial distributed audio design — while letting the installer set each speaker's individual volume contribution at the tap level. The front-access design means tap adjustments can be made after final installation, removing the need to drop or open the speaker during commissioning or future system tuning.

Gripple Suspension Kit Included

Each PP50B ships with an industry-standard Gripple cable suspension kit, which meets the UL 2239 standard for hardware supporting conduit, tubing, and cable. Gripple systems use a locking wire-rope mechanism that makes height adjustment fast and tool-free — the cable slides in one direction and self-locks, allowing the installer to set the pendant height accurately without additional hardware or custom rigging. This reduces installation time significantly compared to systems requiring fixed rod lengths or custom brackets, and the recessed suspension point on the enclosure keeps the suspension hardware visually clean against the pendant body.

UL 1480A Certified for Commercial and Safety Use

The PP50B carries UL 1480A certification, covering both standard commercial speaker use and speakers in fire-protective signaling systems. This certification is a hard requirement in many jurisdictions for any speaker installed in a commercial building where the audio system may be part of the emergency notification infrastructure. For installers, specifying a UL 1480A-listed speaker removes regulatory uncertainty and simplifies project sign-off with building inspectors and fire marshals. End users benefit from knowing their audio system meets verified safety standards — an assurance that carries weight in corporate, hospitality, and public-venue environments.
