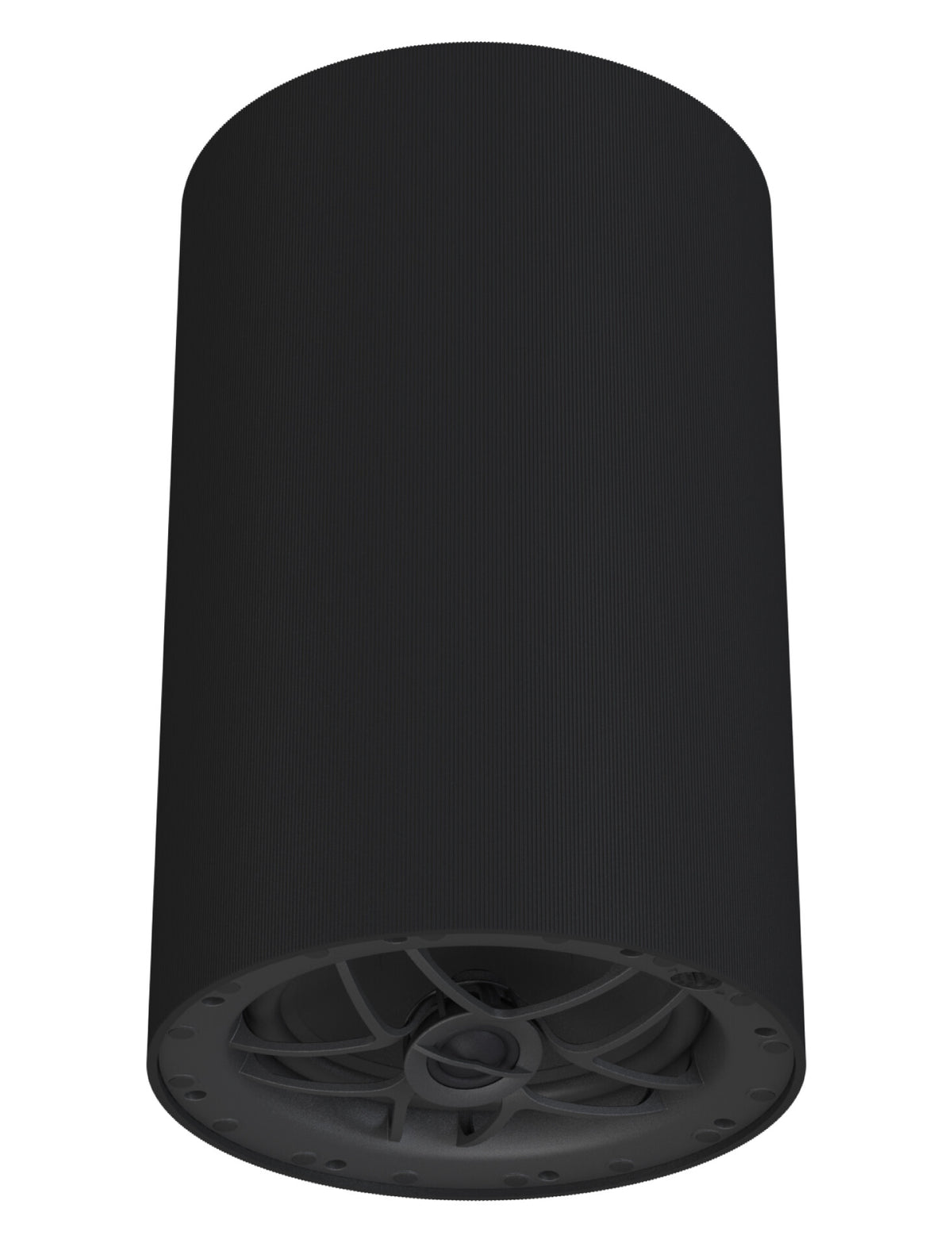

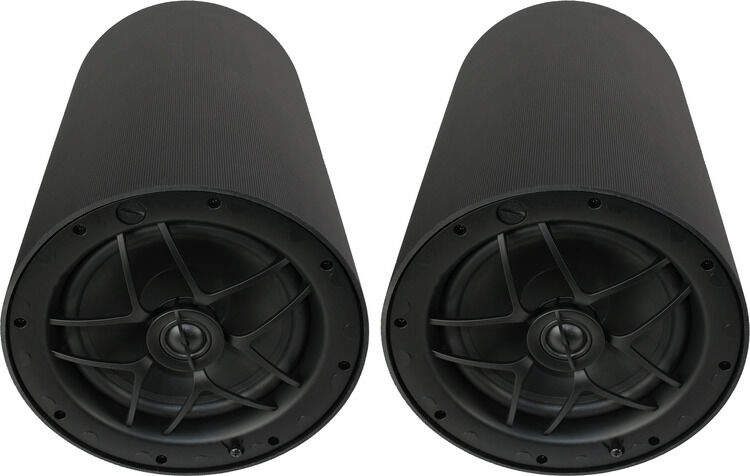

Origin Acoustics PP80B

The Origin Acoustics PP80B is a commercial-grade pendant loudspeaker from the Professional Collection, designed for integrators who demand audiophile-quality sound in large commercial environments — restaurants, retail, hospitality venues, houses of worship, and corporate spaces. Built around an 8-inch polypropylene woofer paired with a 1-inch Silk DSPD Multi-Motion Pivoting tweeter, the PP80B delivers 200 watts of program power and an impressive 110 dB maximum SPL. Its unique rear-facing tuned passive radiator virtually doubles the perceived cabinet size for surprisingly deep low-end reproduction. Compatible with 70V and 100V distributed audio systems, it ships with the industry-standard Gripple suspension kit for fast, secure ceiling installation and is UL 1480A certified for commercial use.

Rear Passive Radiator for Deep Commercial Bass

The PP80B houses an 8-inch rear-facing tuned passive radiator alongside its main 8-inch woofer — a design that acoustically simulates a cabinet roughly twice the physical volume. In practical terms, the speaker reproduces low frequencies down to 42Hz (-10dB), a level of bass extension that is genuinely surprising for a pendant enclosure of its size. For commercial environments like restaurants, bars, or retail spaces where full-range intelligibility matters and subwoofers are not always practical, this built-in low-end reinforcement means every zone sounds rich and complete without additional hardware. Listeners experience natural, full-bodied music rather than the thin, mid-heavy sound that plagues many pendant systems.

DSPD Multi-Motion Pivoting Tweeter

Origin Acoustics' patented Dual Plane Stabilized Diaphragm (DSPD) tweeter is mounted on a Multi-Motion Pivoting (MMP) mechanism, allowing the high-frequency driver to be aimed independently of the cabinet hang point. This is particularly valuable in pendant installations where the speaker must hang vertically from the ceiling but the listening area is offset — a common scenario in open-plan offices, galleries, and atrium spaces. The 110-degree conical coverage angle combined with the ability to redirect the tweeter ensures even HF distribution across the room without requiring repositioning of the entire fixture. The silk dome construction delivers smooth, fatigue-free treble that maintains intelligibility for both music and speech reproduction.

Big bass. Slim pendant. Built for commercial installs.

UL 1480A certified · Available in black (PP80B) or white (PP80W)

Flexible 70V-100V Multi-Tap Transformer

The PP80B's front-mounted rotary switch gives on-site access to four 70V wattage taps (60W, 30W, 15W, 7.5W) and three 100V taps (60W, 30W, 15W), plus a direct 8-ohm bypass. This flexibility is essential for distributed audio system design: lower tap settings reduce loading on the amplifier when many speakers share a single zone, while higher taps deliver greater volume in noisier environments. Being front-accessible means the tap can be adjusted after installation without removing the speaker from its suspension — a real time-saver during commissioning or when system requirements change post-install. The premium transformer is engineered for near-transparent audio performance, preserving the full-fidelity sound at any tap setting.

Gripple Suspension System Included

Every PP80B ships with a complete Gripple cable suspension kit: two Gripple rope grips, a release key, a stainless steel hanging cable, a stainless steel safety cable, cable ties, and a grille removal key. Gripple is the industry-standard tool-free cable tensioning system widely specified by architects and AV integrators alike, allowing the pendant height to be set and adjusted quickly without crimping tools or ladder time. The safety cable independently secures the enclosure to structure — a code requirement in many jurisdictions and a reassurance in high-traffic or public venues. Having the complete kit in the box means installers arrive on site ready to hang, with no additional procurement needed.

UL 1480A Certified for Commercial Environments

The PP80B carries UL 1480A certification — the standard for speakers used in commercial and fire protective signaling applications — as well as CSA-C22.2 No.205 certification for Canadian installations. For integrators specifying audio in commercial buildings, these certifications are often a hard requirement from the building owner, fire marshal, or local code authority. Specifying a UL-listed speaker removes a common project risk: the system passes inspection without compromise, and the integrator is protected from liability related to non-compliant equipment. The PP80B thus fits into compliant 70V paging and background music systems in offices, retail chains, schools, and healthcare facilities.
