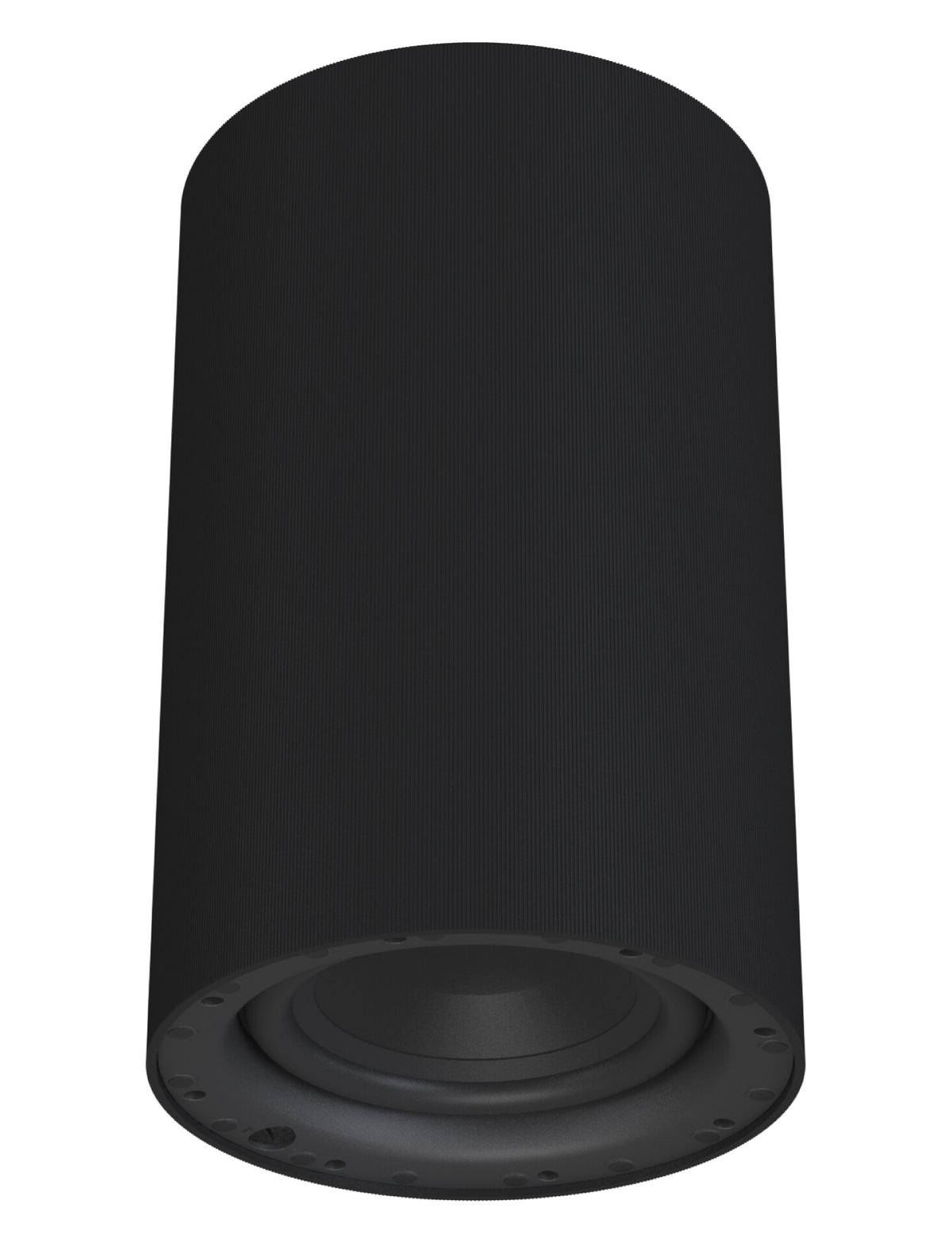

Origin Acoustics PPSUB8

The Origin Acoustics PPSUB8 is a commercial-grade pendant subwoofer designed for professional audio installations in restaurants, retail spaces, corporate environments, and other commercial venues where deep, well-controlled low-frequency reinforcement is required. Housed in a sleek cylindrical pendant enclosure available in black or white, it integrates seamlessly into the full Professional Collection Pendant system, sharing the same premium transformers and sonic character as the PP50, PP60, and PP80 full-range models. Available in black (PPSUB8B) or white (PPSUB8W), it supports both 70V-100V distributed audio and 8-ohm direct drive, making it adaptable to virtually any commercial audio infrastructure.

Rear Passive Radiator Extends Deep Bass

The PPSUB8 uses a rear-facing 8-inch tuned passive radiator — a diaphragm that reacts to changing air pressure inside the sealed enclosure rather than being driven directly by an amplifier. In practice this effectively doubles the acoustic cabinet volume, pushing the usable frequency response down to 40Hz (-10dB) and 55Hz (-3dB) from a physically compact pendant body. For venues like restaurants, hotel lobbies, or retail stores where ceiling-mounted hardware must be visually unobtrusive, this means genuine sub-bass presence without the need for a large floor-standing enclosure. Low-end that is felt as much as heard — contributing to atmosphere and immersion — becomes achievable within a standard suspended pendant install.

Flexible 70V-100V and 8-Ohm Operation

A front-mounted tap switch lets installers select between 70V distributed audio (taps: 120W, 60W, 30W, 15W), 100V distributed (taps: 120W, 60W, 30W), or 8-ohm direct drive — all from the same unit. This means the PPSUB8 can be wired directly into an existing 70V or 100V commercial amp rack alongside other Professional Collection pendants or surface monitors, with no additional hardware or impedance matching required. It also supports direct 8-ohm connection for smaller system configurations or zone amplifiers. The flexibility removes a common specification barrier on mixed or legacy commercial audio systems, and means the same SKU can be specified confidently across a wide variety of project types.

Full-range bass. Pendant form. Commercial-ready.

UL 1480A certified · CSA-C22.2 No.205 certified · CE marked

Uniform 180° Conical Bass Coverage

The PPSUB8's nominal coverage angle is 180 degrees conical — meaning bass energy radiates symmetrically in all downward directions from the pendant. This is a meaningful spec for commercial installs: unlike a directional speaker that must be aimed, a single PPSUB8 hung centrally above a dining zone or retail floor delivers consistent low-frequency support across the entire area beneath it without creating hot spots or dead zones. Sensitivity is rated at 90dB with a maximum SPL of 110dB at 1 metre, which is ample headroom for background music reinforcement even in moderately noisy commercial environments. Installers can calculate coverage zones with confidence and reduce the number of subwoofer units required per zone.

UL 1480A and CSA Certified for Commercial Use

The PPSUB8 holds UL 1480A certification (Standard for Speakers for Commercial and Professional Use) and meets CSA-C22.2 No.205 for use in Canada, as well as CE marking. These certifications matter at the specification stage of commercial projects: architects, building managers, and AHJs (authorities having jurisdiction) often require listed equipment before approving an audio installation. Having UL 1480A on the PPSUB8 means it can be specified into commercial projects — including institutional and industrial environments — alongside the rest of the Professional Collection without jeopardising overall system compliance. The included Gripple cable suspension kit also carries UL 2239 certification for safety hardware, covering the full mechanical install from amp to air.

Matches the Full Professional Collection Sonic Signature

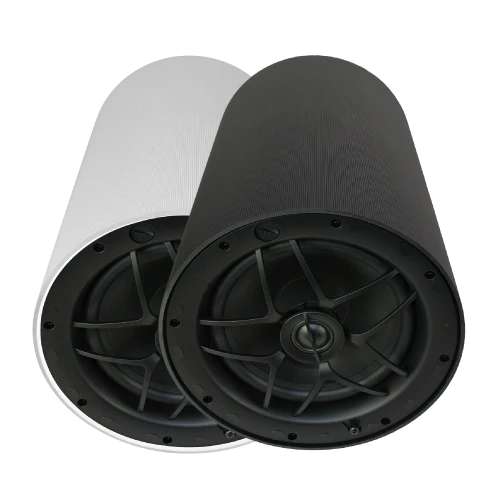

The PPSUB8 shares the same premium transformer technology as the rest of the Origin Professional Collection Pendant range (PP50, PP60, PP80). In distributed audio systems this matters: the transformer quality directly affects high-frequency fidelity and overall tonal balance. Because the PPSUB8 uses the same transformer grade, bass reinforcement blends naturally with adjacent full-range pendants rather than sounding like a bolted-on afterthought. For integrators designing multi-zone commercial systems, this guarantees a consistent sonic signature across different pendant types in the same venue — a genuine differentiator when specifying against lower-cost 70V subwoofer options that use commodity transformers.
