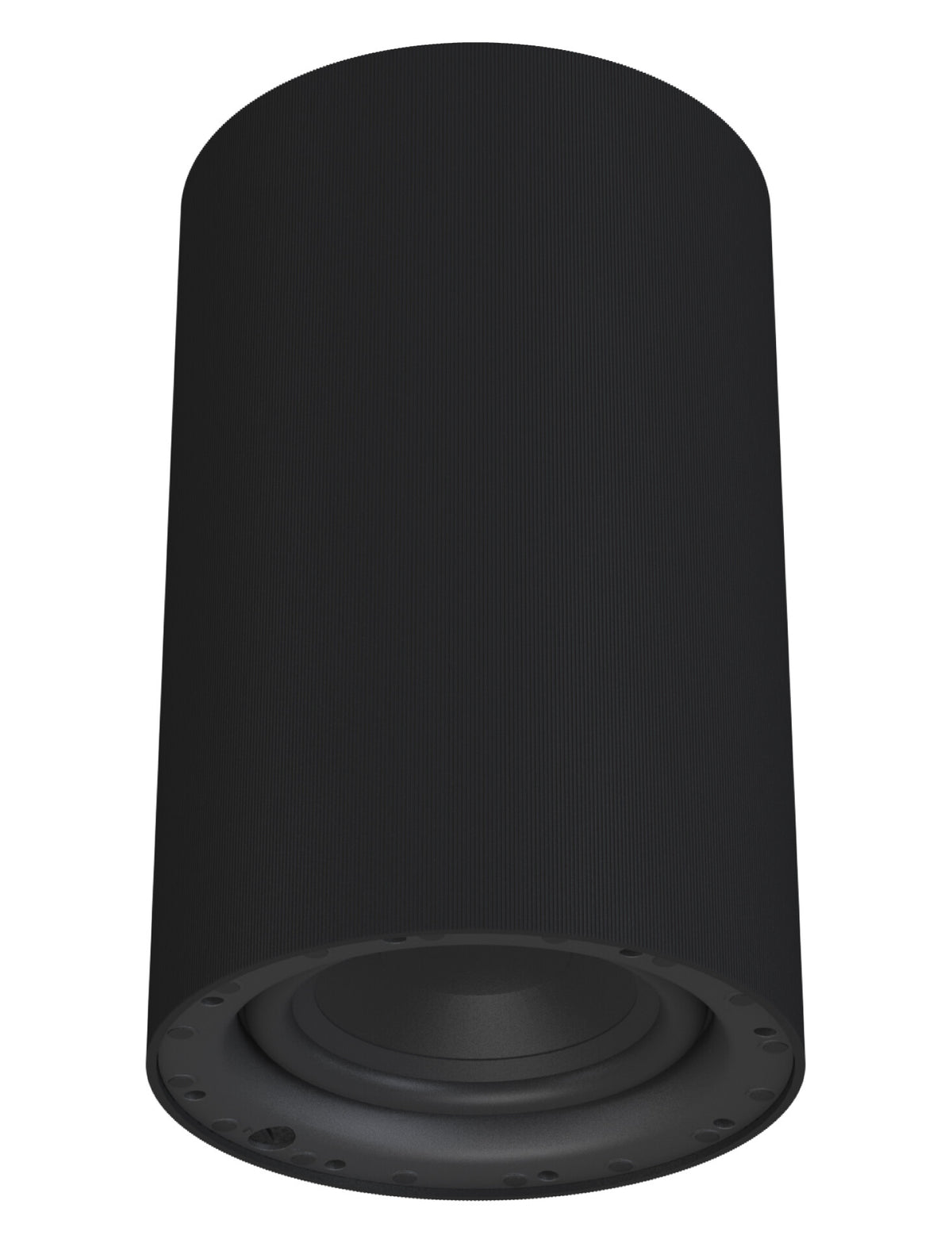

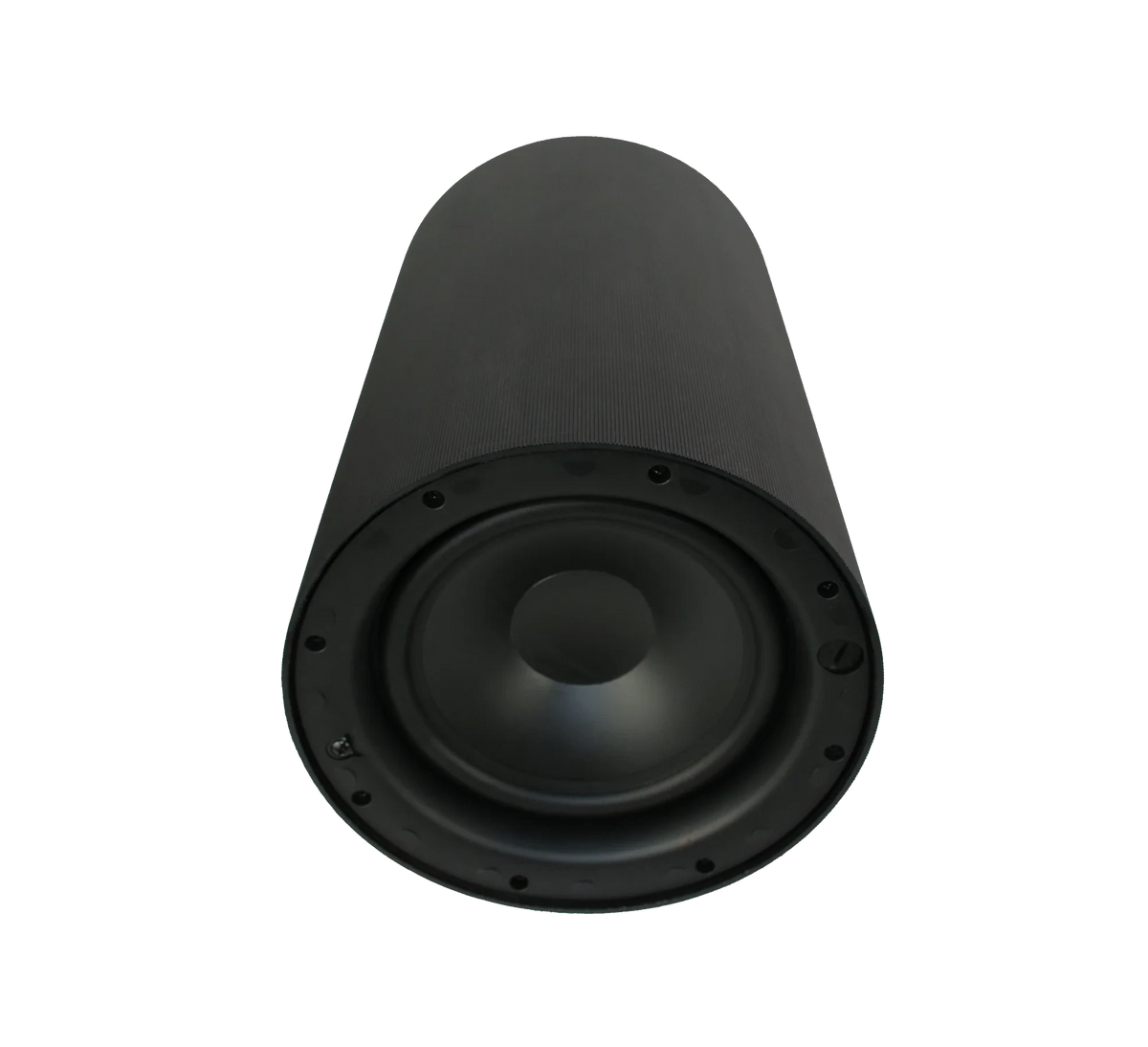

Origin Acoustics PPSUB8

The Origin Acoustics PPSUB8 is a professional-grade pendant subwoofer designed for demanding commercial and resimercial audio installations — restaurants, hotels, fitness centres, retail spaces, and houses of worship. Its ultra-modern cylindrical enclosure houses an 8" polypropylene woofer and a rear-facing 8" passive radiator that effectively doubles the acoustic cabinet volume, delivering authoritative low-end impact from a visually discreet pendant form. With a front-mounted 70V/100V tap switch and premium transformer, the PPSUB8 integrates cleanly into existing distributed audio systems. It ships in both black and white textured finishes, is UL 1480A and CSA certified, and is engineered for long-term reliability in professional environments.

Rear Passive Radiator Doubles Bass Output

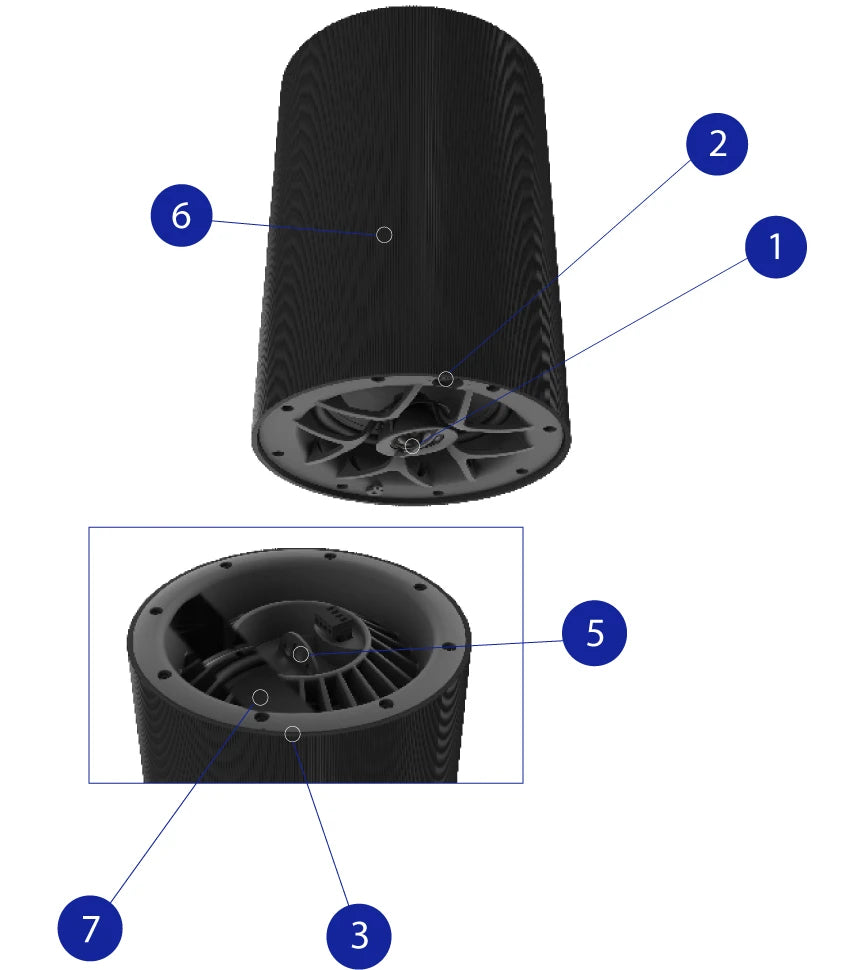

The PPSUB8 uses a rear-facing 8" tuned passive radiator alongside the active 8" polypropylene woofer. A passive radiator reacts to changing air pressure inside the enclosure, effectively doubling the cabinet's acoustic volume without increasing its physical size. In practice, this means a compact pendant that hangs unobtrusively from the ceiling can still produce the low-end extension and punch typically associated with much larger enclosures. For a restaurant, gym, or retail space where ceiling aesthetics matter, this translates into real bass impact — 40 Hz at -10 dB — without the need to hide a bulky box elsewhere.

70V-100V Transformer for Distributed Systems

The front-mounted tap switch gives the installer precise control over drive level within a 70V or 100V distributed audio system: four taps on 70V (120W, 60W, 30W, 15W) and three on 100V (120W, 60W, 30W). Using a premium nearly transparent transformer, Origin ensures that constant-voltage distribution does not colour or compress the audio — a real differentiator for projects where audio fidelity matters alongside convenience. For integrators, the front-accessible switch means tap adjustments are fast and do not require removing the unit. This makes the PPSUB8 straightforward to balance across large zones with multiple subwoofer and full-range pendant combinations from the same Professional Collection.

Bold bass. Slim pendant. Zero compromise on coverage.

UL 1480A · CSA-C22.2 No.205 · CE certified · Gripple suspension kit included

180° Conical Coverage for Even Low-Frequency Fill

With a rated nominal coverage angle of 180 degrees conical, the PPSUB8 radiates bass outward and downward in a wide hemisphere. Unlike directional full-range speakers that require precise aiming, a subwoofer with this coverage angle requires far less positioning precision — one unit can anchor the low end for a large open-plan area without creating dead spots or hot zones. At 90 dB sensitivity and 110 dB maximum SPL, the PPSUB8 can reach meaningful output levels at moderate amplifier drive, which also contributes to long-term driver reliability in 24-hour commercial environments such as hotel lobbies or fitness clubs.

Industry-Standard Gripple Suspension Included

The PPSUB8 ships with an industry-standard Gripple cable suspension kit, rated to UL 2239. Gripple is the go-to pendant suspension hardware in commercial audio and lighting installations — installers recognise it, trust it, and know how to adjust it quickly. The recessed suspension point on the enclosure keeps the cable entry tidy. For projects subject to seismic code requirements or for venues where suspension security is scrutinised (arenas, transportation hubs), having a certified, familiar suspension system removes a common compliance hurdle and speeds up sign-off.

UL 1480A Certified for Commercial Use

The PPSUB8 carries UL 1480A certification — the North American standard for speakers intended for commercial and professional audio systems, including non-emergency voice-warning systems. It also meets CSA-C22.2 No.205 for Canadian projects and CE marking for European markets. For integrators working on projects that require permit documentation, AHJ (authority having jurisdiction) approval, or insurance-grade installations, this certification removes uncertainty. It confirms the product has been independently tested for electrical safety, fire, and shock hazard compliance — a prerequisite on many commercial fit-outs that consumer or semi-pro speakers simply cannot satisfy.
