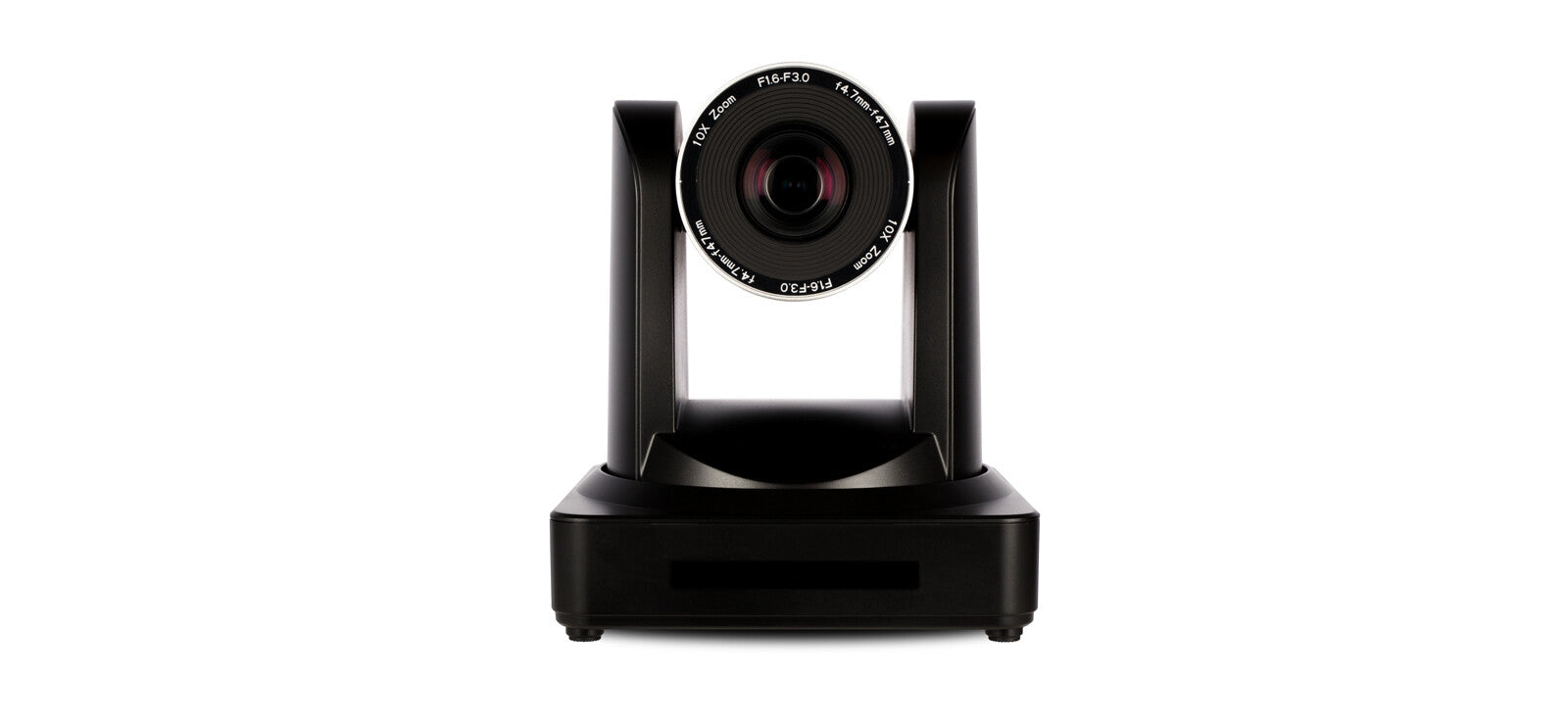

Atlona AT-HDVS-CAM

Atlona AT-HDVS-CAM

1/2.8” HD CMOS, 2.07 MP, F1.6 – F3.0, 1/2.8” HD CMOS, 1080p

  • Designed for soft codec applications with AV systems supporting USB interfacing and extension
  • USB 2.0 interface for video and camera control
  • Universal PC compatibility through standard UVC (USB Video Class) driver
  • High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
  • Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
  • Available in black or white
  • SKU:846352005351
  • GTIN/EAN:846352005351
  • MPN:AT-HDVS-CAM

You need to login to view the price.

View full details

Atlona AT-HDVS-CAM. Megapixel (approx.): 2.07 MP, Sensor type: CMOS. HD type: HD, Maximum video resolution: 1024 x 768 pixels, Supported video modes: 720p, 1080p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 60.9°, Optical zoom: 10x. Product colour: Black

2.0 interface for video and camera control. The HDVS-CAM seamlessly integrates with the Omega™ Series and OmniStream™ for a complete, automated conferencing system that includes AV and USB extension. The HDVS-CAM delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 30 Hz, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms. The HDVS-CAM is available in black or white.

The HDVS-CAM is part of a family of PTZ cameras that includes the HDVS-CAM-HDBT with HDBaseT output, as well as the HDVS-CAM-HDMI, with HDMI output plus USB 2.0 interface. It includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation. Available as an option is the AT-HDVS-CAM-CMNT for inverted ceiling mounting.

Camera
PTZ control
Yes
Auto focusing (AF) modes
Auto, Manual
Aperture range (F-F)
1.6 - 3
Signal-to-Noise Ratio (SNR)
55 dB
Field of view (FOV) angle
60.9°
Focal length range
4.7 - 47 mm
Optical zoom
10x
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Sensor type
CMOS
Megapixel (approx.)
2.07 MP
Video
Supported graphics resolutions
176 x 144, 320 x 180, 320 x 240, 352 x 288, 640 x 360, 640 x 640, 720 x 576, 800 x 600 (SVGA), 960 x 540, 1024 x 576 (WSVGA), 1024 x 768 (XGA)
Supported video modes
720p, 1080p
HD type
HD
Maximum frame rate
30 fps
Maximum video resolution
1024 x 768 pixels
Design
Pan speed (max)
180 °/sec
Tilt speed (max)
80 °/sec
LED indicators
Power
Pan range
-170 - 170°
Tilt angle range
-30 - 90°
Product colour
Black

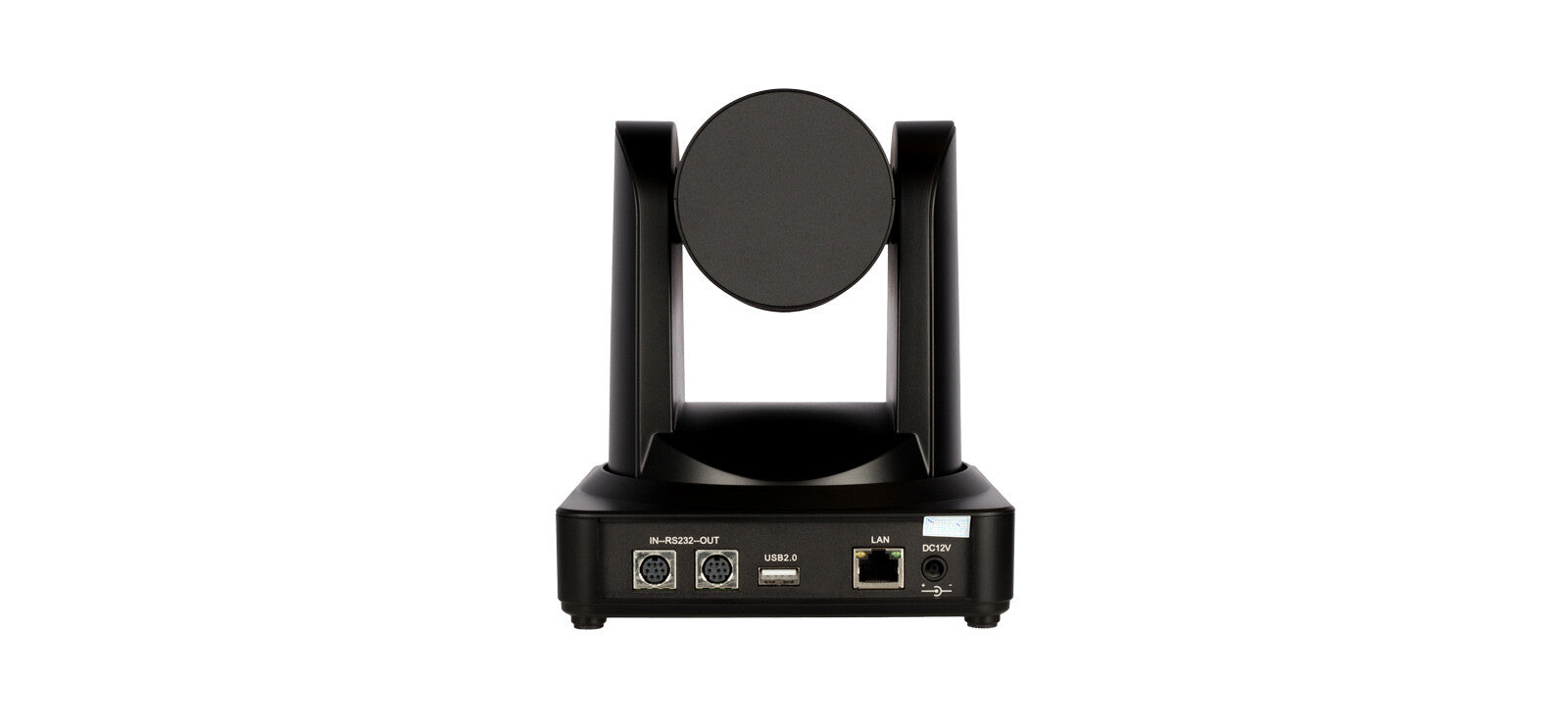

Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
USB 2.0 ports quantity
1
Power
Power consumption (typical)
12 W
Input current
1 A
DC input voltage
12 V
Power source type
AC
Operational conditions
Storage relative humidity (H-H)
20 - 95%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-10 - 60 °C
Operating temperature (T-T)
-10 - 50 °C
Technical details
Harmonized System (HS) code
85258900
Network
Supported protocols
VISCAPelco-DPelco-P
Performance
Certification
CE, FCC
Packaging content
AC adapter included
Yes
Weight & dimensions
Weight
1.4 kg
Height
167.5 mm
Depth
150 mm
Width
150 mm
