Atlona AT-HDVS-CAM

Atlona AT-HDVS-CAM

2.07 MP, 1/2.8", CMOS, 10x, F1.6 - F3.0,12 W, 110 - 220 V, 50 / 60 Hz, 12 V DC, 1 A, 150 x 150 x 167.5 mm, 1.4 kg, White

  • Designed for soft codec applications with AV systems supporting USB interfacing and extension
  • USB 2.0 interface for video
  • Universal PC compatibility through standard UVC (USB Video Class) driver
  • High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
  • Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
  • Available in black or white
  • SKU:846352006228
  • GTIN/EAN:846352006228
  • MPN:AT-HDVS-CAM-W

You need to login to view the price.

View full details

Atlona AT-HDVS-CAM. Megapixel (approx.): 2.07 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080p, Maximum frame rate: 30 fps. Optical zoom: 10x. Product colour: White

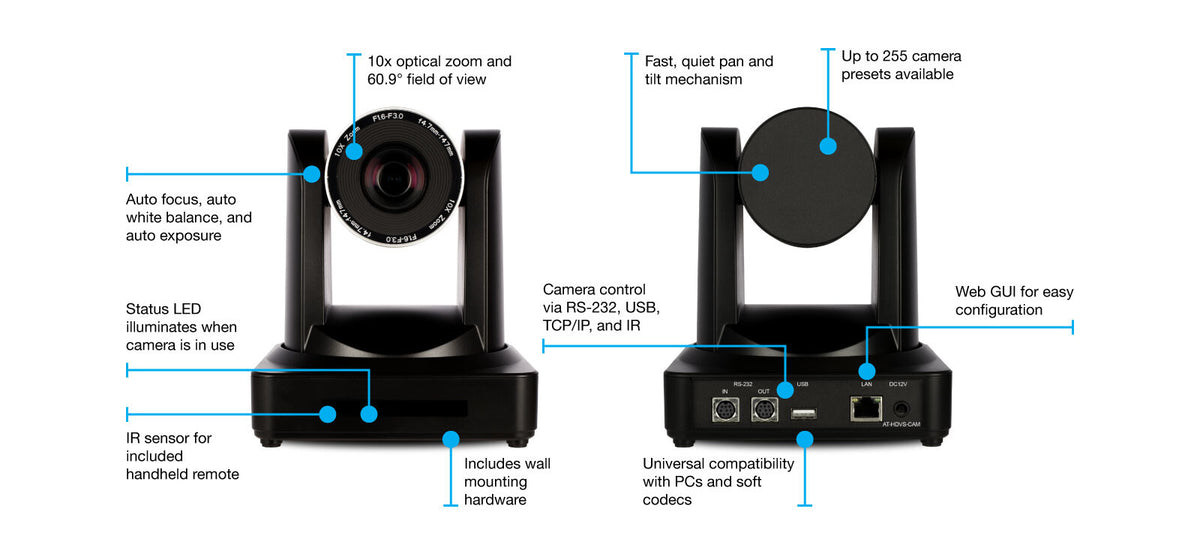

The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance learning. It features a USB 2.0 interface for video and camera control. The HDVS-CAM seamlessly integrates with the Omega™ Series, HDVS-300 System, and OmniStream™ for a complete, automated conferencing system that includes AV and USB extension. The HDVS-CAM delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 30 Hz, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms. The HDVS-CAM is available in black or white.

The HDVS-CAM is part of a family of PTZ cameras that includes the HDVS-CAM-HDBT with HDBaseT output, as well as the HDVS-CAM-HDMI, with HDMI output plus USB 2.0 interface. It includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation. Available as an option is the AT-HDVS-CAM-CMNT for inverted ceiling mounting.

- Meeting spaces and conference rooms – The HDVS-CAM works together with the USB extension capability of an Omega Series or OmniStream system to enable simple, clean connectivity from the front wall to PCs at the meeting table. The camera is universally compatible with any PC using the standard USB video driver.
- Classrooms and other instructional spaces – The HDVS-CAM is ideal for distance learning and collaboration, as well as recording lectures.

10 years for electronic circuit and optics; 3 years for PTZ motor

Camera
Megapixel (approx.)
2.07 MP
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Optical zoom
10x
Focal length range
4.7 - 47 mm
Wide end viewing angle (normal mode)
60.9°
Tele end viewing angle (normal mode)
6.43°
Minimum illumination
0.5 lx
Signal-to-Noise Ratio (SNR)
55 dB
Aperture range (F-F)
1.3 - 3
Focus adjustment
Auto/Manual
PTZ control
Yes
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
30 fps
HD type
Full HD
Supported video modes
720p, 1080p
Supported graphics resolutions
176 x 144, 320 x 180, 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 720 x 576, 800 x 600 (SVGA), 960 x 540, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Design
Product colour
White
Tilt angle range
-30 - 90°
Pan range
-170 - 170°
Tilt speed (min)
0.1 °/sec
Tilt speed (max)
80 °/sec
Pan speed (min)
0.1 °/sec
Pan speed (max)
180 °/sec
Ports & interfaces
USB 2.0 ports quantity
1
RS-232 input ports
1
RS-232 output ports
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Power
Power source type
AC
DC input voltage
12 V
Input current
1 A
Power consumption (typical)
12 W
Operational conditions
Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 95%
Network
Supported protocols
VISCA, Pelco-D, Pelco-P
Packaging content
AC adapter included
Yes
Technical details
Harmonized System (HS) code
85258900
Performance
Certification
CE, FCC
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
167.5 mm
Weight
1.4 kg
